35 ton / 5 Ton Electric Hoist Trolley 2 Hooks for Bangladesh

Electric hoist trolley with 35 ton electric hoist as main hook & 5 ton hoist as auxiliary hook for sale Bangladesh. Check 35 ton /5 ton hoist trolley now.

Overview of electric hoist trolley for Bangladesh

• Country:Bangladesh
• Date:2020-11-05
• Hoist type: 35t/5t electric wire rope hoist & trolley frame
• Qty:1

Background of 35 ton /5 ton electric hoist inquiry

We received an inquiry for a 35t/5t electric wire rope hoist in March from a client in Bangladesh who owned their own crane workshop. They find it difficult to produce such heavy duty electric hoists themselves, so they look to suppliers like us in China for an affordable electric hoist solution

Lifting requirements and electric hoist specification.

This customer required a trolley with two hoists: a 35 ton main hook and a 5-ton auxiliary hook. We created the hoists and trolley frame that were best suited for our client's workshop by using information provided, and the main specs are as follows for your reference:

• Model: LH/35/5
• Capacity: 35/5T
• Lifting height: Main hook: 24m. Aux. hook: 24m
• Lift Speed main hook: 1.2m/min, Aux. hook: 0.8/8m/min
• Travel Speed: 10m/min
• Power Source:380V, 50HZ, 3AC

The 35 ton/ 5 ton electric wire rope hoist may be effectively installed on the overhead crane using our trolley and their crane frame thanks to the bespoke design.

Why to select our 35 ton / 5 ton hoist?

Despite the fact that we weren't the only crane supplier to our client and that several of them offered products at inexpensive prices, we were ultimately chosen not for our low prices but rather for the most expertly made products on the market.

We provided an overload protector, hook upper and lower limit switches, and other safety protection devices as needed. There was also the electrical box. With the frequency converter model information we gave, our client could troubleshoot on his own.

Electric wire rope hoist production & delivery

When the order was finalized on August 21st, we had a challenge because our plant's production schedule was quite full as a result of production orders gathered during the epidemic lockdown, and we needed to put in extra hours to make sure the electric hoist would be delivery on time.

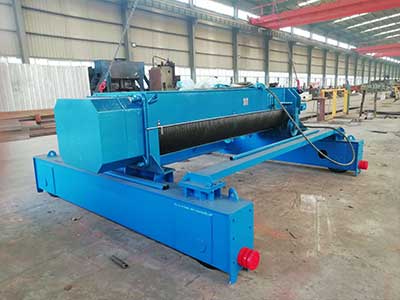

35 ton /5 ton electric hoist trolley for double girder cranes for sale Bangladesh

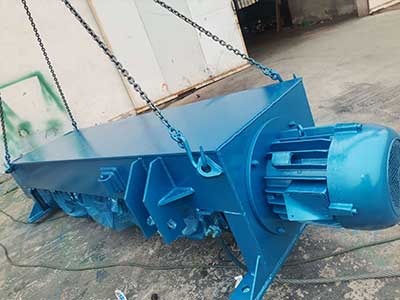

35 ton electric wire rope hoist for Bangladesh project

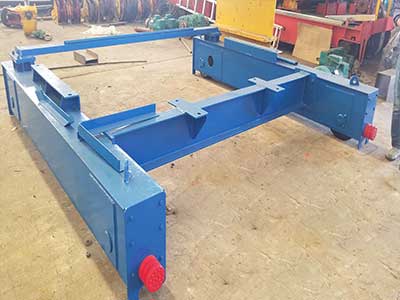

Trolley frame for 35 ton /5 ton hoist trolley

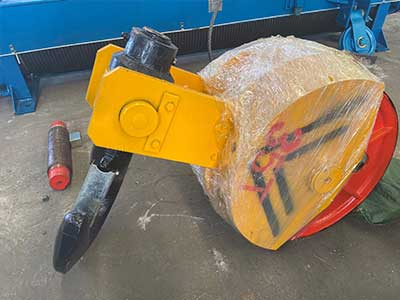

Electric hoist hook 35 ton

We are lucky to have a team of productive and diligent employees that helped to speed up the manufacturing schedule and enable us to dispatch the cargoes in early October. The 35t/5t electric wire rope hoist was primarily separated into 4 components. After dismantling, the trolley frame was wrapped in tarp, the electrical box in plastic film, and the 35t and 5t hoists were each stored individually in two wooden boxes.

 Electric hoist and parts for delivery

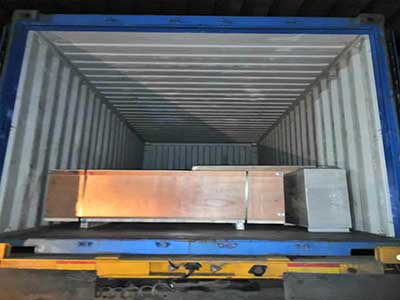

Hoist trolley for delivery to Bangladesh

Currently, the 35 ton /5 ton electric hoist have been safely delivered to our client,, who was vary satisfied with our electric wire rope hoist.

Related:

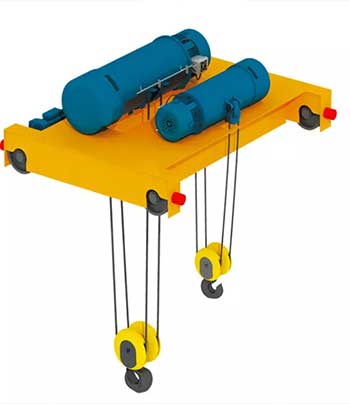

Electric Wire Rope Hoist Trolley for Double Girder Cranes

The  electric wire rope hoist trolley is designed for double girder cranes, including the double girder gantry cranes & double girder overhead cranes as the lifting system, for heavier loads handling. The main lifting capacity of the double girder electric hoist trolley is  3t, 5t, 10t, 15t, 20t, 32t, up to 63 ton.

The electric hoist trolley are mainly composed of fixed electric hoist, trolley, motor, brake, buffer, wheel, etc.

Main specifications of electric hoist trolley with main hook & auxiliary hook

• Lift capacity： 1-63 ton
• Lifting height： 6-30M
• Work duty： M3-M4
• Electrical parts： CHINT or Schneider
• Motors： Chinese Nanjing brand ， or your requested brand
• Hook Forged hook with safety lock
• Lifting speed： 0-8M/Min
• Cross travelling speed： 0-20M/Min
• Variable frequency drives Optional

Customized electric wire rope hoist are avaible, Please feel free to contact us.

Get your custom electric hoist & hoist trolley

So for foreign crane manufacturers who are in need of certain hoisting equipment, you are welcome to inquire for any products like trolleys with hoists for overhead cranes or gantry cranes. You just need to provide a few details such as:

• Lifting capacity.
• Lifting height.
• Rail gauge.
• Power supply.
• Lifting speed requirements.
• Traveling speed requirement.
• And here we share some product and delivery pictures with you, please check as below.
