Overview of 10 ton gantry crane project

Crane type： single beam gantry crane, with cd type electric wire rope hoist
Crane specifications: 10 ton -9 m span - 5.32 m lifting height
Crane control: remote control gantry crane
Country: Qatar

Background of 10 ton gantry crane for Qatar

The client is from a comprehensive company in Qatar that specializes in producing large customized castings, mill liners, grinding media, and other wear solutions for the mining, construction, and industry sectors around the world.

With the company's continued development, the major expansion of production capacity and expansion into export markets necessitates meticulous planning of the production and logistical operations in the existing plants.

Single girder gantry crane solution to meet Qatar client’s needs

A 10 ton single girder gantry crane with a 9-meter span and a 5.32-meter lifting height was ordered by a client from Qatar in December 2022 from Yuantai Crane. This 10 ton crane is used to lift the wearing parts of mining equipment. And the designing drawing of the 10 ton single beam gantry crane are as following for your reference.

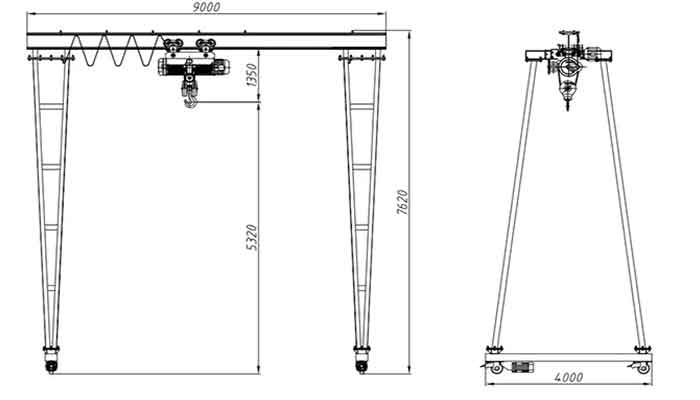

10 ton gantry crane drawing customized for Qatar client for your reference

Main specifications of 10 ton single girder gantry crane

The main parameters of 10 ton gantry crane for Qatar project are presented for your reference. If you need 10 ton crane design and specific gantry crane price for your application and project, please feel free to contact us.

Type: MH Single Girder Gantry Crane
Lifting capacity: 10 ton
Span: 9m
Lifting height: 5.32m
Lifting speed: 7m/min
Hoist traveling speed: 20m/min
Crane traveling speed: 6m/min
Power supply: 380V, 3 Phase, 60HZ
Control mode: Remote control
Application: For machinery parts hoisting at a construction material factory in Qatar.

Construction of 10 ton gantry crane

The manufacturing of the 10-ton gantry crane is already complete and prepared for sale to Qatar. The A-frame gantry structure (girder, leg, lower beam, etc.), electric wire rope hoist, crane operating mechanism, and electric control parts make up the single beam gantry crane. Hoisting, transverse, and longitudinal movement are all provided with windproof clamp rail safety devices as well as restricted switch protection or buffer devices. This lifting equipment's working duty is A3. And the 10 ton gantry crane is preferred to be operated by remote control by the Qatar client.

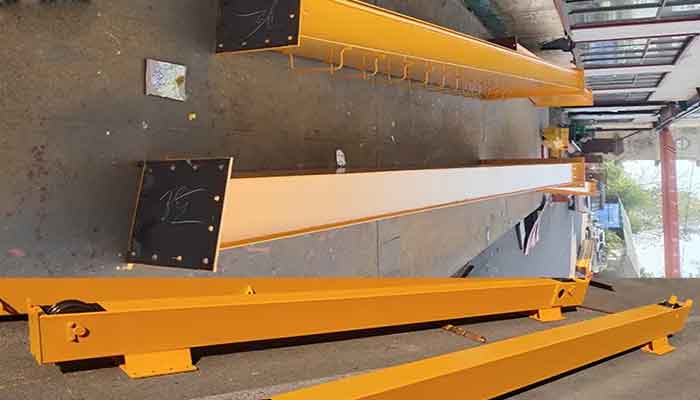

Supporting legs of gantry cranes 10 ton

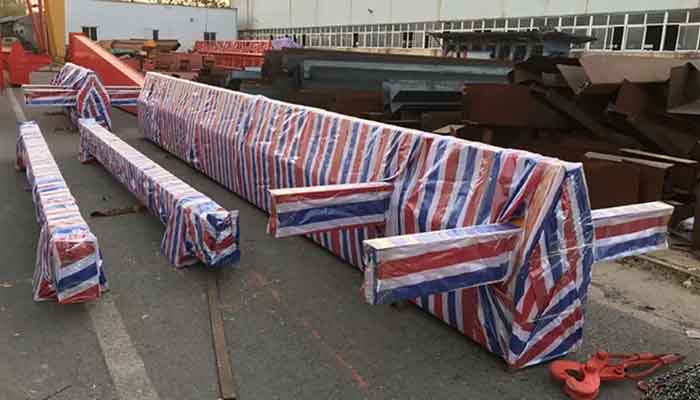

Main steel strucctures of gantry cranes 10 ton for delivery to Qatar

Why to buy crane from Yuantai Crane, a Chinese gantry crane manufacturer ?

Why purchase a crane from Chinese gantry crane manufacturer Yuantai Crane?

Gantry cranes, an effective lifting equipment, are most frequently employed in a variety of industries, including manufacturing, construction, shipbuilding, and railway, to help increase productivity. The 10-ton single-girder gantry crane offers various advantages to customers and is built to handle light-duty lifting tasks. Yuantai crane, with more than 34 years of expertise, will design for your applications.

High mobility -In contrast to an overhead crane, a gantry crane can be made mobile to facilitate transportation. It is possible to move the mobile type gantry crane to different workplaces, which is also a great solution for rental facilities.
Reliable Performance - The 10 ton gantry crane for Qatar has a stable performance and a long working life since it was constructed with a sturdy and appropriate structure.
Wide Range of Capacity from 1 ton -550 ton - Our gantry lifting system has a capacity range of several tons to hundreds of tons and can handle both tiny and big objects.
Custom Design -We provide custom gantry crane design that is specifically tailored to a customer's needs.
Extremely productive - A 10 ton single girder gantry crane's ability to swiftly and effectively lift and transfer huge loads makes it a cost-effective alternative to conventional lifting technologies.

How to get your customized gantry crane design ?

General speaking, the design of gantry crane is based on the actual lifting requirements and your particular application conditions that is the your crane operation environment.

Single or double gantry girder ?

It is advised to check with technology and procurement to see if a single beam gantry crane design can be used if the gantry crane's lifting capacity is too high.

Once the working circumstances are known, a single beam gantry crane is the design that is most frequently used.

Cantilever design : 1, 2 or no cantilever？

The location of the loads and the constrained range of the hoist hook's motion will have an impact on the design of the gantry crane's cantilever, which in turn will have a significant impact on the gantry crane's cost.

Lifting height： What is the height you loads need to be lifted up?

For general indoor use, be sure to clarify the customer's plant's total height and their load lifting height in advance as this will influence the gantry crane design and crane price.

If it is an outdoor gantry crane required, when the required lifting height is super large. It is necessary to confirm whether the lifting height contains the underground height with the final user in advance

Indoor gantry or outdoor gantry ?

It is necessary to confirm the operation environment of the gantry crane. It is for indoor use or for outdoor use. For outdoor use, it is better to find out as much as you can about the client's working circumstances, including whether, wind, wet, and temperature, etc.

We can create specialized explosion-proof gantry cranes for customers, etc., under certain circumstances.

Trucks with Fixed or Rotating Axle Ends

Due to their propensity to remain stationary, indoor cranes frequently employ fixed axle end trucks. It is possible for outdoor cranes to travel across yards where they may collect dirt and other material that will affect performance. Trucks with rotating axle ends have fewer parts and employ lubrication to keep out dirt and other debris.

Speed

Gantry cranes transport goods slowly, but they are adaptable, affordable, and simple to maintain. You might need to think about using a different kind of crane if speed is important to your operation. Moving a load more quickly than a gantry crane is capable of doing could result in an accident or damage to the cargo or other machinery.

Delivery of Power

The spring-loaded or motor-driven construction of cable reels makes them a popular option for power distribution because they can release and retrieve cable as needed. The drawback of mounting the cable reel on a swivel is that the cable will sag when lengthy lengths are being used, despite the capacity to function in many directions. For ground-level foot and vehicle traffic, this could be problematic. A set of poles and beams made specifically to keep wires off the ground could be one of the custom alternatives. A longer extension chord for portable gantry cranes might be adequate, or you could just move the crane closer to a power source.

10 ton single girder gantry crane for sale Qatar

Types of gantry crane for sale Qatar

A gantry crane is supported by its own legs rather than a beam or other fixture within the facility. Indoor gantry cranes can have one or more girders, with multiple girder models being better suited to heavy-duty work. There are four main types of gantry cranes, each with its own set of applications:

Full gantry crane design- Full gantry cranes, the most common type, have two legs that run along a track. Trucks, forklifts, and other vehicles can easily cross that track, which is usually embedded in the work surface.
Semi-gantry crane design -This gantry crane only has one leg. To save space, the crane's other side runs along a track on the wall. In heavy-lift manufacturing applications, both full and semi-gantry cranes are common.
Mobile gantry cranes-These cranes are mounted on wheels and can be easily moved throughout a facility and stored out of the way. Portable gantry cranes are ideal for lighter lifting tasks. Portable gantry cranes are frequently used to hold a load so that maintenance or modification can be performed easily. Portable gantry cranes have numerous applications in manufacturing and warehouse settings.
Adjustable gantry crane - Adjustable cranes are another light-duty option that allow the span or height of the crane to be adjusted to handle different types of loads. These cranes are commonly used in warehouses and manufacturing settings with variable loads.
