3 Ton Workshop Hoist for Sale, FEM Standard Low Ceiling Hoist Qatar
Workshop hoists for sale. Our FEM standard workshop hoists are very popular due to its compact structure, low headroom design, and dedicated outlook. In the following, a 3 ton workshop hoist projects are presented for your reference to know how the fem standard workshop hoist help the Qatar client to solve their material handling needs in the low ceiling workshops.
Project overview of 3 ton workshop hoists
- Hoist type: European style FEM standard wire rope workshop hoist
- Hoist specifications: 3 ton -6 m lifting height - 380v 50hz 3p
- Application: Low ceiling workshop for mold handling
- Project location: Qatar
Background of workshop hoist inquiry from Qatar
This is the second time that Yuantai Crane received the purchasing order from our client in Qatar. First time the client ordered two sets of CD1 type single speed wire rope workshop hoists, at that time the customer looked for an electric hoist supplier through the Internet and found us.

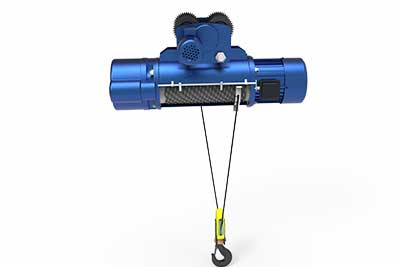

Cd type single speed wire rope workshop hoistsLifting requirements for the workshop hoists
In the workshops, the efficient molds handling are required. On every day basis, these molds are moved up to ten times per day between the machines and the maintenance rooms, which needs a more efficiencylifting solution.
On the other hand, the maximize horizontal hook approach and hook height is required and at same time, safety and efficiency should be ensured.
FEM standard electric hoist solution for low ceiling workshop
Three sets European style workshop hoists are recommended to Qatar customer to lift injection molding machines that contain steel and aluminum part molds in his factory.
Our sales manager communicated with the customer in detail via email and WhatsApp, and confirmed the customer's specific hoist requirements: 3 ton European-style electric workshop hoist with 6m lifting height and 380V/50hz/3Phase voltage.

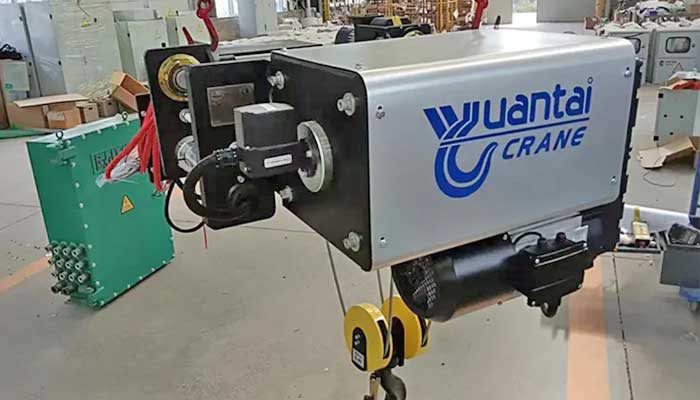

Low ceiling workshop hoist 3 ton fo sale Qatar
- Our engineers developed the NR type FEM standard workshop hoist solution in response to customer requests.
- Our NR type low ceiling workshop hoist design offers the most headroom in the industry while also minimizing hook drift and maximizing end approaches. Users benefit from improved floor coverage and easier equipment operation.
- The customer was very pleased with our design solution and quotation. He stated that he had received numerous price lists from various suppliers, but that when compared to other competitors, our NR hoist solution and price are unrivaled.
- Another point is that Yuantai Crane has previously collaborated, and the client was very satisfied with our product and service. Furthermore, our NR series electric wire rope hoists are designed in accordance with European FEM and DIN standards, and the user experience can rival that of European and American lifting industry leaders.
- Yuantai Crane is in constant contact with our client and is eagerly awaiting the project's completion. Finally, Yuantai Crane received the order!

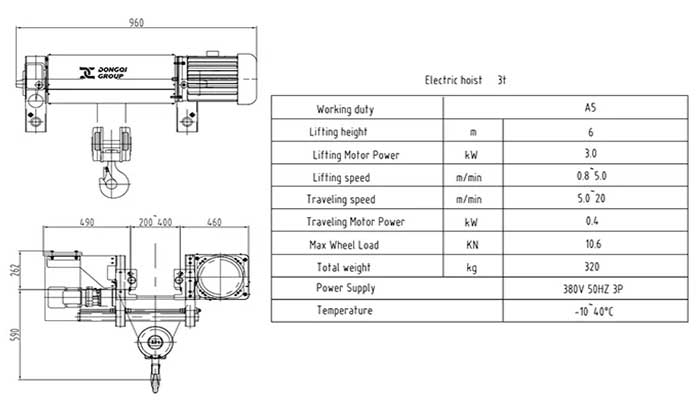

Design drawing and detailed specification of the workshop hoist for Qatar

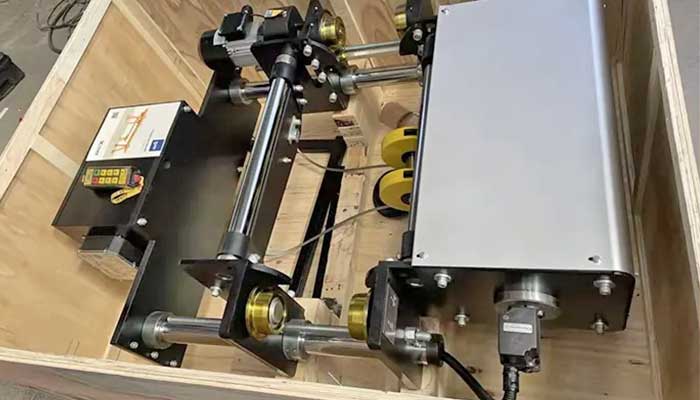

Delivery and feedback of 3 ton workshop hoists
Further Reading on European Standard Wire Rope Workshop Hoist

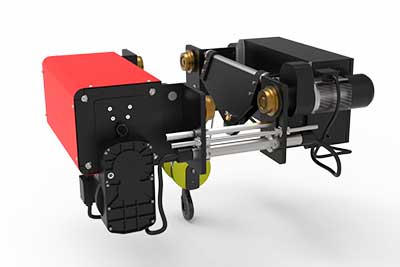

Single girder low ceiling workshop hoist 3d drawing 1 ton - 20 ton

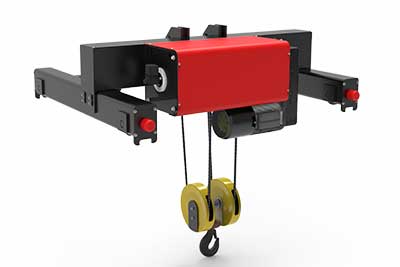

Double girder low ceiling workshop hoist 3d drawing 3 ton -80 ton Advantages of fem standard workshop hoists
The low ceiling workshop hoists are widely welcomed because of theire unbeatable advantages and featutres. In the following, the main features and advantages of the workshop hoists are presented for your reference.
Specially Designed Compact Low Headroom Workshop Hoist Configuration Save Cost for You.
With a modularized structural design, optimized force distribution, high quality materials, and fewer affiliates, we can reduce the dimension and make it more compact. Meanwhile, the largest approaching dimension and light dead weight can reduce the workshop height by at least 1000mm. As a result, the client's investment in the workshop structure and foundation is reduced, and at the same time, the maintenance costs for the heating and ventilation systems will be lowered which will save a lot in a long run.
Dual Speed & Inverter Speed Control to Make loads Control & Positioning More accurate
The use of dual speed and inverter speed control on hoisting and traveling control systems conforms the speed to the operator's command, making the transfer of high and low speed smooth and precise. Fast and precise positioning improves process safety, makes work smooth and efficient, and leads to high performance and productive capacity.
Electric Control Box, Reliable and High Safety
Schneider, Siemens, and other internationally renowned electric components, with concise and reasonable wiring, multiple protections, IP64 protection level, no noise, stable performance, cover can be opened in 120 degrees, and easy to maintain.
Driver Unit for Lifting
High strength aluminum alloy integration housing, light weight, small volume, good heat conduction, maintenance-free design. Insulation class H, protection level IP65 (special configuration requires special explanation).
Operation Mechanism
Because the motor, reducer, and brake are all integrated into one body, the structure is compact. Speed is adjusted via frequency conversion, resulting in a smooth, stable, and impact-free operation, maintenance, and design. It has class H insulation and an IP65 rating (for special configuration, explanation shall be required.)
- Brake:Agility operation, stable performance, low abrasion, and long service life, one million switch for the first warranty. Non-asbestos brake pad on both sides (optional critical abrasion indication function.)
- Rope Guide: It is made of high strength, wear-resistant, self-lubrication engineer used nylon, so its weight is light, and volume is small and it effectively extends the service life of roll and steel wire rope.
- Connector: Aircraft-grade connector, the contact is extremely stable, no false connection, above IP65 protection level. It is made of high strength, wear-resistant, self-lubricating nylon, so it is light in weight and volume, and it effectively extends the service life of roll and steel wire rope.Aircraft-grade connector, extremely stable contact, no false connections, IP65 protection level.
- Hoisting Height Limiter: It has the same service life as a crane because it has double limits, free adjustment, multi-point control, a wide regulation range, and high limits accuracy.
- Optional safety monitor: digital real-time monitoring, automatic alarm recording, and a human-machine interface.
Why Choose NR Hoist from Yuantai Crane ?
- The Yuantai Crane NR series wire rope workshop hoist is a reliable partner for any general material handling cranes, including overhead crane, gantry crane, jib cranes, etc.
- Because of the modularized design used in this electric workshop hoist, it has a compact hoist layout and strong adaptability to fit all types of I-beams, single bridge cranes, and double girder cranes with travelling trolley frames.
- The NR low ceiling workshop hoist provides reliable hoisting performance whether the task requires light or heavy duty.
- NR electric hoist introduces advanced technology to keep the crane hoist consistently perform at its best level in terms of staying high-efficient; it also outfits various intelligent electrical control units to ensure safe operation as well as extending the service lift of workshop hoists.
Contact to get customized workshop hoist at cost-effective price
Yuantai Crane, a leading supplier of FEM standard low ceiling workshop hoists in China, offers a wide range of types, capacities, lift heights, and custom options to suit your needs. Please leave a message or send an email to [email protected] with the following information, and our sales manager will send you a reasonable workshop hoist price:
- The Lifting capacity,____ Ton
- lifting height;____ Ton
- The voltage or power supply____ (380V/50Hz/3 Phase or other request);
- The suspension ____ fixed, motorized trolley travelling );
- The control types____ Pendant control or remote control
- The duty cycle, hoist speed, trolley speed, and beam size;
- The application: ____ （what materials to be lifted）
