Single Girder Gantry Crane 25 Ton Uzbekistan, 25 Ton Gantry Crane
Single Girder Gantry Crane 25 Ton Uzbekistan, 25 Ton Gantry Crane.25 ton gantry crane for sale, single girder gantry crane 25 ton with MD electric wire rope hoist for sale Uzbekistan, good price. Design 25 ton crane for you.

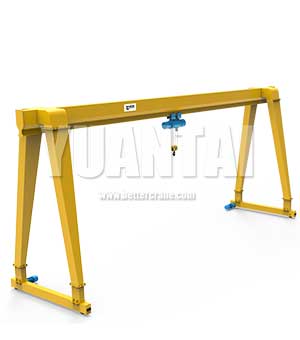

Overview of 25 ton single girder gantry cranes
- Crane type: MH series of single girder gantry cranes
- Crane capacity: 25 ton
- Crane span: 16 m
- Crane lifting height: 6 m
- Crane power supply: 415V50HZ3P
- Crane rail: p38, crane rail 100 meters, pressing plate 32, pieces, clamping plates 17pairs.
- Project location: Uzbekistan
Case Study: 25 Ton Single Girder Gantry Crane Installation in Uzbekistan
In Uzbekistan, a prominent industrial facility was in need of a robust and efficient material handling solution to streamline their operations and enhance productivity. To meet this requirement, they decided to invest in a 25-ton single girder gantry crane equipped with an MD electric wire rope hoist. This case study details the project, focusing on the crane's specifications, installation, and the benefits it brought to the client.
25 ton gantry crane lifting requirments and design solution
The client faced several material handling challenges, including the need to efficiently transport heavy loads within their facility. Their existing equipment struggled to meet the demands of their growing production, resulting in delays and decreased efficiency. To address these challenges, they sought a solution that would enhance their operational capabilities.
After a thorough evaluation of their requirements and an assessment of their facility, the decision was made to install a 25-ton single girder gantry crane. The selected crane was part of the MH series, known for its reliability and efficiency in material handling tasks.
A single girder gantry crane, often abbreviated as "MH" (which stands for "Mobile Hoist"), is a type of industrial crane commonly used in factories, warehouses, construction sites, and other settings to lift and move heavy loads. It consists of a single horizontal beam, known as the girder, supported at each end by vertical legs that are mounted on wheels or casters for mobility.
25 Ton Gantry Crane Project Overview
- Client: Confidential
- Location: Uzbekistan
- Project Type: Material Handling
- Crane Type: MH Series Single Girder Gantry Crane
- Crane Capacity: 25 tons
- Crane Span: 16 meters
- Crane Lifting Height: 6 meters
- Crane Power Supply: 415V50HZ3P
- Crane Rail: P38, 100 meters of crane rail, 32 pressing plates, 17 pairs of clamping plates
Overall, MH single girder gantry cranes are valuable tools for material handling in various industrial and construction settings. Their mobility, versatility, and range of load capacities make them suitable for a wide range of applications. When considering the use of such a crane, it's important to assess your specific needs, workspace, and safety requirements to select the right configuration and features. Additionally, compliance with relevant safety regulations and standards is essential for safe crane operation.
Key Features of the Solution:
- 1.High Load Capacity: The 25-ton crane provided the necessary lifting capacity to handle heavy loads in the client's facility.
- 2.Optimal Span: With a span of 16 meters, the crane could cover a substantial area of the workspace, allowing for versatile load movement.
- 3.Ample Lifting Height: A lifting height of 6 meters ensured that the crane could handle a wide range of tasks, including stacking materials vertically.
- 4.Stable Power Supply: The 415V50HZ3P power supply ensured consistent and reliable operation of the crane.
- 5.Quality Crane Rail: The use of P38 crane rail, along with 100 meters of it, and the inclusion of pressing and clamping plates, contributed to the crane's stability and safety during operation.
Main parts and components of 25 ton single girder gantry cranes

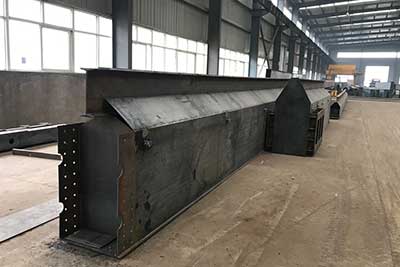

Semi finished main girder of single girder gantry crane 25 ton

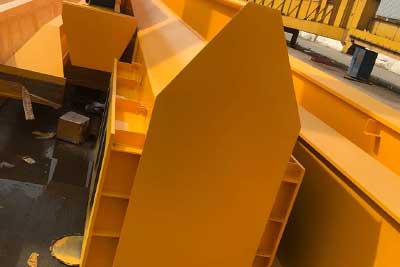

main girder of single girder gantry crane 25 ton

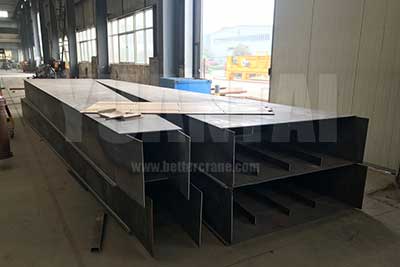

Semi finished gantry crane legs of 25 ton single girder gantry crane

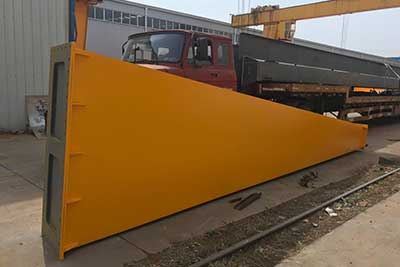

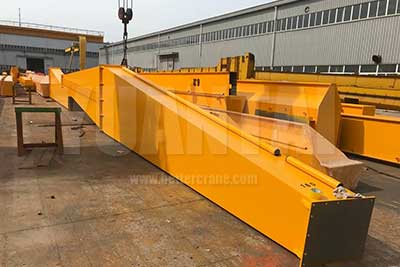

gantry crane leg of 25 ton gantry crane
25 ton gantry crane legs

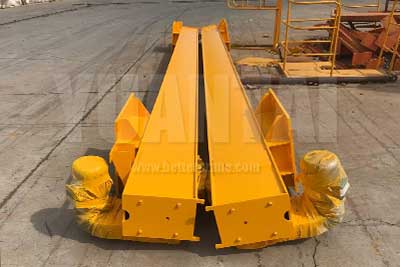

Ground beam of 25 ton gantry crane with single girder desgin
Ground beam of 25 ton gantry crane with single girder desgin

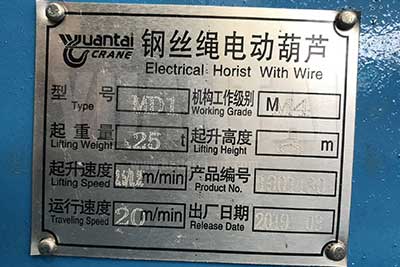

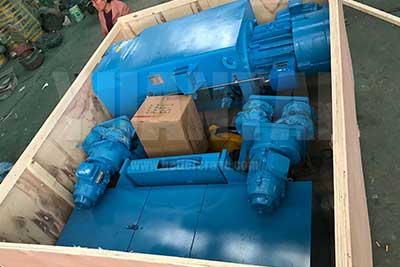

25 ton electric hoist for single beam gantry crane

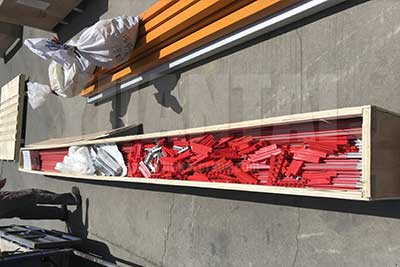

Parts and components of single beam gantry crane 25 ton

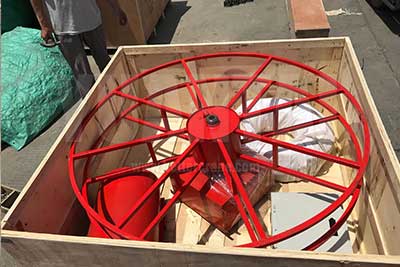

Cable roll of single girder electric hoist gantry crane - 1.Single Girder: As the name suggests, these cranes have only one horizontal beam (girder) that spans the width of the gantry. This design makes them suitable for lifting loads in a specific area.
- 2.Gantry Structure: The gantry legs are equipped with wheels or casters, allowing the crane to move along a track or freely within a defined area. This mobility makes MH single girder gantry cranes versatile and adaptable to various work environments.
- 3.Hoisting Mechanism: The hoisting mechanism is responsible for lifting and lowering the load. It typically includes a hoist unit or a winch, which is mounted on the girder and operated by a control system.
- 4.Load Capacity: MH single girder gantry cranes come in various load capacity configurations, ranging from a few hundred kilograms to several tons, depending on the specific needs of the application.
- 5.Span Length: The span length refers to the distance between the two gantry legs. It can vary widely to accommodate different workspace layouts.
- 6.Control System: These cranes are typically operated using a control pendant or a remote control system. More advanced versions may also be equipped with automated features and safety mechanisms.
- 7.Applications: MH single girder gantry cranes are used for a wide range of material handling tasks, including loading and unloading trucks, moving heavy machinery, and transporting materials within a facility.
- 8.Safety Features: Safety is a crucial aspect of any industrial crane. MH single girder gantry cranes often incorporate safety features such as overload protection, emergency stop buttons, and limit switches to prevent accidents and ensure the well-being of operators and personnel.
- 9.Customization: These cranes can be customized to meet specific requirements, including the addition of accessories such as spreader bars, hooks, or specialized lifting attachments.
- 10.Maintenance: Regular maintenance and inspections are essential to ensure the safe and efficient operation of MH single girder gantry cranes. Proper lubrication, checking for wear and tear, and addressing any issues promptly are important maintenance tasks.
Single Girder Gantry Crane Installation and Commissioning
The installation of the 25-ton single girder gantry crane was carried out by a team of experienced engineers and technicians. The process involved the assembly of the crane structure, installation of the MD electric wire rope hoist, and thorough testing to ensure proper functionality and safety.
The installation of the 25-ton single girder gantry crane brought significant benefits to the client:
- Enhanced Efficiency: The crane improved material handling efficiency, reducing the time required to move heavy loads.
- Increased Productivity: The client's operations saw a boost in productivity as they could now handle larger loads with ease.
- Safety: The crane's design and safety features ensured that operations were carried out with minimal risk to personnel and equipment.
- Versatility: The crane's capabilities allowed for a wide range of material handling tasks, increasing the flexibility of the facility.
The installation of the 25-ton single girder gantry crane with MD electric wire rope hoist in Uzbekistan proved to be a wise investment for the client. It not only addressed their material handling challenges but also significantly improved efficiency, productivity, and safety in their operations. This case study serves as a testament to the benefits of choosing the right material handling equipment to meet specific industrial needs.
