Metallurgical Overhead Cranes for Pakistan 45/15 ton, 20 /10 ton
Overhead cranes for sale Pakistan. 6 sets of double girder overhead cranes for Metallurgical industrial steel mills. Check crane specifications now.
The QDY series double girder ladle overhead crane is a type of specially designed overhead crane for hot ladle handling, with capacity from 5 ton to 74 ton. And the span range is from 10.5m to 31.5m, and has a temperature range of -20°C to +60°C.
The QDY type overhead ladle crane is designed for transporting, pouring, and charging hot metal during the smelting of liquid metal, among other things.
Ladle overhead cranes are classified into three types based on their structure: double-girder double-rail ladle cranes, four-girder four-rail ladle cranes, and four-girder six-rail ladle cranes. The first two are for lifting medium and large ladles, while the latter is for lifting extra large ladles.
The Benefits of Ladle Overhead Cranes
- High levels of safety and reliability. Advanced technology and high-quality products ensure high safety and reliability.
- State-of-the-art design.Modern design meets and exceeds international standards.
- Reasonably priced. Cost-effective crane prices are realized as a result of technological innovation and unrivaled resources.
- Simple to operate and maintain. Human and safety-oriented design to make the operation and maintenance of the ladle overhead crane simple and easy.
6sets QDY metallurgical overhead cranes for sale Pakistan
Six sets of QDY Metallurgical Ladle Overhead Cranes were delivered to a steel factory in Pakistan (They have ordered another 8 sets QD Double Girder Overhead Crane from us earlier).
Main Specifications of Metallurgical Overhead Cranes
No.1-2 sets 45t/15t QDY Metallurgical Ladle Double Girder Overhead Crane:
- Capacity of overhead crane : 45t/15t;
- Span: 22m;
- Lift Height: 16m;
- Lift Speed (Main Hoist): 7.7m/min;
- Lift Speed (Aux Hoist)：10.5m/min;
- Cross Travel Speed: 27m/min;
- Crane Travel Speed: 45m/min;
- Work Class: A7
- Cabin Control
- Work Voltage: 415V, 50HZM 3PH
- Application: Hot Metal
- Temperature: Summer-Max 60℃/Winter-Max-10℃
No. 2-2 sets 20t/10t QDY Metallurgical Ladle Double Girder Overhead Crane:
- Capacity: 20t/10t;
- Span: 22m;
- Lift Height: 16m;
- Lift Speed (Main Hoist): 9.8m/min;
- Lift Speed (Aux Hoist)：13.3m/min;
- Cross Travel Speed: 36.8m/min;
- Crane Travel Speed: 21m/min;
- Work Class: A7
- Cabin Control
- Work Voltage: 415V, 50HZM 3PH
- Application: Scrap charging and ladle handle
- Temperature: Summer-Max 60℃/Winter-Max-10℃
No. 3-2 sets 20t/10t QDY Metallurgical Ladle Double Girder Overhead Crane:
- Capacity: 20t/10t;
- Span: 22.15m;
- Lift Height: 14m;
- Lift Speed (Main Hoist): 9.8m/min;
- Lift Speed (Aux Hoist)：13.3m/min;
- Cross Travel Speed: 36.8m/min;
- Crane Travel Speed: 21m/min;
- Work Class: A7
- Cabin Control
- Work Voltage: 415V, 50HZM 3PH
- Application: Scrap charging and ladle handle
- Temperature: Summer-Max 60℃/Winter-Max-10℃
We will do our best to provide the best design for our client. If you require a gantry crane or an overhead crane, please contact us at any time!

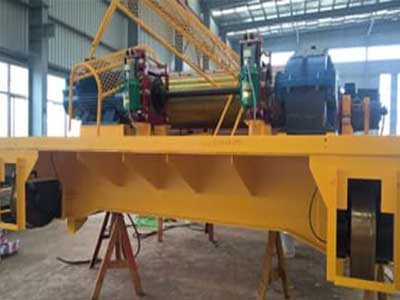

45 ton/ 15 ton open winch trolley for double girder overhead crane

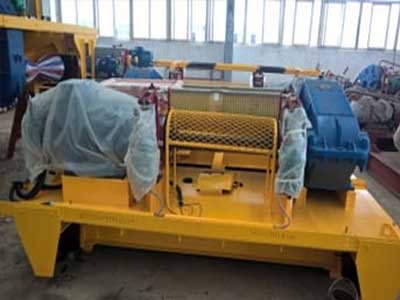

20 ton /10 ton open winch trolley for double girder overhead crane for sale Pakistan

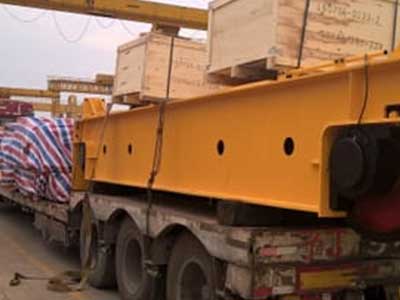

Delivered by Bulk to Pakistan

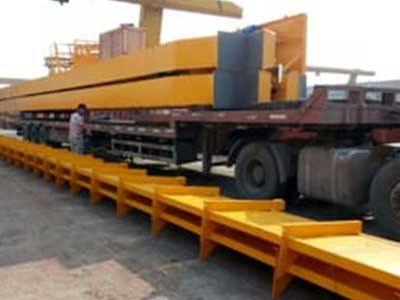

Double girder overhead crane for delivery

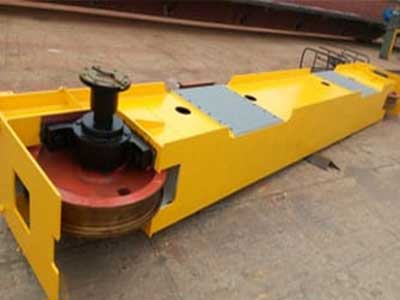

End Beams for sale Pakistan

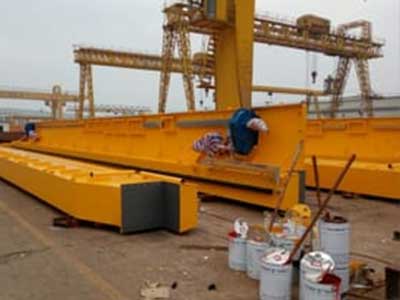

Main Beams of overhead crane for sale Features of double girder ladle cranes
Because of the high risk of a ladle crane, its design incorporates special safety features to ensure the crane system's efficiency and safety. Ladle cranes have the following characteristics:
- On the lifting mechanism, install two groups of independent action brakes.
- Install a lower limiter, a heavy hammer, and a rotary lifting and limiting device when the crane's hoisting height exceeds 20m.
- Stop device for overspeed protection.
- Fault protection devices, such as positive and negative contactors, are installed to prevent danger in the event of an electrical power outage.
- An insulating layer is installed at the bottom of main girders to prevent molten steel thermal radiation and ensure main girders have a long service life.
- The motor protection grade is IP54, and the insulation grade is H when using specially designed metallurgical motors.
- The use of a cast steel belt pulley ensures safety and a long working life.
- Steel core wire rope with a safety factor is suitable for high temperature environments.
- The trolley power supply is made of high temperature cable, and the crane cabin is outfitted with thermal insulation and air conditioning.
