10 Ton Overhead Crane,CD Wire Rope Hoist Crane for Sale Philippines

Overhead crane for sale Philippines. Single girder wire rope hoist overhead crane 10 ton for sale Philippines, customized 440V60HZ3P bridge crane. Check now!

Overview of 10 ton overhead crane

Crane type: LD series of single girder top running overhead crane with cd electric hoist
Crane specification: 10 ton capacity, 8 m span, 7 m lifting height
Crane power supply: 440V60HZ3P
Project location: Philippines

Case Study: Providing a 10 Ton Overhead Crane Solution in the Philippines

10 ton overhead crane solution

Background and lifting requirements of 10 ton cranes

In the Philippines, a growing demand for efficient material handling solutions has spurred the need for innovative and reliable cranes. Our case study delves into the successful implementation of a 10-ton overhead crane with a CD wire rope hoist in the Philippines. This solution not only addressed the client's material handling requirements but also showcased our expertise in delivering tailored crane systems.

Our client, a prominent manufacturing facility located in the Philippines, was in search of a robust overhead crane solution to streamline their material handling operations. Their specific needs included a crane with a 10-ton lifting capacity, an 8-meter span, and a 7-meter lifting height. Additionally, the client required the crane to be powered by a 440V, 60Hz, 3-phase electrical supply.

10 ton overhead crane solution for sale Philippines :

After thorough assessments and consultations with the client, our engineering team recommended the installation of an LD series single girder top running overhead crane equipped with a CD electric hoist.

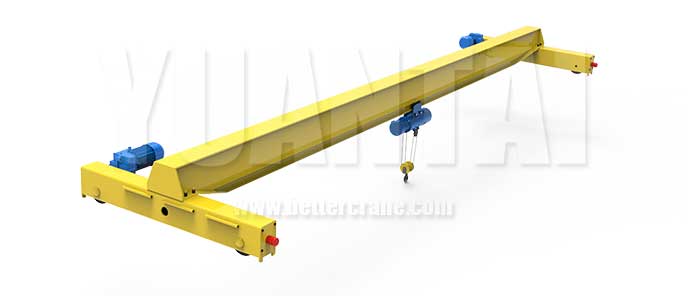

A single girder overhead crane with a CD/MD wire rope electric hoist refers to a type of industrial crane system that consists of a single horizontal beam (girder) supported on each end by a structure or columns. The crane is used for lifting and moving heavy loads within a specific area, typically in factories, warehouses, construction sites, and other industrial settings.

Main parts and components involved:

1. Single Girder: The term "single girder" refers to the horizontal beam that spans the width of the working area. It is supported on both ends by end trucks or gantry structures. This type of crane has a single girder, which means that it uses only one beam for lifting and moving loads. Single girder cranes are often used for lighter loads and shorter spans.

2. CD/MD Wire Rope Electric Hoist: The CD/MD wire rope electric hoist is the lifting mechanism of the crane. "CD" and "MD" are designations for different types of wire rope electric hoists. The hoist is responsible for lifting and lowering the load using a wire rope drum. It is electrically powered and controlled, allowing precise movement of the load. The hoist is attached to the trolley, which moves along the girder to position the load.

- CD Hoist: CD hoists are typically designed for lighter loads and have features suitable for general-purpose lifting applications.
- MD Hoist: MD hoists are often designed for heavier loads and more demanding lifting tasks. They may have additional features for higher performance and durability.

The combination of a single girder and a CD/MD wire rope electric hoist creates a versatile and cost-effective lifting solution for various industries. These cranes are known for their efficiency in moving loads horizontally and vertically, optimizing space utilization in industrial environments.

Features and advantages of 10 ton overhead cranes

Key features and advantages of single girder overhead cranes with CD/MD wire rope electric hoists include:

- Compact design suitable for limited headroom spaces.
- Precise load positioning and control.
- Ability to handle a range of load capacities.
- Adaptability to various working environments.
- Improved safety features, such as overload protection and emergency stop controls.
- Ease of installation and maintenance.

Overall, the single girder overhead crane with a CD/MD wire rope electric hoist is a widely used configuration that offers efficiency, flexibility, and reliability in material handling applications.

Design features of 10 ton overhead crane project

This solution perfectly aligned with the client's requirements and offered several advantages:

1. Lifting Capacity: The 10-ton capacity of the crane met the client's heavy-duty lifting needs, ensuring efficient movement of raw materials and finished products.
2. Span and Lifting Height: With an 8-meter span and 7-meter lifting height, the crane provided ample coverage within the facility, optimizing the use of available space.
3. Power Supply: The 440V, 60Hz, 3-phase power supply not only suited the local power infrastructure but also ensured consistent and reliable crane operation.

Main parts and components of 10 ton bridge cranes for sale Philippines

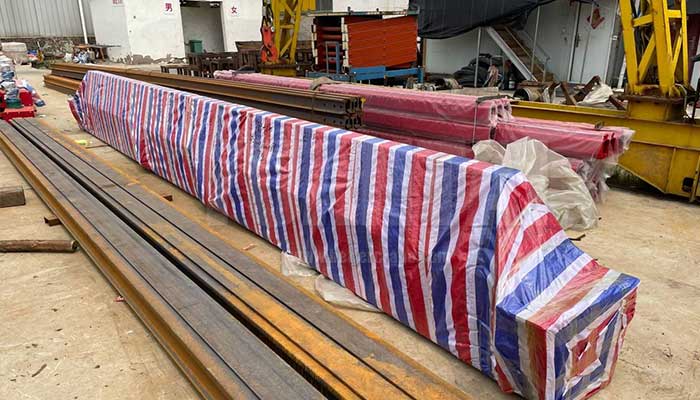

Main girder

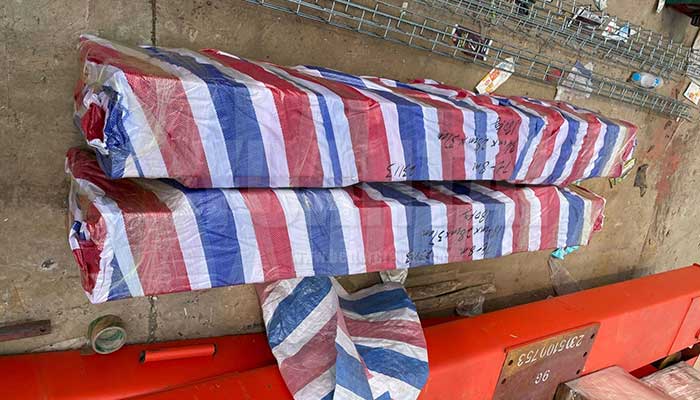

end carriages

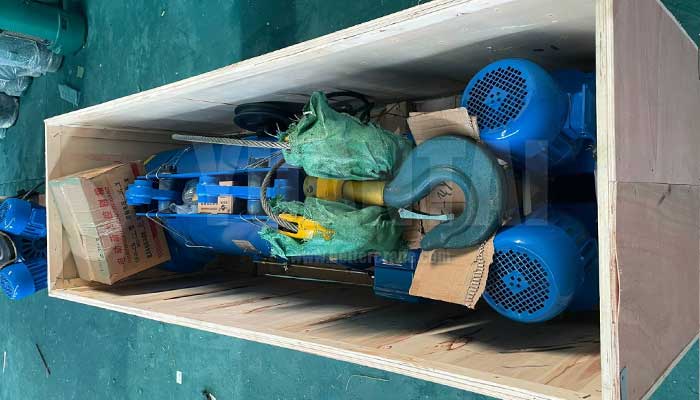

electric hoists

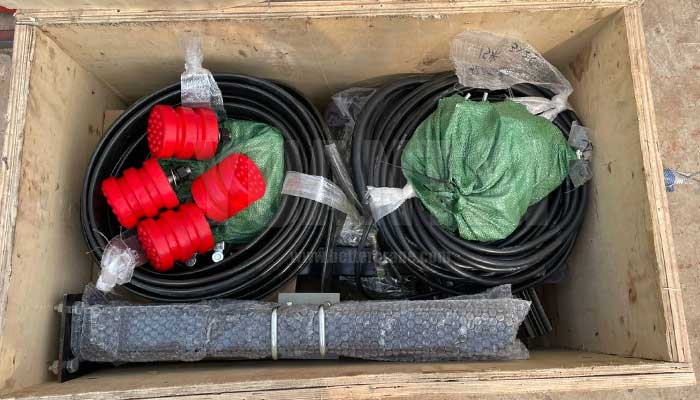

buffers and other parts and components

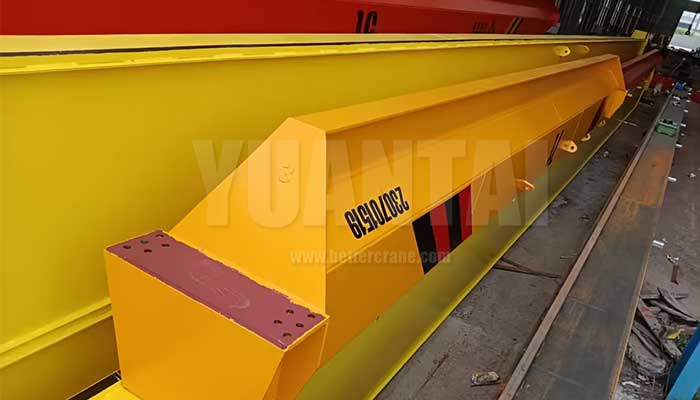

Main girder

End carriages and end trucks of 10 ton bridge cranes

Results and Benefits:

The successful implementation of the 10-ton overhead crane brought forth significant benefits for the client:

1. Enhanced Efficiency: The crane's smooth and precise operation facilitated swift material handling, reducing production downtime and optimizing overall efficiency.
2. Space Optimization: The crane's tailored span and lifting height effectively utilized the available workspace, ensuring optimal coverage and maneuverability.
3. Reliability: The chosen power supply, coupled with the quality construction of the crane components, ensured a reliable and consistent operational performance.
4. Safety: The crane's advanced safety features, including overload protection and emergency stop mechanisms, provided a secure working environment for the operators.

The successful implementation of the 10-ton overhead crane with a CD wire rope hoist in the Philippines showcased our ability to deliver customized material handling solutions that precisely meet client requirements. This project not only enhanced the client's operational efficiency but also underscored our commitment to providing innovative and reliable crane systems tailored to specific industrial needs.

Types of 10 ton overhead cranes for sale Philippines

In the promising industrial market of the Philippines, an array of 10-ton overhead cranes is on offer for those seeking effective material handling solutions. These cranes, tailored to various applications, cater to the diverse needs of industries across the nation. Let's explore the range of options available:

1. Single Girder Overhead Cranes: With a single girder beam elegantly supported by end trucks, these cranes offer an excellent solution for facilities requiring efficient load management. Suited for lighter loads and shorter spans, they find their utility in workshops, warehouses, and manufacturing setups.
2. Double Girder Overhead Cranes: Engineered for heavy-duty lifting, double girder cranes feature two parallel girder beams supported by end trucks. This design allows them to handle substantial loads over extended spans, making them indispensable in industries like steel mills, shipyards, and foundries.
3. Top Running Overhead Cranes: Maximizing vertical lifting space, top running cranes see their bridge glide along rails mounted atop the runway beams. This configuration ensures efficient material handling and is particularly valuable in setups with limited spatial freedom.
4. Under Running Overhead Cranes: When vertical space is constrained or existing structures limit installation options, under running cranes provide an alternative. The bridge moves along the lower flange of the runway beams, delivering effective load management in challenging spaces.
5. European-Style Overhead Cranes: Boasting a modern and streamlined design, European-style cranes shine with their advanced features, meticulous control, and modular construction. These versatile cranes find their footing in precision manufacturing and assembly processes.
6. Free-Standing Overhead Crane Systems: For those seeking self-supporting solutions, free-standing crane systems come to the fore. Installed on independent support columns, they circumvent the need for pre-existing building structures and are a boon for open layout facilities.
7. Gantry Cranes: Offering adaptability both indoors and outdoors, gantry cranes employ legs with wheels that glide along rails. This unique setup facilitates horizontal movement and accurate positioning, making them valuable assets in a wide range of scenarios.
8. Monorail Cranes: Guided along a single rail, monorail cranes are the answer to linear material transport. Their specialized design suits environments with fixed paths, such as assembly lines or storage yards.

As you embark on the quest for a 10-ton overhead crane in the Philippines, meticulous consideration of lifting requisites, available space, structural compatibility, and financial parameters is vital. Collaborating with crane suppliers and manufacturers ensures that the chosen crane aligns seamlessly with your unique operational demands. Additionally, staying attuned to local regulations and safety standards guarantees a solution that is not only efficient but also compliant and secure.

Discover Your Tailored 10-Ton Overhead Crane Solutions

Introducing our range of customizable 10-ton overhead cranes designed to elevate your material handling operations. At [Your Company Name], we specialize in delivering crane solutions that precisely match your unique requirements, ensuring optimal efficiency and safety in every lift.

Why Choose Our Customized 10-Ton Overhead Cranes?

1. Tailored Precision: We understand that no two industries are the same. Our team of experts works closely with you to comprehend your specific lifting needs, space constraints, and operational nuances. This enables us to engineer a crane solution that aligns perfectly with your goals.
2. Diverse Configurations: Whether you're in need of a single girder or double girder crane, top running or under running design, we offer an array of configurations to suit your preferences. Our European-style cranes bring a touch of modern efficiency to your workspace.
3. Space Optimization: Our engineers craft solutions that make the most of your available space. From compact designs for limited headroom to free-standing systems that eliminate the need for existing structures, we ensure a perfect fit.
4. Advanced Control: Gain precise control over your lifting operations with our advanced control systems. From radio remote control to smart automation features, we tailor the controls to match your workflow.
5. Safety First: Safety is at the core of our designs. Our cranes come equipped with advanced safety features such as overload protection, emergency stop mechanisms, and intuitive operator interfaces, ensuring a secure working environment.
6. Expert Installation: Our seasoned installation team ensures seamless integration of your customized crane into your facility. We prioritize minimal disruption to your operations and swift, efficient installation.

Experience the Difference: Request a Consultation Today

Ready to revolutionize your material handling processes with a 10-ton overhead crane customized exclusively for you? Contact us today to request a consultation. Our dedicated team is eager to collaborate with you, turning your lifting challenges into efficient solutions that drive your business forward. At [Your Company Name], we don't just provide cranes – we provide tailored excellence.
