Indoor Gantry Crane for sale Philippines
Indoor gantry cranes are extremely efficient at lifting and moving materials within enclosed workshop or warehouse spaces. It enables loads to be easily transferred from one area to another without requiring a large number of labor forces. Indoor gantry cranes are available in light duty and heavy duty gantry design to meet the needs of different production lines and job requirements.
For many years, Yuantai has focused on the material handling industry, providing a diverse range of overhead crane gantry cranes for a variety of industries in Philippines, from which you can select the overhead material handling crane system that is best suited to your specific application.
Main Types of Gantry Cranes
Semi Gantry Crane with Tailored parts and features , Your Economical Gantry Design
Hot-sale Indoor Gantry Cranes for Philippines
Indoor gantry cranes can be designed for a variety of applications and facilities. This overhead gantry crane equipment is typically designed in two main configurations: single girder and double girder.
- Light duty gantry cranes for indoor use are typically single girder gantry crane or semi gantry crane to provide a convenient lifting movement. And also small mobile gantry cranes are also very convenient for light duty indoor material handling, which can relocated easily from one working site to another.
- For medium and heavy lifting applications, the indoor gantry crane can be produced into double girder design and equipped with hoist trolley or open winch trolley with European styles.
Yuantai offers a diverse range of gantry cranes for indoor applications and uses. If you need a customized gantry cranes, please feel free to contact us to get your tailored gantry crane design with particular specifications
Main Specifications of Indoor Gantry Crane
Gantry cranes are classified into several types based on the type of supporting structure and application. Here are some of the most common types of gantry cranes.
Full-Gantry Crane for Sale Philippines
It is one of the most common types of gantry cranes, with two supporting legs that can move across fixed rails. The full gantry crane is typically used in a designated area. Trucks are permitted to pass beneath the gantry crane. The trolley moves within the main span, and there is no overhang on the main beam.
Full gantry crane for indoor use parameters:
- Lifting Capacity:1 ton ~32 ton, up to 320 ton with processing design
- Span Length: 12~30m
- Lifting Height: 6~18m
- Working Class: A3, A4
- Traveling Speed: 20~30m/min
- Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min
Semi-Gantry Crane for Sale Philippines
A semi-gantry crane is also called single leg gantry cranes which with one leg runs along the ground rail, while the other end supported along a runway system attached to a wall or other vertical structure. Depending on your construction site or requirements, you can determine the height difference between the two legs
Semi gantry crane parameters:
- Capacity: 1 ton to 32 ton
- Span: 12-30m
- Lifting height: 6-12m
- Lifting speed: 6-11.5m/min
- Trolley running speed: 37-40.1m/min
- Crane running speed: 37.7-40.1m/min
- Work duty: A3-A6
Single Girder Gantry Crane for Sale Philippines
The single girder gantry crane consists of only a single girder as the main beam. The trolley and hoist are usually suspened on the lower part of the main girder. They run on the bridge's underside. It is frequently a light-to-medium-duty gantry crane that is appropriate for areas with limited floor space and low headroom. It also offers low-cost lifting solutions.
Single girder gantry crane parameters:
- Lifting Capacity: 1 ton -32 ton
- Span Length: 12~30m
- Lifting Height: 6~18m
- Working Class: A3, A4
- Traveling Speed: 20~30m/min
- Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min
Double Girder Gantry Crane for Sale Philippines
The double beam gantry crane, on the other hand, is made up of two girder beams that are made of box girder & truss girder design. The double girder gantry crane are used for heavy duty load handling, with high safety and efficiency.
Double girder gantry crane parameters:
- Capacity: 3 ton -320 ton
- Span: 18-35m
- Lifting height: 6-18m
- Lifting speed: 1.5-11.5m/min
- Trolley running speed: 10-40.1m/min
- Crane running speed: 16-50m/min
- Work duty: A3-A7

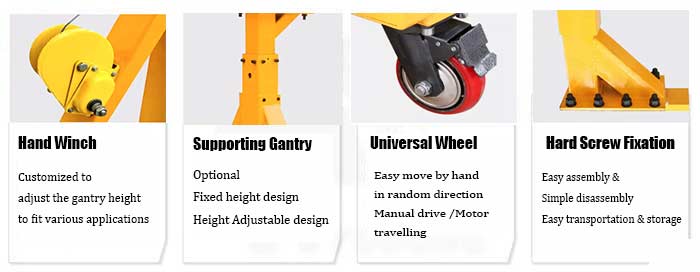

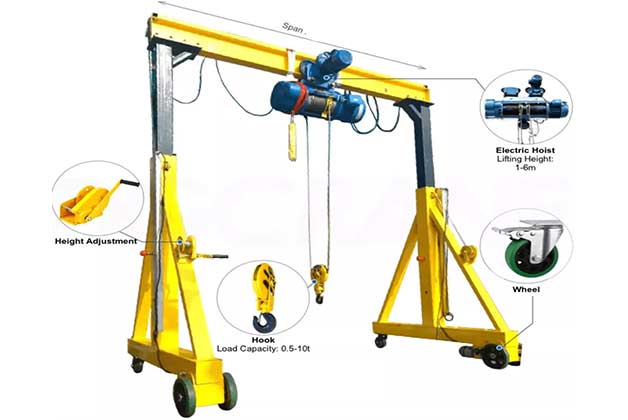

Portable Gantry Crane for Sale Philippines
Portable gantry crane, with portable swivel casters, adjustable beam & legs for light load lifting. Portable gantry crane, easy & affordable gantry hoist.
Portable gantry crane parameters:
- Capacity: 0.25 ton -10 ton
- Span: 2-12m
- Lifting height: 1-9m
- Lifting hoist： manual hoist & electric hoist
- Crane travelling: manual or motorized travelling
- Crane control: Pendent control or Remote
