Gantry crane for railway freight yard
A rail yard, also known as a railway yard, railroad yard, or simply yard, is a network of tracks used to store, sort, or load and unload rail vehicles and locomotives. Yards have many parallel tracks for storing rolling stock or unused locomotives away from the main line so that they do not obstruct traffic flow.
Gantry cranes for railway yards and freight yards for efficient container and bulk material handling. Use a container crane and a grab gantry crane to inspect the rail.

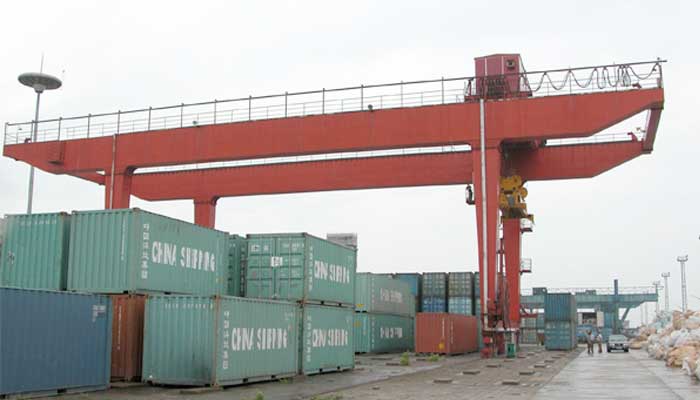

Railway container gantry cranes for railway yard

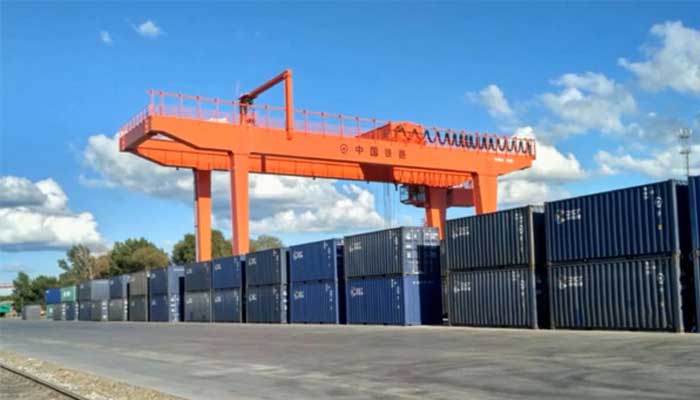

Container Gantry Crane for Railway Freight Yard
Container transportation is a sophisticated mode of transportation that plays an important role in international freight transport. Railway container transportation, as an important form of container transportation organization, combines the benefits of container and railway transport and has the characteristics of safety, convenience, energy savings, environmental protection, and door-to-door transport. Container trains transport massive amounts of containers over long distances in railway container transportation systems, while trucks are used for short-distance pick-up and delivery.
Modern railway container terminals with advanced equipment, establishments, and efficient management strategies such as organizing, scheduling, operating, and so on are required to ensure rapid container transfer between rail and truck. The productivity of railway container terminals has a significant impact on transportation quality, overall efficiency, and service level of railway transportation network and multimodal transportation system.
- Gantry Crane for Container Handling in Railway Freight Yard
- Lifting Capacity of Gantry Crane: 35 ton
- Crane Span of container crane : 30m
- Lifting Height of container gantry crane : 16m
This gantry crane is used in a railway freight yard for container handling. This railway gantry crane has enough span and space for container handling with a 360° rotating spreader thanks to its strong U-type gantry structure, double cantilever with rods, and light weight.
The railway container handling crane has the features of Digital frequency conversion and PCL control; High Precision Sensor Data Acquisition Technology; Industrial computer data analysis and processing system.
Operation Flow:
- 1. The central control room sends container handling instructions to the working crane.
- 2. The instructions are delivered to the driver's cabin.
- 3. Using the linkage table touch screen, the crane driver initiates the loading and unloading operation.
- 4. The spreader, crane, and trolley positions are displayed on the touch screen in real time.
- 5. The control system temporarily accepts plug-in jobs while prioritizing the ongoing job, and then performs the plug-in job after the current job is completed.
- 6. Container positioning technology that is precise.
- Machine vision accurately locates the container keyhole and reads the container number, after which the intelligent control system adjusts the spreader position and deflection angle to achieve accuracy locking and precision container stacking.
- 7. The spreader, crane, and trolley positions are displayed on the linkage table's touch screen in real time.
- 8. Because this crane is equipped with a PDS system, if the crane position does not correspond to the PDS system's indication position, the crane does not execute the command and sends out the alarm information. The crane continues to execute the handling command after the driver moves it to the system indication position. e current position.
- 9. Programmed path planning and obstacle avoidance technology for optimizing path and obstacle avoidance.
- 10. The use of infrared space scanning carry out real-time scanning of yard container storage situation, and updating yard stacking 3d database. Spreader is controlled by intelligent program to run along the optimal path for intelligent obstacle avoidance to ensure safe working.
- 11. The central control room receives the completion information feedback of the crane and sends it to the database.
Railway Gantry Crane for Bulk Material Handling
Besides containers, the rail way gantry cranes are also can be customized for material material hanlding with different customized crane attachment, such as, grab bucket for bulk material loading and unload from the train, and electromagnets for steel and metal products handing , etc.

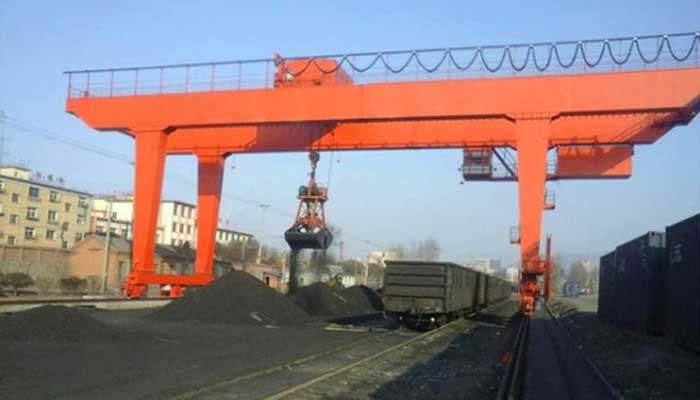

Railway gantry crane with grab bucke for bulk material handling
| Item | Single girder gantry crane with grab bucket | Double girder gantry crane with grab bucket |
| Loading capacity | 0.5 ~ 32t | 5~100t |
| Lifting height | 3 ~ 30 m or customized | |
| Lifting speed |
Single speed: 3~ 8 m/min; Double speed: 0.3/3 m/min~0.8/8 m/min; Variable frequency speed:1~20 m/min; |
|
| Span | 6~35 m | |
| Lifting mechanism | Hoist trolley or winch trolley | |
| Working class | A3~A4 | A5~A6 |
| Working temperature | -20 ~ 40 ℃ | |
| Power supply | AC-3Phase-220//230380/400/415/440V-50/60Hz | |
| Control voltage | DC -24 / 36V | |
| Motor protection class | IP54, IP55,IP65 | |
| Control way | Ground handle control(Push button),wireless remote control, driver's cabinet | |
| Safety device | Buffer,current overload protection,overload device,power failure protection | |
| Application area | Factory,workshop,warehouse,power station,mines, garbage collection site, etc. | |
| Painting color | Yellow,Red or Customzied | |
Grab bucket gantry crane Application
Warehouse, Workshop, Stockyard, Manufacturing Plant, Construction work, Energy, Mining, etc.
Advantages
- Made of high-quality steel for dependability;
- Low power consumption and operating costs.
- Products that are tailored to the needs of the client.
- Low noise, high stability, and good visibility. The crane's feedback information is collected and sent to a database.
Features： 1. Used outside a warehouse or on a railway to do sideways lifting and unloading work. 2. It can be designed in various capacities and working duties to meet the needs of the user. 3. It is made up of a winch trolley, a bridge girder, legs, and an electrical system, among other things. 4. Three-in-one geared motors are used in the cross and long traveling mechanisms for ease of maintenance; 5. Control methods include cabin, pendant, and remote control. 6. The cabin has a full field of view and is suspended beneath the main girder. 7. Widely used in material storage areas, cement plants, granite industries, construction industries, engineering industries, and so on.
Clamshell grab
For the most efficient and dependable handling of a wide range of bulk goods. The Clamshell Grab is the market's lightest and most productive clamshell grab.
Pricing that is competitive
We updated our manufacturing process and improved our clamshell grab with modular parts by utilizing the most recent engineering innovations. As a result, the price is competitive while still using the highest quality materials available. The Clamshell Grab will also have a shorter lead time due to the optimized manufacturing process. This dry bulk grab has capacities ranging from 20 to 85 tons.
To keep the Clamshell Grab's capital expenditures as low as possible, we reduced logistics costs by designing this four-rope grab with container shipping in mind. What significantly reduces transportation costs to your location.
Lowest possible maintenance costs
According to market research, the highest cost of any grab is always the operating expense. We want to keep our customers' operating costs as low as possible. As a result, we only use the most durable materials and limit the number of parts that are susceptible to wear and tear.
Orange peel grab
The Orange Peel Grab has a solid reputation for handling bulk materials that are difficult to handle.
Can work with difficult dry bulk materials
For difficult-to-handle materials, orange peel grabs (Cactus grabs) are the best solution. All of our cactus grabs are designed with bulk material handling in mind. We want to keep your operation costs as low as possible, which is why our Orange Peel grabs are made with the highest quality steel. The Orange peel grab's closing rope guide can also be outfitted with low friction cable guides, which greatly extends the closing cable's lifespan.
The cactus grab's characteristics
The Orange Peel grab is available for cranes or unloaders with safe working loads ranging from 25 to 63 tons. The orange peel grabs can handle volumes of up to 17 m3 for scraps and up to 50 m3 for wood chips. Depending on the bulk material, the grabs can have six or eight claws. The claws on the grab can be open, half-open, or closed. In a nutshell, a very strong design. The Orange Peel grab has excellent digging power due to its relatively independently movable claws.
Besides, customized railway gantry cranes are available with different crane attachment to help material handling in railway freight, and railroad yard. Contact us to get your customized gantry crane now.
