Double Girder Gantry Crane in Automotive Assembly Plant 10 T 30 T

Double girder gantry cranes for automotive steel components handling in automotive assembly plant. Hot sale gantry crane 10 ton, 20 ton, 30 ton +. Click.

In the bustling world of automotive assembly plants, efficiency, precision, and safety are paramount. At the heart of these operations lies a critical component: the Double Girder Gantry Crane. These towering structures are more than mere machines; they are the backbone of material handling within automotive assembly plants, facilitating the movement of diverse steel components with precision and reliability.

Double Girder Gantry Cranes are heavy duty lifting devices characterized by their robust construction and exceptional load bearing capacity. Unlike their single girder counterparts, double girder cranes feature two parallel steel beams (girders) spanning the width of the workspace, providing increased stability and lifting capacity. Mounted on a gantry structure, these cranes offer versatility in maneuvering heavy loads horizontally and vertically within the assembly plant.

In the fast paced environment of automotive manufacturing, every second counts. Double Girder Gantry Cranes play a pivotal role in streamlining production processes by swiftly and safely transporting various steel components required for vehicle assembly. From chassis frames to engine blocks, these cranes handle an extensive range of parts with precision, ensuring seamless workflow and minimizing downtime. Their significance extends beyond mere material handling; they contribute to the overall efficiency and productivity of the assembly plant, ultimately impacting the bottom line.

As we delve deeper into the world of Double Girder Gantry Cranes, let us explore their types, capabilities, and applications, shedding light on how these engineering marvels elevate automotive assembly to new heights of excellence. Join us on this journey as we unravel the intricacies of these indispensable machines powering the automotive industry forward.

Double girder gantry crane for sale

Types of Cranes: Double Girder Gantry Cranes

Double Girder Gantry Cranes, towering above the assembly floor, are a sight to behold. Their distinctive design features two parallel steel beams, or girders, spanning the width of the crane runway. This dual girder configuration provides exceptional stability and lifting capacity, making them well suited for handling heavy loads in automotive assembly plants.

These cranes typically come equipped with a trolley that moves horizontally along the girders, allowing for precise positioning of loads. The gantry structure, which runs on tracks laid on the workshop floor, ensures smooth and efficient movement within the designated workspace. The lifting mechanism, often a hoist or trolley system, completes the ensemble, making these cranes versatile workhorses in the material handling arena.

Advantages over other crane types

The choice of a Double Girder Gantry Crane over other crane types is driven by several distinct advantages:

Increased Load Capacity: The dual girder design inherently provides superior load bearing capabilities, allowing these cranes to handle heavier and more substantial automotive components.
Enhanced Stability: The dual girder configuration ensures stability during lifting and movement, especially crucial when dealing with large and unwieldy loads.
Greater Span: Double Girder Gantry Cranes can span larger distances, making them suitable for covering extensive work areas in automotive assembly plants.
Versatility in Handling: The horizontal movement of the trolley and the vertical lift of the hoist offer a high degree of precision, enabling efficient handling of diverse loads.
Durability and Longevity: Constructed with robust materials, these cranes are built to withstand the rigors of heavy duty industrial applications, ensuring a long and reliable service life.

Key Features and Components

Understanding the anatomy of Double Girder Gantry Cranes reveals the key features that contribute to their effectiveness:

Girders: The primary structural elements, girders, provide the framework for supporting and lifting heavy loads.
Trolley System: Mounted on the girders, the trolley facilitates the horizontal movement of the crane, allowing for precise positioning of loads.
Hoisting Mechanism: The hoist, whether electric or manual, is responsible for the vertical movement of the load. It ensures controlled and secure lifting and lowering operations.
Gantry Structure: The gantry structure, supported by sturdy legs, runs on tracks embedded in the workshop floor. This design ensures stability and mobility.
Control System: Modern Double Girder Gantry Cranes are equipped with advanced control systems, offering operators intuitive and efficient control over crane movements.

As we move forward, we will explore the diverse loads these cranes handle within the automotive assembly plants and the impact of their tonnage range on operational efficiency. Join us in unraveling the intricacies of these engineering marvels shaping the future of automotive manufacturing.

Double girder goliath gantry crane for steel coil handling

Typical Loads Handled

Overview of Diverse Automotive Steel Components

In the choreography of an automotive assembly plant, precision in handling diverse steel components is a non negotiable element. Double Girder Gantry Cranes are instrumental in seamlessly orchestrating the movement of these components, ensuring they are in the right place at the right time. The versatility of these cranes shines as they tackle a wide array of automotive steel components, each playing a crucial role in the final assembly of a vehicle.

Specific Examples of Loads Handled

Chassis Frames: The backbone of any vehicle, chassis frames are substantial and require robust handling. Double Girder Gantry Cranes effortlessly lift and position these frames for assembly.
Engine Blocks: Engines, with their intricate components, demand careful and precise handling. These cranes delicately transport engine blocks to designated workstations with accuracy.
Body Panels: From doors to hoods, the cranes efficiently move various body panels, contributing to the assembly of the vehicle's outer structure.
Suspension Components: Handling components like axles and suspension systems demands a combination of strength and control, attributes that double girder gantry cranes possess.
Exhaust Systems: Navigating the workshop with bulky exhaust systems is simplified by the flexibility and range of motion of these cranes.

Importance of Crane Strength and Stability

The effective handling of these diverse automotive steel components hinges on the strength and stability of the Double Girder Gantry Crane. Here's why these factors are of paramount importance:

Safety: The heavy loads inherent in automotive assembly demand cranes with a robust design to ensure the safety of both operators and the surrounding workforce.
Precision Handling: The stability of double girder gantry cranes allows for precise control during lifting, positioning, and lowering operations, crucial for delicate components.
Minimized Downtime: The strength of the crane translates to its ability to handle heavier loads, minimizing the need for multiple lifts or additional equipment, thus reducing downtime.
Longevity of Equipment: Operating in the demanding environment of an assembly plant, these cranes need to withstand continuous use. Their strength and stability contribute to a longer lifespan and reduced maintenance requirements.

As we delve deeper into the realm of Double Girder Gantry Cranes, the tonnage range they cover becomes a critical aspect, influencing their applicability in various automotive assembly scenarios. Join us in the next segment as we explore the tonnage range and its implications for operational efficiency.

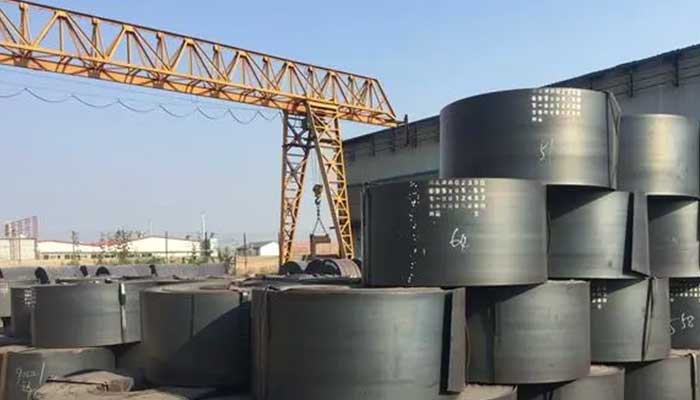

Truss girder gantry crane for steel coil handling

Tonnage Range

The versatility of Double Girder Gantry Cranes is not only reflected in their design and functionality but also in their impressive tonnage range. These stalwart machines are designed to handle loads ranging from 10 tons to 30 tons, providing automotive assembly plants with a flexible and adaptive solution for their material handling needs.

Considerations for Selecting the Appropriate Tonnage

Selecting the appropriate tonnage for a Double Girder Gantry Crane is a decision that directly impacts the efficiency and safety of the assembly process. Several crucial considerations come into play:

Weight of Loads: Analyzing the heaviest loads regularly handled in the assembly process is the first step. The crane's tonnage should comfortably exceed the maximum weight requirement.
Future Expansion: Anticipating growth and changes in production requirements is essential. Choosing a crane with a tonnage range that accommodates potential future needs ensures a long term investment.
Operational Frequency: Understanding how often the crane will be in use and the nature of the loads (static or dynamic) aids in determining the appropriate tonnage for optimal performance.
Safety Margins: Building in safety margins is critical. Opting for a crane with a tonnage slightly higher than the calculated maximum load ensures a safety buffer and prevents overloading.

Impact on Operational Efficiency

The tonnage range of Double Girder Gantry Cranes directly influences operational efficiency within an automotive assembly plant:

Speed and Precision: Cranes operating within their specified tonnage range can move loads with speed and precision. Overloading or working at the upper limit may compromise these crucial factors.
Minimized Downtime: Selecting a crane with an appropriate tonnage range reduces the need for multiple lifts or transfers, minimizing downtime and contributing to a streamlined production process.
Equipment Longevity: Operating within the recommended tonnage range ensures that the crane functions optimally, contributing to the longevity of the equipment and reducing the risk of premature wear and tear.
Cost Efficiency: Right sizing the crane based on tonnage requirements prevents the unnecessary cost of investing in excess capacity. It optimizes the use of resources while meeting the specific demands of the assembly line.

In our exploration of Double Girder Gantry Cranes, we now turn our attention to the typical workshops where these cranes operate—the automotive assembly plants. Understanding the layout and integration of these cranes in such environments is crucial for maximizing their effectiveness. Join us in the next segment as we explore the typical workshop setup in automotive assembly plants.

Typical Workshop: Automotive Assembly Plant

Layout and Structure of Automotive Assembly Plants

Automotive assembly plants are intricate ecosystems where precision and efficiency converge. The layout and structure of these plants are carefully designed to facilitate the seamless flow of materials and components through various stages of production. The assembly line is a symphony of robotics, human labor, and, of course, heavy duty machinery like Double Girder Gantry Cranes.

The layout typically features designated workstations for different assembly tasks, storage areas for components, quality control checkpoints, and logistics hubs for transporting finished products. The entire structure is a well orchestrated dance floor where every movement is synchronized for optimal efficiency.

Integration of Double Girder Gantry Cranes into the Workshop

Double Girder Gantry Cranes are integral to the rhythm of automotive assembly plants. Their strategic integration ensures a smooth and efficient workflow. Here's how they seamlessly become a part of the automotive assembly dance:

Strategic Placement: Cranes are strategically placed along the assembly line and within storage areas to provide comprehensive coverage for material handling needs.
Customization for Workstations: Cranes can be customized to suit specific workstations, ensuring they align with the height and layout requirements of each assembly stage.
Interplay with Conveyor Systems: Double Girder Gantry Cranes work in tandem with conveyor systems, facilitating the transfer of components between different stages of assembly with precision.
Synchronized Operations: The operation of these cranes is synchronized with other machinery and processes, creating a harmonious and efficient production environment.

Importance of Space Optimization

In the intricate dance of automotive assembly, space optimization is a choreographic masterpiece, and Double Girder Gantry Cranes play a pivotal role. The importance of space optimization in the integration of these cranes includes:

Maximizing Vertical Space: Gantry cranes efficiently utilize vertical space, lifting and moving loads overhead, leaving valuable floor space free for other operations.
Minimizing Footprint: The gantry structure and rails are designed to minimize the footprint on the workshop floor, allowing for efficient material handling without impeding other essential processes.
Flexibility in Movement: The ability of these cranes to move horizontally and vertically with precision allows for flexibility in navigating through the workshop, optimizing every inch of available space.
Enhancing Workflow: By optimizing space, these cranes contribute to the overall enhancement of workflow, ensuring that materials are in the right place at the right time.

As we continue our exploration of Double Girder Gantry Cranes, we will delve into their practical applications in efficiently handling automotive components during the assembly process. Join us in the next segment as we uncover the specific applications that make these cranes indispensable in automotive manufacturing.

Application

Efficient Material Handling

Efficiency in material handling is the heartbeat of any successful automotive assembly plant, and Double Girder Gantry Cranes are the maestros orchestrating this symphony. Their application in efficient material handling is multi faceted:

Quick and Precise Movements: The design of these cranes allows for swift and precise movements, ensuring that automotive components are transported to the right location at the right time.
Versatility in Load Handling: From heavy chassis frames to delicate electronic components, Double Girder Gantry Cranes exhibit versatility in handling a diverse range of materials, contributing to a streamlined production process.
Integration with Conveyor Systems: These cranes seamlessly integrate with conveyor systems, enhancing the overall efficiency of material flow within the assembly plant.
Reduced Manual Handling: By automating the lifting and positioning of materials, these cranes minimize the need for manual handling, reducing the risk of accidents and enhancing worker safety.

Role in the Assembly of Automotive Components

The assembly of automotive components demands a choreographed dance of precision and timing. Double Girder Gantry Cranes play a crucial role in this intricate process:

Positioning Components: The cranes precisely position components at various workstations, ensuring that each part is in the right place for assembly.
Collaboration with Workstations: Customized to work seamlessly with different assembly workstations, these cranes contribute to the overall efficiency of the assembly line.
Handling Bulk Components: For large and heavy components such as engine blocks and chassis frames, these cranes provide the strength and stability required for safe and efficient handling.
Optimizing Workflow: By facilitating the timely and accurate delivery of components, these cranes contribute to the optimization of the assembly workflow, preventing bottlenecks and minimizing downtime.

Impact on Production Timelines and Overall Efficiency

The utilization of Double Girder Gantry Cranes has a profound impact on production timelines and the overall efficiency of automotive assembly plants:

Accelerated Production: Swift and precise material handling ensures that the assembly line operates at optimal speed, accelerating the overall production process.
Minimized Downtime: By efficiently positioning components and minimizing manual handling, these cranes contribute to reducing downtime, ensuring a continuous and uninterrupted production flow.
Enhanced Accuracy: The precision of these cranes in placing components at the right location enhances the accuracy of assembly, reducing the likelihood of errors and rework.
Improved Worker Productivity: Automation of material handling tasks allows workers to focus on more intricate aspects of assembly, boosting overall productivity and job satisfaction.

As we delve further into the world of Double Girder Gantry Cranes, our exploration will lead us to real world case studies and the challenges these cranes overcome in automotive assembly plants. Join us in the next segment as we uncover the tangible benefits through practical examples.

Case Studies

Examples of Successful Implementation in Automotive Assembly Plants

The real test of any technology lies in its practical application. Double Girder Gantry Cranes have not just found a place in the blueprints of automotive assembly plants; they have proven their worth in real world scenarios. Let's delve into some illuminating case studies showcasing the successful implementation of these cranes:

Leading Automotive Manufacturer XYZ:
Challenge: Handling large and heavy body frames efficiently.
Solution: Integration of Double Girder Gantry Cranes for precise and swift movement.
Result: Drastic reduction in assembly time and improved safety in material handling.

Innovative Component Assembly Facility:
Challenge: Maneuvering complex engine components through various assembly stages.
Solution: Customized Double Girder Gantry Cranes with specialized lifting attachments.
Result: Increased precision, reduced manual handling, and a notable decrease in assembly errors.

Quantifiable Benefits and Improvements Observed

The success stories of implementing Double Girder Gantry Cranes are not just anecdotes; they come with measurable benefits and improvements:

Enhanced Productivity:
20% reduction in overall assembly time.
Increased daily output by 15%, leading to higher production volumes.

Improved Safety Standards:
30% decrease in accidents related to material handling.
Enhanced operator safety through advanced control systems and safety features.

Cost Efficiency:
25% reduction in maintenance costs due to durable and reliable crane components.
Optimized use of resources leading to a 10% decrease in operational expenses.

Lessons Learned and Best Practices

The success of these case studies imparts valuable lessons and best practices for the integration of Double Girder Gantry Cranes:

Tailored Solutions: Customizing crane specifications to meet the specific needs of the assembly plant ensures optimal performance.
Investment in Training: Providing comprehensive training for crane operators results in efficient utilization and minimizes the risk of accidents.
Regular Maintenance: Implementing a proactive maintenance schedule ensures the longevity of the cranes and prevents unexpected downtime.
Continuous Monitoring and Improvement: Regularly monitoring the performance of cranes and identifying areas for improvement contribute to ongoing efficiency gains.

As we conclude our exploration of Double Girder Gantry Cranes in automotive assembly, we'll turn our gaze towards the challenges faced in their utilization and innovative solutions that pave the way for continuous improvement. Join us in the next segment as we unravel the complexities and advancements in the field.

Challenges and Solutions

A. Common Challenges Faced in Using Double Girder Gantry Cranes

While Double Girder Gantry Cranes are indispensable in automotive assembly, they are not immune to challenges. Identifying and addressing these challenges is crucial for ensuring their seamless integration into the production process:

Space Constraints: Limited space in assembly plants can pose challenges for the optimal movement of cranes, especially in congested areas or when dealing with oversized components.
Complex Load Handling: The diversity of automotive components, each with its unique shape and weight, can make load handling a complex task, demanding precision and adaptability.
Operational Downtime: Unplanned downtime due to maintenance or repairs can disrupt the assembly line, affecting overall productivity and efficiency.

Innovative Solutions and Technologies to Overcome Challenges

In addressing these challenges, innovation plays a pivotal role. Here are some cutting edge solutions and technologies:

Smart Crane Technology: Integration of smart technologies, including sensors and automation, allows for real time monitoring of crane performance. Predictive maintenance algorithms can identify potential issues before they cause downtime.
Adaptive Control Systems: Advanced control systems with adaptive features can enhance the precision of load handling. These systems adjust crane movements based on the characteristics of the load, improving overall efficiency.
Compact Design and Robotics Integration: Cranes with a compact design and the integration of robotics enable more agile movement within limited spaces. Robotics assist in handling complex loads with increased accuracy.
Remote Monitoring and Control: The ability to monitor and control cranes remotely enhances operational flexibility. Operators can troubleshoot and make adjustments without being physically present, minimizing downtime.

Continuous Improvement Strategies

Continuous improvement is not just a goal but a mindset. Strategies for ongoing enhancement in the utilization of Double Girder Gantry Cranes include:

Data Driven Decision Making: Regularly analyzing data on crane performance, maintenance records, and operational metrics provides insights for making informed decisions to enhance efficiency.
Training and Skill Development: Continuous training programs for operators ensure they are well versed in the latest technologies and best practices, contributing to safer and more efficient crane operation.
Feedback Loops and Collaboration: Establishing feedback loops with operators, maintenance teams, and other stakeholders fosters collaboration. Shared insights lead to refinements in operational processes.
Integration of Industry 4.0 Practices: Embracing Industry 4.0 principles, such as the Internet of Things (IoT) and cloud computing, facilitates the seamless integration of data and processes, fostering a more connected and responsive production environment.

As we conclude our exploration of Double Girder Gantry Cranes, we'll shift our focus to the future—exploring emerging trends and potential advancements that could further revolutionize the landscape of automotive assembly plants. Join us in the final segment as we peer into what lies ahead in the realm of crane technology and manufacturing excellence.

Conclusion

In the bustling world of automotive assembly, where precision meets scale, the significance of double girder gantry cranes emerges as a linchpin in the production process. These robust lifting systems, characterized by their double girder design, have proven instrumental in the efficient handling of diverse automotive steel components. From navigating the workshop with grace to supporting the assembly of intricate parts, double girder gantry cranes stand as stalwart pillars in the orchestration of automotive manufacturing.

Overall Impact on Efficiency, Safety, and Productivity

The impact of double girder gantry cranes on the automotive assembly landscape is profound, leaving an indelible mark on efficiency, safety, and productivity.

Efficiency: The precision and lifting capacity of double girder gantry cranes contribute to the seamless flow of materials, reducing downtime and optimizing the production timeline. Their ability to handle a tonnage range from 10 tons to 30 tons ensures the swift and accurate positioning of automotive steel components.
Safety: Equipped with advanced safety features, these cranes prioritize the well being of both operators and materials. Their stable double girder design enhances load stability, minimizing the risk of accidents during material handling.
Productivity: The integration of double girder gantry cranes into automotive assembly plants enhances overall productivity. By streamlining material handling processes, these cranes empower manufacturers to meet production demands with precision and consistency.

Future Prospects and Potential Advancements in the Field

Looking ahead, the future of double girder gantry cranes in the automotive assembly sector holds exciting prospects and potential advancements:

Smart Crane Technologies: Integration of smart technologies such as IoT sensors and data analytics will enable real time monitoring of crane performance. This data driven approach will facilitate predictive maintenance, minimizing downtime and optimizing crane efficiency.
Automation and Robotics: The automotive industry's increasing embrace of automation and robotics is likely to extend to crane systems. Automated features, coupled with robotic arms for material handling, could further enhance the speed and efficiency of assembly processes.
Enhanced Load Capacity: Advancements in materials and engineering may lead to the development of double girder gantry cranes with enhanced load capacities. This could cater to the evolving requirements of larger and more complex automotive components.

As we conclude this exploration into the realm of double girder gantry cranes in automotive assembly, it is evident that these formidable machines are not just lifting equipment but catalysts for progress. Their role in shaping the vehicles of the future, with an unwavering focus on efficiency and safety, positions them as indispensable assets in the ever evolving landscape of automotive manufacturing.
