Truss Gantry Cranes for Heavy Steel Scrap Handling: Key Benefits and Applications

Truss gantry cranes for heavy scrap handling typically range from 30 tons to 150 tons, with some systems capable of handling up to 200 tons

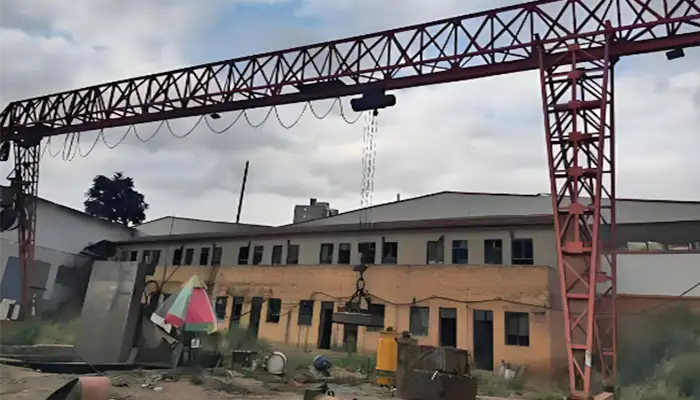

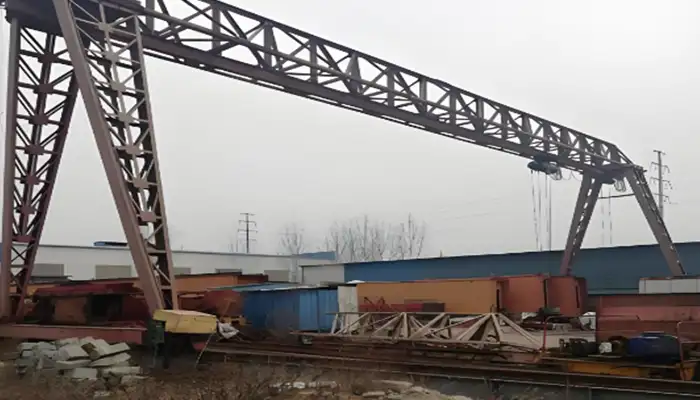

Overview of Truss Gantry Cranes

Truss gantry cranes are heavy-duty machines used to move large, heavy loads in industrial settings. Unlike traditional cranes, they use triangular trusses for support instead of solid beams, offering both strength and a lighter structure. This design provides excellent load distribution, stability, and reduces costs.

• Structural Design: The truss design evenly distributes the load, preventing stress points and enhancing stability.
• Strength and Stability: The triangular truss structure ensures resistance to bending, which is crucial when handling heavy and irregular materials.
• Cost-Effective: Lighter design reduces the crane's weight and operational costs without sacrificing performance.

Importance in Heavy-Duty Applications, Especially in Steel Scrap Handling

Truss gantry cranes are essential for handling steel scrap, which is often heavy and irregularly shaped. These cranes provide the power and stability needed to manage scrap metal in environments like scrap yards and steel mills.

• Heavy Lifting Capacities: Cranes typically lift loads between 30 tons and 150 tons, with some reaching up to 200 tons.
• Handling Irregular Loads: They can move various scrap sizes and shapes, including steel beams and car parts, with precision.
• Critical for Recycling: Their efficiency is crucial in scrap recycling, where fast and safe material handling is needed to maintain productivity.

Relevance of Steel Scrap Handling

Steel scrap plays a critical role in steel production and recycling, helping reduce costs and conserve resources. As industries push for better sustainability practices, efficient scrap handling is increasingly important.

• Demand for Efficiency: Rising demand for steel recycling drives the need for efficient scrap handling to reduce environmental impact and energy use.
• Cost Reduction: Effective scrap handling lowers transportation and labor costs by streamlining the process.
• Expanding Scrap Yard Operations: Growing recycling centers and scrap yards require cranes that can manage higher volumes of scrap quickly and safely.

Overview of the Scrap Handling Process and Challenges

Scrap handling involves collection, transportation, sorting, and preparation for recycling or remelting. Each stage requires specialized equipment, as scrap metal can be unpredictable in size and shape.

• Collection and Transportation: Scrap is gathered from various sources and moved to recycling centers. Truss gantry cranes help with lifting and loading scrap onto trucks and containers.
• Sorting and Preparation: After collection, scrap must be sorted and prepared for processing. These cranes help move materials efficiently to different areas.
• Handling Challenges: Scrap metal is often heavy and irregular, making it difficult to handle without the right equipment. Truss gantry cranes are built to lift uneven loads safely.
• Safety Concerns: Steel scrap can be hazardous to handle. Truss gantry cranes improve safety by offering stability and remote operation, keeping operators away from dangerous materials.

Truss gantry cranes streamline the entire scrap handling process, reducing risk, improving efficiency, and helping meet the growing demand for steel recycling.

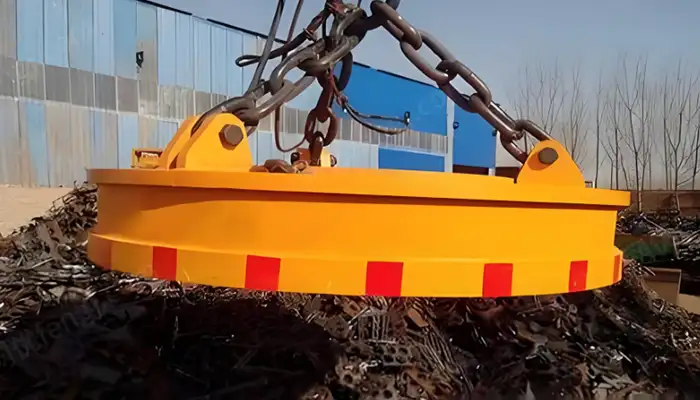

truss gantry crane with magnetic chuck for steel scrap handing


Capacity Ranges of Truss Gantry Cranes

Typical Capacity Range (30 tons to 150 tons)

Truss gantry cranes are commonly available in capacities ranging from 30 tons to 150 tons, making them well-suited for handling heavy steel scrap in most industrial environments. These cranes are the backbone of many scrap yards, recycling centers, and steel mills, as they offer the power needed to move large and irregularly shaped loads with ease.

• Common Capacity Options: Cranes within this range are used in a variety of operations, from handling smaller scrap pieces to large metal beams, car bodies, and other bulky materials.
• Load Types: For scrap handling, cranes in this range are ideal for lifting and moving heavy but not extreme loads, like bulk metal scrap or pre-sorted materials. A 30-ton crane can handle smaller scrap loads, while a 150-ton crane manages denser or larger items.
• Efficiency and Versatility: This capacity range offers the flexibility to handle different types of scrap and optimize operations, reducing downtime and improving overall productivity.

High-Capacity Options (Up to 200 tons)

For industries dealing with extremely heavy scrap, high-capacity truss gantry cranes can handle loads up to 200 tons. These cranes are often used in large-scale steel mills, heavy-duty scrap yards, or facilities that process oversized scrap pieces.

• Applications for 200-Ton Cranes: These cranes are essential in settings where scrap materials are especially dense, large, or irregular, such as handling entire vehicles, large metal structures, or bulk scrap that exceeds standard weight limits.
• Customization Features: High-capacity cranes often come with customizable features such as reinforced hoists, extended spans, and stronger lifting mechanisms to ensure they can handle the extreme weights safely. Some models may be equipped with larger grabs or specialized magnets for more efficient handling of ultra-heavy scrap.

For ultra-heavy scrap lifting, high-capacity truss gantry cranes offer tailored solutions to manage large-scale operations, ensuring safety, efficiency, and maximum load handling.


Key Benefits of Truss Gantry Cranes in Steel Scrap Handling

Superior Stability and Strength

The truss design of gantry cranes provides significant stability when lifting and transporting heavy loads, making it ideal for steel scrap handling. The triangular structure of the trusses distributes the load evenly across the crane, preventing bending or twisting under weight. This is particularly important when dealing with irregularly shaped or extremely heavy scrap, which can challenge the stability of standard cranes.

• Enhanced Load Distribution: The truss frame evenly distributes weight, reducing stress on critical parts and ensuring the crane stays stable even when handling large, awkwardly shaped scrap.
• Comparison with Traditional Designs: Unlike solid beam cranes, which can be more prone to stress and flexing under heavy loads, truss cranes maintain structural integrity with their lightweight, yet strong, design. This enables higher lifting capacities without excessive wear.
• Safety and Precision: The stability of truss gantry cranes reduces the risk of accidents caused by tipping or unbalanced loads, enhancing safety for both the crane operator and the materials being handled.

Durability in Harsh Environments

Truss gantry cranes are built to withstand the tough conditions found in scrap yards and steel mills, where exposure to heavy-duty operations, dust, moisture, and high temperatures is common. Their design and materials are specifically chosen for durability in these harsh environments.

• Resistance to Wear: The robust truss design is resistant to wear, making it ideal for frequent use in demanding scrap handling operations. The crane’s frame is built to endure the repeated stresses of lifting and moving heavy, rough scrap material.
• Corrosion Resistance: Steel mills and scrap yards often involve exposure to corrosive materials or humid conditions. Many truss gantry cranes are equipped with protective coatings or are constructed from materials resistant to rust and corrosion, ensuring a longer lifespan.
• Extreme Temperature Tolerance: Truss gantry cranes are also able to operate effectively in environments with extreme temperatures, whether in the heat of steel production or in freezing conditions typical of some recycling centers.

Cost Efficiency and Long-Term Performance

The combination of superior stability, strength, and durability translates into cost savings and long-term performance for industries that rely on heavy-duty cranes for scrap handling. Truss gantry cranes offer a good return on investment by minimizing maintenance costs and reducing the frequency of repairs.

• Reduced Maintenance Costs: The solid truss design requires less maintenance compared to other crane types because it’s less prone to fatigue and wear. The ability to operate efficiently over time without frequent breakdowns lowers overall maintenance costs.
• Extended Operational Lifespan: Truss gantry cranes are built to last, even under heavy and continuous use. Their sturdy construction and ability to handle extreme loads ensure that they remain effective in high-demand environments for many years, providing long-term reliability and performance.
• Value Over Time: With minimal downtime and fewer repairs, businesses benefit from lower operational costs and increased productivity, making truss gantry cranes a cost-effective choice for scrap handling over the long term.

Truss gantry cranes offer unmatched benefits in the steel scrap handling process, providing stability, durability, and cost savings while ensuring reliable performance in demanding environments.



Applications of Truss Gantry Cranes for Steel Scrap Handling

Scrap Yard Operations

Truss gantry cranes are widely used in scrap yards, where they perform essential tasks such as loading, unloading, and moving various types of steel scrap. Scrap yards typically deal with large quantities of metal debris, including automotive parts, industrial waste, and construction materials. These materials can vary in size and weight, making the ability to handle them efficiently crucial to maintaining smooth operations.

• Loading and Unloading: Truss gantry cranes are used to load steel scrap onto trucks, containers, and rail cars for transportation to processing facilities. Their high lifting capacity ensures that even bulky or heavy loads are moved safely and efficiently.
• Sorting and Storing: In scrap yards, cranes are also used to sort and move scrap piles to designated storage areas. Truss gantry cranes help separate different types of metals, ensuring that scrap is ready for recycling or resale.
• Efficient Handling: With their large lifting capacities and stability, truss gantry cranes can move massive piles of scrap quickly, minimizing delays and boosting productivity in scrap yard operations.

Steel Mill and Foundry Operations

In steel mills and foundries, truss gantry cranes play a critical role in handling steel scrap that is being processed for recycling or melting. These cranes are designed to withstand the high temperatures and intense workloads typical of these environments.

• Scrap Processing and Melting: Steel mills rely on truss gantry cranes to move scrap metal into furnaces for melting. The cranes are equipped with magnets, grabs, or hooks to safely lift and transport scrap into the furnace area, where it will be melted down to produce new steel.
• Material Handling: These cranes are also used to move the scrap through various stages of processing, including sorting, shredding, and loading it into transportation units.
• Heavy Lifting in High-Temperature Environments: Truss gantry cranes are built to endure the extreme conditions of steel mills, including heat, heavy loads, and dust. Their strength and durability make them ideal for safely transporting steel scrap and other heavy materials in these high-demand environments.

Heavy-Duty Scrap Processing Facilities

High-throughput scrap processing facilities rely on truss gantry cranes to handle large volumes of scrap metal in a fast-paced, industrial setting. These facilities process scrap for recycling or repurposing and require cranes that can operate continuously and handle extreme volumes of material.

• High-Volume Scrap Movement: In these environments, cranes are used to move large quantities of scrap metal between different processing stages, including sorting, shredding, and melting. Truss gantry cranes help streamline the workflow by quickly transferring heavy loads without slowing down operations.
• Custom Lifting Tools: To handle various types of scrap, these cranes are often equipped with custom lifting tools like scrap grabs, shears, or electromagnets, ensuring safe and efficient handling of different scrap materials.
• Durability for Continuous Operation: Truss gantry cranes in scrap processing facilities are built for durability, able to handle the constant wear and tear of continuous operation. Their long service life and low maintenance needs make them a reliable choice for heavy-duty processing work.

Port and Harbor Scrap Operations

Truss gantry cranes are also essential in ports and harbors, particularly for scrap metal shipping and export operations. In these locations, scrap metal is often transported to overseas markets or larger processing facilities. The ability to move large quantities of scrap efficiently is key to meeting tight shipping deadlines and maintaining a smooth flow of operations.

• Loading Scrap for Shipping: In port facilities, truss gantry cranes are used to load scrap metal onto ships for export. Their high lifting capacities and precision handling make them ideal for safely moving bulk scrap materials from storage areas to ships.
• Handling Oversized Loads: Port cranes often deal with oversized scrap, such as large metal structures, which require cranes with exceptional lifting power and stability. Truss gantry cranes are capable of handling these heavy and bulky loads without compromising safety or efficiency.
• Streamlined Export Operations: By efficiently managing the loading and unloading of scrap, truss gantry cranes help maintain the smooth flow of materials in scrap export operations, ensuring timely deliveries and reducing bottlenecks.

Truss gantry cranes are indispensable in various scrap handling applications, from scrap yards and steel mills to high-throughput facilities and ports. Their robust design and versatility make them the ideal choice for industries that deal with heavy, bulky, and irregularly shaped steel scrap.

Design Features Tailored for Steel Scrap Handling

Heavy-Duty Hoists and Lifting Mechanisms

The hoisting system of truss gantry cranes is designed to handle the extreme weight and irregular shapes of steel scrap. These cranes are equipped with heavy-duty hoists that can lift large, heavy loads with precision and safety. The hoisting mechanisms are engineered to ensure smooth operation under high-stress conditions, minimizing wear and increasing overall crane performance.

• Hoist Design for Steel Scrap: Hoists in truss gantry cranes are built with powerful motors and robust gears that enable them to lift scrap metal with ease. These hoists are designed to handle unpredictable and irregularly shaped loads, ensuring efficient scrap handling without damaging materials.
• Load-Sensing Systems: Many hoists are equipped with load-sensing technology that continuously monitors the weight of the load being lifted. This feature helps prevent overloading by automatically adjusting lifting power, ensuring safety during operation.
• Safety Features: Integrated safety features such as overload protection, limit switches, and emergency stop systems are built into the hoisting mechanisms. These features ensure the crane operates within safe weight limits and provide an added layer of security in demanding environments.

Customized Lifting Attachments and Grabs

To enhance the versatility of truss gantry cranes in steel scrap handling, a variety of customized lifting attachments and grabs can be used. These attachments are designed to cater to different types of scrap, ensuring efficient and safe handling of materials that vary in size, shape, and weight.

• Clamshell Grabs: Clamshell grabs are one of the most commonly used attachments for handling steel scrap. Their design allows for effective scooping, picking, and lifting of scrap metal, from small pieces to large chunks. The clamshell mechanism ensures a secure grip on materials, reducing the risk of dropping or spilling the scrap during transport.
• Magnet Attachments: For handling ferrous materials like steel, magnet attachments are highly effective. These magnets are mounted on the hoist to lift steel scrap directly without the need for traditional grabs. Magnets can quickly and efficiently move large amounts of scrap, improving processing speed and reducing manual labor.
• Specialized Grabs for Irregular Shapes: Some truss gantry cranes are fitted with customized grabs designed for specific scrap types. For example, scrap shear grabs can be used to handle more difficult materials, such as large steel beams or scrap from industrial machinery, allowing for safe and efficient lifting.

Weatherproofing and Anti-Corrosion Coatings

Scrap handling operations often take place in harsh environments where cranes are exposed to extreme weather, moisture, dust, and corrosive substances. To extend the lifespan of truss gantry cranes and maintain reliable performance, these cranes are often equipped with weatherproofing and anti-corrosion coatings.

• Weatherproof Materials: Truss gantry cranes used in outdoor scrap yards or ports must be designed to withstand harsh weather conditions. Weatherproofing coatings protect the crane from rain, snow, and extreme temperatures, ensuring that the crane operates efficiently year-round.
• Anti-Corrosion Coatings: In environments where the crane is exposed to chemicals, salt, or moisture (such as coastal scrap yards or steel mills), anti-corrosion coatings are crucial. These coatings prevent rust and degradation, ensuring that the crane’s structural components remain strong and functional despite constant exposure to harsh elements.
• Long-Term Durability: The use of high-quality materials and protective coatings helps minimize maintenance needs and extends the operational life of the crane. This is especially important in steel scrap handling, where cranes must endure heavy loads and constant use in tough environments.

Truss gantry cranes are designed with specific features to meet the unique demands of steel scrap handling. From powerful hoisting mechanisms to custom grabs and weather-resistant coatings, these cranes are built to deliver superior performance, safety, and durability in even the most challenging scrap yard and industrial environments.

Safety Considerations for Truss Gantry Cranes

Load Control and Anti-Sway Mechanisms

One of the key safety concerns in steel scrap handling is the inherent risk of load sway, especially when dealing with heavy, irregularly shaped materials. Truss gantry cranes are equipped with various technologies and design features to mitigate this risk and maintain stability during lifting operations.

• Load Sway Management: To prevent the load from swinging uncontrollably during lifting or transport, truss gantry cranes are often equipped with anti-sway mechanisms. These systems use advanced sensors to detect sway and automatically adjust the crane’s movement to reduce or eliminate excessive swinging, providing smoother, safer operation.
• Anti-Sway Technologies: Some cranes integrate sophisticated algorithms and feedback systems that adjust the crane's hoisting speed and motion path in real time, based on the load’s movement. This helps to stabilize the load and prevent accidents caused by load instability.
• Stability During Heavy Lifts: When handling large scrap metal loads, the crane's structure and hoisting systems are designed to ensure the load remains steady. This includes reinforced hoist systems and counterweights that help balance the crane, even when lifting at full capacity, ensuring safe lifting and transport.

Operator Safety Features

Safety for crane operators is paramount, especially when handling the large and heavy loads typically encountered in scrap yards and steel mills. Truss gantry cranes are designed with a range of safety features to protect both the operator and surrounding personnel.

• Remote Control Systems: To keep operators at a safe distance from the crane’s movements, many truss gantry cranes are equipped with wireless remote control systems. These systems allow operators to control the crane’s movement and lifting operations from a safe position, reducing the risk of injury from falling scrap or crane malfunction.
• Operator Cab Design: For cranes with operator cabs, the cab is often designed with ergonomic features, including adjustable seating, controls, and climate control systems. The cab is typically equipped with reinforced glass and safety barriers to protect operators from flying debris or hazards in the scrap yard.
• Enhanced Visibility: Truss gantry cranes are also equipped with advanced visibility features, such as CCTV systems, LED lights, and cameras that provide a clear view of the work area. This ensures that operators have full visibility of the crane’s surroundings and can monitor the load to prevent accidents.
• Emergency Stop and Safety Protocols: In addition to standard safety features like emergency stop buttons and alarms, cranes often include fail-safes that automatically halt crane operation in case of malfunction or overload. These systems ensure that operators can act quickly in emergency situations to prevent accidents or damage.

Safety Features for Surrounding Personnel

It’s not just the operator who benefits from the safety features of truss gantry cranes. Ensuring the safety of personnel working in the vicinity of the crane is also a critical concern, especially in high-traffic areas like scrap yards and steel mills.

• Warning Systems: Truss gantry cranes are equipped with audible and visual warning systems to alert nearby workers when the crane is in operation. These systems help to prevent accidents by giving workers enough time to move out of the way of moving loads.
• Barrier Systems and Safety Zones: In busy environments like scrap yards, crane operators often work in close proximity to other workers. To enhance safety, safety barriers and exclusion zones are typically marked around the crane’s operational area. These barriers prevent unauthorized personnel from entering the crane’s path and reduce the risk of injury.
• Proximity Sensors and Automatic Shutdown: Some cranes feature proximity sensors that detect the presence of workers in the vicinity of the crane’s operational area. If a worker gets too close to a dangerous zone, the crane will automatically slow down or stop, reducing the risk of accidents.

Safety is a top priority in the design and operation of truss gantry cranes, especially when handling heavy steel scrap. With load control mechanisms, advanced operator safety features, and systems to protect surrounding personnel, these cranes are built to operate securely in high-risk environments.

Conclusion

Truss gantry cranes offer significant advantages in the handling of heavy steel scrap, particularly in challenging environments like scrap yards, steel mills, and processing facilities. Their design, which includes heavy-duty hoists, specialized lifting attachments, and anti-sway mechanisms, makes them well-suited to move large and irregularly shaped loads with safety and precision. Key benefits include enhanced stability, durability, and cost-efficiency, even in harsh industrial conditions. With their ability to handle scrap efficiently, these cranes help streamline operations and reduce downtime, contributing to overall productivity and safety.

Contact us: Free Consultation on Choosing the Right Crane for Steel Scrap Handling

Selecting the right truss gantry crane for steel scrap handling depends on various factors, including the volume and type of scrap, the required lifting capacity, and the specific environmental conditions of the operation. Here are a few guidelines to consider:

• Capacity Requirements: Ensure the crane's lifting capacity matches the size and weight of the materials to be handled. Cranes for scrap yards generally range from 30 tons to 150 tons, but for ultra-heavy applications, higher capacity options up to 200 tons may be necessary.
• Environmental Conditions: If the crane will operate in harsh outdoor conditions or corrosive environments, look for cranes with weatherproofing and anti-corrosion coatings to enhance durability and reduce maintenance.
• Safety and Efficiency: Prioritize cranes with advanced safety features, such as load-sway control, remote operation, and enhanced visibility for operators. These features ensure both the safety of workers and the efficient handling of scrap.

By considering these factors, companies can choose a truss gantry crane that will optimize their scrap handling operations, reduce costs, and improve safety for years to come.
