25 Ton Gantry Crane for Outdoor Precasting Beam & Die Handling

The 25-ton gantry crane is designed for outdoor precasting operations, efficiently lifting and transporting heavy beams and beam dies, ensuring safety, productivity, and durability in harsh conditions.

Overview of Gantry Cranes

A gantry crane is a type of crane that features a bridge supported by two vertical legs, which move along tracks or rails at ground level. Unlike overhead cranes, which are fixed in place, gantry cranes are mobile and can travel across large outdoor spaces. This mobility makes them ideal for handling heavy loads over long distances in open environments such as construction sites, manufacturing facilities, and precast concrete plants.

Gantry cranes are equipped with hoisting systems (such as electric or hydraulic winches) that allow them to lift, lower, and move materials with precision. The key function of a gantry crane is to facilitate the lifting and movement of heavy materials, making it essential for industries that require the handling of large, bulky components like precast beams and beam dies.

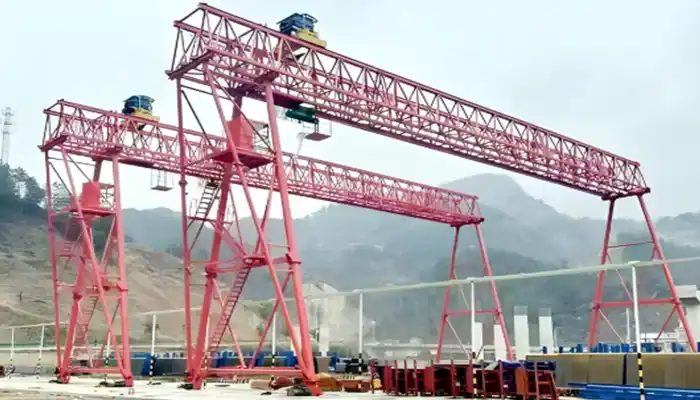

precasting yard truss gantry crane for sale


Importance of Gantry Cranes in Outdoor Precasting Beam and Beam Die Handling

In precast concrete manufacturing, beams and beam dies are essential components used in the creation of concrete structures. Precasting involves the manufacturing of concrete beams and components in a controlled environment before they are transported to construction sites for assembly. These beams and dies can be large, heavy, and sometimes delicate, requiring specialized equipment to handle them safely.

Outdoor gantry cranes are critical in precasing beam and beam die handling because they can:

  • Lift and move heavy precast beams: Precast concrete beams can weigh several tons, making it difficult to move them without powerful lifting equipment. Gantry cranes are equipped to handle these loads with safety and precision.
  • Handle beam dies: Beam dies, used in the precasting process to form beams, can also be heavy and complex in shape. Gantry cranes help position these dies with the required accuracy for the next stage of production.
  • Operate outdoors: Unlike indoor cranes, gantry cranes are designed for outdoor use, making them ideal for handling materials in large, open precast yards, often exposed to various weather conditions.

The ability to transport heavy loads efficiently across expansive outdoor areas makes gantry cranes indispensable in precast concrete production. Their mobility and lifting capacity directly improve the efficiency and safety of beam handling operations.

Focus on 25 ton Gantry Cranes for Heavy Lifting Operations in Precast Concrete Facilities

A 25 ton gantry crane is specifically designed to handle larger loads with ease. In the context of precast concrete facilities, where beams and beam dies can weigh up to several tons, a 25 ton crane offers the necessary lifting capacity to manage these heavy components without risk of overloading.

  • Heavy lifting: A 25 ton gantry crane ensures that large precast beams and heavy beam dies can be lifted safely and transported across the yard with minimal effort. The 25 ton capacity also allows for the handling of oversized components, which are common in large-scale precast concrete production.
  • Efficiency and productivity: By providing powerful lifting capabilities, 25 ton gantry cranes reduce the amount of time needed to move large materials, improving overall productivity in the plant. They streamline the movement of precast beams from the production area to the storage area or delivery trucks.
  • Safety: With their strong structural design and precise control systems, 25 ton gantry cranes ensure that operators can safely move heavy loads without the risk of accidents or material damage, an essential factor in handling precast concrete beams.

In conclusion, the 25 ton gantry crane is a key piece of equipment for any precast concrete facility that deals with heavy, large, and complex beams and dies. Its combination of power, flexibility, and safety makes it an essential tool for heavy lifting operations in outdoor precasting environments.




Key Applications for Precasting Beam and Beam Die Handling

Types of Precasting Beams and Beam Dies Typically Handled in Industrial Settings

In precast concrete production, several types of beams and beam dies are handled, each requiring careful attention and specialized equipment. The following are common types of beams and beam dies used in this industry:

Precasting Beams:

  • T-Beams: These beams have a T-shaped cross-section and are commonly used in building construction and infrastructure projects. They are often heavy and require a strong crane for handling.
  • L-Beams: L-shaped beams typically used in floors, foundations, and walls. Their shape and size make them difficult to maneuver without proper lifting equipment.
  • I-Beams: Used for load-bearing structures, these beams are essential in large-scale construction projects and can be quite heavy.
  • Box Beams: Large beams that are often used in bridges or as structural supports in buildings. Their weight and bulkiness require cranes with high lifting capacities.
  • Double-T Beams: Precast beams with two “T” sections, often used in flooring systems. These beams can be heavy and require precise handling.

Beam Dies:

  • Mold Dies: Used in the precasting process to shape the concrete into the desired beam form. These dies are heavy and may need to be moved regularly during the production process.
  • Press Dies: Used for shaping concrete under high pressure, these dies are essential in the formation of solid and durable precast beams.
  • Extrusion Dies: Used for extruding concrete into specific beam shapes, often seen in long continuous production runs.
  • Forging Dies: Used for high-strength components and structural precast elements, these dies are heavy and complex to handle.

Industries That Benefit from Outdoor Gantry Crane Systems, Especially in Precast Concrete Manufacturing

Outdoor gantry cranes are a cornerstone in industries that handle heavy precast concrete materials. The following industries significantly benefit from the use of 25 ton gantry cranes:

  • Precast Concrete Manufacturing:In precast concrete facilities, gantry cranes are essential for moving large concrete beams and beam dies. The outdoor layout of most precast yards requires cranes that can operate over vast areas, making gantry cranes the most effective solution.
  • Construction:Precast beams and components are commonly used in the construction of buildings, highways, and bridges. Gantry cranes help transport these precast elements from production yards to construction sites, ensuring timely delivery and reducing delays during construction.
  • Infrastructure Projects:Large infrastructure projects, such as bridges, tunnels, and overpasses, rely on heavy precast beams that need to be handled and transported with precision. Outdoor gantry cranes with high lifting capacities are key to moving these components safely.
  • Heavy Industry:Industries that require large steel and concrete beams for structural purposes benefit from the powerful lifting capabilities of gantry cranes. Steel fabrication yards, for example, often use precast concrete beams in their structural assemblies, requiring precise and safe movement of heavy components.

In conclusion, outdoor gantry crane systems are indispensable in industries that rely on precast concrete production, especially when handling large and heavy beams and dies. By offering high lifting capacities, mobility, and reliability, they improve operational efficiency and ensure safety in outdoor environments.

Gantry Crane Design for Precasting Beam and Beam Die Handling

Structural Design Considerations

When designing a gantry crane for handling precast beams and beam dies, the structural integrity and durability are critical to ensure reliable performance, especially in outdoor environments where conditions can vary significantly.

Frame Construction:

  • Durability for Outdoor Conditions: The crane's frame must be constructed from high-strength steel or other reinforced materials to withstand harsh weather conditions, including rain, snow, wind, and extreme temperatures. These materials help prevent corrosion and ensure long-term reliability even in coastal or industrial areas where exposure to chemicals and moisture is common.
  • Reinforced Components: Reinforcements in key areas such as joints, support beams, and legs help distribute the weight of heavy loads. The frame design also minimizes the effects of wear and tear caused by continuous outdoor use.

Height and Width Specifications:

  • Ensuring Clearance for Large Precast Beams and Dies: The crane’s height and width must be tailored to accommodate the size and weight of the precasting beams and beam dies being handled. Height specifications ensure there’s enough clearance for lifting large beams and handling beam dies without obstruction. The width of the crane provides stability and ensures that the crane can operate effectively across wide yards or factories with large equipment.
  • Load Clearance: In addition to overall crane height, attention must be paid to the clearance under the gantry crane for moving tall components and beams. A well-designed gantry crane will offer sufficient room for beams of varying sizes while ensuring that the structure remains stable under load.

Design Flexibility:

  • Customization Options: Gantry cranes are often custom-designed based on the specific requirements of the precast facility. This means that the crane’s dimensions, weight capacity, and operational reach can be adjusted depending on the size and weight of the beams and dies being handled. Custom gantry cranes may also feature adjustable widths to adapt to different tasks or changes in load types.
  • Modular Design: Some gantry cranes are designed with modular components that allow easy adjustments to the frame, boom, or lifting mechanism. This flexibility ensures the crane can handle a range of precast beams and dies, whether for large, heavy components or smaller, lighter materials.

Main Components

A gantry crane consists of several key components that work together to provide efficient and safe handling of precast beams and beam dies. These include the bridge, end trucks, and lifting mechanism, each playing a vital role in crane performance.

Bridge:

  • Role in Stabilizing Heavy Loads: The bridge of a gantry crane is the horizontal component that spans the distance between the two supporting legs. It provides a stable platform for the lifting mechanism and ensures the crane remains balanced during operations. The bridge is designed to support the weight of large beams or dies and distribute the load evenly across the structure.
  • Design Considerations: The bridge must be designed with adequate strength and rigidity to prevent flexing or bowing under heavy loads. It must also be equipped with track rails or other guidance systems to ensure smooth travel along the yard or factory floor.

End Trucks:

  • Function of End Trucks: The end trucks are the wheels or assemblies that allow the gantry crane to move along the tracks. Located at each end of the crane’s frame, the end trucks are responsible for smooth, controlled movement as the crane travels across outdoor yards or other large areas.
  • Movement and Stability: End trucks are designed to carry the weight of the bridge and the load, providing balance and ensuring that the crane’s wheels run smoothly along the tracks. The track system must be robust enough to handle the weight of both the crane and its payload, with precision wheel systems that help distribute the load evenly and maintain stability.

Lifting Mechanism:

Types of Hoists (Electric, Hydraulic): The lifting mechanism, which can include electric hoists, hydraulic hoists, or winches, is responsible for raising and lowering precast beams and beam dies.

  • Electric Hoists: These are commonly used in indoor or controlled environments, offering fast and precise lifting with the power of electricity. They are efficient for lifting medium-to-heavy loads and are often used for lifting beams within a specified range.
  • Hydraulic Hoists: Hydraulic hoists provide more powerful lifting capabilities and are better suited for heavy-duty operations involving large precast beams and dies. Hydraulic hoists are more flexible in terms of handling uneven or irregular loads and are often used in outdoor environments where larger, more cumbersome components need to be lifted with precision.

Load Capacity and Lifting Precision: Both electric and hydraulic systems are designed to maximize lifting capacity while maintaining control over lifting precision. For a 25 ton gantry crane, the lifting system must be able to handle significant weight while ensuring smooth operation. This is critical for maintaining safety and preventing damage to both the crane and the materials being handled.

In summary, the design of a gantry crane for handling precasting beams and beam dies must prioritize structural strength, flexibility, and precision. With key components like the bridge, end trucks, and lifting mechanisms, a gantry crane ensures safe and efficient lifting of heavy materials. Customizable features, such as adjustable height, width, and lifting capacities, allow these cranes to meet the varied demands of precast concrete facilities handling large and heavy beams.
precasting beam handling gantry crane with truss girder design

precasting beam handling gantry crane with truss girder design

Load Handling Capabilities

Precasting Beam Handling

Types of Precasting Beams:
Precast beams are essential structural components that are cast in a controlled environment before being transported to construction sites. Different types of beams are used in various applications, and each requires specific handling techniques to ensure safety and efficiency during lifting and transport.

  • Concrete Beams: These are solid beams typically used for heavy-duty structural applications. They are heavy and often require careful handling to avoid cracking or other damage during movement.
  • T-Beams: T-shaped beams are often used in the construction of floors and bridges. Due to their shape, T-beams may require specialized lifting points to ensure balanced lifting and avoid distortion.
  • L-Beams: L-shaped beams are used in structural applications such as foundations or flooring systems. They are commonly heavy and need precise handling to prevent tipping or misalignment.

Handling Requirements:
Each type of precast beam has different handling needs based on its shape, weight, and application. Specialized lifting slings, grapples, and spreaders are often used to ensure even distribution of weight during handling. For example, T-beams may require lifting spreader beams to prevent twisting, while L-beams may need lifting points at the corners for better stability.

  • Concrete beams are handled using crane slings or spreader bars to distribute the weight evenly and prevent any damage or strain on the beam.
  • T-beams may require specialized lifting attachments, such as lifting hooks or spreaders, to handle their unique shape.
  • L-beams need careful lifting at multiple points to avoid tipping or bending. Using the correct lifting slings and spreaders is crucial for safe and efficient handling.

Weight and Dimensions:
The size and weight of precast concrete beams vary significantly depending on their type and application. The weight of precast beams can range from a few tons to over 50 tons, requiring gantry cranes with substantial lifting capacities.

Typical Sizes:

  • Concrete Beams: These can range from 6 meters (20 feet) to 20 meters (65 feet) in length, with weights from 10 tons up to 50 tons or more.
  • T-Beams: Lengths of T-beams can vary from 8 meters (26 feet) to 16 meters (52 feet), with weights typically between 5 tons and 30 tons.
  • L-Beams: L-beams are generally shorter in length, ranging from 5 meters (16 feet) to 12 meters (39 feet), with weights between 2 tons and 15 tons.

The crane used to handle these beams needs to be rated for these weights and sizes, ensuring it can safely lift and transport them across the yard or construction site.

Handling Techniques:
Safe lifting and transport of precast beams require a combination of proper lifting equipment, techniques, and operator training. Specific techniques are used to ensure the safety and integrity of the beams during the process:

Lifting and Transporting:

  • Use of Lifting Slings: Lifting slings are often the most common attachment used for precast beams. They can be single-leg, two-leg, or four-leg slings, depending on the load and the lifting configuration.
  • Spreader Bars: For beams like T-beams or large concrete beams, spreader bars help distribute the load evenly and ensure the beam is lifted safely without distorting its shape.
  • Rotating Lifting Hooks: These hooks are designed to adjust and rotate the beam as it is lifted, ensuring a stable and safe lift.

Safe Transport:

  • Slow and Steady Movement: During transport, the crane operator should move at a controlled speed to prevent jerking or sudden movements that could damage the beam.
  • Positioning for Unloading: The crane should be able to maneuver the beams into position, ensuring they are safely placed on the ground or into the final installation position.

Beam Die Handling

Types of Beam Dies:
Beam dies are essential tools used in the precast concrete process to shape and form concrete beams. Different types of dies are used depending on the type of beam being produced.

  • Mold Dies: These are the most commonly used dies in precast production. Mold dies create the shape of the beam and are often large, heavy, and intricate.
  • Press Dies: Used in the process where concrete is compressed under high pressure to form high-strength beams, press dies are heavy and require careful handling to ensure the integrity of the die and the beam.
  • Extrusion Dies: These are used to extrude concrete into specific beam shapes. Extrusion dies are typically heavy and require specialized lifting equipment for safe handling.

Load Weight and Handling:
Beam dies can be very heavy and need to be handled with care to avoid damage to both the die and the equipment. These dies can weigh several tons, and specialized equipment is required to handle them safely.

Safe Handling of Heavy Dies:

  • Specialized Hooks and Grippers: Custom hooks, gripping systems, or vacuum lifting devices are used to handle beam dies safely and efficiently. These systems help ensure that dies are lifted without the risk of shifting or falling.
  • Transport and Storage: Dies are often moved between different stages of the precasting process, so they must be carefully transported and stored to prevent wear, damage, or distortion. Gantry cranes with large lifting capacities are ideal for this task, allowing for smooth transport from the molding area to storage or setup positions.

Lifting Precision

Load Balancing:
When handling heavy loads such as precast beams or beam dies, it is essential to ensure that the load is balanced to prevent tipping or swinging. Poor load balancing can lead to accidents, material damage, or inefficiency in operations.

Balancing Techniques:

  • Multiple Lifting Points: Using multiple lifting points on beams or dies helps distribute the weight evenly across the load. This technique ensures that the crane can lift the load symmetrically and prevent any tipping or imbalance.
  • Adjustable Sling Lengths: Adjusting the length of the slings or lifting chains allows for fine-tuning the load’s balance and preventing any tilting during the lift.

Anti-Sway Systems:
Swaying or swinging of the load during transport can be a significant safety hazard, especially when handling large and heavy materials like precast beams and dies. Anti-sway systems are designed to control and reduce this swinging motion, ensuring smoother and safer operation.

Types of Anti-Sway Systems:

  • Active Anti-Sway Systems: These systems use sensors and control mechanisms to detect and counteract sway by adjusting the crane’s movement.
  • Passive Anti-Sway Systems: These systems use load dampers or specialized hooks designed to reduce the natural swaying motion of the load.
  • Operator Training: In addition to mechanical systems, operator skill is essential for preventing sway. Operators should be trained to recognize when sway is happening and make corrective adjustments in crane speed and direction.

In summary, load handling capabilities for precast beam and beam die handling depend on several factors, including load weight, size, and specific handling techniques. Ensuring that beams and dies are lifted and transported safely requires the use of proper lifting equipment, precision load balancing, and anti-sway systems to maintain control of heavy and oversized components. By utilizing these best practices, precast concrete operations can achieve efficient, safe, and cost-effective handling of materials.


outdoor gantry crane for precasting beam handling

outdoor gantry crane for precasting beam handling

Outdoor Operation Considerations

Environmental Challenges

Outdoor gantry cranes used for precasting beam and beam die handling face significant challenges due to exposure to weather elements. These cranes must be designed to operate effectively and safely in harsh outdoor environments, where factors like extreme temperatures, rain, snow, and wind can impact their performance and longevity.

Weather Resistance:

  • Adaptations for Outdoor Use: Gantry cranes designed for outdoor use must be built with weather-resistant materials and coatings to withstand various environmental conditions. For example, cranes might feature weatherproof electrical systems to prevent damage from rain or snow. In areas with extreme weather conditions, like frequent rain or snow, crane components are often designed to resist water ingress and prevent rusting, which could compromise functionality and safety.
  • Wind Resistance: In regions where strong winds are a concern, gantry cranes may be equipped with aerodynamic features to reduce wind resistance, ensuring the crane remains stable during operation. In some cases, cranes may be fitted with wind sensors that trigger automatic shutoff or reduced load capacity when wind speeds exceed a safe threshold.

Corrosion Protection:

  • Anti-Corrosion Designs: Exposure to saltwater, humidity, and industrial chemicals in coastal areas or manufacturing environments makes corrosion resistance a critical factor for gantry crane design. The crane's structural components, including steel frames and track systems, are often coated with anti-corrosion paints or treated with galvanizing processes to prolong their lifespan.
  • Special Coatings and Materials: For cranes in coastal or chemical-heavy environments, additional corrosion-resistant coatings, such as epoxy or zinc-rich paints, are often used. Stainless steel or aluminum alloys may also be incorporated into certain components to prevent rust and degradation, reducing the need for frequent maintenance.

Space and Terrain Factors

Outdoor gantry cranes must navigate large, often uneven, and challenging terrain typical of precasting yards or construction sites. The layout of the yard, as well as the design of the crane and its track system, are crucial for ensuring efficient operation across these varied environments.

Outdoor Layout:

  • Adapting to Uneven Terrain: Precasting yards often feature uneven terrain, which can include potholes, rocks, or areas of uneven soil. Gantry cranes used in these areas need to be designed with adjustable legs or large wheels that provide stability on rough surfaces.
  • Leveling Systems: Some cranes are equipped with automatic leveling systems that help adjust the crane’s position to compensate for the sloping ground, ensuring that it remains level while handling heavy loads. These systems help maintain lifting precision and reduce wear and tear on the crane structure.

Track System:

  • Outdoor Rail Systems: The track system is a critical factor for crane movement in large outdoor yards. Gantry cranes rely on rails or tracks to guide their movement, and these tracks must be built to withstand the elements while ensuring smooth operation.
  • Track Design for Reliability: Outdoor rail systems are often made from heavy-duty steel or other corrosion-resistant materials to ensure durability. The tracks are designed to handle the weight of both the crane and its heavy loads, as well as environmental stresses like shifting soil or extreme temperatures.
  • Maintenance of Tracks: Regular inspection and maintenance of the rail system is necessary to ensure smooth movement. Cracks, rust, or debris on the tracks can hinder crane operation and lead to uneven movement or damage to the crane’s wheels.

Power Supply and Control Systems

Outdoor gantry cranes typically operate in large spaces, such as precasting yards, where reliable power sources and advanced control systems are essential for safe and efficient operations.

Power Options:

  • Electric-Powered Gantry Cranes: Electric gantry cranes are commonly used in indoor or controlled outdoor environments where a steady power supply is available. However, electric-powered cranes can also be adapted for outdoor use if the site has access to power grids. These cranes are more energy-efficient and environmentally friendly, providing consistent power for heavy lifting tasks.
  • Diesel-Powered Gantry Cranes: In outdoor environments without easy access to electricity, diesel-powered gantry cranes offer the flexibility needed to operate in remote or unpowered areas. Diesel cranes are more suitable for large outdoor yards, as they can be moved and operated without a fixed power supply. They are also more versatile in handling larger loads over long distances.

Remote Control:

  • Automation and Wireless Control: Many modern gantry cranes for outdoor use are equipped with remote control systems, allowing operators to control the crane from a distance. This is particularly useful in large yards where the crane may need to navigate between multiple zones or areas with limited visibility. Remote control enhances safety by keeping operators away from potentially hazardous lifting operations.
  • Automated Functions: Some gantry cranes also incorporate automation features to reduce the risk of human error. This can include pre-programmed lifting paths and automatic load-balancing systems, which ensure that beams and dies are lifted with the correct amount of force and precision. Wireless communication systems also allow operators to monitor and adjust crane performance in real-time, ensuring smooth operations across the yard.

In summary, outdoor gantry crane operations must account for environmental challenges, uneven terrain, and reliable power and control systems. From ensuring weather resistance and corrosion protection to adapting to complex yard layouts, these cranes must be highly versatile. Power options like electric and diesel engines, along with remote control capabilities, further enhance crane efficiency and safety, making them ideal for handling precasting beams and beam dies in challenging outdoor conditions.

Safety Features in Gantry Cranes

Operator Safety

Operator Controls:
The safety and comfort of the crane operator are paramount, especially when operating gantry cranes for heavy-duty outdoor tasks like precasting beam and beam die handling. Modern gantry cranes are equipped with ergonomic controls designed to reduce operator fatigue and enhance operational precision.

  • Ergonomic Joystick and Panel Design: The control systems are designed with easy-to-use joysticks, touchscreens, or buttons that are positioned to reduce repetitive strain. The layout of the controls ensures that the operator can reach all functions with minimal movement, promoting better posture and comfort during long shifts.
  • Adjustable Seats and Consoles: The operator's seat is designed for comfort and adjustability, with options to customize seating positions to fit the operator’s body type. Adjustable consoles allow operators to work in optimal positions, reducing the risk of injury from poor posture.

Safety Mechanisms:
To enhance the safety of the operator and those working in proximity to the gantry crane, various safety features are integrated into the crane’s design.

  • Emergency Stops: Emergency stop buttons are installed at key locations on the crane, allowing the operator or nearby personnel to immediately halt the crane’s operations in the event of an emergency. These stops can be manually activated from both the operator’s cabin and from external locations around the crane.
  • Safety Barriers and Guardrails: These barriers are strategically placed to prevent the operator from coming into direct contact with moving parts. They help avoid injury during operation or maintenance activities.
  • Limit Switches: Limit switches are built into the crane’s hoist and travel mechanisms to prevent the crane from exceeding its safe operating limits, such as lifting beyond its rated capacity or moving beyond predefined boundaries. These switches help prevent mechanical damage and ensure safe operations.

Load Safety

Overload Protection:
Ensuring that the gantry crane does not exceed its rated capacity is critical for maintaining safe operations, especially when handling heavy precast beams and dies.

  • Load Monitoring Systems: Modern gantry cranes are equipped with load monitoring systems that continuously measure the weight of the load being lifted. These systems trigger an alert if the load exceeds the crane’s maximum lifting capacity, preventing potential damage to the crane or the load.
  • Load Indicators: Clear visual indicators and digital displays provide real-time feedback to operators on the current weight being lifted. This helps operators make quick decisions regarding load handling and avoid overloading the crane.
  • Automatic Shutdown Features: In the event that an overload is detected, some gantry cranes are programmed to automatically limit lift height or halt lifting operations until the load is properly balanced or adjusted, ensuring load safety at all times.

Anti-Sway Systems:
When lifting heavy or long loads, like precast beams, load sway can pose significant safety risks. Anti-sway systems are crucial for reducing this hazard.

  • Active Anti-Sway Technology: Many gantry cranes are equipped with active anti-sway systems that use sensors to detect and counteract any swinging of the load. The system adjusts the crane's movements to reduce the swaying motion, ensuring that the load remains stable during transport.
  • Dynamic Load Control: This system works by automatically adjusting the crane’s speed and direction, depending on the load’s position. By reducing the swing of the load during transport, operators can move the load smoothly and safely, even in tight or crowded spaces.

Environmental Safety

Wind and Weather Considerations:
Operating gantry cranes outdoors exposes them to weather conditions that can significantly impact safety. Wind, rain, and other adverse conditions can reduce visibility and crane stability.

  • Wind Speed Sensors: Wind speed sensors are integrated into the crane’s system to monitor environmental conditions. If the wind speed exceeds safe operating limits, such as 25-30 mph (depending on the crane’s specifications), the system will automatically restrict the crane’s operations or shut it down to prevent accidents.
  • Operating Limits in Inclement Weather: In addition to wind, heavy rain or snow can reduce the operator’s visibility and affect crane performance. Automatic weather shutoffs may be triggered in these conditions, ensuring that the crane stops functioning before weather conditions reach dangerous thresholds.
  • Stabilization Features: Some gantry cranes feature enhanced counterweights or stabilization mechanisms to reduce the effects of strong winds, ensuring the crane remains stable even in gusty or stormy conditions.

Lighting and Visibility:
Good visibility is crucial for safe operation, especially when working in large outdoor yards or at night. Proper lighting ensures that operators can clearly see both the load and the surroundings.

  • High-Intensity Floodlights: Gantry cranes often come equipped with high-intensity floodlights mounted on the crane structure to illuminate the area around the crane. This ensures that operators have a clear view of the load and the ground, even during night shifts.
  • LED Work Lights: Energy-efficient LED work lights provide bright, even illumination, reducing the risk of accidents due to poor visibility. These lights can be positioned at various locations on the crane to light up the surrounding environment.
  • Cameras and Remote Monitoring: In some advanced crane models, camera systems are installed to provide live video feeds of the load and surrounding area, giving the operator a comprehensive view of their working environment from the comfort of the operator cabin. These systems are especially beneficial in large outdoor yards where visibility can be limited.

In summary, safety features in gantry cranes are critical for ensuring the well-being of both the operator and the surrounding environment. From ergonomic controls and emergency stops for operator safety to overload protection and anti-sway systems for load safety, these cranes are designed with multiple layers of security. Environmental safety considerations such as wind resistance, weather shutdown features, and lighting further ensure safe operations, particularly in outdoor settings where conditions can change rapidly. By incorporating these safety features, gantry cranes can operate efficiently and securely, minimizing risks and ensuring smooth handling of heavy precast beams and dies.

Conclusion

A 25 ton gantry crane plays a crucial role in enhancing the safety, efficiency, and productivity of precasting beam and beam die handling operations. Its robust design allows for the safe lifting and transportation of heavy precast beams and dies, reducing the risks associated with manual handling and other equipment. Key benefits include:

  • Improved Safety: Safety features such as overload protection, anti-sway systems, and ergonomic operator controls significantly reduce the risk of accidents, ensuring that both operators and materials are protected.
  • Enhanced Efficiency: With the ability to lift heavy loads quickly and accurately, the crane streamlines operations in precast concrete plants, improving overall productivity. Its outdoor design allows for efficient movement across large yards, minimizing downtime between tasks.
  • Increased Productivity: The crane's advanced load handling capabilities, such as precise load control and fast, smooth movements, allow for faster material transfer. This accelerates the precasting process and reduces bottlenecks in production.

In precast concrete plants, outdoor gantry cranes contribute to improving logistics and material handling by optimizing how precast beams and dies are transported within the facility. Their adaptability to outdoor environments ensures that even in challenging weather conditions, cranes can operate reliably, keeping projects on schedule.Invest in a 25 ton gantry crane today to enhance safety, improve operational efficiency, and increase productivity in your precasting operations. Let us help you move your business forward.



Get a quote

Get In Touch Now

Need Latest Crane Price? Please leave us the required Crane's Capacity, Lifting Height, Span, Travelling Length & Voltage for Quick Quotation.

Recommended Products

16 Ton Mobile Gantry Crane with Rubber Tyres: Flexible, Cost-Effective Lifting

16 Ton Mobile Gantry Crane with Rubber Tyres: Flexible, Cost-Effective Lifting


Mobile Gantry Crane with Rubber Tyre Wheels provides flexible, cost-effective heavy lifting, ideal for diverse industrial applications and environments.

Aluminum KBK Crane Systems, Lightweighted Overhead Converyor Solution

Aluminum KBK Crane Systems, Lightweighted Overhead Converyor Solution


Aluminum KBK crane systems are flexible, lightweight, modular material handling solutions ideal for small to medium-scale industrial applications.

Telescoping KBK Crane, Extended Cantilever KBK Crane System

Telescoping KBK Crane, Extended Cantilever KBK Crane System


Streamline material handling and save space in small workshops with the versatile, extendable design of KBK cranes.

  • Enter your name
