10 Ton Portable Gantry Crane for Coffee Capsules Mold Handling
10 ton portable gantry crane for mold handling in coffee capsules factory in Canada. Non rail travelling gantry crane 10 ton, easy assembly & operation.
Project info of 10 ton portable gantry crane for sale Canada
- Brand ：Yuantai Crane
- Sale: Dora
- Types of Cranes:Portable Gantry Crane 10 Ton
- Date of Placing Order： 2021-09-22
- Date of delivery ：30 Days after payment
- Transportation ：By sea , container.
- Payment: TT
- Destination port：DDU, delviery to the workshop of the client, the designated address
- Destination country：Canada
Main Specifications of portable gantry crane 10 ton for sale Canada
|
Product Name |
Portable Gantry Crane |
| Crane Model |
Non rail travelling electric motorized gantry crane |
|
Lifting capacity |
10 ton |
|
Crane span |
10.4 m |
|
Lifting height |
4.6 m |
|
Working class |
A3 |
|
Power supply |
480V,60HZ,3P |
|
Crane control |
Ground control / Pendent control |
|
Color |
Standards |
|
Indoor / Outdoor use |
Indoor use |
|
Crane rail |
None |
|
Quality |
1 |
Custom features of 10 ton movable gantry crane
- Lifting speed ：0.5~2.7m/min
- Hoist travelling speed ：1.1~11m/min
- Crane travelling speed ：0.6~6.0m/min
Applications of 10 ton movable gantry cranes
The 10 ton portable gantry crane will be used for injection mold handling in a coffee capsules in Canada. Mold&Mold is at the forefront in the design and manufacture of multi-cavity molds for the production of coffee capsules in bio-compostable plastic material. In order to improve mold exchanging efficiency and safety, the 10 ton portable gantry crane is required.
coffee capsules

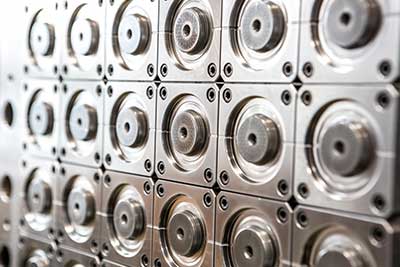

Molds for coffee capsules productionDesigning of the 10 ton portable gantry crane
Based on the application conditions and lifting requirements, the 10 ton gantry crane is designed with roller travelling portable gantry crane. The portable gantry can meet the requirement on lifting capacity of10 ton, and on the other hand, it can be easy moved away with motorized travelling.
On gantry crane parameter confirmation
At the very beginning, the non-rail travelling gantry crane 10 ton is designed based on client's requirement. The gantry crane will be used over the injection molder with the dimensions of 8 feet * 7 feet. And the mold needs be lifted up over the injection molder 4 feet. And the general lifting requirements are as the following sketch.
sketch of the 10 ton portable gantry crane for parameter confirmation
Based on the detailed information provided, the technical drawing of the 10 ton portable crane is designed and provided to client for confirmation.
Technical drawing of 10 ton portable gantry crane for mold handling
The detailed drawing of the 10 ton gantry crane are confirmed by the client and then the processing is arranged by the factory.
Production of rail travelling 10 ton portable gantry crane

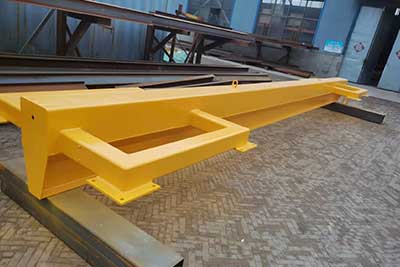

Main girder of 10 ton portable gantry crane for sale Canada

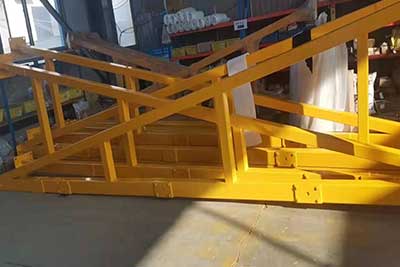

Supporting legs of 10 ton portable gantry crane for sale Canada

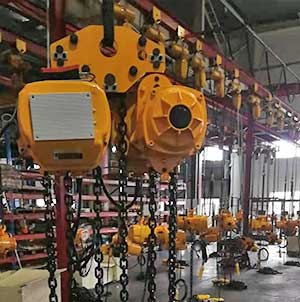

10 ton electric chain hoist for the portble A frame gantry crane for delivery

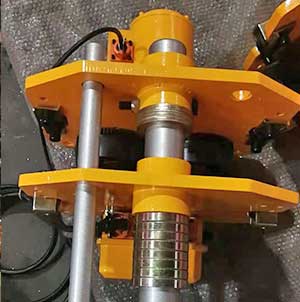

Gantry hoist trolley for 10 ton electric hoist

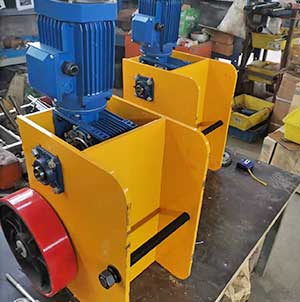

Motorized travelling unit of portable gantry crane

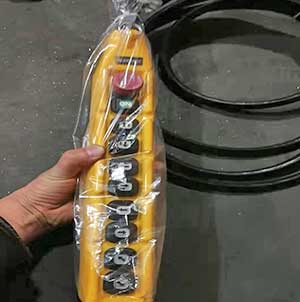

Pendant control of 10 ton movable gantry crane Delivery of 10 ton gantry crane for Canada
The 10 ton portable gantry crane is a type of light duty gantry crane. It is featured as light, compact structure, and easy assembly and disassembly, and convenient for transportation. Therefore, it can be transported by many ways. Based on the communication with the Canadian client, the 10 ton portable gantry crane will be delivery to Canada by containers.

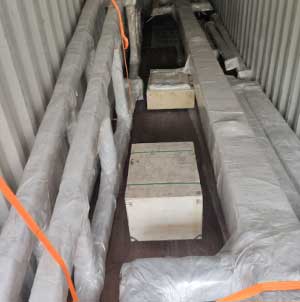

Main parts and structures of 10 ton portable gantry crane packed and delivered to Canada by container

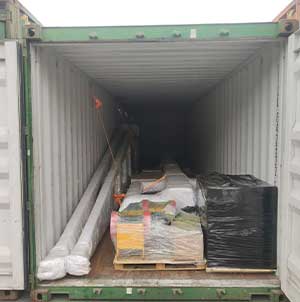

Safety and easy delivery of 10 ton movable gantry crane to Canada
