25 Ton Overhead Crane with Runway Beams for Sale

Overview of the Crane Market in South Africa

The crane market in South Africa is experiencing strong growth, driven by increasing demand across various industries such as manufacturing, mining, construction, and infrastructure. Overhead cranes are essential equipment in these sectors, used to lift and move heavy materials within factories, warehouses, and construction sites.

Key points:

• The industrial sector in South Africa is expanding, with a focus on efficient lifting solutions.
• Overhead cranes are widely used due to their ability to move heavy loads in confined spaces.
• The demand for high-capacity cranes, such as those with a 25 Ton lifting capacity, is growing as industries modernize and expand.

Importance of Heavy-Duty Cranes in Industrial Manufacturing

In industrial manufacturing, heavy-duty cranes play a crucial role in increasing efficiency and ensuring safety when moving large, heavy loads. These cranes are used to lift machinery, raw materials, and components in production lines, assembly areas, and warehouses.

Key points:

• Heavy-duty cranes are critical for handling large and heavy items efficiently.
• They help improve speed, reduce manual labor, and enhance workplace safety.
• A reliable crane, like a 25 Ton overhead crane, is necessary to meet production demands and tight deadlines.

Brief Introduction to the Client's Requirements for a 25 Ton Overhead Crane

The client needed a 25 Ton overhead crane to support their growing operations. The crane had to meet European safety and performance standards to ensure safe and efficient operation. It also needed to be versatile enough to handle various lifting tasks in their manufacturing facility.

Key points:

• The client required a crane with a lifting capacity of 25 tons to handle heavy loads.
• The crane had to comply with European safety standards for optimal performance.
• Steel structures, including runway beams, were also necessary for supporting the crane's weight and ensuring long-term stability.

The 25 Ton overhead crane with runway beams was selected as the best solution to meet the client’s needs, offering both reliability and safety in a demanding industrial environment.

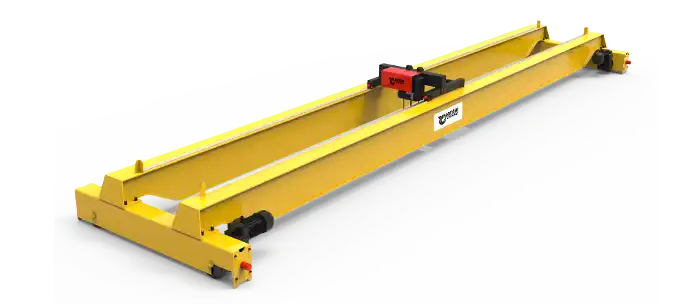

Double girder overhead crane 25 ton 3 D drawing for your reference, European style top running double girder overhead crane

Requirements of the South Africa Client

Crane Capacity: 25 Tons for Heavy-Duty Lifting Tasks

The client’s primary requirement was a crane capable of lifting up to 25 tons, a critical factor for handling large, heavy loads within their manufacturing facility. This high lifting capacity ensures that the crane can manage a wide range of materials, including heavy machinery, large components, and industrial equipment, making it suitable for various production tasks.

• Lifting capacity: 25 tons
• Applications: Suitable for lifting heavy machinery, large parts, and equipment
• Importance: Essential for supporting the client's large-scale operations and boosting productivity

Safety and Performance Standards: Compliance with European Standards

The client required the crane to meet European safety and performance standards, ensuring it would operate efficiently and safely within their facility. These standards are vital for minimizing risks, protecting workers, and ensuring the crane’s reliability under continuous use. Compliance with European standards also guarantees that the crane is built to high-quality specifications, reducing the likelihood of breakdowns and maintenance issues.

• Safety Standards: Must comply with European regulations for operator and workplace safety
• Performance Standards: Ensures optimal efficiency and reliability
• Importance: Guarantees safe operations and long-term reliability in a demanding environment

Steel Structure and Stability: Ensuring Structural Integrity for Long-Term Operation in the Facility

In addition to the crane itself, the client required steel structures, including runway beams, to support the crane and ensure its long-term stability. These steel structures are crucial for maintaining the crane's integrity under heavy loads, minimizing wear and tear, and extending the crane’s lifespan. Stability is essential to prevent accidents, reduce maintenance costs, and ensure smooth operations in the facility.

• Steel Structure: Includes runway beams and other steel components
• Stability: Provides the necessary support for the crane during operation
• Importance: Ensures the crane performs safely and efficiently for years with minimal maintenance

These requirements were crucial for the client to ensure they had a reliable, high-capacity crane that could meet their operational demands while ensuring safety and structural stability for long-term use.

Main Specifications of the 25 Ton Overhead Crane

Crane Type: Double Girder Design with an Advanced Low Headroom Electric Hoist

The 25 Ton overhead crane features a double girder design, offering enhanced lifting capacity, stability, and durability. This design allows for a robust and reliable structure capable of handling heavy loads over long periods. The crane is equipped with an advanced low headroom electric hoist, which maximizes available lifting height while minimizing the crane's overall height. This design is ideal for facilities with limited vertical space, providing more flexibility in tight or confined environments.

• Double Girder Design: Provides greater load capacity and stability.
• Low Headroom Electric Hoist: Maximizes lifting height and reduces crane height, perfect for space-constrained environments.

Lifting Capacity: 25 Tons for Heavy Industrial Tasks

With a lifting capacity of 25 tons, this crane is designed to handle the most demanding heavy-duty tasks. It is capable of lifting large industrial equipment, machinery, and materials, making it ideal for high-intensity manufacturing and assembly operations. The crane’s high capacity ensures that the client can manage a wide range of loads efficiently and safely, reducing downtime and boosting productivity.

• Lifting Capacity: 25 tons, suitable for a wide range of heavy industrial materials.
• Ideal Applications: Heavy-duty lifting of machinery, steel beams, large components, and equipment.

Crane Span: 15 Meters for Wide Coverage in Manufacturing Environments

The crane span of 15 meters ensures broad coverage within the manufacturing facility, allowing for efficient material handling across large areas. This span is particularly beneficial in environments where materials need to be moved over considerable distances, increasing the crane’s versatility and reducing the need for multiple lifting units.

• Crane Span: 15 meters, offering wide coverage across the facility.
• Benefits: Increased efficiency in moving materials over large areas with minimal obstruction.

Lifting Height: 9.35 Meters for Optimal Load Handling in High-Clearance Facilities

The lifting height of 9.35 meters provides the crane with ample clearance to handle various loads, even in high-clearance environments. This is ideal for facilities with tall structures or where large items need to be lifted and stacked or stored at significant heights. The crane’s lifting height ensures that it can operate efficiently in spaces that require substantial vertical movement.

• Lifting Height: 9.35 meters, perfect for handling taller loads.
• Ideal Environments: High-clearance facilities such as manufacturing plants and warehouses with tall ceilings.

Power Supply: 380V, 50Hz, 3-Phase for Efficient Power Consumption and Operation

The crane is powered by a 380V, 50Hz, 3-phase power supply, which is standard for industrial machinery in many parts of the world. This power supply ensures that the crane operates with optimal efficiency, consuming the right amount of energy for heavy lifting tasks without overloading the electrical system. The 3-phase system also offers smooth and stable operation, reducing the chances of electrical disruptions during use.

• Power Supply: 380V, 50Hz, 3-phase for efficient and stable operation.
• Advantages: Low energy consumption and reduced electrical disruptions during operation.

These specifications make the 25 Ton overhead crane a powerful, efficient, and versatile lifting solution for industrial applications, ensuring high performance and reliability in demanding environments.

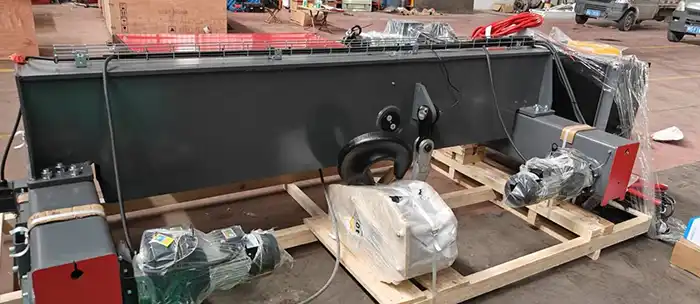

 European style overhead crane trolley

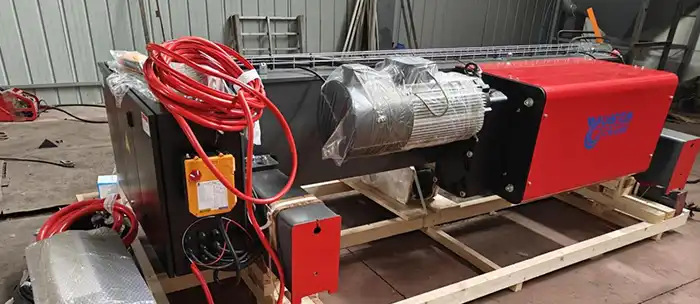

 Electric crane hoist

Detailed Features of the 25 Ton Overhead Crane

Lifting Speed: 1.0/4.2 m/min for Smooth Operation Under Various Load Conditions

The lifting speed of the 25 Ton overhead crane is adjustable, offering two distinct speeds: 1.0 m/min for slow, precise lifting and 4.2 m/min for faster movements when handling lighter loads. This feature ensures smooth and efficient operation across a range of load conditions, from delicate material handling to heavy lifting tasks. The adjustable speeds provide flexibility, allowing operators to adapt to different tasks and optimize workflow in the manufacturing environment.

• Lifting Speed: 1.0 m/min for precision, 4.2 m/min for efficiency.
• Benefits: Smooth operation regardless of load size, preventing damage to sensitive materials and speeding up lifting processes for heavier loads.

Traveling Speed: 2.0 ~ 20 m/min for Precise Movement Across the Facility

The traveling speed ranges from 2.0 m/min for slow, controlled movement to 20 m/min for fast, efficient travel across the facility. This wide speed range allows the crane to move materials accurately in tight spaces or across long distances with ease. The ability to adjust the speed ensures that the crane can accommodate different operational needs, from delicate positioning to quick transport across the manufacturing floor.

• Traveling Speed: 2.0 to 20 m/min for versatile movement.
• Benefits: Precise and quick transport across large areas, improving operational efficiency.

Trolley Rail Gauge: 2.5 Meters for Stability and Accuracy During Operation

The trolley rail gauge of 2.5 meters ensures stability during crane movement. A wider rail gauge increases the crane’s overall balance and accuracy when lifting and moving heavy loads. This feature minimizes sway and helps the crane maintain consistent performance, even when handling loads at full capacity, ensuring smooth and stable operation across the facility.

• Trolley Rail Gauge: 2.5 meters for improved stability and accuracy.
• Benefits: Reduces crane sway and increases lifting precision, contributing to safer operations.

Crane Rail: P30 Grade for Durable and Reliable Operation

The P30-grade crane rail is designed to withstand the heavy demands of industrial operations. This grade of rail ensures durability and reliability, providing a solid foundation for the crane’s movement. The strong and high-quality rail helps extend the lifespan of the crane, reducing the frequency of repairs and minimizing maintenance costs.

• Crane Rail: P30 grade for high durability and reliability.
• Benefits: Long-lasting, with minimal wear and tear, ensuring reliable operation even in demanding environments.

Working Class: FEM 2M (ISO M5) for Heavy-Duty Work Environments

The crane is designed for FEM 2M (ISO M5) working class, meaning it is built to handle heavy-duty applications in tough industrial environments. This working class rating ensures that the crane can endure frequent use and heavy lifting tasks, making it ideal for manufacturing plants, steel mills, and other high-demand facilities where the crane is subject to constant operational stress.

• Working Class: FEM 2M (ISO M5) for heavy-duty operations.
• Benefits: Suitable for continuous and demanding lifting tasks, offering high performance and durability in industrial environments.

These detailed features make the 25 Ton overhead crane highly efficient and reliable, providing smooth operation, precise movement, and the ability to handle heavy loads in a variety of challenging industrial environments.

 Main girder of double girder 25 ton overhead crane

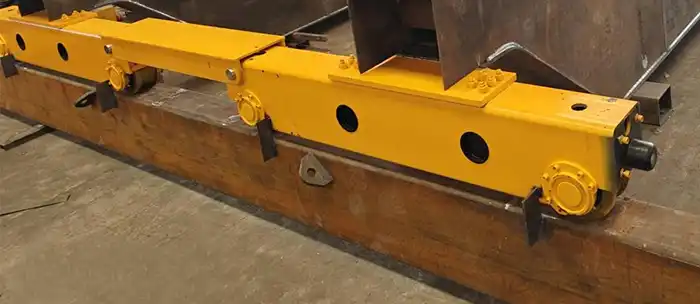

 End carriage of the overhead bridge crane


Design and Build Quality

European Style Double Girder Design: Reinforced to Handle Heavy Loads While Ensuring Safety and Longevity

The 25 Ton overhead crane is built with a European style double girder design, known for its exceptional strength and stability. This design allows the crane to handle heavy-duty loads efficiently, ensuring safety and reliability even under the most demanding conditions. The double girder structure offers superior load distribution, reducing strain on individual components and extending the crane’s service life. Additionally, this design provides extra rigidity, making the crane less prone to deflection and ensuring accurate load positioning.

• Double Girder Design: Reinforced for heavy load handling and structural integrity.
• Safety: Ensures load stability, reducing risks during operation.
• Longevity: Increased durability due to enhanced load distribution and minimal wear.

Low Headroom Electric Hoist: Designed for Space Efficiency Without Compromising Lifting Height

The crane features a low headroom electric hoist, which is an ideal solution for facilities with limited vertical space. This hoist design maximizes available headroom, allowing for higher lifting heights while maintaining a compact overall structure. By reducing the overall height of the crane, this design increases clearance beneath the crane, providing better access to materials in tight or confined spaces. Despite the compactness, the hoist does not compromise on lifting performance or capacity.

• Low Headroom Hoist: Maximizes available space and lifting height.
• Space Efficiency: Ideal for facilities with limited vertical clearance.
• Lifting Performance: Maintains strong lifting capacity without reducing operational efficiency.

Durability: Built to Withstand the Toughest Industrial Conditions with High-Quality Materials

Durability is a key feature of the 25 Ton overhead crane. The crane is constructed with high-quality materials that are resistant to wear and tear, even in harsh industrial environments. The materials used in the construction of the crane ensure it can handle heavy loads, high operational frequencies, and challenging working conditions such as dust, moisture, and temperature variations. The crane’s structural components are designed to withstand corrosion, heavy impact, and prolonged exposure to industrial conditions, making it a reliable long-term investment for any facility.

• High-Quality Materials: Ensures resistance to corrosion, impact, and wear.
• Heavy-Duty Construction: Suitable for challenging industrial environments.
• Longevity: Reduces the need for frequent repairs, ensuring long-term reliability.

Ambient Temperature Range: Operational in Environments Ranging from -20°C to +40°C

The 25 Ton overhead crane is designed to operate efficiently across a wide ambient temperature range, from -20°C to +40°C. This wide operational range makes the crane suitable for a variety of environments, from cold storage facilities to high-temperature industrial plants. Whether the crane is working in freezing conditions or hot factory environments, it can maintain peak performance without risk of failure or degradation. This feature is particularly valuable in industries where temperature fluctuations are common, ensuring consistent and reliable performance year-round.

• Temperature Range: -20°C to +40°C, making it suitable for a variety of environments.
• Performance: Consistent operation even in extreme temperatures.
• Reliability: Ensures long-term functionality in diverse industrial settings.

The combination of a European style double girder design, space-efficient hoist, durable materials, and the ability to operate in a wide range of temperatures makes this 25 Ton overhead crane a top choice for businesses that need a heavy-duty, reliable, and versatile lifting solution.

Safety and Control Features

Protection Class: IP55 for Protection Against Dust and Water Ingress, Ensuring Reliable Operation

The 25 Ton overhead crane is equipped with a Protection Class IP55, which ensures it is resistant to dust and water ingress. This protection class guarantees that the crane can operate in challenging environments, such as those with dust, moisture, or occasional water exposure. IP55-rated components help prevent damage from contaminants, reducing maintenance needs and ensuring the crane operates reliably in various conditions, including wet or dusty industrial settings.

• Protection Class IP55: Provides effective dust and water resistance.
• Benefits: Ensures reliable crane operation even in harsh environmental conditions.
• Maintenance: Reduces the likelihood of component damage due to dust or moisture ingress.

Insulation Class: F for Heat Resistance, Suitable for Varied Operational Conditions

The crane's Insulation Class F provides excellent heat resistance, ensuring that the electrical components and hoisting mechanisms can handle high temperatures without compromising performance or safety. This insulation class is particularly important in industrial environments where equipment may be exposed to heat generated by nearby machinery or high-temperature conditions. Class F insulation helps to protect the crane’s electrical components, reducing the risk of overheating and extending the service life of the equipment.

• Insulation Class F: Offers heat resistance for long-lasting, safe operation.
• Benefits: Suitable for environments with high-temperature fluctuations.
• Performance: Protects electrical components from heat damage, ensuring stable operations.

Control Mode: Pendant Control and Remote Control Options for Flexibility and Safety

The crane offers two control modes: pendant control and remote control, giving operators the flexibility to choose the most appropriate method based on the task and environment. Pendant control allows operators to control the crane directly from a stationary position, while remote control offers the freedom to operate the crane from a distance, which can improve safety by keeping operators away from hazardous areas. Both control options are designed for ease of use and precision, ensuring safe and efficient crane operation.

• Control Modes: Pendant control for direct operation, remote control for flexibility.
• Safety: Remote control option increases operator safety by maintaining distance from the crane and heavy loads.
• Flexibility: Provides operators with control options suited to different working conditions and tasks.

Safety Standards: Compliance with European Safety Standards, Ensuring Operator Safety During Operation

The 25 Ton overhead crane complies with European safety standards, ensuring that it meets the highest levels of safety for both the operator and the surrounding environment. These standards cover various aspects, including load testing, mechanical safety, emergency stop functions, and the overall structural integrity of the crane. Compliance with European safety regulations helps mitigate risks associated with crane operation, such as overloads, mechanical failure, and potential accidents, providing a safe working environment.

• European Safety Standards: Complies with the highest safety regulations for cranes.
• Operator Safety: Incorporates multiple safety features, including emergency stop functions and overload protection.
• Benefits: Reduces the risk of accidents, ensuring safe operations and worker protection.

The combination of robust protection against dust and water, heat resistance, flexible control modes, and adherence to European safety standards makes the 25 Ton overhead crane a safe and reliable choice for industrial operations, enhancing both operator safety and operational efficiency.

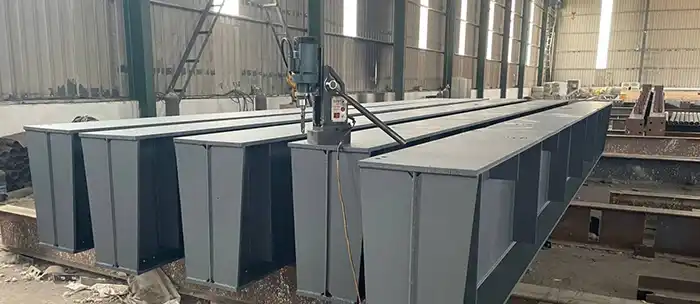

 Runway beam of 25 ton overhead crane

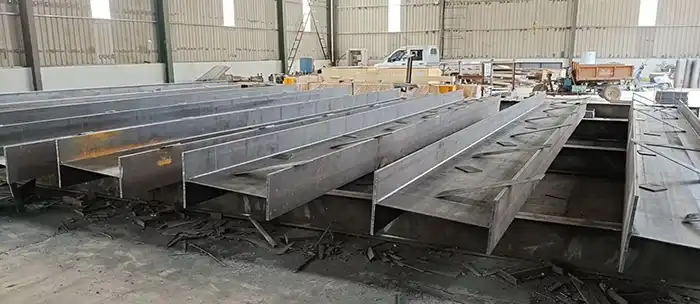

 runway beam of overhead bridge crane

Steel Structures and Runway Beams

Importance of Steel Structures: Provide Necessary Support and Stability for the Crane

The steel structures supporting the 25 Ton overhead crane play a crucial role in ensuring the crane’s overall performance and stability. These structures are designed to bear the weight of the crane and any load it is lifting, distributing the forces evenly across the facility. Steel, known for its strength and reliability, provides the necessary support for the crane, ensuring it operates safely even under heavy loads. Well-engineered steel structures also help minimize vibrations and maintain the crane's accuracy, resulting in smoother operation.

• Steel Structures: Essential for supporting the crane and loads during operation.
• Benefits: Ensures crane stability, reduces vibrations, and enhances operational safety.
• Reliability: Steel offers unmatched strength, making it the ideal material for heavy-duty crane applications.

Runway Beam Design: Custom Steel Structures Designed to Accommodate the 25 Ton Capacity Crane

The runway beams are custom-designed steel structures that provide the track and foundation for the crane’s movement. These beams are tailored to support the 25 Ton lifting capacity and ensure the crane operates efficiently over long distances. The runway beam design is crucial for maintaining precise alignment and minimizing wear on the crane’s wheels and rails. They are built to withstand the stress of heavy loads and constant crane movements, ensuring that the system remains stable over time.

• Runway Beam Design: Custom-engineered to handle the 25 Ton load and long operational spans.
• Benefits: Ensures smooth, precise movement and prevents operational issues due to misalignment or stress.
• Customization: Designed to meet the specific requirements of the facility and crane load capacity.

Long-Term Durability: High Resistance to Wear and Tear, Ensuring a Long Service Life for the Crane

The steel structures and runway beams are built with high-quality materials that provide long-term durability, making them resistant to wear and tear, even in the harshest industrial environments. Steel’s natural resistance to corrosion and its ability to handle repeated stress make it an ideal choice for these critical components. These features ensure that the crane and its supporting structures remain in excellent condition over time, reducing maintenance costs and extending the overall lifespan of the crane system.

• Long-Term Durability: Designed to withstand the rigors of heavy industrial use.
• Benefits: Resistance to wear, corrosion, and fatigue ensures the crane system remains operational for years.
• Cost-Efficiency: Lower maintenance and replacement costs due to the robust design and durable materials.

The combination of well-designed steel structures and runway beams offers the 25 Ton overhead crane the stability, durability, and support needed for long-term, heavy-duty operation in demanding industrial environments. These components ensure that the crane functions optimally, minimizes downtime, and reduces operational costs over its lifetime.

Why Choose This 25 Ton Overhead Crane?

Reliability and Performance: Meets European Standards for Performance and Safety

This 25 Ton overhead crane is designed to meet the highest European standards for both performance and safety. Built with advanced technology and strict quality controls, it guarantees reliable operation even in the most demanding industrial environments. By complying with these rigorous standards, the crane ensures consistent and safe lifting performance. This gives businesses peace of mind, knowing their equipment will operate effectively, reducing downtime and enhancing productivity.

• European Standards Compliance: Adheres to the highest quality and safety requirements.
• Performance: Proven reliability in heavy-duty lifting tasks.
• Safety: Multiple built-in safety features to protect operators and the facility.

Cost-Effective: Durable Design Reduces Long-Term Maintenance Costs

The durable design of the 25 Ton overhead crane ensures it is built to withstand heavy use with minimal wear and tear. The use of high-quality materials, such as steel for structural components and P30-grade crane rails, means that the crane is resistant to damage from corrosion, dust, and other environmental factors. The crane's long service life and low maintenance requirements make it a cost-effective investment. By reducing the frequency of repairs and replacements, businesses can save significantly on maintenance costs in the long run.

• Durability: Designed for long-term performance, reducing the need for frequent repairs.
• Maintenance: Lower maintenance and repair costs over time.
• Cost Savings: A solid investment with reduced operational costs and extended equipment lifespan.

Flexibility: Suitable for a Wide Range of Industrial Applications in South Africa

This crane is highly versatile, making it suitable for a wide variety of industries and applications in South Africa. Whether used in manufacturing, steel mills, mining, or construction, the 25 Ton overhead crane can be adapted to meet the specific requirements of different sectors. Its high lifting capacity, customizable design, and ability to operate in challenging conditions make it a perfect fit for diverse industrial settings. The crane can be tailored to meet the unique needs of any facility, offering flexibility in terms of design, configuration, and operational capacity.

• Versatility: Ideal for various applications across multiple industries.
• Customizable: Can be adapted to specific operational needs and environmental conditions.
• Wide Application: Suitable for manufacturing, construction, mining, and other heavy-duty industries.

After-Sales Support: Access to Professional Installation, Maintenance, and Customer Support

Choosing this 25 Ton overhead crane also means benefiting from exceptional after-sales support. Clients receive professional assistance from installation through to ongoing maintenance. The crane is backed by a reliable team of experts who provide guidance on installation, ensuring the crane is set up for optimal performance. Furthermore, access to professional maintenance services ensures that the crane continues to operate efficiently throughout its life, minimizing downtime and preventing potential issues. With this support, businesses can maximize the crane's productivity and lifespan.

• Professional Installation: Ensures proper setup and optimal performance from day one.
• Ongoing Maintenance: Regular maintenance services to keep the crane running smoothly.
• Customer Support: Access to expert advice and troubleshooting to resolve any issues quickly.

By choosing this 25 Ton overhead crane, businesses in South Africa can benefit from a reliable, cost-effective, and flexible lifting solution backed by exceptional after-sales support. This combination of features makes it an excellent investment for industrial operations looking to maximize efficiency, safety, and long-term value.

Conclusion

The 25 Ton overhead crane with runway beams is a heavy-duty lifting solution designed to meet the most demanding industrial requirements. Key features of this crane include:

• Capacity: A 25 Ton lifting capacity, ideal for heavy industrial tasks.
• Design: A European style double girder design with a low headroom electric hoist, allowing for optimal space efficiency and higher lifting height.
• Span and Lifting Height: A 15-meter span and a 9.35-meter lifting height for extensive coverage in large facilities.
• Power Supply: Operates on a 380V, 50Hz, 3-phase power supply for reliable and efficient energy consumption.
• Safety and Durability: Adheres to European safety standards, with IP55 protection against dust and water, heat-resistant insulation, and a rugged steel structure for long-term durability.

These specifications, along with its flexibility in control options and custom-designed runway beams, make the crane a perfect fit for various industrial environments.

Benefits of Investing in a 25 Ton Overhead Crane for Heavy-Duty Industrial Use

Investing in this 25 Ton overhead crane brings numerous advantages for businesses requiring heavy-duty lifting capabilities:

• Enhanced Efficiency: With its high lifting capacity and wide span, the crane ensures efficient movement of heavy loads across large facilities, reducing operational time and increasing productivity.
• Long-Term Savings: The durable design and low maintenance requirements minimize long-term costs, making it a cost-effective investment for companies.
• Safety and Compliance: Compliance with European safety standards ensures that operators and the working environment are protected, reducing the risk of accidents and increasing operational safety.
• Versatility: This crane is highly adaptable, making it suitable for a variety of applications across industries like manufacturing, steel mills, mining, and construction.

Final Recommendation for Purchasing the 25 Ton Overhead Crane with Runway Beams in South Africa

For companies in South Africa looking to invest in a reliable, durable, and high-performance lifting solution, the 25 Ton overhead crane with runway beams is an excellent choice. Its robust design, high lifting capacity, and compliance with European safety and performance standards make it ideal for heavy-duty industrial tasks. Whether you're looking to improve productivity, reduce maintenance costs, or enhance safety in your operations, this crane provides a cost-effective, long-lasting solution.

With expert after-sales support, professional installation, and customizable features to suit various industrial applications, this crane is the right investment for companies seeking a versatile and efficient lifting system.

We highly recommend purchasing the 25 Ton Overhead Crane with Runway Beams for your industrial needs in South Africa.
