30 Ton RTG Crane for Tunnel Construction Segment Storage Yard
Tunnel Segment， Concrete Segment
rubber tyred double girder gantry crane for tunnel segment storage yard

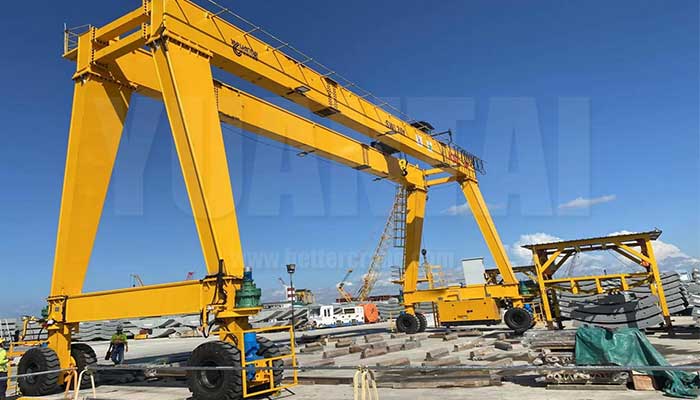

Overview of 30 ton gantry crane for tunnel concrete segment storage yard
- Gantry Crane Type: Rubber Tyred Gantry Crane, 30 Tons, Span 20M, Height 10M
- Main Crane Components: General configuration + NR hoist trolley. With 120KW diesel generator. Add obstruction lights at both ends of the main beam. All gantry crane marking,lettering, labels and remote control identification in English.
- Project Location: Airport Avenue in the East Coast Constituency of the Republic of Singapore
- Customer: Singapore Changi Airport
- Applications: The rtg gantry crane will be used for handling Cement prefabricated component in segment storage yard in the tunnel construction project
- Industry: Tunnel Construction, Industrial Manufacturing and Maintenance
- Dimensions and weight of the rtg crane: Check Rubber Tyred Double Girder Girder Gantry Crane 30 Ton Weight & Dimensions Tables.
- Package: Main frame: Plastic, Spare parts: Plywood Box
- Delivery: 75 working days after we receive 50% deposit.
- Payment: 50% T/T deposit before production, 50% T/T before dispatch from factory.
- Warranty: 12 months from date of commissioning or 18 months after dispatch from factory, whichever comes earlier.

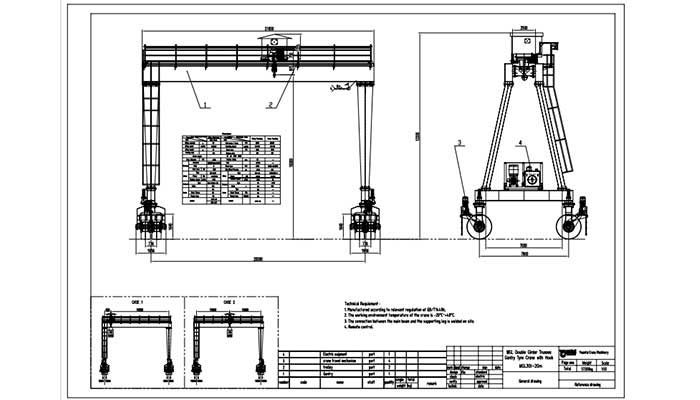

Technical drawing and specifications of 30 ton gantry cranes
Technical specifications of 30 ton gantry cranes
|
Item |
Rubber-tyred Double Girder Gantry Crane |
||
|
Lifting capacity |
t |
30 |
|
|
Lifting height |
m |
10 |
|
|
Span |
20 |
||
|
Speed |
Crane traveling speed |
m/min |
2.0~20 (inverter control) |
|
Trolley travelling |
2.0~20 (inverter control) |
||
|
Lifting speed |
0.5/3.3 (dual speed) |
||
|
Working class |
/ |
FEM2M (ISO M5) |
|
|
Power supply |
V/Hz/P |
400V/50HZ/3P |
|
|
Crane traveling power |
KW |
11 |
|
|
Trolley travelling power |
4.0 |
||
|
Lifting power |
5.0/20 |
||
|
Total power |
35 |
||
|
Total design weight |
Ton |
56.4 |
|
|
Ambient temperature |
/ |
-20C ~ +40C |
|
|
Anti-collision system |
/ |
Included |
|
|
Phase protection relays |
/ |
Included |
|
|
Limit switch |
/ |
Included |
|
|
Voltage Low Protect device |
/ |
Included |
|
|
Emergency stop action |
/ |
Included |
|
|
Ground fault protection |
/ |
Included |
|
|
Short-circuit protection |
/ |
Included |
|
|
Over-heating protection |
/ |
Included |
|
|
Power-off protection |
/ |
Included |
|
|
Over-current protection |
/ |
Included |
|
|
Overload limiter |
/ |
Included |
|
|
Countryof Origin |
China |
||
Configuration details of 30 ton double girder gantry cranes
|
Main structure |
||
|
|
Main girder |
Q235B carbon structural steel
Main beams with maintenance platform at one side, ground beams and legs Strong and elegant. Three-layer painting. |
|
|
Ground beams |
|
|
|
Legs |
|
|
Lifting mechanism |
||
|
|
Low headroom hoist |
Inverter traveling speed and dual lifting speed Reducer, drum, motors Insulation grade F class Protection class IP54 |
|
|
Lifting motor |
Three-in-one motor Maintenance free. Insulation grade F. Protection class IP54. Electromagnetic disc type brake system |
|
|
Hoist travelling motor |
|
|
|
Drum |
Self-produced. Drums made of high- quality steel processed by CNC machine. |
|
|
Wire rope |
Rope structure 6 × 19SW, fiber core. |
|
|
Hook |
Rotating forged type with safety latch |
|
|
Bearing |
High rotation accuracy and durability |
|
Crane travelling mechanism |
||
|
|
Ground beams |
Provides horizontally travelling for the crane, with quality wheels, powerful 3-in-one motors, travelling limiter and buffers |
|
|
Crane travelling motor |
Special designed Squirrel-cage motor Maintenance free. Insulation grade F. Protection class IP54. Electromagnetic disc type brake system |
|
Protection system |
||
|
|
Overload limiter |
Under overload condition, cut off the power of the crane, the screen can show the weight of lifting items. |
|
|
Rotary Limit switch |
For hoist travelling mechanism, protect the crane before it crashes the object. |
|
|
Lifting limiter |
For lifting protection, prevent the hook from knocking the hoist |
|
|
Buffer |
Ployurethane material. Used for anti-collision |
|
|
Other protection |
Phase-break protection, no-voltage protection, over-current protection |
|
Electric parts and other parts |
||
|
|
Electric Cabinet |
CHINT brand, Chinese best brand, Main contactors are Schneider |
|
|
Frequency converter |
Inovance brand, Chinese famous brand. Control the lifting and travelling motor, change the motor speed. |
|
|
Joystick remote control |
Joystick wireless radio frequency control Suitable for heavy load crane |
|
|
Festoon cable |
C-track or I beam with festoon cable to supply power for the trolley and hoist, safe, reliable and flexible. |
|
|
Rubber tyre |
Rubber tyres |
|
|
Diesel generator set |
120KW diesel generator set Mute noise reduction |

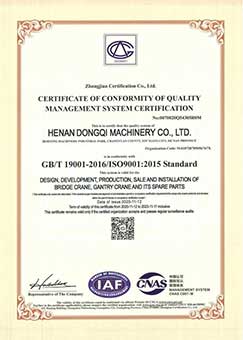

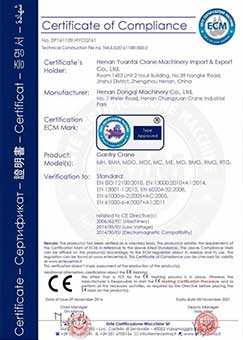

Product Certifications
Our products have passed CE (ECM) and ISO Certifications, and you can also specify a third-party agency for quality testing. Fees of third-party testing are not included in this offer.
Technical Standards
Design and Construction Rules
- All the standards required for the cranes are the FEM standard, DIN standard and Chinese National standard.
- 89/392/EEC standard (93/68/EEC)
- 91/368/EEC standard
- 73/23/CEE standard
- "EMC" standard 89/336/EEC
- EN 60204- 1
- EN 292 mechanical safety
- ISO 2141
- ISO 2766
International Standards
- June 9, 1993 / Sept. 22, 1993 notice
- July 29, 1992, 92-765, 92-766, 92-767 notice
- DIN 5684
- DIN 15400; DIN 15401
- NFE 26-010
- NFE 26-030
Technical Standards
- FEM 9.511 Mechanical group
- FEM 9.661 Hoisting and traveling components size and quality standard
- FEM 9.671 Wire rope quality standard
- FEM 9.681 Travel motor choice
- FEM 9.682 Hoisting motor choice
- FEM 9.755 Electric hoisting equipment
- FEM 9.811 Electric crane standard
- FEM 9.901 Hoisting components design reference
- IEC 34- 1 Traveling and allocation performance
- IEC 34-5 Protection grade standard
- IEC 947-5- 1 Low voltage equipment
China Main National Standards
- Design rules for cranes
- Safety rules for lifting appliances
- Common crane technical condition
- Crane-Overhead travelling crane and portal bridge crane
- tolerances for manufacture and tracks laying
- GB/T 3811-2008
- GB 6067-2010
- GB 7592-87
- GB/T 10183-2010
Crane-test code and procedures
- General Bridge crane
- Portal Crane
- Crane & Lift Equipment Technical Performance and Acceptance Condition Electrical installation and acceptation standard
- Safety of Machinery - Electrical Equipment of Machines
- Part: 32 Requirements for hoisting machines
- Electrical installation and acceptance standard
- GB/T 5905-2011
- GB/T 14405-2011
- GB/T 14406-2011
- GB/T 17908- 1999
- GBJ 232-82
- GB 5226.2-2002
- GB 50256-96
Productions Assembly, Testing & Feedback of 30 Ton RTG cranes
General Installation Procedures of 30 Ton RTG Crane for Tunnel Construction Projects
For efficient 30 ton double girder gantry crane assembly at tunnel segment yard, the main steps are provided to guide the crane installation. In The following, the main steps are provided for your reference. If you have any need or cusotmized 30 ton crane, please feel free to contact us.
- Locate the positioning of the four rubber tires wheels of rtg crane on the ground in designated worksite by using dial ruler.
- Locate the ground anchor point based on the position of the outrigger (the ground anchor is the support point of the outrigger wind rope, and other alternative is allowed according to the site conditions).
- Use the truck crane to place the ground beam to the designated position.
- Use the truck crane and wrenches to assemble supporting leg legs onto the ground beams.
- Use wire rope, rope buckle and chain block to fix crane legs.
- Use truck crane, welding machine, aerial work truck and oxyacetylene flame to assemble main girders.
- Use truck crane to assemble hoist trolley.
- Use wrenches, screw, oxyacetylene flame and truck crane to fix and install electric components.
- Use wrenches and screw to connect electrical wires.
Useful reports and information on segment yard gantry crane 30 ton
Note： Since for all the material and information provided is for your reference. If you need a 30 ton gantry cranes, please feel free to contact us. And all the technical data and crane services will be confirmed in the specific contract. Free consultation is provided. Contact us now to check what we can do to save your cost.
