4 Ton H Beam Crane & Crane Steel Structure for Sale Qatar
4 ton H beam girder overhead crane with low headroom hoist, economical light weight overhead crane for sale Qatar. Yuantai Crane, Better Crane & Service.
Main specifications of 4 ton H beam Single Girder Overhead Crane
H beam main girder + low headroom wire rope hoist cd/md type
- Working class: A3
- Capacity: 4 ton
- Crane span: 7 m
- Lifting height: 3.5 m
- Crane control； pendent control
- Voltage: 4a4.50hz, 3phase
- Crane rail: p24, travelling length: 10.7m, total: 21.4m
- Crane runway beam: H500*300*8*12*250*12, 4 columns.
- Column: H400*25O*8*12
- Column bracing: 900kg , 2 sets
Initial inquiry - Single girder overhead crane
On the 10th of April, the Qatar client contacted us on our web and send us the basic inquiry of the 4 ton single girder overhead crane.
During communication process, we sent a picture of LD type single girder overhead crane to the customer for crane confirmation and the feedback of Qatar client was the dimensions of single girder overhead crane too large and weight of the overhead crane is heavy for his application.
General use single girder overhead crane with cd/md wire rope hoist
Considering that the customer's workshop space may be limited, combined our successful low headroom crane projects in the past, the H-beam crane scheme was suggested.
With detail communications, the overhead span, voltage and working condition was confirmed.
Because the customer also mentioned that the lifting height is 3.5m, he directly confirmed the height of the workshop with the customer: 5m (the distance from the ground to the lowest point of the workshop).
H beam cranes - H bean single girder overhead crane with low headroom hoist
H beam crane design and quotation
With a discussion with Hao Gong,our crane engineer, it is cleat that the common type CD electric wire rope hoist can not provide the 3.5 m lifting height and instead the low headroom electric wire rope hoist is adopted .
Dear Abdul Quddus,
According to the lifting height :3.5m, our engineer choose the low head room hoist with H type beam crane solution for you.Please find the attachment monorail crane quotation and technical information for your reference.
Supporting beam and column:Not included,recommended model:H350*175*7*11
Good news,1%-4% discount (FOB price) during April 10,2019 and May 10, 2019-Subject to receipt of the deposit. lf you have any question,we can communicate in time.
Thanks in advance.
Regards
julia
Dear Abdul Quddus,
According to the lifting height :3.5m, our engineer choose the lowhead room hoist with H type beam crane solution for you.Pls find the attachment monorail crane quotation and technical information for your reference.
Supporting beam and column:Not included,recommended model:H350*175*7*11
Good news,1%-4% discount(FOB price) during April 10, 2019 and May 10, 2019-5ubject to receipt of the deposit.lf you have any question,we can communicate in time.
Thanks in advance.
Regards
julia
4 ton crane design revision

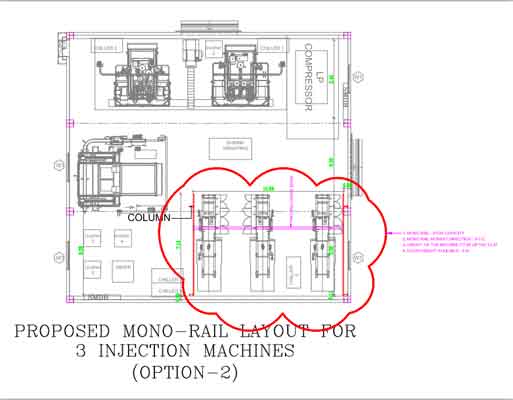

On 22nd of April, the Qatar customer sent a new layout diagram. The customer adjusted the requirement, the crane span is altered into 10.59m, and a new monorail crane quotation and plan map were sent to the customer in time
Third revision on 4 ton single girder overhead crane
On 5th May, the Qatar customer sends the revised plant layout drawing and confirmed the first 4 ton single girder eot crane solution was preferred after feedback to their company after discussion. And ask for new quotations for the H beam crane with low headroom wire rope hoist and rail-bearing beams.
This time the feedback layout diagram of the Qatar client is very clear, indicating the operation of the overhead crane and the number of supporting columns
With a running length of 10.7m, two columns are required on each side.
Comminication about the 4 ton overhead crane quotation
Talk about the payment about winning the overhead cran orderSummary
When customers feel that LD takes up a lot of space and is heavy?
The scheme of H-beam crane with wire rope hoist can be considered. In this case, the price of H-beam + low headroom wire rope hoist is not much different from that of LD. Note: If the span is relatively small, the box beam cannot be used, H-beam is a good choice.
How is the progress of the project ?
Don't be in a hurry to get a quote, and be as informed as possible about the progress of the project. Generally, when a customer sends an inquiry, it is only in the design stage, and the plan should be selected according to the customer's requirements.
When confronting with frequently adjustments of of the layout drawing, what should we do to ensure your the most suitable solution for you?
When customers frequently change the plans. For each drawing and information sent by the customer, it is necessary for us to communicate with the technology and confirm the performance and safety. Every time a client sends a new layout, the feedback will not provided until the all the concerned details are discussed and confirmed by our crane engineer.
Carefully study the drawings sent by customers, and analyze rationally and objectively:
If the crane installation area is small, the overhead crane is required to be small in size and light in weight. Consider for customers.
That’s why our Yuantai Crane are also confident about our crane design and manufactured. Once you’ve contacted with us, you will feel it. If you have any need of hoist and crane, please feel free to contact us. Yuantai Crane will offer you a better crane.
