2M3 Orange Peel Grab for Sale Libya for 9 Ton Steel Scrap Crane
Double rope mechanical orange peel grab for sale Libya to handle 2M3 steel scrap at a time by a 9 ton steel scrap crane. Check grab project now!
A 2M3 steel scrap grab bucket are delivered to Libya recently. The orange peel grab bucket are designed for a crawler crane to handle light steel scrap with around 4 ton capacity, volume of 2 cubic meters. The mechanical type double rope orange peel grab will be a cost-effective solution for the Libya clients. As for a crane manufacturer and supplier, Yuantai Crane has been provided types of cranes and below hook devices for steel scrap handling , such as, overhead cranes, gantry cranes, magnets and type of grabs, etc. If you are in the steel industry or need a proper scrap handling crane and equipment, please feel free to contact us. The customized steel scrap handling grab overhead crane and lifting devices are provided based on your lifting requirements and application conditions.
2 m3Double Rope Mechanical Type Orange Peel Grab for sale Libya
Overview of 2m3 double rope mechanical orange peel grab
- Grab type： Double Rope Mechanical Type Orange Peel Grab
- Specifications: Model LS1020, 2 M3, self weight 4 ton.
- Applications: The double rope mechanical type orange grab is designed for a 9 ton crawler cranes , which is used for handling 4 ton steel scrap at each grabbing, with 24mm diameter wire rope.
- Delivery of grab： By shipping, containers .
- Project location: Libya
On selection of steel scrap grabs
The selection of grab must be confirmed based on the working conditions, the density and weight of the lifting material, the capacity and volume of the grab, the type of the grab, and the lifting capacity of the crane. Only in this way, the the proper grab can be selected , and also, since the grab is generally large in size and difficult to transport, on grab purchasing, the transportation is also very important.
When selecting a grab bucket, it's important to consider the following factors in more detail:
- The type and density of the material to be handled: Different types of materials require different types of grab buckets. For example, for loose bulk materials like sand or gravel, a clamshell grab bucket may be suitable, while for heavier or more compact materials like scrap metal or rocks, a mechanical grab bucket may be more appropriate. The density of the material also affects the size and capacity of the grab bucket needed.
- The maximum weight the grab bucket will need to lift: The maximum weight the grab bucket will need to lift should be considered when selecting a grab bucket. The grab bucket must have a load capacity that is greater than or equal to the maximum weight it will need to lift.
- The type of machinery the grab bucket will be attached to: The type of machinery the grab bucket will be attached to affects the type and size of grab bucket needed. For example, an excavator may require a larger and heavier grab bucket than a overhead crane or gantry crane.
- The environment and working conditions in which the grab bucket will be used: The environment and working conditions in which the grab bucket will be used also affect the type of grab bucket needed. For example, if the grab bucket will be used in a corrosive environment, a stainless steel or anti-corrosion coating may be required. If the grab bucket will be used in a hazardous environment, such as handling radioactive materials, a specialized grab bucket may be required.
In addition to these factors, it's also important to consider the shape and size of the material being handled. If the material is irregularly shaped or difficult to handle, a grab bucket with adjustable tines or claws may be necessary. Furthermore, if the material requires special handling precautions, such as being fragile or hazardous, a specialized grab bucket may be required to ensure safe and efficient handling.
2 M3 steel scrap orange peel grab selection
Based on particular applications and uses, the proper type of grab will be selected . When selecting an orange peel grab, consider the size and weight of the material you will be handling, the capacity of the grab, and the type of crane or excavator it will be attached to. It is also important to choose a grab with durable and high-quality materials to ensure longevity.
Initial communication on steel scrap grab selection
On Thu, 16 Feb 2023, 08:10 Mia, <[email protected]> wrote:
Good day to you.
I let the engineer watch your video. Then our engineer feedback that your crawler crane is not suitable for double-rope grab because of its hook, unless you remove the original hook and connect the two wire ropes of the crawler crane to the grab.
If you want to hang the grab directly on the hook of your crawler crane, you need a single-rope grab. However, single-rope mechanical grab is not suitable for your scheme of lifting scrap steel, and its efficiency is not high. We recommend that you also use an electric hydraulic grab to catch scrap steel.
Please kindly check and let me know your reply.
Communications on working condition confirmations
- The machine it which the steel scrap grab will be attached.
The double rope mechanical type orange grab is designed for a 9 ton crawler cranes , which is used for handling 5- 6 ton steel scrap at a each grabbing, with 24mm diameter wire rope.

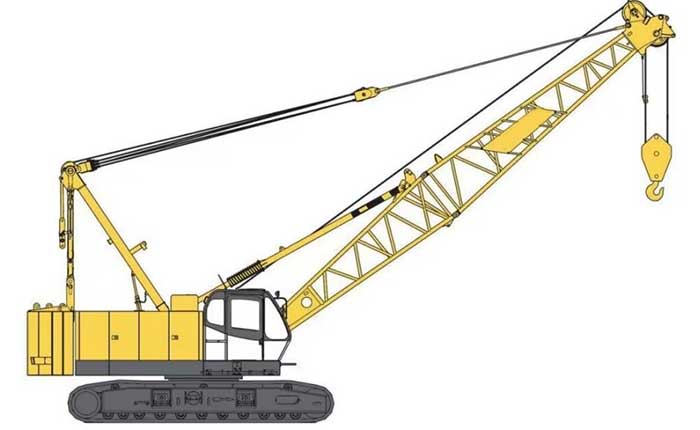

The crawler crane drawing for reference. The orange peel grab will be connected and used for steel scrap handling.
- The steel scarp property
We need to know the proportion of scrap. You confirm this type grab is suitable for your working conditions, right?
it's for scrap. The scrap of different objects has different material proportions. Are you light steel scrap or heavy steel scrap?
its two drums, one for up and down, and the other for opening and closing
Confirm the connection part of your crawler crane and grab to see whether the hook or wire rope is connected to the grab. This is for the convenience of your later connection.
Finally confirmation on grab specifications
Based on thorough understanding of client’s applications, the type of steel scrap grab and its specifications is confirmed, and the specific double rope mechanical orange peel grab drawing and specification are sent to client for confirmation.

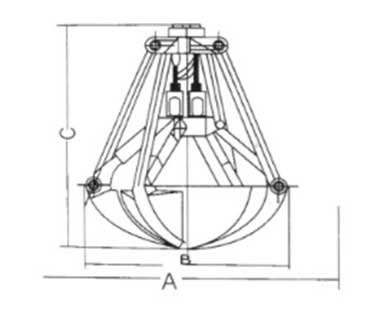

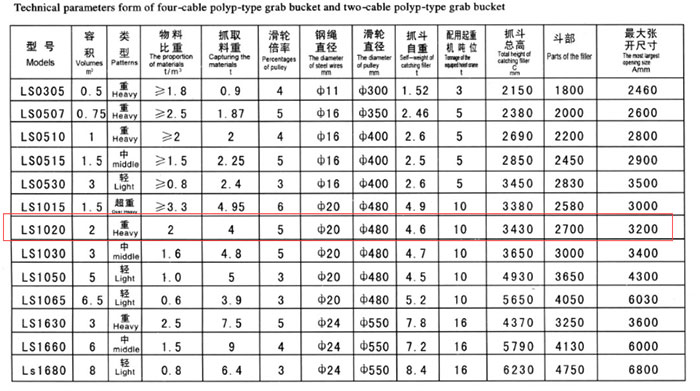

Double rope orange peel grab specifications

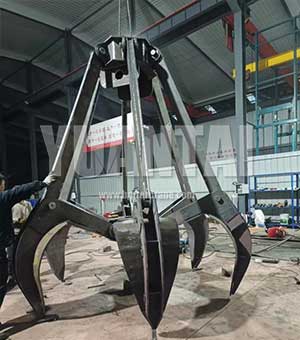

0n orange peel grab production
During the production the production pictures of the steel scrap are updated to clients to keep our client well informed of the processing. The main production pictures of the 2m3 grab are presented for your reference.
Steel scrap grab bucket testing
To ensure safety and quality and save all the troubles before leaving factory, all of our grabs are well inspected and tested.
On transportation of double rope 6 jaws orange peel grab

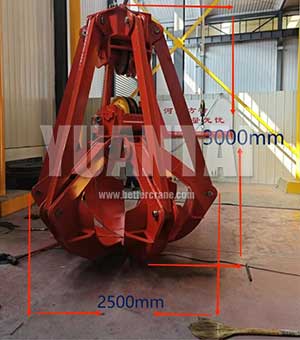

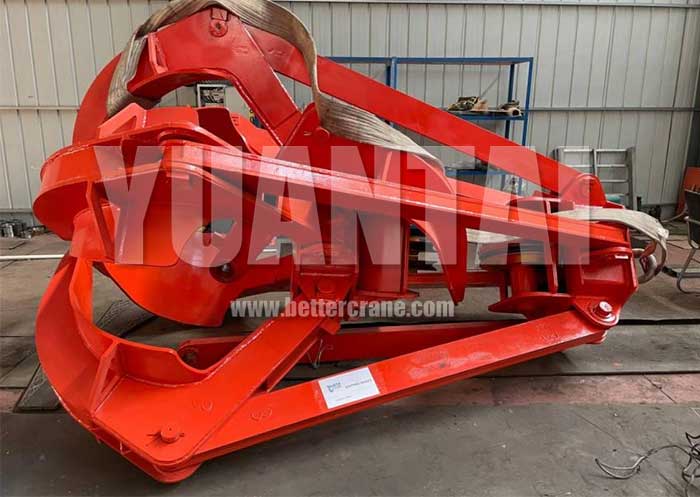

The overall dimensions of 6-petal double-rope mechanical grab is 2500 mm *2500mm* 3000mm, which is too large for a container. With carefully calculation and technical communications, the one jaw or petal of the orange peel grab is removed for the sake a easy transportation, , and then the width is reduced to 2.28 m, which can fit into the container. To ensure safe transportation, the positioning of grab inside of the container is enhanced.

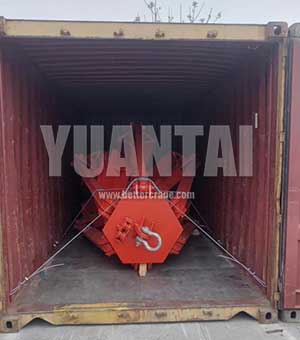

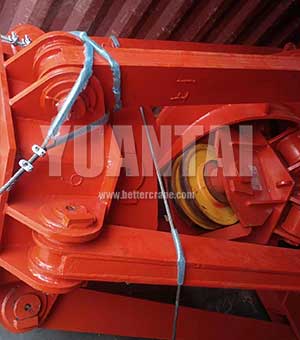

How to ensure your steel scrap safety inside of container?

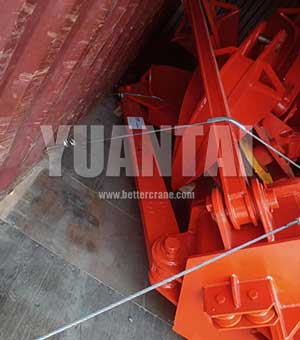

The safety enhancement measures are used, with the following reinforcement material, such as, trangle wood, steel nails, wire ropes, chuck clips, rubber hose, etc.
With all the reinforcement, the steel scrap orange peel grab will be stay safe in the container during the shipping.
