75 Ton + 75 Ton Gantry Crane for Sale, Double Girder Gantry Crane
75 ton gantry crane for sale. Double girder gantry crane with double open winch trolleys 75 ton + 75 ton for heavy load handling. Get your custom gantry crane!
75 ton + 75 ton gantry crane for sale , double girder gantry crane design, with double open winch trolley

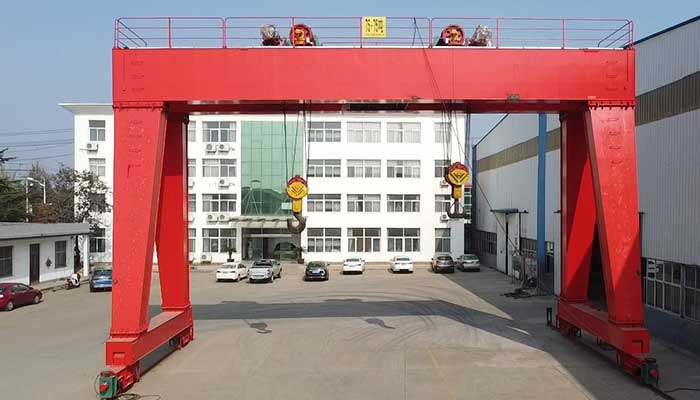

75 ton + 75 ton Gantry Crane for sale
The 75 ton + 75 ton gantry crane is a double girder gantry crane, equipped with double open winch trolley for long and heavy loads handling. The two hoisting open winches can be operated at same time or separately which depends on your lifting requirements and needs.
Double girder gantry Crane are mainly made up of bridge, trolley, crane traveling mechanism and electric system. They also can be designed for material handling in the open warehouse or rail along for general handling and lifting work. With customized design, the double trolley double girder gantry cranes can be equipped with different lifting device for special work and the lifting capacity can be up to 200 tons.
Gantry Crane Specifications
SWL Up to 200 Tons Suitable in Busy And Heavy Working Conditions
Popular design: SWL 5ton, 10 ton, 15 ton, 20 ton, 25 ton, 32 ton, 32/5 ton, 50 ton, 50/10 ton, 100 ton, 100/20 ton, 125ton, 125/50ton, 150 ton, 200ton, 200/50 ton, Popular Span size 12m, 16m, 18m, 20m, 22m, 25m, 28m, 30m, 32m, 35m, Popuar HOL 6m, 9m, 12m, 15m.
|
General Descriptions |
Reference Data |
|
Lift capacity |
3 ton ~300 tons |
|
Span |
3 meters ~ 35 meters |
|
Lift height |
6 meters ~18 meters |
|
Work duty |
A5~A7 |
|
Control method |
Remote control or Cabin control |
|
Electrical parts |
CHINT or International brand |
|
Motor |
Chinese famous brand or International brand |
|
Paints |
Chinese famous brand "Lehua" |
|
Bearings |
Chinese famous brand "HRB" |
|
Lift speed |
0~10M/Min |
|
Cross travel speed |
20~30M/Min |
|
Long travel speed |
30~40M/Min |
Gantry Crane Services
- details technical data and CAD gantry crane drawing will provide based on your specific requirements and particular applications.
- Strict quality control system, supervision the work to ensure the best quality of the double girder gantry crane for you.
- Strict gantry crane production line, make sure processing the material handling crane on time.
- Best cooperation forwarder provide the soonest and reliable service for our clients.
- If needed, senior goliath crane engineers can be your side do the installation guide and training.
- One year warranty for whole gantry crane system .
- Providing free quick-wear part.
- Low charge for continue maintenance when warranty is expired.
- Exclusive crane engineer support at any time.
- We can provide free training to end-users.
Gantry Crane Packing & Delivery

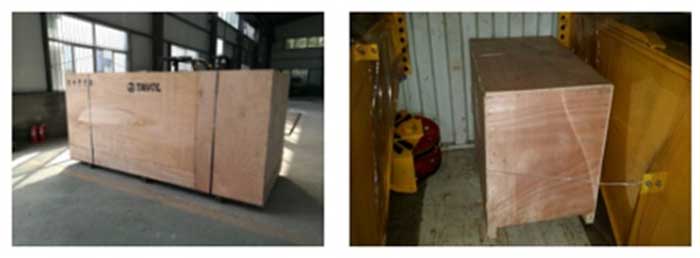

Main parts and spare parts of gantry crane delivered by woonden boxk

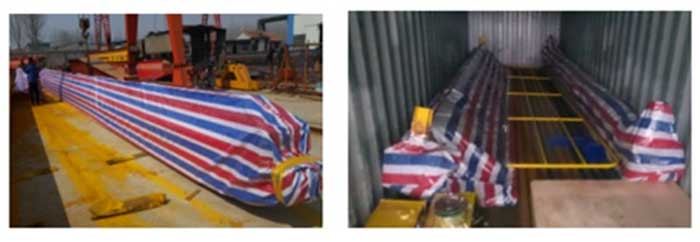

Gantry Crane Packing and Shipping 1. Electric parts and electric hoist packed by high quality plywood crate 2.other parts packed by bubble paper 3.Shipped by HC ,GP Container or Break Bulk Ship
