Workshop Gantry Crane: Gantry Designs for Different Workshops

What exactly is a workshop gantry crane? A workshop gantry crane is an ideal loads and material lifting system for factories that require reliable and flexible material handling in various types of workshops. This type of gantry crane is commonly used in workshops as well as other indoor and outdoor workplaces like workstations, garages, warehouses, machine shops, and storage yards.

In the workshop, the gantry crane is more commonly used to handle types of loads from light duty to heavy duty with different gantry confirguations and designs. With more than 30 years of experiences , we have specialized in the manufacture of gantry cranes. We will gladly assist you in selecting the appropriate warehouse crane for your needs, or we can provide a customized gantry crane to meet your workshop dimensions and lifting requirements.

Workshop Gantry Crane for Sale

We offer a wide range of gantry cranes for small and large loads handing in different types of workshops. These workshop cranes are available in a variety of sizes and capacities to suit a wide range of applications and industries. The gantry crane typically runs horizontally on a track or tracks, but it can also run on wheels, embedded on the ground to covering an large working area and provide more flexible in movement. Furthermore, the workshop gantry crane can be equipped with a wire rope hoist or an electric chain hoist. In general, we provide mobile gantry cranes, single girder cranes, double girder cranes, semi gantry cranes, and other workshop equipment.

• Full Gantry Crane -The full gantry crane is the most common gantry lifting equipment, with both sides mounted on rails and capacities ranging from 5 to more than 500 tons. For workshop uses, the full gantry crane is usually designed without cantilever.

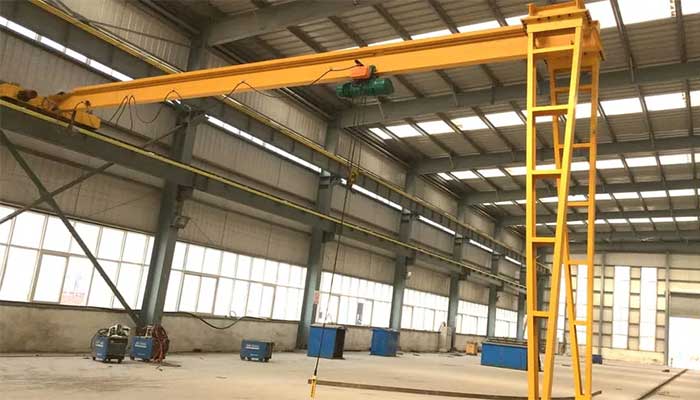

• Semi-gantry crane for warehouse uses - The semi-gantry crane is optimal material handling cranes for workshops with limited facility space. It can travel on a wall-mounted rail with the other side supported by two legs using facility structure.
• Single girder & double girder gantry crane - Single girder & double girder cranes are classified based on the numbers of main crane girders. Single girder gantry cranes are designed for lighter loads handling compared with that of double girder gantry types. They are one of the most frequently used material handling cranes with the overhead cranes. With various designs, they are commonly used for material handling in mechanical processing workshops, machinery or structure assembly yards, warehouses, and so on. The special lower beam reducer can increase the working space inside the crane.
• Mobile and portable gantry cranes are commonly used in workshops to lift and transport small objects. They are much more adaptable than other overhead gantry crane lifting solutions because they can be outfitted with adjustable height and span designs to easily pass through doors or other obstructions. The portable gantry crane usually has smaller lifting capacity, and also costs less than other lifting systems.

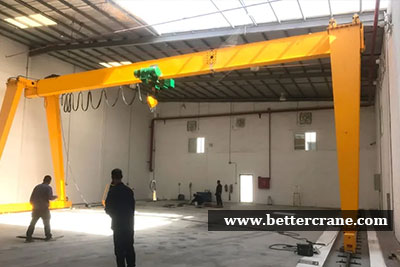

Single girder gantry crane for workshop use

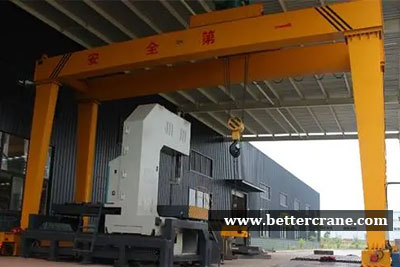

Double girder gantry crane for indoor workshop use

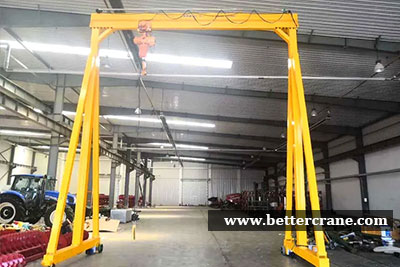

Portable gantry cranef for workshop applicaiton

These various cranes each have their own features and uses and applications. Many factors influence the choice of a gantry crane for your application, including the required capacity, span, lifting speed, and environmental conditions.

If you want to design a gantry crane for your workshop or warehouse, please feel free to contact us. They will assist you in get the suitable material handling solution for you at the best workshop gantry crane price!

Advantages and Benefits of Workshop Gantry Crane

The gantry crane for warehouses can lift and move small and heavy items efficiently and continuously, making it suitable for a wide range of industries and non-industries. This gantry lifting equipment for workshop has numerous significant advantages, including the following:

• The gantry crane is extremely reliable and versatile.
• You can choose between fixed and adjustable height and span. The adjustable gantry crane is typically made of steel, and the crane on wheels allows it to reach the entire working area, making it more portable and flexible.
• Our gantry cranes are available in a variety of sizes, materials, and running mechanisms to carry capacities ranging from 1 ton to over 500 tons, allowing for a wide range of applications.

• Our workshop crane is of high quality and competitive crane price. The crane components we use are sourced from reputable domestic and international brands. We also strictly supervise the entire production to ensure that the equipment is precisely machined.
• We are a gantry crane manufacturer and always offer the most competitive price.

Gantry cranes for Different types of workshops

With customized designs, our gantry cranes can be used in different type of workshops, such as single-story workshops and multi-story workshops, standard workshops and non-standard workshops, and light steel workshops and heavy steel workshops. Plants and so on, and so on. No matter which type of workshop you are using or planning to construct, Yuantai BetterCrane is able to provide a customized workshop cranes for your application.

Concrete Build Workshops

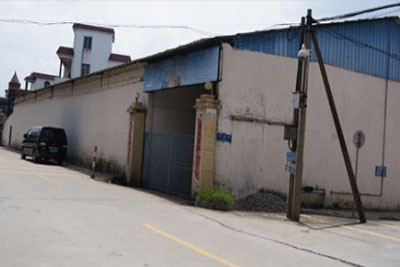

Simple workshop

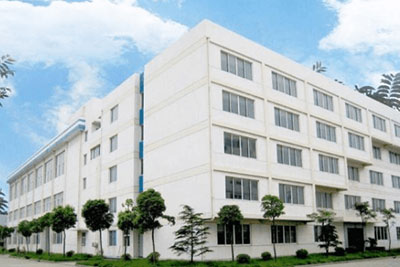

Standard factory buildings

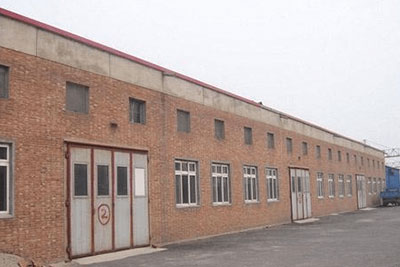

Reinforced concrete structure of standard factory building

• Simple workshop: A workshop that has a relatively simple structure, a low construction cost, and a relatively short service life.
• Standard factory workshop : Buildings are classified into four types based on their structure: brick-wood structure, brick-concrete structure, reinforced concrete structure, and steel structure.
• Standard factory shop with reinforced concrete structure: the main load-bearing components, including beams, slabs, and columns, are all reinforced concrete structures. This structure is commonly found in large public buildings, industrial structures, and high-rise residential buildings.

Steel structure workshop: refers to the fact that the main load-bearing components are made of steel. Steel pillars, steel beams, steel structure foundations, steel roof trusses (of course, the span of the factory building is relatively large, and it is now essentially steel structure roof trusses), steel roof, steel structure walls can also be maintained by brick walls. Many steel structure workshops have begun to be adopted in my country as steel production has increased. It is further subdivided into light and heavy steel structure workshops. Steel structures are industrial and civil construction facilities made of steel.

The following are the characteristics of the steel structure workshop:

• The steel structure is light in weight, strong, and spans a wide range of sizes.
• Steel structure buildings have a short construction period, which reduces investment costs.
• The steel structure is highly resistant to fire and corrosion.
• The steel structure building is portable, and recycling is non-polluting.

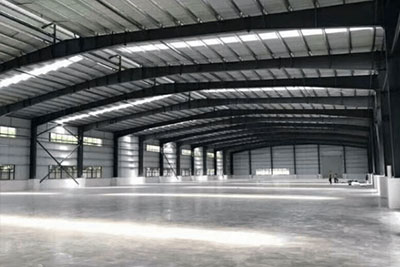

Single-storey workshop factory building

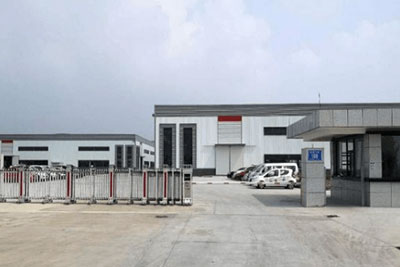

Multi-storey factory workshop

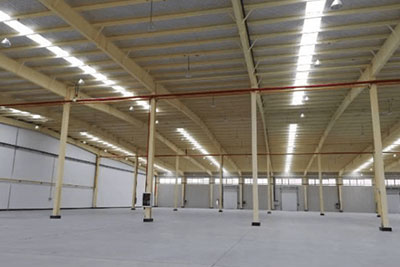

Warehouse workshop

• Single-story factory workshop: It has the advantages of forming a tall use space, easily meeting the requirements of the production process flow, convenient internal transportation organization, being conducive to the placement of heavier production equipment and products, and realizing the industrialization of factory building components and on-site construction mechanization. As a result, single-story workshops are commonly used in industrial buildings such as metallurgy, machinery manufacturing, motor manufacturing, chemical manufacturing, and textile manufacturing.
• Multi-story factory workshop : The factory structure should be chosen first based on the requirements of the manufacturing process and the number of floors. Second, the supply of building materials, local construction and installation conditions, structural part production capacity, and natural conditions of the base should all be taken into account.
• Warehouse workshop: it belongs to "industrial storage land". Industrial storage land includes land used for dedicated railways, wharfs, and roads, as well as land used for production workshops, warehouses, and ancillary facilities of industrial and mining enterprises. The land should be classified as water and other land, excluding open-pit mine land. It is not as simple as industrial land + storage land. General storage land and logistics development land are two types of storage land.

Workshop Gantry Crane Design f or Your Use

The gantry crane is available in a variety of styles. The gantry crane is made up of a single or double girder, supporting legs, an electric hoist or trolley, a crane running mechanism, and an electrical system.

• Metal construction- The box structure is commonly used for gantry crane metal structures. Its main beam can be designed with outreach to form a cantilever on one or both sides, thereby increasing the lifting space. You can also opt for a gantry crane without a cantilever.
• Lifting Devices of various types - The gantry crane will be outfitted with various lifting devices, such as a hook, grab, magnetic chuck, and other specialized devices, depending on the practical application. Hoists, motors, and other key components are also available in a variety of configurations.
• Crane Control system - The gantry crane's control system is typically operated from the cab room or from the ground via pendant control or wireless remote control. The control system can be designed to meet the needs of the actual operation. The working temperature for workshop gantry crane operation is typically between -20°C and +40°C.
• Crane Drive Mechanism- The improved drive system makes gantry crane movement more stable and smooth, as well as more accurate load positioning. Furthermore, the wheels are reinforced to ensure a highly safe operation and to prevent accidents.
• Non-Standard Custom Design- In addition to the workshop gantry crane models mentioned above, we offer non-standard custom design to meet the needs of each individual client. Consult our engineers online now to learn more about our gantry crane design options.

How to Receive A Quote From Us?

If your workshop needs a material handling crane no matter it is overhead crane, jib crane or the gantry crane, just drop a message down below , we will get back to you and provided you the customized workshop cranes designs based on the dimensions and your lifting requirements. If possible, could you please help us to confirm the following information to get the particular dimension to confirm crane design and specific crane price:

• Rated load capacity: ___ Ton
• Span of warehouse crane: ___ M
• lifting height of gantry crane : ___ M
• Crane Travelling length: ___ M
• How many hours will the crane work per day and how many times per hour?
• Electric power supply:___ Ton (Ex. 3 phase 380V 50Hz?
• What kind of material will the crane lift: ___ Ton ?
• Or there is any special lifting requirements: ___ Ton ?

If the workshop gantry crane can not meet your lifting requirements, there are many other types of material handling cranes such as, overhead cranes, gantry cranes, and jib cranes, etc. Free free to contact us to get your customized workshop gantry crane.
