Container Handling RTG Crane, 41 Ton Rail Travelling Gantry Crane

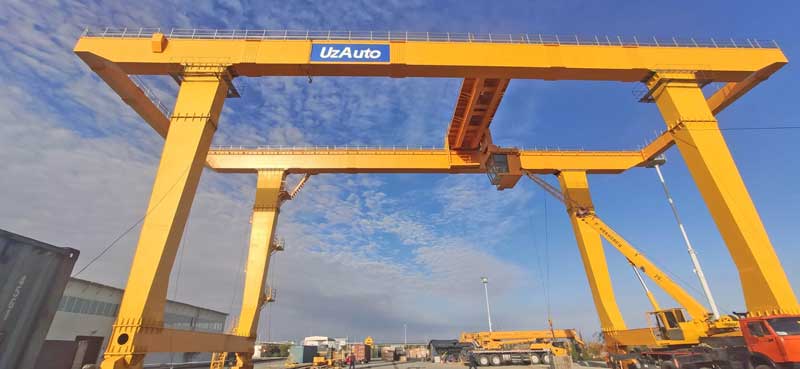

Rubber tyred gantry crane installation & feedback pictrue from Uzbekistan. 41 ton rtg + container spreader, 55 ton gantry crane for sale. Check now.
RMG Crane for Container Handling 41 Ton Rail Travelling Gantry Crane
- Project info of 41 ton gantry crane for sale Uzbekistan
- Brand ：Yuantai Crane
- Types of Cranes: double girder gantry crane for container handling
- Date of Placing Order： 2021-06-24
- Date of delivery ： 2021.12.22
- Transportation ：Railway transport
- Payment: 30% TT prepaid, 35% TT completed main steel structure production, 30% TT before delivery, 5% TT installation completed
- Destination port： CIP Pitnak
- Destination country：Uzbekistan
- First contact：2015-3-21
Main Specifications of Rail Travelling Gantry Cranes 41 tons
- Product Name:Rail travelling gantry crane
- Crane Model: RMG
- Lifting capacity:41 ton, with no spreader, total capacity 55 ton
- Crane span:32 m
- Lifting height:15.2 m （4+1）container
- Working class:A6
- Power supply:380V,50HZ,3P
- Crane control:Driver's cabin control， moving with crane trolley
- Color :Standard
- Application :Outdoor use
- More on the product of 41 ton rail mounted gantry cane for container handling in Uzbekistan.
Tyeps of Container Handling Crane for your Selection
Rail mounted ganry cranes for sale Rail mounted container gantry cranes, often refereed as RMG crane for short, is a heavy duty portable gantry crane which are primarily used to load, unload, move, and stack containers in railway transshipment areas and large container storage yards. Therefore, they are also called rail mounted container gantry crane. Th rmg cranes are mian consisted of the main girder, rigid and flexible outriggers, trolley travel mechanism, lifting mechanism, crane travel mechanism, electric system, and operator’s driving cabin, etc.
| Product Type: | Rail Mounted Container Gantry |
|---|---|
| Lifting Capacity: | 16 ton , 32 ton |
| Span: | 20~55m |
| Lifting Height: | 16m, 12.3m |
| Working Class: | A6, A7 |
| Ambient Temperature: | -20~40℃ |
Rubber tyred gantry cranes for sale
We offer a full range of services for rubber tyred gantry cranes.
Our expertise can guarantee that your terminal yard equipment will meet the efficiency requirements and your operational demands.
Rubber tyred gantry crane, also known as transtainer, is a mobile gantry crane that walks in the freight yard using a rubber tire. It is commonly used in stack containers, wharfs, and other locations. RTG cranes can perform equipment transferring and flexible operation in addition to walking on the freight yard. Aside from the port industry, RTG gantry cranes are used in the construction site to handle heavy construction parts such as precast concrete plate, concrete beam, and other construction materials, and also can be used to help the assembly of large manufacturing components, and the positioning of pipelines. Based on your lifting requriements and applicaiton conditions, the custom made rubber tyred gantry cranes are provided.
Main specifications of RTG crane
Working conditions of Rubber tryred gantry crane
- The RTG crane's power source is three phase current, with a rated frequency of 50 Hz and a nominal voltage of 300 volts.
- The operating ambient temperature ranges from -20 to 45 degrees Celsius, with a maximum relative humidity of 95 percent.
- The wind speed is less than 20 m/s when the RTG cranes are operating, and less than 44 m/s when the RTG cranes are not operating.
- The working duty of RTG crane is A6 and A7, and it is suitable for spans of five to eight containers wide and lifting heights of one over three to one over six containers high.
- RTG crane has a surface slope of less than 1% and a local slope of no more than 3%.
RTG crane advantages include low energy consumption and ease of operation, lower maintenance and spare part costs, and environmental protection. RTG cranes are more flexible than other rail travelling gantry cranes.
Yuantai Crane, as the leading manufacturer of industrial overhead cranes and gantry cranes , can provide the highest quality RTG cranes to meet your specific needs. If you require an rubber tyred gantry crane, we can provide you with the best RTG crane design and specifications, as well as a one-stop service. Contact us today to get your cusotm rubber tyred gantry crane design tomorrow.
Contact us to get your customized Rubber tyred gantry crane now.
