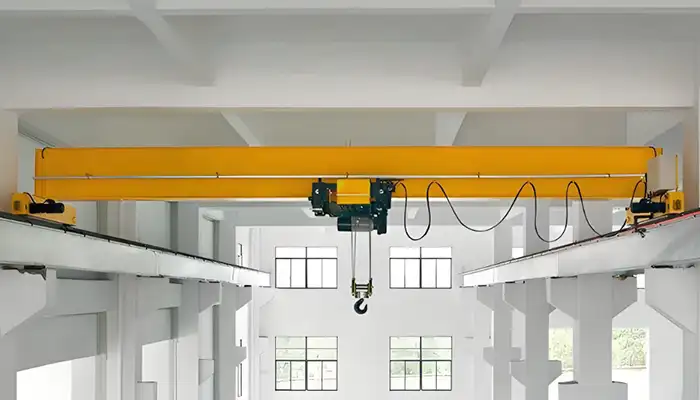

single girder low headroom crane

A Guide to Selecting the Perfect Overhead Bridge Crane

Overhead bridge cranes play a crucial role in many industries, from manufacturing to construction and warehousing. They are used to lift and move heavy loads across workshops, factories, and yards. These cranes are designed to help make lifting tasks safer and more efficient, improving overall productivity.

When selecting the right overhead crane, several key factors need to be considered. Each of these factors impacts how the crane will function in your specific environment. The primary elements to focus on include:

• Span: How far the crane can reach across the workspace.
• Weight: The lifting capacity and the crane’s structural design.
• Lifting Height: The maximum height the crane can lift loads.
• Crane Height: The overall vertical space the crane requires.
• Shop Space: The available space in your workshop or facility to accommodate the crane.

Crane Specifications

What is Span and Why It Matters

Span refers to the horizontal distance between the crane's runway rails. In simpler terms, it’s how wide the crane can reach across your workspace. The span determines the area the crane can cover, directly affecting its ability to move materials efficiently.

A wider span means the crane can cover a larger area. For example, in a manufacturing plant, a crane with a longer span can reach more sections of the facility, allowing for more flexible operations. However, it’s important to balance the span with the available space in your facility to avoid overcrowding or unnecessary complexity.

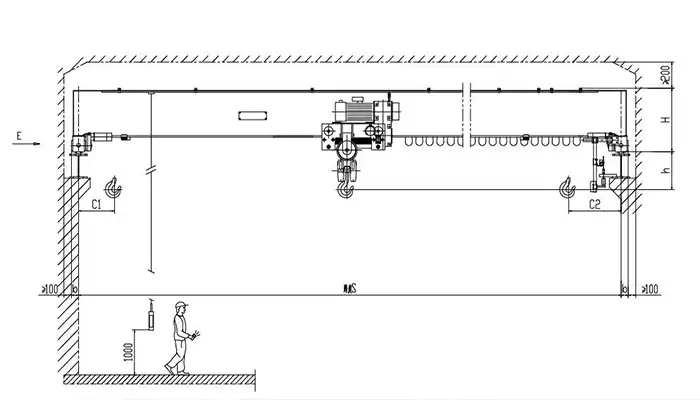

low headroom overhead bridge crane drawing

How Span Affects Performance:

• A larger span allows the crane to move materials over a wider area.
• The span influences the speed and precision of load handling, as it affects the positioning of the crane.

Impact of Span on Price and Load Capacity:

• Increasing the span typically results in a higher price. The materials and engineering needed to support a longer span drive up costs.
• A wider span may also affect the crane's load capacity. If the span is too large without proper support, the crane may be less capable of handling heavier loads, requiring stronger and more expensive materials to ensure safety and reliability.

Lifting Capacity and Weight Considerations

Lifting capacity refers to the maximum weight the crane is designed to lift safely. It’s a critical factor in determining which crane is right for your operations. The lifting capacity is typically measured in tons, and you’ll need to know the average weight of the loads the crane will be handling.

Relationship Between Lifting Capacity and Crane Size:

• Cranes with higher lifting capacities are usually larger and require a more robust design.
• The size of the crane directly correlates with the capacity, meaning a crane that can handle heavier loads will likely need larger components, a stronger structure, and more powerful motors.

Impact of Weight on Structural Design and Price:

• The weight of the crane, including both the hoist and the structural frame, is an essential factor in its design. More substantial cranes require stronger materials and more complex engineering.
• As the lifting capacity increases, so does the crane's cost. A 5-ton crane will cost less than a 20-ton crane, but the difference in price reflects the enhanced materials, manufacturing, and safety features needed to handle the higher load.

Crane Height and Lifting Height

Crane height refers to the overall vertical distance of the crane structure, from the ground to the highest point of the crane. This is important because it determines how much space the crane will occupy in your facility.

Lifting height, on the other hand, defines the maximum distance the crane hook can lift loads. It is a critical specification when working in environments where vertical space is limited, such as in warehouses with low ceilings or factories with restricted height allowances.

Impact of Height on Crane Operation:

• Crane height impacts how much clearance is needed for the crane to operate effectively. In a warehouse with a low ceiling, a crane with a smaller height is necessary to avoid interference with overhead structures.
• Lifting height is essential when working with tall materials or when the crane is needed to lift items to various heights. If your workspace has high racking or elevated storage, a higher lifting height allows the crane to pick up and move loads more effectively.

In facilities with height restrictions, understanding the crane's required height is key to ensuring proper fit and avoiding unnecessary costs. Additionally, taller cranes may require more robust structural components, further impacting the price.

Assessing Your Shop or Facility’s Requirements

Determining Available Space: Shop Height and Width

When selecting a crane, one of the first things to consider is the height and width of your shop or facility. These dimensions directly influence what type of crane can be safely and effectively installed. The clear height of the space (the vertical distance from the floor to the lowest overhead obstruction) is especially important because it determines whether a crane with a higher lift or a compact crane design will fit.

How Shop Height Affects Crane Selection:

• Low ceiling height: If your facility has low ceilings, a crane with a low headroom design will be needed to ensure there is enough clearance for safe operation.
• High ceiling height: If you have high ceilings, a crane with a higher lifting height may be necessary to take full advantage of the space, particularly for handling tall materials.

Considerations for Clear Height Space:

• For safe crane operation, it's crucial that there is enough space for the crane to move freely. A crane’s hook should be able to lift materials without obstruction, so knowing your available clear height is essential.
• Crane design: Some cranes are specially designed for low headroom operations, allowing them to fit in tighter spaces while still performing efficiently. However, these cranes might have slightly reduced lifting heights or load capacities to accommodate their compact design.

Impact of Shop Space on Crane Selection:

• Low Headroom Cranes: These are ideal for shops with limited vertical space. They feature a design that minimizes the height of the crane’s structure while still allowing it to lift loads safely.
• Standard Headroom Cranes: These require more vertical clearance but generally offer higher lifting capacities. They are suitable for larger, open spaces where high lifting height is essential.

Choosing the correct crane based on your available height ensures both safe operation and optimized use of vertical space in your facility.

Crane Rail Layout and Your Facility's Footprint

When planning for a new crane, it’s important to consider how the crane rail layout will integrate with your facility's overall design. The layout of the crane's rails will directly impact how much of the space it can cover and how easily it can move throughout the shop.

Importance of Layout Planning:

• Facility Coverage: Will the crane be required to cover the entire facility, or will it serve a specific area? Knowing the crane’s reach will help you plan the rail layout and optimize your facility’s space.
• Zoning Needs: If you need to divide the workspace into different zones, the crane layout should ensure that it can efficiently cover each area while avoiding interference with other equipment or operations.

How the Span of the Crane Affects Your Facility’s Layout and Space Requirements:

• The span of the crane determines the width of the area it can cover. A larger span may require a more expansive rail system, impacting the facility’s overall design and layout.
• For example, if you need to move materials across a wide area, a crane with a longer span can provide the coverage you need. But keep in mind that it might require wider rails and a larger footprint.

The Relationship Between Crane’s Footprint and Available Floor Space:

• The crane’s footprint refers to the space it occupies, including its rail system and the crane’s structure. You must ensure there’s enough floor space to accommodate the rails, especially when considering the swing radius of the crane or any obstacles that may be in the way.
• A crane with a large footprint might not be suitable for smaller workshops with limited floor space, whereas a more compact crane design might fit more efficiently while still offering the necessary lifting capacity.

By carefully considering your facility’s layout and available space, you can make sure the crane will operate effectively without causing obstructions or wasting valuable floor area. Proper planning can also help reduce operational delays and improve workflow efficiency.

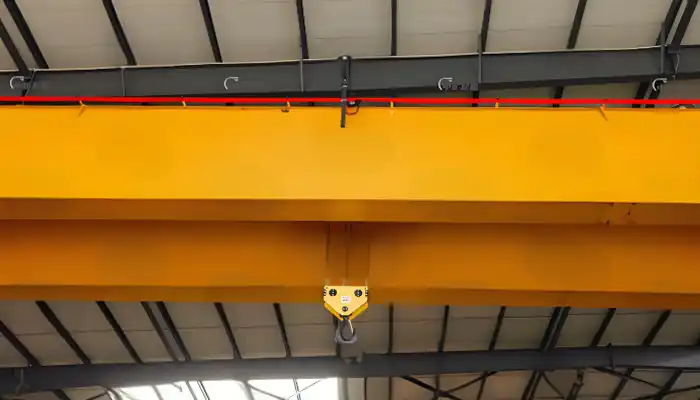

double girder low headroom bridge crane for sale

Price Factors: How Span, Weight, and Space Impact Costs

How Span Affects Crane Pricing

The span of a crane directly influences its overall price. A larger span means the crane needs more extensive structural components, a stronger support system, and larger rail tracks. This increases material costs, installation complexity, and maintenance expenses.

• Increased Span = Higher Cost: As the span widens, the crane requires larger girders, stronger motors, and potentially additional safety features. For example, a 20-meter span crane will cost more than one with a 10-meter span due to these factors.
• Optimizing Space and Costs: While a wider span can improve operational efficiency, it's essential to balance it with your available space. You don't want to overspend on a crane with unnecessary span if you don't need it. By assessing the exact requirements of your facility, you can select a crane that provides enough coverage without pushing your budget too far.

Consider working with a crane manufacturer who can help you choose the most cost-effective span size based on your shop’s needs.

Weight and Load Handling Impact on Price

Crane weight and load handling capacity are significant factors that influence the price of the crane. A crane built to handle heavier loads requires stronger components, which increases both the initial purchase price and maintenance costs over the crane’s lifespan.

• Heavier Cranes = Higher Costs: Cranes that lift heavier weights generally require more robust materials, such as thicker steel beams, more powerful motors, and larger wheels to support the extra load. This raises the overall price.
• Load Capacity and Price: Cranes with higher lifting capacities come with advanced features to manage the stress of carrying heavier loads. The cost of a 20-ton crane will be much higher than a 10-ton crane, not only because of the weight but also because of the engineering and design needed to safely lift and move these larger loads.

It's crucial to evaluate the actual load requirements in your facility to avoid overspending on a crane with an unnecessary load capacity. Align the crane’s capabilities with the weight of the materials you intend to move to keep costs reasonable.

The Role of Shop Space in Determining Crane Type

The available shop space and shop height significantly affect the crane’s design, which in turn impacts the cost. Cranes designed for low headroom environments or for specific spatial restrictions will generally cost more due to the specialized design and engineering needed.

• Low Headroom vs. High Headroom Cranes: If your shop has limited ceiling height, you may need a low-headroom crane. These cranes are specifically designed to fit into spaces with less vertical clearance. However, low-headroom cranes are often more expensive because they require specialized components to maintain lifting capacity in a compact design.
• Cost Tradeoff: High-headroom cranes, on the other hand, are generally less expensive since they use a more standard design. But they require more vertical space, which may not be suitable for all shops. Depending on your facility’s height, you might find that investing in a low-headroom crane saves space and allows for better use of vertical capacity, even if it costs a bit more initially.

Your facility’s available space will often determine the crane's design and, therefore, its price. Balancing between maximizing space and controlling costs is key when selecting the right crane for your needs.

Factors Affecting Crane Performance and Safety

Crane Headroom Requirements

Headroom refers to the vertical distance between the crane's rail and the hook that holds the load. This is a crucial measurement because it ensures that the crane can move freely within the available space without any obstructions.

• Why Headroom Matters: Proper headroom is essential for the crane's operation, allowing the hook to reach its maximum lifting height without hitting the ceiling or any other obstacles. Without sufficient headroom, the crane may not be able to lift materials to the required height, or worse, could cause damage to the building structure or equipment.
• Calculating Headroom for Safety: It’s important to accurately calculate headroom based on the crane’s lifting height and the facility's ceiling height. Insufficient headroom could result in a decrease in the crane's operational efficiency or create safety hazards. Make sure that there's enough vertical space for the crane hook to move smoothly throughout its range of motion.
• Impact on Performance: Insufficient headroom can limit the crane’s lifting capabilities, forcing you to operate at less-than-optimal heights. This can reduce your facility's overall productivity and may lead to costly adjustments or retrofits later on.

Safety Considerations Based on Crane Span and Height

Both the span and height of a crane play a significant role in its safety and performance. A well-designed crane ensures smooth operation while minimizing the risk of accidents.

• Safety and Span: A crane with a larger span requires a more robust support structure to maintain stability, especially when handling heavy loads. As the span increases, the crane's structural integrity becomes even more critical to avoid tipping or instability during operation. Manufacturers often implement advanced engineering and safety features like anti-sway technology or overload sensors to ensure safe operation when working with large spans.
• Safety and Height: The height of the crane impacts how it operates in your facility. For example, a crane that operates at greater heights requires stronger hoists, longer travel distances, and a carefully calibrated system to avoid accidents caused by uneven lifting. Proper height design helps ensure that the crane can reach the desired lifting points without causing strain on the system or risking structural failure.
• Crane Design and Preventing Accidents: Proper crane design incorporates safety features to prevent accidents and maintain smooth operation. These features include overload protection, emergency stop mechanisms, anti-collision devices, and limit switches that ensure the crane operates within safe parameters. Span and height directly influence the crane's structural components, which must be designed to accommodate the increased load and operational demands.

By considering both span and height when designing or selecting a crane, you ensure not only a more efficient operation but also the safety of the workers and equipment in your facility.

Customization and Additional Features

Custom Crane Options to Fit Unique Space Requirements

Sometimes, your facility has unique requirements that a standard crane might not meet. Customizing your crane can help you get the most out of your available space and make sure the crane performs efficiently in your specific environment.

• Tailored for Your Space: Custom cranes allow you to adjust key features like span and lifting height to fit your space perfectly. If your facility has limited headroom, for example, a low headroom crane can be designed to maximize available vertical space. Similarly, if you need to span a wide area, a custom crane can be designed to accommodate a larger span, ensuring that the crane covers the entire workspace without missing any zones.
• Adjustable Span and Lifting Heights: Some cranes are designed with adjustable spans and lifting heights, which offer greater flexibility in different operational situations. These features are ideal for businesses that might need to adapt their crane's configuration over time. For instance, a crane with an adjustable span allows you to change the reach of the crane based on varying workload demands, optimizing space utilization.
• Fit for Specialized Applications: Customization is especially important in industries with specialized needs, such as aerospace, automotive, or heavy manufacturing. Cranes in these industries may need to be designed to handle unusual or oversized loads, or to fit within uniquely shaped spaces. Custom cranes can ensure these specific requirements are met without compromising on safety or performance.

Additional Features that Affect Price and Operation

In addition to the core specifications, cranes can be outfitted with various additional features that improve safety, efficiency, and functionality. While these features may increase the initial price of the crane, they often provide long-term value in terms of operational benefits and safety.

• Wireless Control: Modern cranes can be equipped with wireless control systems, allowing operators to control the crane remotely. This feature improves safety by keeping the operator at a safe distance from the load, reducing the risk of accidents. Wireless control also allows operators to work in tight or hazardous spaces without needing to be directly near the crane, improving overall site safety.
• Explosion-Proof Designs: For operations in hazardous environments, explosion-proof cranes are essential. These cranes are designed to prevent sparks or heat from reaching the materials being lifted, reducing the risk of an explosion in environments with flammable gases or dust. While these specialized cranes come at a higher price, they provide essential safety and are required in industries such as oil and gas, chemical processing, or mining.
• Anti-Corrosion Coatings: In facilities where cranes are exposed to harsh environmental conditions, such as high humidity, salt air, or corrosive chemicals, anti-corrosion coatings can be applied to the crane. These coatings help extend the crane's lifespan, reduce maintenance costs, and ensure safe operation in challenging environments. While adding this feature increases the cost, the long-term savings on maintenance and repairs make it a worthwhile investment.
• Other Advanced Features: Depending on your needs, other advanced features can be added, such as automated lifting systems, variable speed controls, or data tracking and monitoring systems. These features can help improve operational efficiency, reduce human error, and provide valuable insights into crane performance, further justifying their cost in terms of productivity gains.

When selecting additional features, it's important to balance the added costs with the operational benefits. For example, while wireless controls and explosion-proof designs might increase upfront costs, they improve both safety and productivity in the long run.

Crane Maintenance and Longevity Considerations

Maintenance Costs Based on Crane Size and Design

When choosing a crane, it’s crucial to understand the maintenance costs associated with different sizes and designs. These costs can vary significantly depending on the crane’s weight and complexity.

• Impact of Crane Weight on Maintenance: Larger cranes with greater lifting capacities typically require more frequent or specialized maintenance. This is because the larger components, such as hoists, motors, and rails, experience more stress during operation, leading to wear and tear. As a result, cranes with heavier capacities may require more maintenance to ensure proper functioning, and the cost for replacement parts and service may be higher.
• Complexity and Maintenance Schedules: Cranes with more advanced features, such as variable speed controls, automation systems, or remote operation controls, will generally need more frequent servicing and upkeep. This is especially true if the crane operates in demanding conditions. These specialized components require periodic checks to ensure everything is working as intended. For example, hydraulic systems and electronic components may require more attention than simpler mechanical systems, adding to the maintenance budget.
• Ease of Maintenance in Crane Design: An often-overlooked consideration is design for ease of maintenance. Cranes that are designed with easy access to key components reduce downtime and maintenance costs. A well-designed crane should have clear and accessible points for servicing, such as easy-to-reach electrical panels, lubrication points, and structural inspection areas. This reduces the need for costly dismantling or specialized service, keeping maintenance costs manageable.

Longevity and Durability Factors

The longevity and durability of your crane will largely depend on its initial design and how well it’s maintained throughout its life. The choice of crane, including factors like span, weight, and space requirements, directly impacts how long the crane will continue to operate at its best.

• Proper Crane Design and Longevity: Cranes designed with robust materials and careful engineering will typically last longer and require fewer repairs. For example, cranes that are built with corrosion-resistant coatings and durable structural materials will withstand wear and environmental factors, like extreme temperatures or humidity, better than others. Properly designed cranes also distribute loads evenly across their frame, reducing the risk of structural damage and ensuring smoother operation over time.
• Space, Span, and Weight Considerations for Long-Term Performance: When selecting a crane, consider how its design fits with your facility's space and operational needs. For example, a crane with an adjustable span that suits a variety of spaces may be more adaptable and thus, more durable than a fixed-span crane. Cranes designed for specific loads, such as those handling heavy materials, need to be robust enough to manage those loads without undue strain, reducing the risk of early failure.
• Routine Inspections and Upkeep: Even with the best design, regular inspections and maintenance are crucial for extending the lifespan of your crane. Scheduled checks for things like safety systems, mechanical parts, and lubrication will keep the crane running smoothly and help detect issues before they become expensive repairs. For cranes operating in harsh environments, additional steps, such as corrosion protection and frequent cleaning, will ensure that the crane lasts longer, minimizing downtime.

By carefully selecting a crane based on your specific space, weight, and span needs, and by maintaining it properly, you ensure that the crane performs efficiently for many years, providing a good return on investment.

Conclusion

In conclusion, choosing the right overhead bridge crane is a crucial decision that impacts both the efficiency and safety of your operations. By carefully considering factors such as span, weight, and space, you ensure that the crane is well-suited to your facility's specific needs.

• Span influences the crane’s coverage and performance, ensuring it can effectively service the required area.
• Lifting capacity and weight determine the strength and durability needed to handle loads safely, which also influences the crane’s structural design and overall cost.
• Shop space and height limitations are equally important, as they determine what crane features (such as headroom and footprint) will fit within your facility.

The key to making the best choice lies in balancing cost, performance, and safety. While higher capacity cranes or additional features may come with a higher price tag, they could also lead to greater productivity and longevity, offering long-term value. On the other hand, cranes that are too small or lack the necessary features for your space and workload can result in inefficiencies and increased maintenance costs down the line.

Ultimately, an informed decision requires weighing all these factors to select the right crane that meets your operational needs and budget, while ensuring a safe and productive work environment for years to come.
