Plastic Injection Die Handling & Types of Cranes for Die Handling

Efficient die handling requires specialized cranes like overhead, jib, and vacuum lifters to ensure safe, precise mold transport.

Blow Mold Handling

Process Overview: Blow Mold Handling is a process used to create hollow plastic products, such as bottles, containers, and automotive fuel tanks. Molten plastic is formed into a tube and inflated within a mold to shape it into hollow forms.

Mold Variations: Blow Mold Handling typically uses single or multi-cavity molds. The molds can have cylindrical, spherical, or complex multi-cavity designs depending on the product being produced. Blow molds need to be precise to ensure uniformity in size and shape.

Typical Weight, Dimensions, and Shapes:

• Weight: 500 kg to 2,000 kg (1,100 lbs to 4,400 lbs).
• Dimensions: Varies based on the size of the product. Molds are typically designed for hollow objects, such as bottles or tanks, with varying cavity configurations.
• Shape: Cylindrical, spherical, and multi-cavity designs, with complex shapes depending on the specific product requirements.

Injection Mold Handling

Process Overview: Injection Mold Handling is used to produce solid plastic products, such as automotive parts, consumer goods, and toys. Plastic is injected into a mold under high pressure, filling the cavity to form the desired product.

Mold Variations: Injection molds are typically more intricate than blow molds, with detailed cavity structures designed to form solid parts with high precision. The molds can range from simple designs to highly complex multi-cavity systems.

Typical Weight, Dimensions, and Shapes:

• Weight: Injection Mold Handling dies can range from 200 kg for small molds to over 3,000 kg for larger molds.
• Dimensions: Generally more compact than blow molds but can be very intricate, especially in the case of products requiring fine detail.
• Shape: Smaller molds with intricate cavity structures, including detailed designs for complex components like automotive parts and consumer goods.

Compression Mold Handling

Process Overview: Compression Mold Handling is used primarily for large plastic parts, such as electrical panels, industrial components, and automotive bumpers. The plastic is placed into a heated mold, where it is compressed under pressure to form the shape.

Mold Variations: Compression molds are typically larger and heavier, designed to withstand high pressures during Mold Handling. The dies are simple but robust, often used for large, flat, or bulky items.

Typical Weight, Dimensions, and Shapes:

• Weight: These molds can weigh up to 10 tons, depending on the size and complexity of the product.
• Dimensions: Compression molds are large, often spanning several meters in length and width. They need to accommodate bulky products like industrial components or automotive parts.
• Shape: The molds are generally large and flat, designed for heavy-duty parts with simpler shapes.

Rotational Mold Handling

Process Overview: Rotational Mold Handling is used to produce large hollow plastic items like tanks, playground equipment, and other large containers. The mold is rotated around two perpendicular axes as plastic is added, forming even wall thickness throughout the product.

Mold Variations: Rotational molds are built to create large, hollow products and are designed for durability. The molds may have more complex features to ensure an even distribution of the plastic material and consistent wall thickness.

Typical Weight, Dimensions, and Shapes:

• Weight: Rotational molds typically weigh between 500 kg and 5,000 kg, depending on the size of the item being produced.
• Dimensions: These molds are generally large, with designs that can accommodate large hollow objects such as tanks, barrels, and containers.
• Shape: Mostly large, round, or cylindrical shapes, designed to produce even wall thickness for large hollow products.

Material Handling Requirements for Plastic Manufacturing Dies

Handling of Different Mold Types:

• Blow Mold Handling Dies: Blow Mold Handling dies require precision lifting to avoid damage to delicate cavity structures. Vacuum lifters are essential for preventing deformation, ensuring that the molds remain intact during transport. These lifters provide a contact-free handling solution that is ideal for intricate hollow designs.
• Injection Mold Handling Dies: Injection molds need to be moved with caution due to their intricate designs, which can be easily marred. Cranes used here must offer fine control to place dies accurately in Mold Handling machines without causing any damage to the mold’s delicate features.
• Compression Mold Handling Dies: Compression Mold Handling dies are often heavier and bulkier, requiring overhead cranes with higher lifting capacities (typically 5 tons or more). The size and weight of these molds demand powerful cranes capable of maneuvering them through the production line safely.
• Rotational Mold Handling Dies: Rotational molds require specialized cranes or jibs to handle their large, often asymmetrical shapes without causing instability. These cranes must be equipped with features that ensure even distribution of weight to prevent tipping or accidents during transport.

Temperature Control and Contamination:

• Controlled Environments: Certain molds, particularly for injection and blow Mold Handling, need to be handled in environments with controlled temperature and humidity levels. Molds can be highly sensitive to temperature fluctuations, and any contamination can compromise product quality. This makes it crucial for cranes to operate in clean rooms or temperature-controlled warehouses to preserve mold integrity.

Ergonomics and Worker Safety:

• Reducing Fatigue and Injury Risks: Handling large and heavy molds repeatedly can lead to operator fatigue and increase the risk of injuries. To mitigate these risks, it’s essential to use the right crane system, which can lift and transport molds safely, reducing manual handling. Proper crane solutions not only enhance productivity but also significantly improve worker safety by alleviating strain on operators.

Typical Crane Types, Capacity, and Typical Application for Die Handling

When it comes to die handling, which involves moving large and heavy molds, dies, or tooling components in manufacturing and production environments, cranes play a crucial role in ensuring efficiency and safety. Here are some of the most commonly used cranes, their capacities, and typical applications for die handling:



die handling overhead crane for heavy duty applicaiton

Bridge Cranes (Overhead Cranes)

Capacity: Typically ranges from 1 ton to 100 tons or more, depending on the load size and the specific needs of the die-handling application.
Typical Application:
Bridge cranes are commonly used in die handling due to their high lifting capacities and versatility. These cranes are installed in workshops, factories, or warehouses, where they can move dies over long distances along the length of the building.

Applications:

• Mold and Die Transfer: Moving large metal dies or molds in manufacturing plants, especially in die-casting or stamping operations.
• Tooling Storage and Retrieval: For industries that deal with high-volume die handling, bridge cranes can transport dies from storage areas to presses and machines.
• Heavy Lifting and Precision Handling: Suitable for lifting large, heavy, or awkwardly shaped dies that require careful handling to avoid damage.

Portable gantry crane for mould handling


Gantry Cranes

Capacity: Can range from 1 ton to 500 tons, often seen in applications that involve very large dies or molds.
Typical Application:
Gantry cranes are used in applications where overhead cranes may not be feasible, such as outdoor spaces or areas with limited ceiling height. These cranes are often used for transporting large dies or molds over short distances within a workshop or manufacturing floor.

Applications:

• Transporting Dies Across Large Facilities: Ideal for moving dies between different sections of a factory.
• Lifting Heavy Dies: Due to their robust design, gantry cranes are ideal for handling very heavy dies, often in automotive, aerospace, or metalworking industries.
• Storage of Dies: Used in facilities that need to move dies from storage locations to production areas or presses.

Jib crane for die handling

Jib Cranes

Capacity: Typically ranges from 0.5 tons to 10 tons, though larger models can be custom-designed for heavier loads.
Typical Application:
Jib cranes are widely used in die-handling applications in confined spaces, as they offer localized lifting capabilities. They are typically mounted on the floor or a wall and are great for handling smaller to medium-sized dies.

Applications:

• Quick Lifting and Positioning: Useful for picking up smaller dies or molds from workstations and positioning them for machining or assembly.
• Space Optimization: Jib cranes are perfect for workshops with limited floor space as they have a small footprint but can lift and maneuver dies effectively.
• Precise Movement: Due to their ability to rotate and extend their arm, jib cranes allow for precise placement of dies or molds into machinery or storage areas.

Articulating Cranes (Knuckle Boom Cranes)

Capacity: Typically ranges from 1 ton to 15 tons, depending on the model and application.
Typical Application:
Articulating cranes are known for their flexibility and ability to handle loads in tight spaces. They are often used in die-handling operations where the crane must reach into confined or hard-to-access areas.

Applications:

• Handling Dies in Tight Spaces: Common in situations where dies need to be lifted in areas with limited vertical clearance or complex angles.
• Outdoor Die Handling: Articulating cranes are often used in outdoor die handling operations, such as moving large dies or molds to or from trucks, storage containers, or loading docks.
• Maintenance and Repair: In some manufacturing facilities, these cranes are used to transport dies to maintenance areas where they can be inspected, repaired, or cleaned.

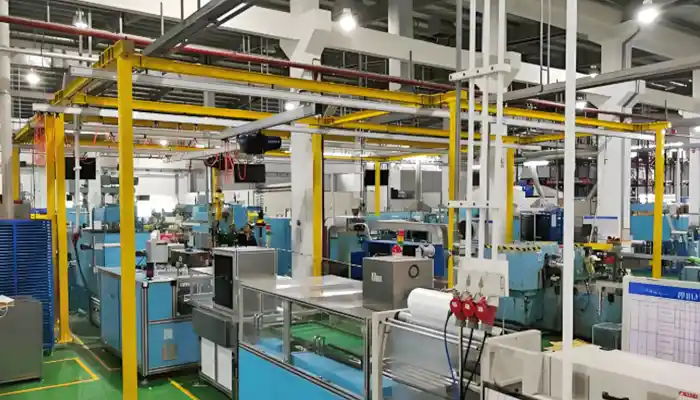

KBK Crane for Die Handling

Capacity: Typically between 0.5 tons and 10 tons, but can be customized for heavier loads depending on your needs.

Typical Application:
KBK cranes are flexible, modular systems used to move dies smoothly along a fixed path. They're perfect for manufacturing environments where space is limited and efficiency is important.

Applications:

• Flexible Die Handling: Ideal for moving dies and molds in tight spaces or where the movement path needs to be customized. Common in industries like automotive and metalworking.
• Modular and Scalable: KBK cranes are built from interchangeable parts, so you can easily adapt or expand the system as your needs grow.
• Light to Medium-Duty: Great for handling smaller to medium-sized dies, moving them between machines or storage areas.
• Space Optimization: Mounted on walls or ceilings, KBK systems free up floor space, making them perfect for crowded production floors.
• Precision and Safety: The system allows for accurate movement, reducing the risk of damage to expensive dies.
• Improved Workflow: By moving dies quickly and safely, KBK cranes help keep production running smoothly, increasing efficiency.

Key Benefits:

• Customizable: Can be tailored to meet your specific die-handling needs.
• Easy to Install: Quick installation with minimal downtime for upgrades or changes.
• Safe: Safety features like overload protection reduce the risk of accidents.
• Durable: Built to last, so you won't need to worry about frequent repairs or replacements.

KBK cranes are a great choice for improving die handling in manufacturing, offering flexibility, safety, and efficiency while saving space on the production floor.

Monorail Systems

Capacity: Generally between 1 ton and 10 tons, depending on the system design and die sizes.
Typical Application:
Monorail systems offer continuous movement for transporting dies along a fixed path. These systems are often found in high-volume die-handling applications.

Applications:

• Automated Die Handling: Used in automated production lines to move dies between different machines or sections of a facility.
• Die and Mold Transfer: For industries that require continuous die transfers, such as in the production of automotive or metal parts.
• High-Efficiency Operations: Ideal in high-volume manufacturing environments where fast and reliable die movement is essential to keeping production running smoothly.

In conclusion, the selection of a crane for die handling depends on the capacity required, the workspace layout, and the specific die-handling requirements. For smaller dies, jib cranes and monorail systems may suffice, while larger dies often require bridge cranes or gantry cranes capable of handling substantial weights. Regardless of the type, safety and efficiency are the top priorities in die-handling operations.

How to Get Customized Die Handling Cranes for Your Needs

Getting a customized crane for die handling is a detailed process. Here’s a straightforward guide to help you understand the steps involved.

Assess Your Die Handling Needs

Before you start looking for a customized crane, it's essential to know exactly what your requirements are:

• Die Size and Weight: Determine the size and weight of the dies you need to handle. This helps in selecting the right crane with an appropriate lifting capacity.
• Lifting Height and Reach: Consider how high you need to lift and the distance the crane must cover.
• Environmental Conditions: Think about temperature, humidity, or corrosive substances in your facility. This will affect the materials and features needed for the crane.

Choose the Right Crane Type

Based on your needs, choose the crane type that fits best:

• Bridge Cranes: Great for moving heavy dies over long distances. Can be customized with specific hoist systems and lifting mechanisms.
• Gantry Cranes: Ideal for outdoor use or limited space. Perfect for large dies or molds.
• Jib Cranes: Perfect for smaller to medium-sized dies. Can be customized to handle dies in tight spaces.
• Monorail Systems: Best for high-volume, automated die movement along fixed paths.

Consult with a Crane Manufacturer

Work closely with an experienced crane manufacturer to get the right crane for your needs. Here's how:

• Provide Detailed Information: Share all your requirements such as load capacities, dimensions, and environmental conditions.
• Discuss Customization Options: Talk about crane features like lifting mechanisms, hoist speeds, and materials.
• Review the Design: Make sure the design matches your needs and includes the necessary safety features, control systems, and maintenance requirements.

Consider Automation and Control Systems

Automation can make die handling more efficient. Think about adding:

• Wireless or Remote Controls: These allow precise, safe operation from a distance.
• Load Sensors: To ensure the crane never exceeds its capacity.
• Automatic Positioning: Helps place dies accurately in machines or storage areas.

Ensure Compliance with Safety and Standards

Make sure your customized crane meets all safety and industry standards:

• Adhere to Regulations: Follow standards like OSHA, ISO, or local safety codes.
• Load Testing: Verify the crane can safely handle the maximum load it will carry.
• Safety Features: Include overload protection, anti-sway systems, emergency stops, and warning alarms.

Installation and Commissioning

Once your crane is ready, it's time for installation:

• Prepare the Site: Ensure the area is ready for installation, including necessary structural adjustments.
• Professional Installation: Certified installers should handle the setup to ensure everything works properly.
• Training: Make sure operators are trained to safely use the crane.

Maintenance and After-Sales Support

Proper maintenance keeps your crane running smoothly:

• Regular Inspections: Schedule checks to catch issues early.
• Parts and Support: Ensure easy access to replacement parts and fast support when needed.
• Upgrades: Consider future upgrades to meet evolving needs.

Consider Cost and Budget

Be mindful of the costs involved:

• Upfront Costs: This includes design, manufacturing, and installation expenses.
• Operational Costs: Factor in energy, maintenance, and repair costs.
• Return on Investment: Think about how the crane will boost productivity and safety, saving costs in the long run.

To get a customized die-handling crane, you need to assess your specific requirements, choose the right crane type, and work with a skilled manufacturer. Make sure the crane is tailored to your needs, meets safety standards, and can handle the work efficiently and safely. By considering the right features and making thoughtful decisions about design, automation, and maintenance, you'll ensure a crane that will improve your die handling operations for years to come.
