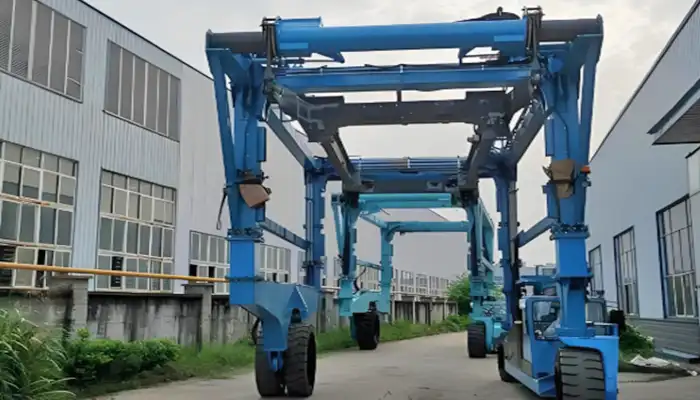

Transforming Port Operations with 45-Ton Straddle Carrier

Enhance efficiency and safety with a 45-ton straddle carrier, designed for swift, seamless container handling in tight spaces.

Case Study: 45-Ton Container Straddle Carrier Implementation

A large shipping terminal in a busy port is looking to enhance its container handling efficiency. With the goal of improving productivity and reducing operational costs, the facility adopts a 45-ton container straddle carrier. The carrier is designed to move 20ft/40ft standard and non-standard containers with a maximum load of 45 tons, offering flexibility in transporting containers both to and from container transport vehicles and trailers.

Challenges:

The terminal faces several operational challenges that the straddle carrier aims to solve:

• Space Utilization: The port area is congested, and there’s a need for equipment that can operate efficiently in tight spaces.
• Container Movement Efficiency: The facility requires a solution that can handle container lifting, transfer, and movement with minimal downtime.
• Operational Safety: Maintaining safety standards while handling heavy containers in a busy port environment is paramount.

45 Ton Container Handling Solution Overview

The terminal selected a 45-ton multifunctional bridge straddle carrier to meet its container handling needs. This machine offers a wide range of capabilities designed to improve operational efficiency, space utilization, and safety.



Key Features:

High Load Capacity

• The straddle carrier can comfortably handle containers with a rated load of up to 45 tons, including both standard and non-standard containers. This robust capacity ensures versatility in various container handling tasks.

Compact & Agile Design

• Turning Radius: The carrier’s turning radius is ≤10m, allowing for easy navigation through tight spaces and between stacks of containers within the terminal.
• Multi-Angle Steering: Equipped with a four-wheel steering system, the transporter offers improved flexibility and quicker repositioning of containers, contributing to reduced operational time.

Operational Efficiency

• Lifting Capabilities: The crane has a maximum lifting height of 6000mm, with an additional 1500mm secondary lifting feature, enabling the handling of containers at various heights without requiring other lifting equipment.
• Travel Speed: Fully loaded, the straddle carrier moves at a speed of 1.5Km/h. When empty, the travel speed increases to 7Km/h, optimizing movement within the terminal and minimizing delays.

Safety & Monitoring

• Safety Features: A comprehensive safety alarm system ensures that operators receive real-time notifications, promoting safe handling of containers and reducing potential risks.
• Remote Control Operation: The inclusion of remote control capabilities allows operators to manage the equipment from a safe distance, minimizing the hazards associated with manual operation near heavy machinery.

Durability & Reliability

• Heavy-Duty Build: Constructed using Q355 steel or higher, the straddle carrier’s frame ensures durability, even in the most demanding port environments with frequent lifting and transport operations.
• Solid Tires: Designed for heavy-duty applications, the solid tires offer enhanced stability and reliability, ensuring smooth operations across different types of terrain.

The customized 45-ton bridge straddle carrier delivers a combination of high capacity, agility, operational efficiency, safety, and long-lasting durability. Its specialized features make it an ideal solution for handling heavy containers in busy terminal environments, ensuring faster throughput, better space utilization, and a safer working environment.

Implementation:

The straddle carrier was introduced to handle container loading and unloading tasks, as well as to transport containers to container transport vehicles and trailers. This transition required an initial training phase for operators to familiarize themselves with the new system and its remote control features.

Additionally, the carrier’s ability to move containers over short distances and its efficient turning radius allowed for seamless integration into the facility’s existing workflows, minimizing disruptions.

Results:

• Increased Efficiency: The 45-ton straddle carrier reduced container handling time by 30%, allowing the terminal to manage a higher throughput of containers daily. This improvement in efficiency helped reduce operational bottlenecks, leading to faster turnaround times for vessels.
• Space Optimization: The compact design of the straddle carrier allowed it to operate in confined areas, maximizing available space in the terminal. The multi-angle walking feature allowed for better utilization of narrow aisles, which significantly improved overall space management.
• Improved Safety: The safety alarm system and remote control functionality minimized the risk of accidents. The operators reported higher confidence and control over the equipment, contributing to a safer working environment.
• Cost-Effectiveness: The terminal observed a reduction in maintenance costs due to the durable construction materials and the low operational wear of solid tires. Additionally, the efficiency gains translated into a reduction in fuel consumption and time spent on each operation, contributing to cost savings.

Customized 45-Ton Container Straddle Carrier Crane

For terminals and port operations with specific needs, investing in a customized 45-ton container straddle carrier crane provides distinct advantages. A tailored design ensures the equipment fits seamlessly within the operational environment, optimizing efficiency, safety, and cost-effectiveness. Whether it's adapting to specialized container types or enhancing maneuverability within a particular layout, a customized crane can address challenges and enhance overall operations.

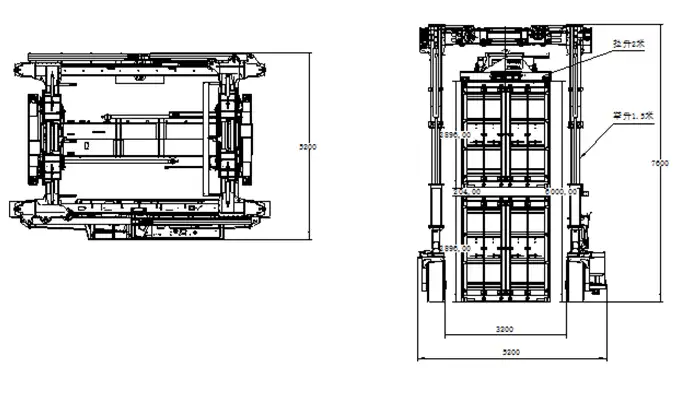

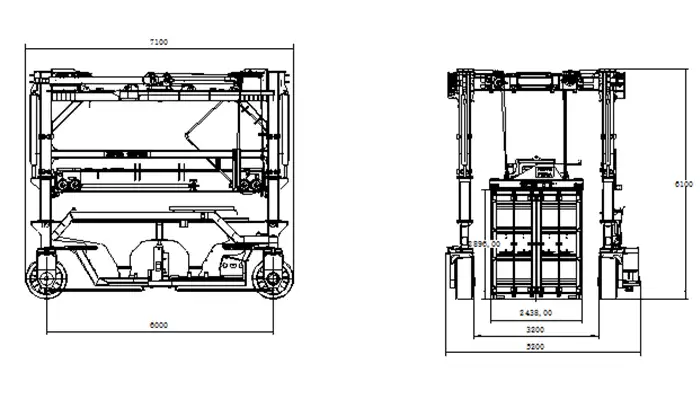

45 ton straddle carrier drawing for your reference, customized design is provided based on your requirements

Why Choose a Customized Container Straddle Carrier Crane?

Tailored Design for Specific Needs

Customized container straddle carriers are engineered to meet unique terminal requirements, such as:

• Custom Lifting Heights: Terminals may require cranes with non-standard lifting capabilities to accommodate different container stack heights. A custom solution allows for flexible lifting options.
• Handling Unique Container Types: For terminals dealing with oversized or non-standard containers, custom gripping mechanisms or enhanced load-bearing capacities are essential.

Optimized Space Management

Customized cranes are designed to fit within specific spatial constraints. For terminals with narrow aisles or congested storage, cranes can be designed with:

• A smaller turning radius for better maneuverability.
• Adjustable dimensions (width, length, wheelbase) to maximize space utilization.

Enhanced Operational Efficiency

Tailored features improve overall performance, such as:

• Specialized Operation Speeds: Custom cranes can be designed to operate at specific speeds to meet time-sensitive workflows.
• Improved Load Distribution: Custom modifications can help evenly distribute the weight of heavy or irregular containers, improving stability during lifting and transport.

Advanced Safety Features

Port operations often involve heavy machinery in tight spaces, posing risks to workers. Customized cranes come with essential safety systems:

• Collision Avoidance Systems: Custom sensors and cameras prevent accidents by alerting operators to nearby obstacles.
• Advanced Monitoring: Integrated software helps track performance, providing real-time alerts and predictive maintenance capabilities.

Steps to Obtain a Customized 45-Ton Container Straddle Carrier Crane

Assessment and Consultation

The process begins with a thorough evaluation of the terminal’s unique needs:

• Analyzing workflows and identifying potential bottlenecks.
• Understanding the types of containers handled (size, weight, non-standard types).
• Assessing terminal space constraints (aisle widths, stacking heights).
• Consulting with engineers to propose design solutions tailored to these needs.

Design and Specification

After the initial assessment, detailed design work begins, incorporating:

• Structural Design: Using durable materials like Q355 steel to ensure long-term reliability.
• Hydraulic and Electrical Modifications: Tailoring power systems for enhanced performance, such as faster lifting speeds or secondary lifts.
• Technology Integration: Adding features like remote control operation, safety systems, and performance diagnostics.

Manufacturing and Assembly

Once the design is finalized, manufacturing begins, focusing on:

• Custom hydraulic lifting mechanisms.
• Structural adjustments based on weight distribution and container specifications.
• Integration of communication and remote control systems.

Testing and Quality Assurance

Rigorous testing ensures the crane meets all specifications:

• Load Testing: Verifying the crane’s capacity to safely lift 45 tons.
• Operational Testing: Ensuring smooth functionality across all movements (lifting, transport, turning).
• Safety Testing: Ensuring all safety systems, including sensors and alarms, are fully operational.

Training and Integration

Upon delivery, operators receive comprehensive training, including:

• Safe operation procedures, particularly for remote control functions.
• Routine maintenance and troubleshooting protocols.
• Emergency response training.

The crane is also integrated into the terminal’s existing systems, with custom software solutions to track performance and optimize operations.

Benefits of a Customized Solution

• Increased Productivity. Tailored cranes eliminate operational inefficiencies, improving container handling speed and reducing operational costs. Every task is optimized for speed, precision, and safety.
• Long-Term Cost Savings. A custom crane built to meet specific operational requirements reduces the likelihood of breakdowns and minimizes maintenance needs, offering long-term savings.
• Enhanced Safety Standards. Customized cranes ensure the highest level of safety by incorporating features that address unique terminal risks, providing peace of mind to operators and management.
• Scalability. As terminals grow, customized cranes can evolve. Additional capacity, advanced lifting mechanisms, and compatibility with newer container types can be integrated, ensuring long-term flexibility.

A customized 45-ton container straddle carrier crane provides the flexibility needed to overcome specific challenges in port and terminal operations. By investing in a tailored solution, terminals can significantly improve their operational efficiency, maximize space utilization, and ensure a high level of safety for both workers and equipment. This comprehensive process not only enhances immediate operational benefits but also ensures that the equipment continues to meet the terminal’s evolving needs over time.

Conclusion:

The adoption of the 45-ton container straddle carrier at the terminal successfully addressed the challenges of space utilization, operational efficiency, and safety. The equipment provided the port with a robust, efficient, and cost-effective solution for handling large containers. The ability to lift, transport, and maneuver heavy loads independently, without needing additional equipment, made the terminal operations more streamlined and improved overall productivity.

This case study highlights how adopting specialized equipment, such as the 45-ton multifunctional bridge straddle carrier, can have a transformative impact on container handling in a busy port environment. Let me know if you'd like more specific details or another angle for this case study!
