Case Study: 60-Ton Straddle Carrier, Affordable Container Crane

60 ton container straddle crane for sale. Check the operation, maintenance, and future innovations of 60-ton container straddle carriers in heavy lifting.

Overview of Straddle Carriers:

What Are Straddle Carriers and Their Purpose in Container Handling?

Straddle carriers are specialized vehicles used in container handling. These machines are designed to transport, lift, and stack heavy containers, primarily at ports, terminals, and large industrial sites. They are equipped with wide legs that "straddle" the container, enabling them to lift and carry containers of varying sizes and weights.

The key purpose of straddle carriers is to provide a flexible and efficient solution for moving containers across a short distance. Unlike traditional cranes, straddle carriers offer mobility and can quickly shift containers from one location to another within a confined area, such as a container yard or loading dock. This mobility is crucial for efficient operations in busy port environments, where space is often limited.

• Flexibility in Movement:Container Straddle Carriers can move containers across a yard or stack them in tight spaces.
• Efficiency: They help streamline container handling, reducing delays.
• Maneuverability: With their unique design, these carriers can handle containers in crowded areas.

In short, they help improve container handling efficiency while reducing operational time. Their role in port logistics is essential, especially when dealing with high volumes of cargo.

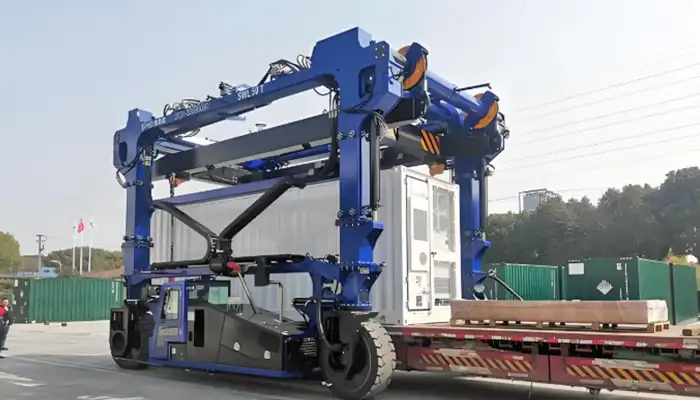

60 ton container straddle carrier

Importance of 60-Ton Capacity: Why 60 Tons is a Key Threshold in Heavy Lifting Operations

The 60-ton capacity of a straddle carrier is a significant factor in heavy lifting operations. This weight capacity enables the carrier to handle large containers and load them onto ships or transport them across vast yards without the risk of overloading the equipment.

The 60-ton threshold is especially important for modern container handling in ports, where container sizes have increased. Many international containers can weigh as much as 40 to 50 tons when fully loaded, so a 60-ton capacity ensures that the straddle carrier can handle the weight safely and efficiently. This makes the 60-ton carrier more versatile, as it can accommodate different types of containers, including both standard and oversized cargo.

• Capacity to Handle Larger Containers: Ensures that most containers can be moved without risk of overloading.
• Safety: The 60-ton capacity provides a margin of safety for lifting heavy or unevenly distributed loads.
• Versatility: Can handle various container sizes and cargo types, enhancing its usefulness in diverse environments.

In summary, the 60-ton capacity plays a critical role in ensuring the efficiency, flexibility, and safety of heavy lifting operations in container yards and ports. It is the right balance between power and practicality, capable of supporting the increasing demands of global trade.



Specifications and Features

Technical Specifications: Load Capacity, Dimensions, and Power Systems

The 60-ton container straddle carrier is designed for heavy-duty lifting and transport, ensuring efficient handling of large containers. Here’s an overview of the key technical specifications:

• Load Capacity: The 60-ton container straddle carrier has a lifting capacity of 60 tons, which makes it ideal for handling large and heavy containers commonly used in container terminals and ports.

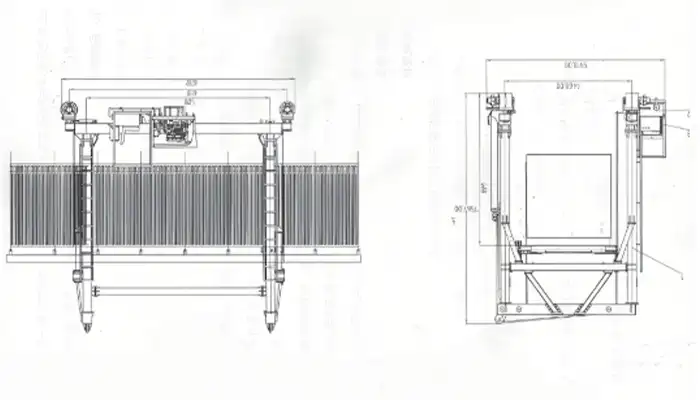

• Dimensions: The dimensions of a 60-ton container crane or straddle carrier are designed for optimal stability and maneuverability. The carrier's legs are wide enough to straddle containers while its height is suitable for lifting containers to various stacking levels, often up to 5-6 meters. The equipment's overall size is tailored to allow it to manage both long and wide containers with precision.
• Power Systems: The 60-ton container straddle carrier is typically powered by diesel engines paired with hydraulic systems. The diesel engine provides the necessary torque to lift and move heavy containers, while the hydraulic system controls the lifting mechanism, ensuring smooth and efficient operations.

These specifications ensure that the 60-ton container straddle carrier can handle heavy lifting tasks in busy port operations while maintaining operational efficiency.


Operational Capabilities: Lifting Height, Travel Speeds, and Maneuverability

The operational performance of the 60-ton container straddle carrier is focused on enhancing productivity in container handling and transportation:

• Lifting Height: The 60-ton container crane and straddle carrier can typically lift containers to a height of 5-6 meters, allowing for effective stacking and unloading of containers in container yards and terminals.
• Travel Speeds: The travel speed of the 60-ton container straddle carrier is adjustable, allowing it to travel at a range of 5-10 km/h. This speed allows operators to move containers quickly while maintaining safety, especially in high-traffic areas.
• Maneuverability: Designed for tight spaces, the 60-ton container straddle carrier boasts excellent maneuverability, allowing operators to navigate narrow aisles and crowded terminals. It is equipped with powered wheels for precise control during both lateral and longitudinal movements.

These operational capabilities are key to ensuring that the 60-ton container straddle carrier operates efficiently and safely in container handling, boosting productivity and reducing downtime.

Safety Features: Overload Prevention, Hydraulic Safety, and Emergency Systems

Safety is a top priority for the 60-ton container straddle carrier. A variety of safety mechanisms are integrated to prevent accidents and ensure smooth operations:

• Overload Prevention: The 60-ton container crane and straddle carrier come equipped with load sensors that continuously monitor the weight of the lifted container. If the load exceeds the safe operating limit, the system will trigger an alert, or the operation will be automatically stopped to prevent overloading.
• Hydraulic Safety: The hydraulic systems in 60-ton container straddle carriers are equipped with multiple safety features to prevent malfunctions. These include pressure monitoring and relief valves to prevent overpressurization, ensuring smooth and safe lifting operations.
• Emergency Systems: The 60-ton container straddle carrier is designed with emergency stop buttons and fail-safe mechanisms that allow operators to halt operations quickly if necessary. Emergency brakes are also included to maintain stability and prevent accidents in case of a system failure.

These safety features ensure that the 60-ton container straddle carrier operates safely, minimizing risk to both personnel and equipment while maximizing operational efficiency.

Key Components

Hydraulic Systems: Pumps, Valves, and Maintenance

The hydraulic system is essential for the 60-ton container straddle carrier, enabling smooth lifting, steering, and load management. Here’s an overview of the critical hydraulic components:

• Pumps: Hydraulic pumps in the 60-ton container crane provide the necessary fluid pressure for the lifting and steering mechanisms. These pumps are designed for high-performance, ensuring the carrier can lift heavy containers and maneuver with precision.
• Valves: The hydraulic valves control the flow of oil throughout the system, directing it to various components like the lifting arms, steering system, and load-bearing systems. These valves are critical for maintaining the safe and effective operation of the 60-ton container straddle carrier.
• Maintenance: Regular maintenance of the hydraulic system is crucial for preventing leaks, ensuring optimal fluid levels, and avoiding system failures. Hydraulic oil should be changed periodically, and filters replaced to ensure the system remains clean and efficient. Regular checks of the hydraulic hoses, pumps, and valves are also essential to avoid wear or malfunctions.

Proper care of the hydraulic systems ensures that the 60-ton container straddle carrier continues to operate efficiently, reducing the risk of costly downtime and maintaining its lifting capacity.

Tire and Wheel Systems: Types of Tires, Maintenance, and Wear

The tires and wheels of a 60-ton container straddle carrier play a vital role in ensuring safe, smooth, and efficient movement, especially when navigating busy terminal environments.

• Types of Tires: The 60-ton container straddle carrier typically uses heavy-duty tires such as solid rubber or pneumatic tires. Solid tires are favored for their durability and puncture resistance, while pneumatic tires offer better shock absorption, providing smoother handling over rough surfaces.
• Maintenance: Tire maintenance for the 60-ton container straddle carrier involves regularly checking for signs of wear, such as cracks, bulges, or flat spots. Operators should monitor tire pressure to ensure that it remains within the recommended range to distribute the load evenly and avoid uneven wear.
• Wear: Over time, tires may experience significant wear due to the heavy loads and rough surfaces they traverse. Regular inspections for cuts, punctures, or other damage are essential. Replacing tires before they wear out completely can prevent damage to other components of the carrier and improve operational efficiency.

Maintaining the tire and wheel systems ensures the 60-ton container straddle carrier operates smoothly and efficiently, even in demanding environments.

Engine and Power Systems: Diesel Engine Specs, Fuel Efficiency, and Maintenance

The engine and power systems in the 60-ton container straddle carrier are designed to deliver the strength needed to lift and move heavy containers while maintaining efficiency.

• Diesel Engine Specifications: The 60-ton container crane is typically powered by a diesel engine, providing high torque to lift and move heavy loads. The engine specifications vary by model but generally feature high horsepower to support heavy lifting operations and long working hours.
• Fuel Efficiency: Fuel efficiency is an important consideration for the 60-ton container straddle carrier. Engines are designed to optimize fuel consumption while still providing enough power for lifting operations. Efficient fuel usage helps reduce operating costs, making the equipment more economical in the long run.
• Maintenance: Regular maintenance of the engine is crucial to ensure its reliability and longevity. This includes routine checks for oil levels, exhaust color, and engine temperature. It is also essential to replace fuel and air filters periodically and check for any leaks or unusual noises. Engine oil should be changed regularly to keep the system running smoothly.

Proper care of the engine and power systems guarantees that the 60-ton container straddle carrier remains a reliable, high-performance piece of equipment, providing consistent and efficient service.

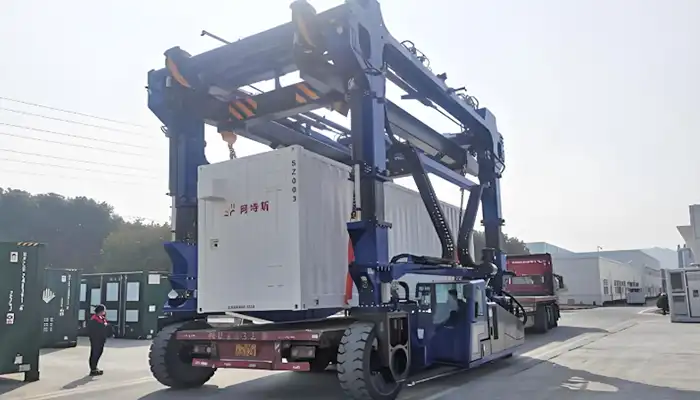

60 ton straddle carrier for container handling

Operations: Best Practices

Load Handling Techniques: Safe Loading, Weight Balancing, and Securing Cargo

Efficient and safe operations of the 60-ton container straddle carrier begin with proper load handling. Following these best practices is essential for optimal performance and safety:

• Safe Loading: Ensure that containers are loaded evenly to prevent strain on the 60-ton container crane. The container should be positioned properly in the cradle to maintain balance during lifting.
• Weight Balancing: It's critical to verify the weight distribution across the carrier's lifting arms. Uneven weight can lead to unsafe lifting and maneuvering. The 60-ton container straddle carrier should only lift containers within its rated capacity, with the weight evenly distributed to avoid tipping or structural damage.
• Securing Cargo: All containers should be secured with appropriate locking mechanisms. For added safety, use load-securing equipment such as chains or straps to prevent containers from shifting during transport, particularly when navigating tight spaces or rough terrain.

By adhering to these load handling techniques, operators ensure the safety of both the equipment and the cargo, reducing risks during lifting and transportation.

Safety Protocols: Operator Safety, Emergency Procedures, and Safe Maneuvering

Operating the 60-ton container straddle carrier safely is crucial for preventing accidents and ensuring smooth operations. Follow these safety protocols:

• Operator Safety: The operator should always be trained and certified to operate heavy lifting machinery. Personal protective equipment (PPE), such as helmets, gloves, and high-visibility clothing, should be worn at all times to reduce injury risks.
• Emergency Procedures: Operators must be familiar with emergency stop procedures and must know how to respond quickly in case of a malfunction or overload. The 60-ton container crane should be equipped with easily accessible emergency stop buttons and alarm systems to signal urgent situations.
• Safe Maneuvering: When maneuvering the 60-ton container straddle carrier, operators should always be aware of their surroundings. Ensure that the area is clear of personnel and obstacles before moving the crane, and always drive slowly, especially in tight spaces. Clear communication with ground staff is key to preventing accidents during container loading and unloading.

Following these protocols minimizes the risk of accidents and ensures that the 60-ton container straddle carrier operates efficiently and safely, while keeping the operators and workers in the vicinity safe.

Operating Conditions: Ground Conditions, Environmental Factors, and Winterization

The performance of the 60-ton container straddle carrier can be heavily influenced by the operating environment. Here are the best practices for managing operating conditions:

• Ground Conditions: Ensure that the ground where the 60-ton container straddle carrier operates is level, firm, and free from debris. Soft, uneven, or slippery ground can reduce the stability of the carrier, especially when carrying heavy loads. The carrier's tires should be regularly checked to ensure they can handle the ground conditions.
• Environmental Factors: Weather conditions such as rain, high winds, or extreme temperatures can affect the carrier's performance. For instance, wet or icy conditions can make it difficult to maintain traction and control. In windy conditions, the operator should avoid operating the 60-ton container crane with a high load, as wind gusts could destabilize the carrier.
• Winterization: In colder climates, winterizing the 60-ton container straddle carrier is crucial for maintaining its functionality. This includes ensuring that hydraulic fluids are suitable for low temperatures, checking fuel lines and filters for freezing, and keeping the carrier's engine and power systems well-maintained during the winter months. Winterizing helps prevent mechanical failures and ensures smooth operations throughout the season.

By addressing these operating conditions, you can enhance the performance and longevity of the 60-ton container straddle carrier while preventing damage caused by adverse environmental factors.

Conclusion

Key Takeaways: Importance of Proper Maintenance, Safety, and Efficiency

The 60-ton container straddle carrier plays a vital role in heavy lifting and container handling operations. By adhering to best practices in maintenance, safety, and efficiency, operators can ensure smooth, productive, and safe operations.

• Proper Maintenance is essential to avoid costly repairs and downtime. Regular checks on hydraulics, engine systems, tires, and powertrains will extend the life of the equipment and maintain optimal performance.
• Safety is a top priority. By following load handling techniques, operator safety protocols, and emergency procedures, the risks of accidents and injuries are significantly reduced.
• Efficiency in operations, through proper training and understanding of the carrier’s capabilities, ensures that time is utilized wisely and workloads are handled effectively.

By focusing on these areas, businesses can maximize the productivity and longevity of their 60-ton container cranes and straddle carriers.

The Future of 60-Ton Straddle Carriers: Anticipated Innovations and Evolving Needs in Heavy Lifting and Container Handling

As industries continue to evolve, so too will the technologies behind 60-ton container straddle carriers. Some anticipated innovations and trends that could shape the future of these machines include:

• Automation: The integration of AI and robotics could improve accuracy in container handling and reduce human error. Automated systems could allow for faster, safer, and more efficient operations.
• Sustainability: With increasing focus on reducing carbon footprints, future 60-ton straddle carriers may feature hybrid or fully electric engines, lowering emissions and enhancing fuel efficiency.
• Telematics and IoT Integration: Incorporating telematics systems will allow for real-time tracking of performance, load data, and maintenance schedules. This would enable predictive maintenance, enhancing the reliability of the equipment.
• Enhanced Safety Features: New safety innovations, such as advanced load monitoring systems and anti-collision technologies, will further reduce risk in high-traffic environments, ensuring operator and pedestrian safety.
• Improved Maneuverability and Efficiency: Evolving designs will likely offer better maneuverability in tight spaces, with the goal of improving efficiency and reducing operational costs.

The future of the 60-ton container straddle carrier lies in making these machines smarter, more sustainable, and safer, all while maintaining their essential role in modern container handling and heavy lifting.

This comprehensive analysis ensures that key aspects of the 60-ton container straddle carrier—from operations and maintenance to future innovations—are thoroughly covered. Understanding these facets helps organizations make informed decisions regarding their equipment, resulting in increased efficiency, safety, and cost-effectiveness.
