Explosion-Proof Gantry Cranes for Offshore Platforms

Reliable, corrosion-resistant gantry cranes ensuring safe, efficient lifting in hazardous offshore environments, preventing ignition risks in explosive atmospheres.

Overview of Offshore Oil & Gas Platforms

Offshore oil and gas platforms are critical for extracting resources beneath the sea. But these platforms operate in some of the toughest environments. The weather can be unpredictable, with high winds, heavy rain, and saltwater corrosion. The work is done at sea, so space is limited and conditions can be dangerous. Lifting heavy equipment, moving tools, and maintaining the platform all require special care and attention.

Challenges of Offshore Environments

Working offshore means dealing with challenges like:

• Harsh weather conditions: Storms, high winds, and salty air can affect both equipment and safety.
• Limited space: The space on a platform is often cramped, making it difficult to maneuver heavy equipment or tools.
• Hazardous materials: Oil and gas platforms often deal with flammable substances. The risk of explosions is high, so safety is a priority.
• Unstable working conditions: Waves, currents, and vibrations make it hard to keep equipment steady, especially when lifting or moving heavy loads.

Importance of Safety and Mobility

In such a tough environment, safety is critical. With constant movement, maintenance, and operation, every piece of equipment needs to be reliable. Gantry cranes play a huge role here. They must be able to move safely in all conditions, without adding risks. Their ability to lift heavy loads and keep things secure ensures smooth operations and minimizes accidents.
When safety is prioritized, work on offshore platforms can continue efficiently, with reduced risks for the crew and equipment.

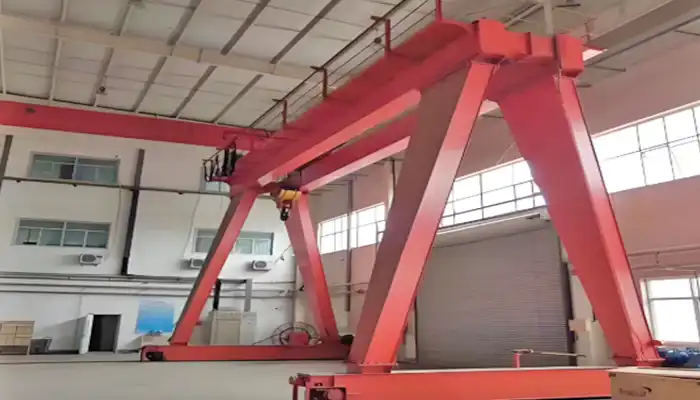

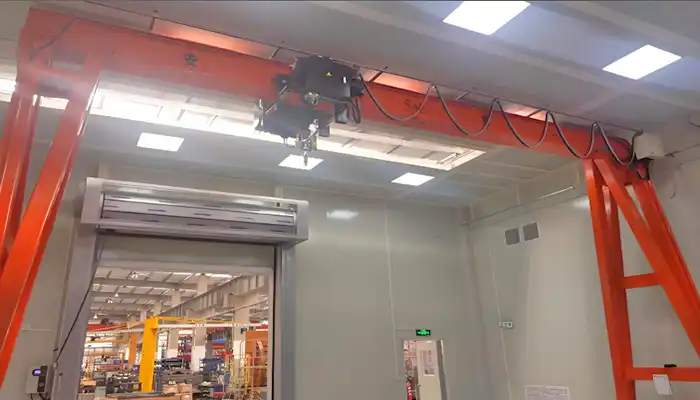

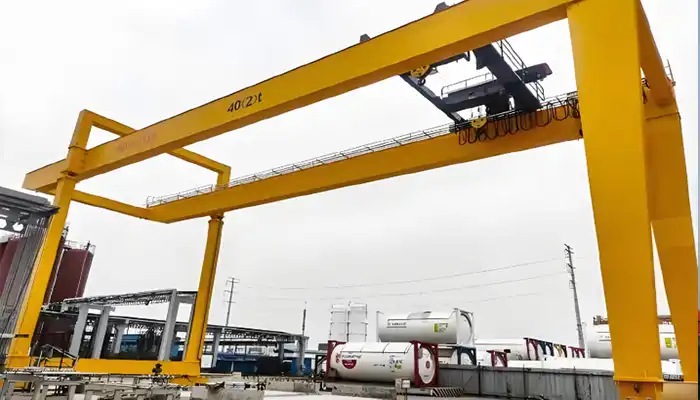

Explosion-Proof Gantry Cranes

Explosion-proof gantry cranes are designed to operate in environments where there’s a high risk of explosions. These cranes are built with materials and systems that prevent sparks or heat from igniting flammable gases or dust in the air.
They are used for lifting and moving equipment, tools, and materials on offshore platforms. These cranes are crucial for operations where the risk of explosion is real, like near oil rigs or gas production areas.

Why They Are Crucial for Offshore Platforms

Offshore platforms are prime areas for hazardous incidents due to the presence of explosive gases and other volatile substances. Explosion-proof gantry cranes offer several key benefits:

• Safety: They reduce the risk of igniting an explosion.
• Efficiency: These cranes allow the crew to work in tight spaces, lifting heavy loads quickly and safely.
• Reliability: Built to handle harsh weather and saltwater exposure, explosion-proof gantry cranes are tough and durable, providing long-term service without failure.
  Without these specialized cranes, many tasks on offshore platforms would be much more dangerous and harder to accomplish.

Explosion-Proof Cranes

Explosion-Proof Standards & Certifications

Relevant Industry Standards (ATEX, IECEx)
Explosion-proof cranes must meet strict standards to ensure safety in hazardous environments. Two key certifications for offshore platforms are:

• ATEX (Atmosphere Explosible): This is a European Union standard for equipment used in explosive atmospheres. It ensures that equipment, including cranes, does not ignite any explosive gases or dust in the surrounding area.
• IECEx (International Electrotechnical Commission Explosion-Proof): This certification is recognized globally and sets standards for equipment used in explosive environments. It ensures the safety and reliability of the crane’s design, including its electrical components.

These standards outline the necessary features that make cranes safe for use in volatile conditions, such as certain design requirements and the types of materials allowed.

Certification Processes and Their Importance
Certification involves rigorous testing and inspections. It ensures that explosion-proof gantry cranes have been designed, built, and tested to meet the highest safety standards. The certification process typically includes:

• Testing the crane’s ability to handle explosive gases: Ensuring the crane won't spark or ignite in hazardous environments.
• Inspection of materials and components: Confirming that the materials used in construction can withstand harsh offshore conditions.
• Regular re-certification: Periodic checks to ensure the crane remains compliant and functional.

The certification process provides confidence that cranes will perform safely in explosive environments and prevents accidents that could be catastrophic on offshore platforms.

How Explosion-Proof Technology Works

Design Considerations (Materials, Sealing Methods, etc.)
To protect against explosions, explosion-proof cranes are built with special materials and design features:

• Materials: Non-sparking metals, such as aluminum or stainless steel, are often used for critical components. These materials prevent sparks that could ignite gases or dust.
• Sealing Methods: Seals are used in key areas, like electrical enclosures, to prevent any flammable gases from coming into contact with electrical parts. The sealing ensures that the crane is airtight and that no ignition sources can escape.
• Corrosion Resistance: Offshore platforms are exposed to saltwater, so the crane components are often coated or constructed with corrosion-resistant materials. This helps extend the crane’s lifespan and maintain its explosion-proof integrity.

Components That Make a Crane Explosion-Proof
Key components that are designed for explosion-proof safety include:

• Explosion-Proof Electrical Enclosures: Electrical parts are housed in special enclosures that prevent sparks from escaping and igniting the surrounding environment.
• Motors and Switchgear: Motors and switches are designed to operate without generating heat or sparks that could trigger an explosion.
• Overload Protection: A built-in overload system ensures the crane doesn’t exceed its lifting capacity, preventing mechanical failure that could lead to sparks or other ignition sources.

These features work together to make the crane safe to operate in environments where explosions could occur.

Key Features of Explosion-Proof Gantry Cranes

Robustness and Reliability in Harsh Conditions
Offshore platforms are subject to extreme weather, high winds, and saltwater corrosion. Explosion-proof gantry cranes are designed to withstand these tough conditions. They are built to be highly durable, ensuring long-term performance with minimal maintenance. Some key design elements include:

• Weather-Resistant Coatings: Special coatings protect the crane from rust and corrosion caused by saltwater.
• Heavy-Duty Frames: The frames of these cranes are built to handle high stress and heavy lifting while remaining stable on the platform.

Electrical and Mechanical Safety Measures
To avoid any risk of ignition, explosion-proof gantry cranes have several safety features:

• Explosion-Proof Motors: Motors are designed to function without producing sparks, heat, or other potential ignition sources.
• Overload Protection: The crane has systems in place to detect and prevent overloading, reducing the risk of mechanical failure that could lead to an explosion.
• Anti-Collision Systems: These systems ensure that the crane’s movements are precise, preventing accidents that could result in sparks or collisions with other equipment.

These safety measures make sure that even in volatile, hazardous environments, the crane operates smoothly without posing a threat to personnel or the platform.

Importance of Gantry Cranes in Offshore Environments

Challenges of Offshore Platforms

Harsh Weather Conditions (Wind, Saltwater)
Offshore platforms face extreme weather conditions that can affect equipment and safety.

• High Winds: Strong gusts can make it difficult to move heavy loads without risking accidents. Gantry cranes must be able to operate safely even in high winds to prevent cranes from swaying or tipping.
• Saltwater Exposure: The constant exposure to saltwater leads to corrosion of equipment, including cranes. Materials and coatings need to be resistant to saltwater damage, ensuring the crane remains operational and safe over time.

Space Constraints and Confined Areas
Space on offshore platforms is limited, and it can be a challenge to maneuver heavy equipment. Platforms often have tight, confined spaces where equipment must be lifted and moved.

• Tight Quarters: Gantry cranes are essential because of their ability to operate in narrow, cramped spaces. They provide flexibility to move loads where space is restricted, which would be difficult with other types of cranes.
• Restricted Movement: Many areas of offshore platforms don’t allow for large cranes to move freely. Gantry cranes are able to navigate these confined areas without interfering with other operations.

Handling Heavy and Hazardous Loads
Offshore platforms handle heavy and sometimes hazardous materials, like tools, machinery, and even flammable substances.

• Heavy Lifting: Offshore platforms regularly need to move large, heavy equipment. Gantry cranes are designed with powerful lifting capacities to handle these loads safely.
• Hazardous Materials: Many materials and chemicals on offshore platforms are dangerous or flammable. Explosion-proof gantry cranes are necessary for lifting and moving these hazardous materials without risk of sparking or igniting.

Role of Gantry Cranes

Flexibility in Load Movement
One of the main advantages of gantry cranes is their flexibility. On offshore platforms, you may need to move materials in different directions or handle equipment with various shapes and sizes.

• Adaptability: Gantry cranes are versatile, able to move loads across a variety of spaces, whether over a platform’s deck or around confined machinery.
• Precise Control: These cranes offer precise control over lifting and lowering, ensuring heavy or delicate equipment is safely handled.

Ability to Operate in High Winds and Unstable Platforms
The offshore environment often means platforms are in motion due to waves or storms. Gantry cranes are built to work in these unstable conditions.

• Wind Resistance: Many gantry cranes are designed with features that reduce the impact of strong winds, such as a low-profile design or stabilizers to prevent tipping.
• Stable Performance: Even on platforms that are swaying or vibrating, gantry cranes maintain their stability, ensuring safe and reliable operation.

Efficient Space Utilization
With space at a premium on offshore platforms, efficient use of available space is crucial for safety and productivity.

• Compact Design: Gantry cranes are designed to fit in tight spaces while offering maximum lifting height and load capacity.
• Enhanced Productivity: By efficiently utilizing the available space, gantry cranes allow for more streamlined operations, reducing clutter and keeping essential equipment organized and within reach.

Safety in Offshore Operations

Preventing Potential Ignition Sources
One of the biggest safety concerns on offshore platforms is the risk of explosions. Explosion-proof gantry cranes are essential in reducing this risk.

• Sealed Electrical Systems: The electrical components of the crane are sealed and insulated to prevent sparks or heat from escaping, ensuring that no ignition occurs in explosive environments.
• Anti-Sparking Design: Materials used in the crane’s construction are non-sparking, and all surfaces are treated to prevent any potential for accidental ignition.

Enhancing Crew Safety During Lifting Operations
Safety for the crew is a top priority in any lifting operation, but it’s especially critical on offshore platforms.

• Safety Mechanisms: Gantry cranes are equipped with emergency stop buttons, overload protection, and anti-collision features, all designed to ensure the crew’s safety during lifting operations.
• Reduced Human Error: These cranes often come with automated features that minimize human error, making lifting tasks safer and more reliable.
• Operator Training: Crew members are specifically trained to operate these cranes in challenging offshore conditions, ensuring that safety protocols are followed, and risks are minimized.

By providing flexibility, efficiency, and most importantly, safety, gantry cranes play a vital role in ensuring smooth, safe operations on offshore oil and gas platforms.

Applications of Explosion-Proof Gantry Cranes on Offshore Platforms

Routine Maintenance & Equipment Handling

Lifting and Moving Heavy Machinery
Offshore platforms are complex structures with heavy machinery that needs regular maintenance. Gantry cranes are used to lift and move these heavy machines with ease and precision.

• Routine Lifting: These cranes can lift large, heavy pieces of equipment like pumps, generators, and compressors, ensuring they are moved to the correct location for maintenance or repair.
• Minimizing Downtime: Quick and efficient movement of machinery helps minimize downtime, allowing maintenance work to be done faster and with minimal disruption to platform operations.

Safe Handling of Equipment with Hazardous Components
Many of the tools and equipment used on offshore platforms contain hazardous components that could be dangerous if mishandled. Explosion-proof gantry cranes provide a safe way to move these items.

• Hazardous Equipment Handling: Cranes are designed to safely lift and transport equipment with flammable or sensitive parts, such as gas detectors, pressure regulators, and electrical systems.
• Explosion-Proof Design: The explosion-proof features ensure that lifting and moving equipment that could potentially release hazardous materials is done without risk of ignition or accidents.

Wellhead Maintenance

Lifting Tools and Maintenance Materials Safely
Wellhead maintenance is one of the most critical operations on offshore platforms. Gantry cranes play a vital role in lifting tools, machinery, and materials necessary for wellhead operations.

• Precise Lifting: Tools and materials need to be carefully lifted to prevent damage. Gantry cranes provide accurate control for these delicate operations, reducing the risk of accidents.
• Heavy Lifting: Wellhead maintenance requires heavy, bulky equipment to be moved into place. Explosion-proof gantry cranes are strong enough to handle these heavy loads without compromising safety.

Handling Equipment in Potentially Explosive Atmospheres
The environment around the wellhead is highly volatile, with flammable gases and chemicals present. Gantry cranes are built to handle this risky atmosphere safely.

• Explosion-Proof Features: The cranes are equipped with features like sealed electrical components and anti-sparking materials to prevent any risk of ignition when handling tools or materials in potentially explosive conditions.
• Safety Protocols: Special safety measures, including emergency shut-off mechanisms and automated lifting controls, ensure that all operations are performed without endangering personnel or the platform.

Safety & Emergency Response

Emergency Evacuations and Handling Critical Equipment During Crises
In case of an emergency, explosion-proof gantry cranes can be used to evacuate critical equipment or even assist in evacuating personnel from the platform.

• Lifting Emergency Equipment: Gantry cranes can lift and move emergency equipment, such as fire suppression systems, emergency life rafts, or medical supplies, to the necessary locations quickly and safely.
• Assisting in Evacuations: In some cases, the cranes can be used to safely evacuate crew members from hazardous areas by transporting them to safe zones or emergency escape vessels.

Evacuation Equipment Handling During Hazardous Conditions
During a crisis, offshore platforms require quick access to evacuation equipment and other safety resources. Gantry cranes are essential for handling and moving this equipment under hazardous conditions.

• Safe Handling of Evacuation Tools: Items such as lifeboats, life vests, and rescue sleds must be moved and deployed without delay. Gantry cranes are used to handle and deploy these tools to ensure a quick and efficient evacuation process.
• Minimizing Risk in Crisis: In emergencies where time is of the essence, gantry cranes ensure that critical safety equipment is available and operational, minimizing risk to the crew and platform.

Explosion-proof gantry cranes play a pivotal role in both routine operations and emergency situations. Their ability to handle heavy, hazardous, and sensitive equipment, all while maintaining safety in potentially explosive environments, makes them an indispensable tool for offshore platforms.

Key Considerations in Selecting Explosion-Proof Gantry Cranes

Capacity and Load Handling Requirements

Understanding Weight Limits and Lifting Capacities
Selecting the right gantry crane starts with understanding the lifting capacity needed for offshore operations.

• Weight Capacity: Offshore platforms handle loads ranging from a few hundred kilograms to several tons. Choosing a crane with the right load capacity ensures safe and efficient lifting.
• Load Distribution: Different cranes handle weight in different ways. Ensuring even load distribution prevents stress on the crane and platform structure.

Customizing for Specific Offshore Platform Needs
Every offshore platform has unique requirements. Customizing the crane ensures it fits the specific tasks and environment.

• Adjustable Height and Span: Offshore platforms have different clearance heights. Some cranes need adjustable beams to fit in tight spaces.
• Specialized Lifting Attachments: Hooks, magnets, or clamps can be customized for handling pipes, machinery, or hazardous materials safely.

Environmental Factors

Dealing with Extreme Temperatures, Salt Corrosion, and Humidity
Offshore environments are harsh, with high humidity, salt exposure, and fluctuating temperatures. Gantry cranes must withstand these elements.

• High-Temperature Resistance: Some offshore platforms operate in extreme heat, requiring cranes with heat-resistant components.
• Cold Weather Performance: In colder regions, cranes need anti-freezing hydraulic systems and lubricants that work in low temperatures.

Resistance to Rust and Long-Term Durability
Saltwater exposure causes corrosion, which weakens metal structures. Explosion-proof gantry cranes need proper protection.

• Anti-Corrosion Coatings: Special coatings, such as galvanized steel or marine-grade paint, protect against rust and corrosion.
• Stainless Steel or Aluminum Components: Non-corrosive materials extend the crane’s lifespan, reducing maintenance needs.

Mobility and Space Constraints

Design for Limited Deck Space
Space on offshore platforms is limited, so cranes must be compact yet functional.

• Compact, Foldable, or Modular Designs: Some gantry cranes are designed to be disassembled or adjusted to fit confined spaces.
• Overhead Clearance Considerations: Low-clearance models are useful when working under existing structures.

Adaptability to Varying Platform Structures and Configurations
Different platforms have unique layouts, requiring adaptable crane designs.

• Adjustable Track or Rail Systems: Some gantry cranes can move along tracks to cover larger areas without needing multiple cranes.
• Swivel or Rotating Beams: This feature improves flexibility, allowing cranes to reach different parts of the platform without moving the entire structure.

Maintenance and Downtime Minimization

Ease of Maintenance in Tough Offshore Environments
Regular maintenance is essential to ensure safety and operational efficiency.

• Easily Accessible Components: Explosion-proof cranes should have accessible motors, wiring, and lifting mechanisms for quick repairs.
• Weatherproof Electrical Systems: Protected wiring and sealed components reduce the need for frequent maintenance.

Predictive Maintenance Features and Technologies
Advanced monitoring systems can reduce downtime by detecting issues before they cause failures.

• Remote Monitoring Systems: Sensors track crane usage, wear, and performance, alerting operators to potential problems.
• Automated Lubrication Systems: These systems ensure smooth operation and reduce wear on moving parts, extending the crane’s lifespan.

Selecting the right explosion-proof gantry crane requires balancing load capacity, durability, space efficiency, and ease of maintenance. A well-chosen crane enhances offshore safety, efficiency, and long-term cost savings.

Safety and Compliance: Meeting Industry Standards

Explosion-Proof Compliance

Meeting International Safety Standards (ATEX, IECEx)
Explosion-proof gantry cranes used on offshore platforms must meet strict international safety regulations to ensure safe operation in hazardous environments.

• ATEX Certification: Required for equipment used in explosive atmospheres in the European Union, ensuring the crane is safe for environments with flammable gases and dust.
• IECEx Certification: A global standard confirming the crane's compliance with explosion-proof safety regulations, ensuring it can operate safely in volatile conditions worldwide.

Regular Inspection and Certification Requirements
To maintain compliance, explosion-proof cranes must undergo regular inspections and certification renewals.

• Routine Safety Inspections: Frequent checks ensure all components, including electrical and mechanical systems, function properly.
• Third-Party Certification: Independent bodies verify that the crane continues to meet explosion-proof standards, ensuring safe operation over time.

Safety Features Specific to Offshore Platforms

Emergency Stop Mechanisms
Offshore environments require immediate response systems to prevent accidents.

• Instant Shutdown: Emergency stop buttons allow operators to halt crane operations instantly in case of a malfunction or hazardous situation.
• Redundant Safety Systems: Multiple emergency stop systems provide backup protection in case one system fails.

Anti-Collision Systems and Overload Protection
To prevent accidents and structural damage, offshore gantry cranes are equipped with advanced safety features.

• Anti-Collision Sensors: These detect obstacles and automatically stop or slow the crane to prevent collisions with other equipment or structures.
• Overload Protection: Load sensors prevent operators from lifting beyond the crane’s rated capacity, reducing the risk of mechanical failure or structural damage.

Training & Operation

Operator Training for Offshore Environments
Proper training ensures crane operators understand the risks and best practices when working on offshore platforms.

• Hazard Awareness: Operators must be trained to recognize explosion risks, high wind conditions, and platform movement that may affect crane operation.
• Emergency Procedures: Training includes responding to equipment failures, fires, and other critical incidents to ensure safety in high-risk situations.

Safety Protocols and Operational Guidelines
Strict operational guidelines help maintain a safe working environment on offshore platforms.

• Pre-Operation Safety Checks: Before each use, operators must inspect cables, hooks, and explosion-proof enclosures to ensure everything is in working order.
• Clear Communication Protocols: Offshore lifting operations require constant communication between crane operators, riggers, and platform crew to prevent accidents.

By meeting strict industry standards, incorporating advanced safety features, and ensuring proper training, explosion-proof gantry cranes enhance safety and efficiency on offshore platforms while reducing the risk of hazardous incidents.

Benefits of Explosion-Proof Gantry Cranes for Offshore Platforms

Enhanced Safety

Reducing the Risk of Explosion in Volatile Conditions
Offshore platforms operate in hazardous environments where flammable gases and vapors are present. Explosion-proof gantry cranes are designed to eliminate potential ignition sources.

• Sealed Electrical Components: Prevent sparks from reaching explosive atmospheres.
• Non-Sparking Materials: Special coatings and materials reduce friction-based ignition risks.

Protecting Human Life and Assets
A well-designed explosion-proof gantry crane ensures the safety of crew members and valuable equipment.

• Emergency Stop Systems: Quick shutdown mechanisms help prevent accidents.
• Structural Stability: Cranes built for offshore conditions minimize the risk of failures that could endanger personnel.

Improved Efficiency

Streamlined Lifting Operations
Explosion-proof gantry cranes enhance workflow efficiency by enabling safe and precise lifting of heavy equipment.

• Smooth Load Handling: Advanced controls ensure precise movement, reducing the risk of damage to critical machinery.
• Adaptability to Offshore Conditions: Designed to function reliably in high winds and on unstable surfaces.

Reduced Downtime and Operational Delays
Downtime on offshore platforms is costly. Reliable cranes help maintain continuous operations.

• Fast Maintenance Access: Explosion-proof designs allow for easier inspection and servicing.
• Predictive Maintenance Systems: Advanced monitoring helps detect issues before they cause breakdowns.

Cost Savings in the Long Term

Preventing Costly Accidents and Repairs
Explosion-proof gantry cranes help avoid accidents that could lead to expensive repairs or legal liabilities.

• Less Risk of Fire or Explosions: Reducing accidents minimizes unexpected financial losses.
• Durable Components: Designed to withstand harsh conditions, reducing the frequency of part replacements.

Reliable Performance in Harsh Offshore Conditions
Investing in a high-quality explosion-proof gantry crane pays off with long-term durability and reduced maintenance costs.

• Corrosion-Resistant Materials: Protect against saltwater damage, extending the crane’s lifespan.
• Energy Efficiency: Optimized power consumption helps reduce fuel and operational costs over time.

Explosion-proof gantry cranes are a smart investment for offshore platforms, ensuring safety, efficiency, and long-term cost savings while meeting the unique challenges of hazardous marine environments.

Conclusion

Explosion-proof gantry cranes are essential for offshore oil and gas platforms, where safety and efficiency are top priorities.

• Ensuring Safety: These cranes reduce the risk of explosions by eliminating potential ignition sources in hazardous environments.
• Enhancing Efficiency: They enable smooth and reliable lifting operations, reducing downtime and improving workflow.
• Long-Term Value: With durable, corrosion-resistant materials and advanced safety features, they offer cost-effective solutions for offshore lifting needs.

Explosion-proof gantry cranes are not just an option—they are a necessity for maintaining safe and efficient operations in offshore environments.
