1 to 10 Ton Mobile Gantry Cranes Steering Systems for Tight Workshop

Mobile gantry crane for sale. Discover the best steering systems for maneuvering mobile gantry cranes in tight spaces, improving efficiency, safety, and productivity.

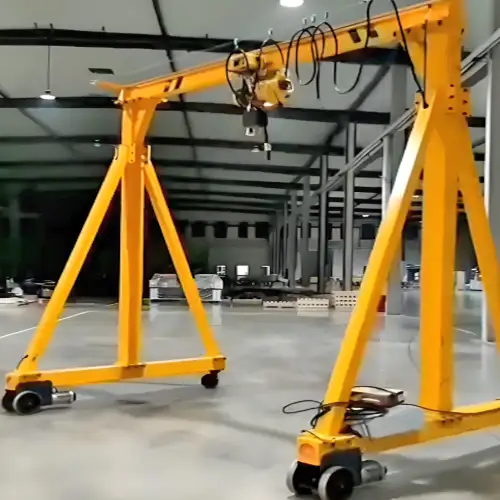

Mobile Gantry Crane

The Importance of Maneuverability in Mobile Gantry Cranes

Maneuverability is crucial for mobile gantry cranes, especially when working in tight spaces. Cramped areas, such as narrow aisles or crowded job sites, make it harder for cranes to move freely. If the crane can’t navigate around obstacles easily, work slows down, and safety risks increase. A crane with good maneuverability can move smoothly, saving time and avoiding accidents.

• Tight spaces require easy and precise movement.
• Poor maneuverability causes delays and safety concerns.
• Smooth movement leads to faster, safer work.

Focus of the Article: Steering Systems for Tight Spaces and Confined Work Environments

This article looks at the best steering systems for mobile gantry cranes in small or crowded spaces. Different steering systems help cranes move in different ways. Some systems are great for making tight turns, while others might be more difficult to control in small areas. We’ll go over which steering systems work best and help you choose the right one for your needs.

• We’ll explore various steering systems for tight spaces.
• The goal is to find systems that make movement easier and smoother.
• The right system helps the crane move around obstacles with ease.

Choosing the right steering system means the crane will work efficiently, even in tough spaces.

Why It Matters: Impact on Productivity, Safety, and Cost-Effectiveness

The right steering system can affect productivity, safety, and cost. If a crane can’t move well, it causes delays, accidents, and higher repair costs. A good steering system helps the crane move faster, reducing risks and making work more efficient. This leads to safer operations and lower long-term maintenance costs.

• A good steering system speeds up work and improves productivity.
• It reduces the risk of accidents and damage, improving safety.
• Efficient systems save money on repairs and maintenance over time.

In tight spaces, the right steering system helps the crane work better and saves time and money.

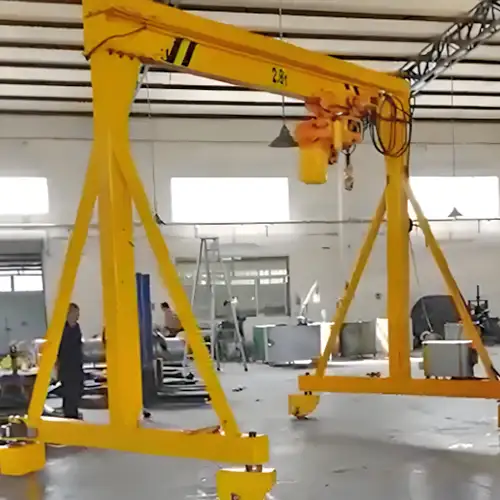

Mobile Gantry Cranes

What Mobile Gantry Cranes Are and Their Common Applications

Mobile gantry cranes are portable cranes that can be moved around a job site. They are often used for lifting and transporting heavy loads over short distances. Unlike fixed cranes, mobile gantry cranes can be relocated easily to different areas as needed. They are especially useful in places where space is limited or when a crane needs to be moved between different parts of a workshop, warehouse, or construction site.

• Portable and easy to move.
• Used for lifting heavy loads over short distances.
• Common in warehouses, factories, and construction sites where space is limited.

Their flexibility makes them ideal for tight and changing work environments.

Challenges in Tight Spaces: Why Navigating Tight Corners Is a Critical Challenge in Many Workplaces

In crowded or narrow work areas, maneuvering a crane can be difficult. Tight corners, narrow aisles, and cluttered environments make it hard for the crane to move freely. This can lead to delays in work, increased risk of accidents, and damage to both the crane and surrounding equipment. Efficiently navigating these tight spaces is essential to maintaining safety and productivity.

• Limited space creates obstacles for smooth movement.
• Tight corners and narrow aisles can slow down operations.
• Increased risk of accidents when the crane struggles to move.

This is why a reliable steering system is necessary to help the crane move with ease in small, busy spaces.

Importance of Steering Systems: Role of the Steering System in Enhancing Mobility and Control in Confined Areas

The steering system is key to how well a mobile gantry crane performs in tight spaces. A good system allows the crane to turn quickly, navigate around obstacles, and change direction with ease. The right steering system gives the operator more control, making it easier to avoid collisions and move the crane exactly where it’s needed. This improves overall efficiency, reduces the risk of accidents, and helps the crane perform optimally, even in confined areas.

• Steering system controls the crane’s movement in tight spaces.
• Better control leads to more precise and safer operation.
• Helps avoid collisions and damage while improving efficiency.

A well-designed steering system makes all the difference when working in small or crowded areas.

Key Features of an Effective Steering System

Maneuverability: The Ability to Easily Navigate Tight Corners and Narrow Aisles

Maneuverability is the core feature of any good steering system. In tight spaces, a crane needs to move easily and efficiently around obstacles. The ability to make sharp turns and navigate narrow aisles without difficulty is crucial. A highly maneuverable system allows the crane to adjust its position quickly, even in cramped environments. This reduces delays and improves workflow, making it easier for workers to complete tasks on time.

• Quick turns allow the crane to handle tight corners.
• Smooth movement through narrow aisles and busy areas.
• Reduces downtime by improving overall mobility.

Good maneuverability ensures the crane can get in and out of tight spots with minimal effort.

Precision Control: Importance of Precise Movement in Reducing Accidents and Improving Work Efficiency

Precision control is another important feature of an effective steering system. The ability to move the crane with accuracy is essential, especially in environments with many obstacles. With precise control, the operator can position the crane exactly where it’s needed, reducing the risk of accidents or damage to surrounding equipment. This also helps avoid unnecessary back-and-forth movements, improving efficiency and speed in completing tasks.

• Accurate movements reduce the chances of accidents.
• Less risk of damage to nearby equipment or structures.
• More efficient work due to reduced repositioning.

Having precise control makes the crane safer to operate and ensures smoother, faster operations.

Load Stability: How the Steering System Contributes to the Crane’s Load Stability When Navigating Tight Spaces

When a mobile gantry crane is moving through tight spaces, maintaining load stability is crucial. A good steering system helps keep the load balanced and steady, even during sharp turns or when navigating obstacles. If the steering system doesn’t provide proper control, the load could shift or swing, causing safety hazards and delays. A stable load means less risk of accidents and damage, and ensures the crane operates safely in confined areas.

• Stability is key to keeping the load secure during movement.
• Reduces risk of load shifting or swinging, which can be dangerous.
• Ensures safe operation, especially in narrow or cluttered spaces.

In tight spaces, maintaining load stability is essential to both safety and efficiency. A reliable steering system helps ensure the load stays in place while the crane maneuvers around obstacles.

Types of Steering Systems for Mobile Gantry Cranes

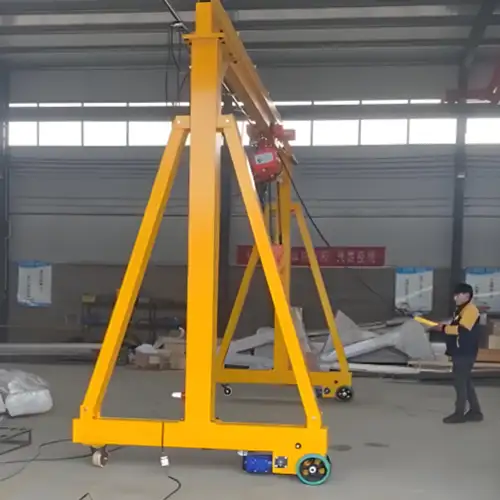

Three Steering Methods for Portable Gantry Cranes of Yuantai Crane

Single-leg Center Rotation: In this method, one electric wheel remains stationary while the other rotates around the span radius. The crane must make a large circle to turn.

Centerline Span Rotation: This system rotates around the centerline of the span, with two omni-wheels functioning as passive wheels and two driven wheels acting as directional wheels. A control panel is required to achieve 360-degree rotation. The installation is on one side of the gantry crane. The turning radius is smaller than the first method, as it rotates with half the span radius.

90-degree Wheel Rotation: This method offers the greatest flexibility in turning. The omni-wheels can rotate 360 degrees, allowing for smooth and free movement. All four wheels are omni-wheels, as shown in the previous video. The installation requires diagonal mounting, enabling lateral movement.

Conventional (Fixed) Steering Systems

Pros:

• Simple Design: Fixed steering systems are easy to use and understand, with no complicated mechanisms.
• Reliability: These systems are generally low-maintenance and very dependable over time.

Cons:

• Limited Flexibility in Tight Spaces: Fixed steering systems can only move the crane in one direction, making it difficult to navigate around obstacles or make tight turns in confined spaces. This reduces maneuverability in small or crowded areas.

Swivel Steering Systems

Pros:

• Greater Maneuverability: Swivel steering systems allow the crane to rotate its wheels, making it easier to turn and navigate around obstacles.
• Easier to Navigate Around Obstacles: This type of system provides more freedom of movement, allowing the crane to handle tight corners and narrow aisles more efficiently.

Cons:

• Requires More Maintenance: Swivel systems have moving parts that need regular inspection and care, which can increase maintenance requirements over time.

Four-Wheel Steering

Pros:

• Enhanced Turning Ability: Four-wheel steering allows the crane to turn in both directions, offering excellent cornering ability and control, especially in confined spaces.
• Improved Cornering: The system improves the crane’s ability to maneuver in tight corners, making it ideal for environments with limited space.

Cons:

• More Complex and Costly: Four-wheel steering systems are more complex and can be more expensive due to the added components and technology required for operation.

Independent Wheel Steering

Pros:

• Precise Control: Each wheel can be controlled separately, allowing for more precise movements in tight spaces.
• Adaptability: This system offers better flexibility and responsiveness when the crane needs to adjust in crowded or challenging environments.

Cons:

• Higher Initial Investment: Independent wheel steering systems tend to be more expensive upfront due to their complexity.
• More Maintenance: With more moving parts and advanced mechanisms, this system requires more attention and regular maintenance.

Crab Steering

Pros:

• Excellent for Narrow Spaces: Crab steering allows all wheels to move in the same direction, making it perfect for maneuvering in tight spaces, such as narrow aisles or congested work areas.
• Improved Maneuvering: This system provides excellent mobility in confined environments, allowing the crane to "crab" sideways.

Cons:

• Slower Movement: Crab steering can make the crane slower, especially when compared to other systems that allow quicker turns.
• More Expensive: The complexity of crab steering makes it more costly, both in terms of initial price and maintenance.

Each steering system has its strengths and weaknesses. The choice depends on the specific needs of the workspace, the level of maneuverability required, and budget constraints

Choosing the Right Steering System for Specific Needs

Space Constraints: Assessing the Available Space and Determining Which Steering System Will Work Best

Before selecting a steering system, it’s essential to evaluate the available space where the crane will operate. Narrow aisles, tight corners, or congested work areas will require a steering system that offers excellent maneuverability. If the crane needs to move through tight spots frequently, systems like swivel steering or four-wheel steering are ideal because they allow better control and cornering. On the other hand, if space is a bit less restricted, a conventional fixed system might be sufficient and more cost-effective.

• Tight spaces call for systems that allow quick, precise turns.
• Wide areas may allow for more flexibility in choosing a system.
• Consider how often the crane will need to navigate around obstacles or corners.

Understanding your space needs will help determine which system is the most effective for navigating within it.

Load Capacity: Considering How Different Systems Affect the Crane’s Load-Carrying Ability in Tight Spaces

When choosing a steering system, it’s also important to think about how it affects the crane’s load capacity, especially in tight spaces. Some systems, like independent wheel steering or four-wheel steering, offer precise control, which is essential when moving heavy loads through narrow areas. A stable and reliable steering system ensures that the crane can carry its load safely without shifting or swaying, reducing the risk of accidents.

• Heavy loads need a system that maintains load stability while maneuvering.
• Precise systems like four-wheel or independent wheel steering are good for controlling large loads in tight spaces.
• Poor steering can lead to instability and safety risks when moving loads.

Ensuring that the crane can handle its load while maintaining maneuverability is key to both safety and productivity.

Work Environment: Indoor vs. Outdoor Use, Floor Conditions, and Environmental Factors

The environment in which the crane will be used plays a big role in choosing the right steering system. Indoor environments with smooth, even floors may benefit from systems like swivel or four-wheel steering that offer easy movement. However, outdoor environments with uneven surfaces or rough terrain may require a more durable and robust steering system to handle the added challenges. Environmental factors like temperature, moisture, and dust can also impact the performance and longevity of the steering system, so it’s important to choose one that can withstand these conditions.

• Indoor use often favors systems with smoother movements.
• Outdoor use may require more durable systems that can handle rougher terrain.
• Floor conditions affect the system’s performance, especially on uneven or slippery surfaces.

Choosing a system suited to your work environment helps ensure smoother operation and reduces wear and tear.

Budget Considerations: Balancing Between Initial Cost and Long-Term Maintenance

While it’s tempting to go for the cheapest option upfront, it’s important to consider long-term maintenance costs as well. Some steering systems, like conventional fixed or swivel systems, are more affordable initially but may require more maintenance over time, especially in harsh or busy environments. More complex systems, such as independent wheel or crab steering, might have a higher initial cost but could reduce maintenance needs and increase the crane's lifespan. Balancing these costs ensures you choose a system that fits both your budget and operational needs.

• Initial cost should be weighed against maintenance needs over time.
• Complex systems may cost more upfront but require less maintenance in the long run.
• Lower-cost systems might need more repairs or replacements, adding to long-term costs.

Considering both the upfront cost and future maintenance helps ensure you make a wise investment in a steering system that meets your needs while fitting your budget.

The Benefits of Optimizing Steering Systems

Improved Productivity: Faster Navigation of Tight Spaces Leads to Time Savings and Improved Workflow

An optimized steering system significantly boosts productivity by allowing mobile gantry cranes to navigate tight spaces quickly and efficiently. The ability to make tight turns and move with precision means the crane can reach its destination faster, reducing downtime. With smoother navigation, workers can complete tasks more quickly, leading to a more efficient workflow and faster project completion.

• Quicker movement means less time spent maneuvering the crane.
• Efficient navigation helps meet tight deadlines.
• Improved workflow reduces unnecessary pauses and delays.

By optimizing the steering system, cranes can work smarter, making operations more productive overall.

Increased Safety: A Better Steering System Reduces the Risk of Accidents and Injuries

Safety is a top priority in any work environment. A reliable steering system improves control, which reduces the likelihood of accidents. Precise movement means operators can avoid obstacles, reduce the risk of the crane tipping over, and ensure that the load remains stable during transport. This minimizes accidents, keeps workers safe, and prevents costly damage to equipment or surroundings.

• More control reduces the risk of collisions.
• Stable loads prevent accidents and injuries.
• Better maneuverability helps avoid obstacles, reducing the chance of tip-overs.

With a well-designed steering system, both crane operators and nearby workers are safer, contributing to a safer work environment.

Cost Efficiency: Efficient Movement Means Fewer Delays, Reduced Damage to the Crane, and Fewer Repairs

An optimized steering system not only saves time but also helps reduce long-term costs. Smooth and efficient movement leads to fewer delays, which in turn means the crane spends more time working and less time idling. Furthermore, a stable crane and load reduce the chance of damage to the crane or the environment. With fewer accidents and less wear and tear, the need for repairs and maintenance is reduced, ultimately saving money in the long run.

• Fewer delays means increased overall efficiency and less downtime.
• Reduced wear and tear on the crane leads to fewer repairs.
• Stable operation lowers the chances of costly damage to the crane and surrounding equipment.

By optimizing the steering system, you’re not only improving operations but also making the crane more cost-efficient, ensuring long-term savings.

Case Studies & Examples

Example 1: Application of Four-Wheel Steering in a Narrow Warehouse

In a narrow warehouse with aisles less than 10 feet wide, the implementation of a four-wheel steering system helped improve the crane’s maneuverability. The ability to turn both directions allowed the crane to navigate tight corners and maneuver around storage racks without difficulty. This system provided excellent cornering, making it easier for workers to transport goods from one end of the warehouse to the other.

• Challenge: Tight aisles and limited space for movement.
• Solution: Four-wheel steering allowed for more precise turns and smoother navigation.
• Outcome: Faster loading and unloading, reduced waiting times, and an overall boost in warehouse productivity.

The four-wheel steering system proved essential in improving workflow and reducing the amount of time spent maneuvering the crane in a confined space.

Example 2: Crab Steering Used in a Workshop with a Lot of Obstacles

In a workshop filled with machines, equipment, and other obstacles, a mobile gantry crane with a crab steering system was introduced to navigate the confined space. The crab steering system, where all wheels move in the same direction, allowed the crane to move sideways, making it easier to shift in narrow pathways between machines. This system allowed operators to position the crane precisely without having to back up or make multiple turns, saving both time and effort.

• Challenge: Narrow aisles and numerous obstacles that hindered movement.
• Solution: Crab steering enabled the crane to move sideways, eliminating the need for multiple turns.
• Outcome: Improved efficiency, smoother operations, and reduced risk of collisions with nearby machines and equipment.

By using the crab steering system, the workshop saw significant improvements in both safety and productivity, as the crane could easily navigate the cluttered environment without disrupting operations.


Conclusion

Summary: Recap the Key Points Discussed Regarding the Best Steering Systems for Maneuvering Mobile Gantry Cranes

In this article, we discussed various steering systems for mobile gantry cranes and their impact on maneuverability in tight spaces. Here’s a quick recap of the key points:

• Different Steering Systems: We covered conventional fixed systems, swivel steering, four-wheel steering, independent wheel steering, and crab steering.
• Maneuverability, Precision, and Load Stability: We emphasized the importance of these features for ensuring safe and efficient operation in confined areas.
• Real-World Applications: Case studies demonstrated how four-wheel and crab steering improved productivity and safety in warehouses and workshops.

Each system has its strengths and is suited for specific types of work environments and tasks.

Final Recommendation: Encouraging Crane Buyers to Carefully Assess Their Needs, Workspace Constraints, and Budget Before Selecting a Steering System

Choosing the right steering system requires careful consideration of several factors:

• Workspace Constraints: Assess the available space in your work environment. Narrow aisles, tight corners, or cluttered areas may require a more flexible steering system.
• Load Requirements: Consider the weight of the loads you’ll be handling and how the system affects load stability.
• Budget: Balance the initial cost of the system with ongoing maintenance expenses.

A thorough evaluation of these factors will help you select the best system for your needs, ensuring optimal performance and safety.

Before making a final decision, we strongly recommend consulting with crane manufacturers or industry experts. They can provide insights into the most suitable steering system for your specific operational needs and help you understand the long-term benefits of different systems. By working with an expert, you can ensure that your crane selection enhances productivity, safety, and cost-efficiency in your workspace.
