Explosion Proof Jib Crane & Jib Hoist 5 Ton for Sale Indonesia
Explosion proof jib crane & explosion proof jib hoist 5 ton for sale Indonesia for handling liquefied gas bottles used in a liquefied gas station.Click!
Lifting requirements
The 5 ton jib crane and hoists is used to handle liquefied gas bottles used in a liquefied gas stations. Therefore, it is required to be explosion proof to ensure safety. After thorough communication,we, Yuantai Crane, provides the customized 5 ton explosion proof jib cranes and hoists as the following design and specifications.

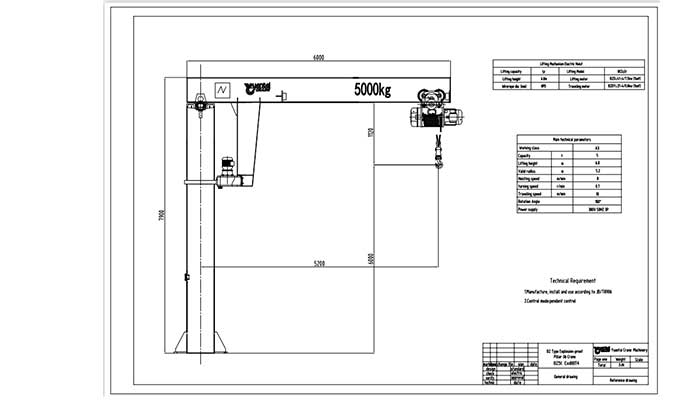

Main specification of 5 ton explosion proof jib crane for Indonesia project
- Jib crane type: Floor mounted jib crane with explosion proof design
- Capacity: 5 ton
- Lifting height: 6m
- Valid radius 5.2 m
- Hoisting speed :8 m /nin
- Turning speed: 0.7 r/ min
- Traveling speed : 10 m/ min
- Rotation Angle: 180°
- Power supply: 380V 50HZ 3P
Manufacturing of 5 ton jib crane with explosion proof design

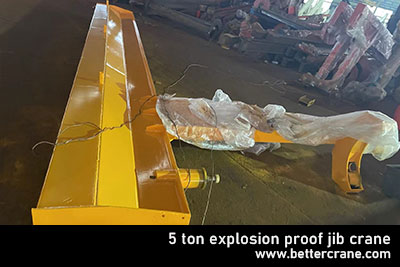

Rotating cantilever of 5 ton explosion proof jib crane for Indonesia
Columns of explosion proof floor mounted jib crane 5 ton for sale Indonesia

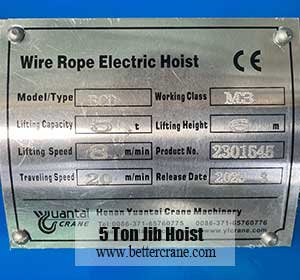

5 ton explosion jib hoist nameplate 6 m lifting height

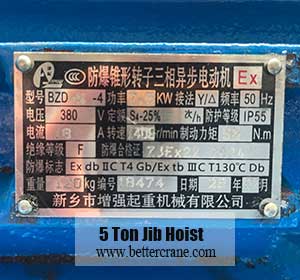

Explosion proof wire rope hoist 5 ton motor name plate

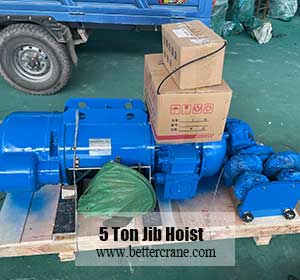

5 ton explosion proof hoist for floor mounted electric jib crane

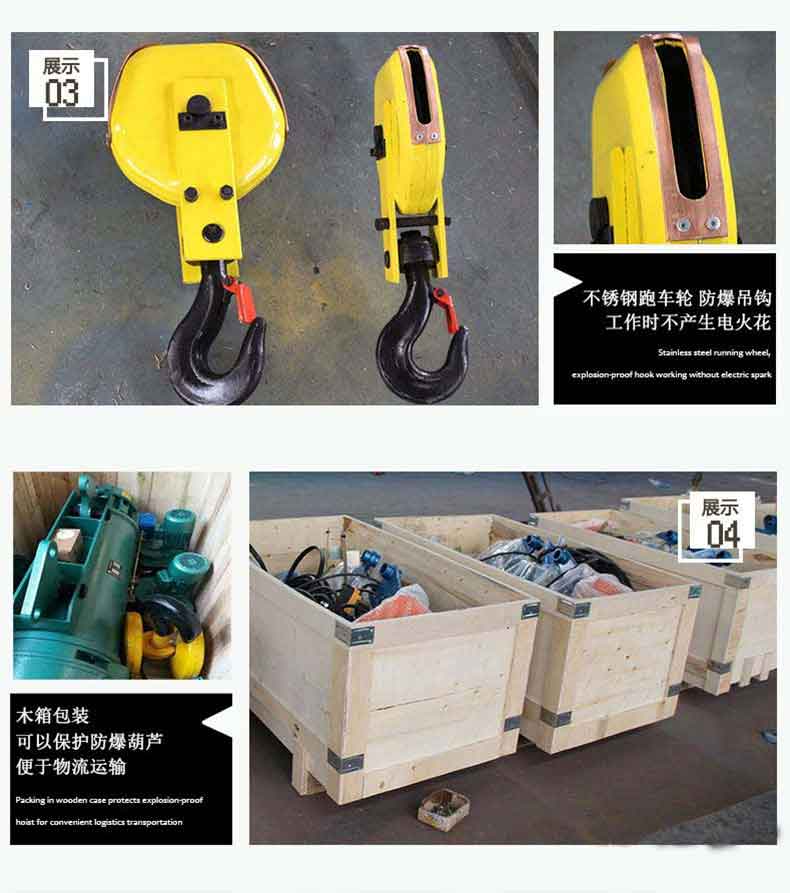

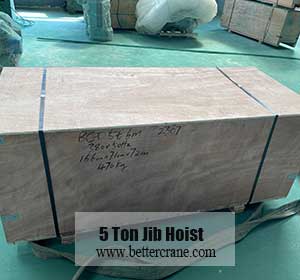

5 ton jib crane hoist packaged in wooden boxes. Exploison proof jib hoists
Yuantai explosion-proof jib hoist used is type of explosion proof wire rope hoist. The explosion-proof marks of jib hoists are dllBt4, dllCt4, suitable for areas containing ⅡA, ⅡB, ⅡC T1-T4 flammable gases or explosive gas mixtures formed by steam and air in Zone 1 and Zone 2. The parts of the complete electric hoists are mostly supported by copper-based non-sparking metal materials, which are generally suitable for flammable and explosive places such as oil exploration, chemical enterprises, and mine development.
The explosion-proof wire rope electric hoist has a lifting weight of 0.5 tons to 16 tons, and a lifting height of 6 meters to 30 meters. The electrical control adopts a flameproof design, which meets the equipment explosion-proof standard of GB3836. It can also be used with an explosion-proof electric travelling trolley on an explosion-proof single beam cranes, explosion-proof I-beams and other lifting equipment are used together to complete the work of moving up, down, left, and right.

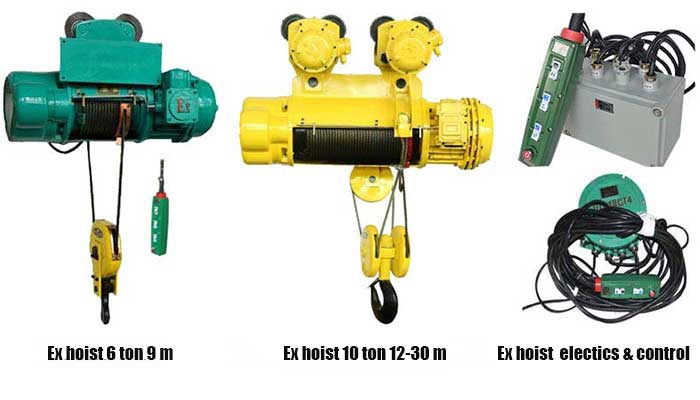

Explosion proof electric wire rope hoist
Advantages of exlosion proof hoist for jib cranes
- Explosion-proof wire rope electric hoist is assembled from multiple parts, its structural design is modular, and its versatility is strong, which is very convenient for maintenance and replacement.
- Compared with similar products, the number of switches and buttons is much reduced, which improves the safety of use and ease of operation.
- Explosion-proof wire rope electric hoists can be customized according to different customer needs and actual usage conditions, which is suitable for the customer's real lifting operation environment.
