Mounting on the foundation using anchor bolts
Do you need to use a jib crane for your new building and would like to put the crane to quick use?

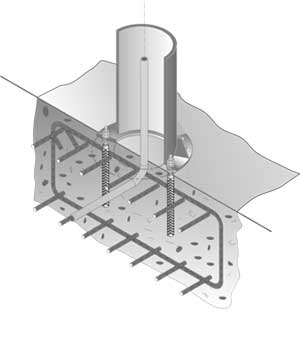

Then, for floor mounted slewing jib cranes, for example, use the traditional anchor rod mounting type, which is cast into the concrete foundations when the base plate is made.
The anchors and a steel template are included in the extent of delivery from Yuantai Crane. The template helps in the exact placement of the anchor as well as the alignment of the anchor cage.
Yuantai Crane will also provide you with all of the specs needed to build the foundation, including the reinforcement material.
Mounting on the foundation using Yuantai Crane ideal anchor screws
Are you designing a new structure and would like to use a jib crane later?
When the later crane location must originally stay freely accessible and traversable, the Yuantai Crane ideal anchor screw is the intelligent answer.

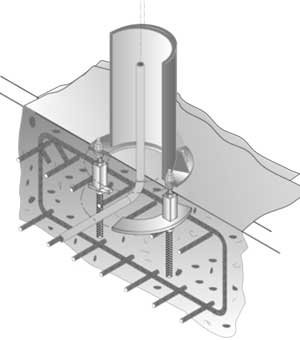

The anchor rods are split into two sections and joined together with joint tubes. The ground level joint tubes are sealed with caps to prevent pollutants from entering.
Later, the jib crane can be fitted by screwing threaded bolts into the joint tubes.
The anchors and a steel template are included in the extent of delivery from Yuantai Crane. The template aids in the exact positioning of the ideal anchor screws as well as the anchor cage alignment.
You will also receive from Yuantai Crane all necessary specs for building the foundation, including reinforcement material such as anchor bolts.
Mounting on a concrete floor/concrete ceiling using dowel plate
Do you already have a concrete floor or a concrete ceiling and want to put a jib crane on it?

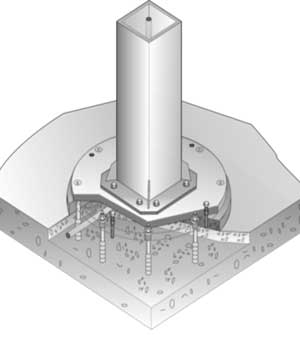

Then, employ the adaptable choice of mounting the crane with special dowels. This is a standard solution for all load capacities and jib lengths for jib cranes with capacities up to 500 kg. This mounting system is also commonly used for jib cranes with load capacities ranging from 500 to 3200 kg, based on the length of the jib.Here, fischer dowels made specifically for dynamic loads are used. To reduce the possibility of collisions, the round dowel plate is made with no disruptive parts protruding from the top.
The grouting ring and the dowel plate, in addition to the injection bolts and the dowel plate,
The grouting ring and grouting mortar are included in the purview of delivery, in addition to the injection anchors and dowel plate.
Mounting on the concrete floor using intermediate plate
Do you have a finished concrete floor made from standard concrete or steel fibre concrete and would like to install a crane on top of it?

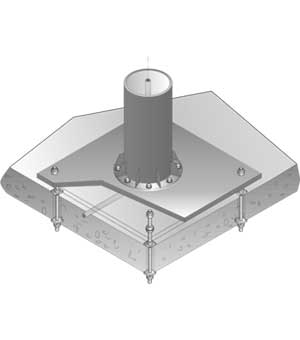

Then mounting using a square intermediate plate is a very suitable option. Here the base plate is drilled through using a core drill and mortised into the lower area to create good bracing after the deployed anchors are grouted in.
Yuantai Crane supplies the intermediate plate. We are also happy to expand the delivery to include the required floor anchor, mortar and formwork material.
Do you have a finished concrete floor made of standard concrete or steel fiber concrete on which you want to place a crane?
Then mounting with a square middle plate is an excellent choice. After the deployed anchors are grouted in, the base plate is drilled through with a core drill and mortised into the lower area to create excellent bracing.
The middle plate is available. We are also delighted to include the necessary floor anchor, mortar, and formwork material in the delivery.
Mounting on a concrete intermediate ceiling using an intermediate plate
Using an intermediate plate to mount on a concrete intermediate ceiling
Is there a concrete intermediate ceiling in your structure that a jib crane can be installed on?

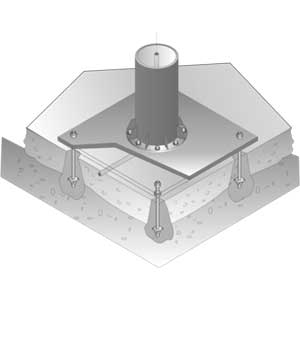

This is made feasible by the Yuantai Crane intermediate plate. After drilling through the concrete roof, the intermediate plate is secured with anchor bolts.
The intermediate plate is part of the Yuantai Crane scope of service. We will happily supply the necessary anchor bolts, mortar, and formwork material.
Types of Wall mounted jib cranes for sale
Which crane mounting is suitable for my application?
Mounting on steel supports using screws

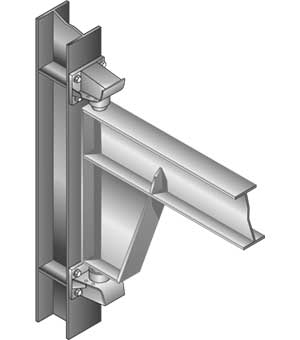

Do you have a suitably sized steel support to which a wall jib crane can be attached?
Then, if the connecting surface is at least 300 mm wide, immediately attach all Yuantai Crane wall jib cranes with screws. The wall brackets or wall mounts are included in the standard scope of delivery; when Yuantai Crane conducts the assembly, we also supply the necessary screw connection.
Using embracing brackets, mount on steel or reinforced masonry supports.
Is your structure equipped with reinforced concrete supports that are stable enough for crane operation?

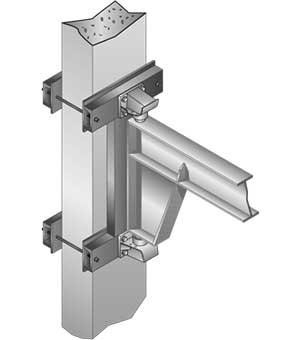

Embracing brackets can be used to attach square and rectangular reinforced concrete supports. They must be able to be embraced from all angles and have a minimum width of 300 mm. The necessary clamping force is applied via the threaded rods to maintain secure attachment to the supports at the desired height.
The proper embracing brackets for your support dimensions, as well as the necessary mounting material, are included in the shipping scope.
Mounting on reinforced concrete walls using weld-on plates
Weld-on plates are used for mounting on reinforced concrete walls.
Do you have a reinforced concrete wall or reinforced concrete supports with steel plates poured into them for bracing?

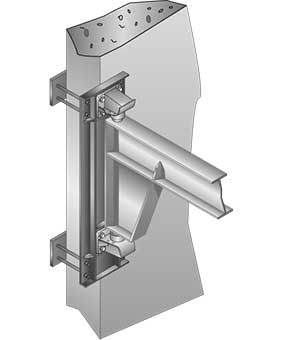

You can place wall jib cranes on your prepared mounting plates by using Yuantai Crane weld-on plates. The plates must be precisely at the same level and have a plumb-vertical connection surface for this to work. Weld-on plates are welded to the base, and wall brackets or wall mounts are screwed to them.
Yuantai Crane provides the weld-on plates as well as the necessary mounting fasteners.
Weld-on plates are used for mounting on steel frames.
If the steel supports or weight-bearing steel constructions are not to be drilled through or there are no clamping options, another option is to weld the weld-on plates straight onto them.
Using wall brackets and anchor fasteners, attach to reinforced concrete walls.
Is the reinforced concrete in your structure strong enough?

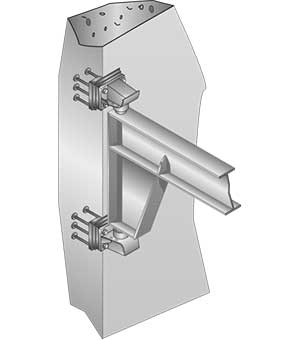

The wall bracket is common equipment for wall jib cranes with wall mounting designs. In addition to the wall supports, the wall mounted jib crane requires wall brackets. The concrete wall is drilled through, and the wall bracket is secured to it with tension bolts and counter plates.
On request, we can also provide you with the proper threaded rods for the required wall thickness, as well as counter plates and mounting material. If we do the assembly, it is included in the transport.
