Guide to Hazardous Location Standards: NFPA 70 NEC, ATEX, IECEx

Overview of Hazardous Location Equipment

Hazardous location equipment is designed for use in environments where there is a risk of fire or explosion due to the presence of flammable gases, vapors, dusts, or fibers. These conditions require special considerations to ensure that equipment operates safely and effectively.

• Definition and Scope: Hazardous location equipment refers to devices and machinery that are built to prevent ignition of potentially explosive substances in their surroundings. This includes various types of equipment like cranes, hoists, pumps, and electrical components used in industries where hazardous materials are handled.
• Common Equipment Types: Examples include overhead cranes used in chemical plants, hoists in oil refineries, and pumps in pharmaceutical manufacturing. Each type of equipment must meet specific standards to ensure it can operate safely in hazardous conditions.
• Typical Applications: Hazardous location equipment is essential in industries such as chemical processing, where explosive chemicals are handled; oil and gas, where volatile substances are present; and pharmaceuticals, where dust and flammable materials may be present.

Importance of Regulatory Compliance

Regulatory compliance is crucial in hazardous locations to prevent accidents and ensure safety. Compliance with established standards helps protect workers, equipment, and the environment.

• Regulatory Framework: Major standards and regulations govern hazardous location equipment, including NFPA 70 NEC, ATEX, and IECEx. These standards outline how equipment should be designed, tested, and maintained to minimize the risk of explosions and fires.
• Safety Considerations: Non-compliance with these regulations can lead to severe consequences, including explosions, fires, and equipment failures. Ensuring that equipment meets the required standards is essential for maintaining a safe working environment and avoiding costly accidents.
• Impact on Operations: Adhering to regulatory standards also impacts operational efficiency. Compliant equipment often performs better and lasts longer, reducing downtime and maintenance costs. Proper compliance helps ensure that operations run smoothly and safely.

Purpose of the Guide

This guide aims to provide a comprehensive understanding of hazardous location equipment and the importance of regulatory compliance.

• Objective: The guide is designed to help readers understand the key standards and regulations related to hazardous location equipment and their impact on safety and operations. It will cover various standards, equipment types, and best practices for compliance.
• Target Audience: This guide is intended for safety officers, equipment manufacturers, industry professionals, and anyone involved in managing or using hazardous location equipment. It will provide valuable insights and practical information for ensuring compliance and safety.
• How to Use the Guide: The guide is structured to offer a clear overview of hazardous location standards, detailed information on different types of equipment, and practical advice for compliance. Each section is designed to be accessible and informative, helping readers navigate the complexities of hazardous location regulations and their application in real-world scenarios.

NFPA 70 NEC (National Electrical Code)

The NFPA 70 NEC (National Electrical Code) is a critical standard in the U.S. for electrical installations in hazardous locations. Developed by the National Fire Protection Association (NFPA), the NEC provides guidelines to ensure electrical equipment is safe for use in environments where explosive conditions may be present. This code is widely adopted in the U.S. and sets the foundation for the safe design, installation, and maintenance of electrical systems.

The purpose of the NFPA 70 NEC is to minimize the risk of electrical fires and explosions by providing a systematic approach to classifying and safeguarding electrical equipment. It establishes a framework for identifying hazardous areas and specifying the types of equipment that are suitable for use in these conditions. The scope of the NEC covers electrical wiring methods, equipment, and installations in various hazardous environments, ensuring that electrical systems can operate safely and effectively.

Classification System

Classes

• Class I: Flammable Gases/Vapors
  Class I areas are those where flammable gases or vapors are present in sufficient quantities to pose a risk of explosion. Examples include chemical processing plants and oil refineries.
• Class II: Combustible Dusts
  Class II areas involve environments where combustible dusts are present. These dusts can ignite and cause explosions if they come into contact with an ignition source. Common industries include grain handling and certain manufacturing processes.
• Class III: Ignitable Fibers/Flyings
  Class III areas are characterized by the presence of ignitable fibers or flyings. These materials, such as those found in textile mills, can create explosive conditions if they become airborne and contact an ignition source.

Divisions

• Division 1
  This division applies to areas where hazardous conditions are present under normal operating conditions. In these locations, flammable or combustible materials are either always present or frequently occur, making them high-risk areas.
• Division 2
  This division applies to areas where hazardous conditions are not typically present during normal operations but may occur under abnormal conditions. These areas are less consistently exposed to hazardous materials, reducing but not eliminating the risk.

Groups

• Specific Groups for Different Materials
  The NEC defines specific groups for different types of hazardous materials to ensure that equipment is suited for the precise nature of the risk. For example:
  • Group A: Acetylene
  • Group B: Hydrogen
  • Group C: Ethylene
  • Group D: Propane

These groups help to specify the type of equipment and protection needed based on the properties of the hazardous substances present.

OSHA Regulations

Requirements for Equipment Markings

The Occupational Safety and Health Administration (OSHA) adopts the NFPA 70 NEC standards for hazardous locations, including the requirements for equipment markings. Equipment used in these environments must be clearly marked with its class, division, and group, as well as its operating temperature. This ensures that users can verify that the equipment is suitable for the specific hazardous conditions of their work environment.

Non-Heat-Producing Equipment Exceptions

OSHA provides exceptions for non-heat-producing equipment, such as junction boxes, conduit, and fittings, which do not need to be marked with an operating temperature or temperature range if their maximum temperature does not exceed 100 degrees Celsius (212 degrees Fahrenheit). This is to avoid unnecessary complexity and focus safety measures on equipment that poses a higher risk of ignition.

Application in the U.S.

How NFPA 70 NEC Affects Equipment Choices

The NFPA 70 NEC significantly impacts the selection of equipment used in hazardous locations. Compliance with NEC standards ensures that equipment is suitable for the specific hazards present in the area, reducing the risk of accidents and improving safety. Manufacturers and facility managers must carefully choose equipment that meets the NEC classifications, divisions, and groups to align with the specific hazardous conditions of their operations.

By adhering to the NFPA 70 NEC, companies can ensure their electrical systems are not only compliant with safety regulations but also optimized for performance in hazardous environments. This compliance helps to protect both personnel and property, contributing to a safer and more efficient workplace.

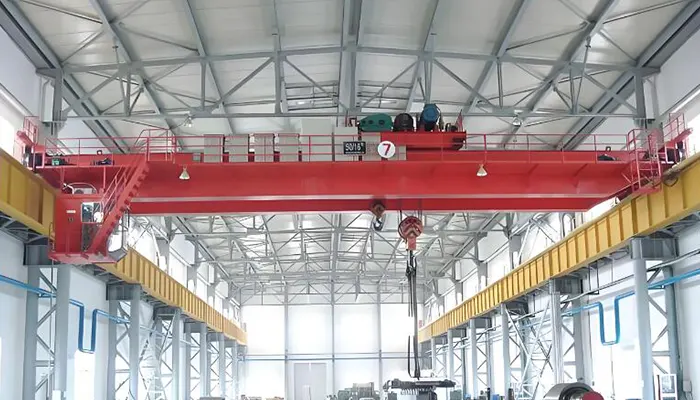

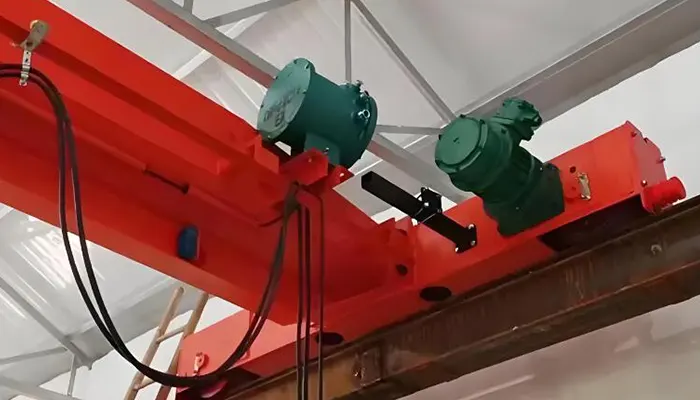

Explosion proof double girder overhead cranes

ATEX (ATmosphères EXplosibles)

ATEX, which stands for "ATmosphères EXplosibles," is the European Union directive designed to regulate equipment and protective systems used in potentially explosive atmospheres. It ensures that equipment used in environments with explosive risks is safe, reliable, and compliant with EU standards. The ATEX directive covers various types of equipment and protective systems to prevent explosions in industrial settings.

The primary purpose of ATEX is to provide a unified framework for the safe use of equipment in potentially explosive environments. It aims to reduce the risk of explosions by setting requirements for the design, manufacture, and testing of equipment. The scope of ATEX includes both the equipment used and the protective systems in areas where explosive atmospheres may occur, ensuring they meet stringent safety standards.

Classification System

Zones

• Zone 0
  Zone 0 represents areas where an explosive atmosphere is present continuously, or for long periods, during normal operation. This zone requires equipment with the highest level of protection as the risk of an explosion is constant.
• Zone 1
  Zone 1 covers areas where an explosive atmosphere is likely to occur occasionally during normal operation. Equipment used in this zone must have a high level of protection, but the risk of explosion is less frequent compared to Zone 0.
• Zone 2
  Zone 2 is defined as an area where an explosive atmosphere is not likely to occur under normal operating conditions but may occur for a short period during abnormal conditions. Equipment in this zone must be protected to a lower degree compared to Zones 0 and 1, reflecting the reduced risk of explosion.

Certification Process

Role of Notified Bodies

In the ATEX certification process, Notified Bodies play a crucial role. These are independent organizations designated by EU member states to assess and verify that equipment and protective systems meet the ATEX directive's requirements. They conduct rigorous testing and evaluations to ensure that products are safe for use in explosive atmospheres. Once a product passes the assessment, it is granted ATEX certification, confirming its compliance with EU standards.

Markings and Symbols

Certified equipment under ATEX is marked with specific symbols and information to indicate its compliance and suitability for hazardous environments. This includes:

• ATEX Symbol: Indicates that the equipment meets the ATEX requirements.
• Ex: A general symbol for explosive atmospheres.
• Equipment Category and Protection Level: Details about the level of protection and suitability for different zones.

These markings ensure that equipment can be easily identified and verified for safety before use in potentially explosive environments.

Application in the EU

How ATEX Regulations Affect Equipment Choices

ATEX regulations significantly influence equipment selection in the EU. Manufacturers and users must ensure that all equipment used in explosive atmospheres complies with ATEX standards. This involves selecting equipment that meets the required safety levels for specific zones, as defined by the ATEX classification system. Compliance with ATEX ensures that equipment is designed and tested to prevent ignition sources and reduce the risk of explosions, ultimately protecting personnel and facilities.

The ATEX directive also impacts how equipment is manufactured, tested, and marked. Companies must work closely with Notified Bodies to obtain the necessary certifications and adhere to EU regulations. This careful adherence to ATEX standards helps to maintain high safety standards across various industries where explosive atmospheres are a concern.

IECEx (International Electrotechnical Commission System for Certification)

IECEx is an international certification system developed by the International Electrotechnical Commission (IEC) to ensure the safety and reliability of equipment used in explosive atmospheres. It provides a standardized approach to certification that facilitates international trade by offering a globally recognized system for the safety of electrical and non-electrical equipment in hazardous environments.

The primary purpose of IECEx is to provide a consistent and reliable framework for the certification of equipment and systems used in potentially explosive atmospheres across different countries. Its scope includes electrical and non-electrical equipment, protective systems, and service providers, ensuring that they meet international safety standards to prevent explosions and protect personnel and facilities.

Classification System

Zones

The IECEx classification system for hazardous areas is similar to the ATEX zones:

• Zone 0
  Areas where an explosive atmosphere is present continuously, or for long periods, during normal operations. Equipment in this zone requires the highest level of protection.
• Zone 1
  Areas where an explosive atmosphere is likely to occur occasionally during normal operations. Equipment must have a high level of protection but can be less robust than in Zone 0.
• Zone 2
  Areas where an explosive atmosphere is not likely to occur under normal conditions but may be present for short periods. Equipment in this zone requires a moderate level of protection.

Protection Levels

IECEx categorizes protection levels based on the type of protection provided:

• Category 'a': Apparatus designed to prevent ignition through the use of intrinsic safety measures.
• Category 'b': Equipment that uses flameproof enclosures to prevent ignition from within.
• Category 'c': Equipment designed to prevent ignition through increased safety measures.

These protection levels determine the safety features required for different types of equipment based on the hazardous conditions they are expected to encounter.

Certification Process

Involvement of IECEx Certification Bodies (ExCBs)

IECEx Certification Bodies (ExCBs) are authorized organizations that assess and certify equipment and systems according to IECEx standards. They conduct rigorous testing and evaluations to ensure that equipment meets the required safety criteria for use in explosive atmospheres. ExCBs are responsible for issuing IECEx certificates and ensuring compliance with international safety standards.

Test Reports (ExTR) and Quality Assessment Reports (QAR)

• Test Reports (ExTR): Detailed reports generated by ExCBs documenting the results of tests conducted on equipment. These reports validate that the equipment meets IECEx safety standards.
• Quality Assessment Reports (QAR): Reports that evaluate the manufacturer's quality management system to ensure ongoing compliance with IECEx standards. QARs are essential for maintaining certification and ensuring consistent product safety.

Global Application

Standardized International Certification

IECEx provides a standardized certification system recognized internationally, simplifying the process of obtaining compliance across different countries. This global recognition facilitates trade and ensures that equipment certified under IECEx meets consistent safety standards worldwide.

Impact on Global Trade and Compliance

The IECEx certification system enhances global trade by reducing barriers to market entry for manufacturers and suppliers. It ensures that equipment is tested and certified to the same high safety standards regardless of the country of origin. This uniformity helps to streamline compliance processes, promote safety, and protect personnel in hazardous environments around the world.

Comparative Analysis

NFPA 70 NEC vs. ATEX

Classification and Zone Systems

NFPA 70 NEC:

Classification: Uses a system based on Classes (I, II, III), Divisions (1, 2), and Groups (A, B, C, D, E, F, G) to designate hazardous locations.Class I covers flammable gases and vapors, Class II addresses combustible dusts, and Class III pertains to ignitable fibers and flyings. Divisions indicate the frequency and likelihood of hazardous conditions, with Division 1 representing frequent or continuous presence and Division 2 representing occasional or infrequent presence.
Groups: Specific to the type of hazardous material, such as Acetylene (Group A), Hydrogen (Group B), and Ethylene (Group C).

ATEX:

Zone Classification: Uses a zone system to categorize the risk of explosive atmospheres. Zone 0 represents areas with a continuous presence of explosive atmospheres, Zone 1 indicates occasional presence, and Zone 2 covers areas where explosive atmospheres are unlikely but may occur infrequently.
Zones for Gas and Dust: Separate zone classifications are used for gases and dusts, addressing different types of explosive hazards.

Certification and Regulatory Bodies

NFPA 70 NEC:Regulated by the National Fire Protection Association (NFPA) and enforced by OSHA in the U.S.
Certification is typically done by Nationally Recognized Testing Laboratories (NRTLs) that ensure equipment meets NFPA standards.

ATEX:Regulated by the European Union's ATEX Directive.
Certification is performed by Notified Bodies (NBs) that assess and approve equipment for use in explosive atmospheres according to ATEX standards.

NFPA 70 NEC vs. IECEx

Classification and Zone Systems

NFPA 70 NEC:Uses Classes, Divisions, and Groups to classify hazardous locations, as detailed above. This system is primarily used in the U.S.

IECEx:Zone Classification: Similar to ATEX, IECEx uses zones (Zone 0, Zone 1, Zone 2) to classify hazardous areas. The system is internationally recognized and provides consistency in classification.
Protection Levels: IECEx defines protection levels through categories (e.g., 'a', 'b', 'c') for different types of protection.

Certification and International Applicability

NFPA 70 NEC:Certification is specific to the U.S. and focuses on equipment meeting domestic safety standards.
International applicability may be limited compared to global systems like IECEx and ATEX.

IECEx:Provides international certification, making it widely applicable across global markets.
Facilitates international trade by offering a unified standard recognized worldwide.

ATEX vs. IECEx

Zone Classifications

ATEX:Zone System: Divides hazardous areas into zones (Zone 0, Zone 1, Zone 2 for gases and vapors; Zone 20, Zone 21, Zone 22 for dusts).
Specific Requirements: Distinguishes between zones based on the likelihood and duration of explosive atmospheres.

IECEx:Zone System: Also uses a zone classification system similar to ATEX, covering gas and dust environments.
Global Consistency: Provides a consistent global approach to zone classification, ensuring standardization across different countries.

Certification Processes and Global Acceptance

ATEX:Certification involves conformity assessment by Notified Bodies in the EU. The process ensures that equipment meets ATEX directives and is marked with the ATEX symbol.

IECEx:Certification involves IECEx Certification Bodies (ExCBs) and includes comprehensive testing and quality assessment. IECEx certification is recognized internationally, facilitating global trade and compliance.
Provides global acceptance and is often used to ensure equipment can be traded and used in various international markets without needing multiple certifications.

Application and Compliance

Selecting Equipment

How to Choose Equipment Based on Classification and Zone Requirements

Selecting the appropriate equipment for hazardous locations requires careful consideration of the area's classification and zone requirements. Here's a step-by-step approach:

Understand the Classification: Identify the specific Class, Division, and Group (NFPA 70 NEC) or Zone (ATEX and IECEx) applicable to your hazardous area. Each classification provides details about the type of hazard (gases, dusts, or fibers) and its likelihood of occurrence.

Determine Equipment Type: Choose equipment that meets the requirements of the hazardous classification. For example:
NFPA 70 NEC: Ensure the equipment is rated for the Class (e.g., Class I for flammable gases) and Division (e.g., Division 1 for frequent presence) of the area.
ATEX: Select equipment certified for the specific Zone (e.g., Zone 1 for occasional presence) and type of explosive atmosphere.
IECEx: Choose equipment that adheres to IECEx Zone classifications and protection levels (e.g., Ex d for flameproof protection).

Check Certification: Verify that the equipment has the appropriate certification marks, such as ATEX, IECEx, or NEC markings. This ensures the equipment meets the necessary safety standards and regulations.

Consult Manufacturer Specifications: Review the manufacturer's datasheets and certification documents to confirm that the equipment is suitable for the hazardous environment.

Implementation in Production Processes

Integrating Compliance into Manufacturing and Safety Procedures

To ensure compliance and safety in manufacturing processes, follow these practices:

• Design Considerations: Incorporate hazardous location requirements into the design phase of production equipment. Ensure that equipment is designed to handle the specific hazards present, such as explosive atmospheres or combustible dust.
• Installation: Adhere to installation guidelines provided by equipment manufacturers and regulatory standards. Proper installation is crucial for maintaining the safety and effectiveness of equipment in hazardous areas.

Safety Procedures: Implement safety procedures that align with hazardous location standards. This includes:
Regular Inspections: Conduct routine inspections to ensure equipment remains compliant and operational.
Maintenance: Follow maintenance protocols to address wear and tear and prevent potential hazards.
Emergency Protocols: Establish emergency procedures for dealing with accidents or equipment failures in hazardous environments.

Training: Provide training for personnel on operating and maintaining equipment in hazardous locations. Ensure they understand the specific requirements and safety practices associated with the equipment.

Documentation and Markings

Importance of Proper Documentation and Equipment Markings

Proper documentation and equipment markings are essential for regulatory compliance and safety:

Documentation:

Certification Documents: Keep records of certification and compliance for all equipment used in hazardous locations. This includes ATEX, IECEx, and NFPA 70 NEC certification documents.
Inspection and Maintenance Records: Maintain detailed records of inspections, maintenance, and any modifications made to equipment. These records are crucial for demonstrating compliance and ensuring ongoing safety.

Markings:

Certification Marks: Ensure that equipment is properly marked with certification symbols (e.g., ATEX, IECEx) indicating its suitability for the hazardous location. These markings should be visible and legible.
Hazardous Location Labels: Equipment should be labeled with its Class, Division, and Group (for NFPA 70 NEC) or Zone (for ATEX and IECEx) to indicate its intended use and compliance level.

Regulatory Compliance: Ensure all documentation and markings are in line with regulatory requirements for the specific standards applicable to your region and industry. This helps avoid legal issues and ensures that equipment can be safely and effectively used in hazardous locations.

Case Studies and Examples

U.S. Industry Applications

Examples of NFPA 70 NEC Compliant Equipment

Oil & Gas Refineries:Equipment: Explosion-proof lighting fixtures and control panels.These installations are designed to operate in Class I, Division 1 areas where flammable gases are present continuously. The equipment features enclosures that prevent ignition sources from coming into contact with the hazardous atmosphere.

Chemical Processing Plants:Equipment: Flameproof motors and junction boxes.Used in Class I, Division 2 environments, where flammable gases may be present but not under normal operating conditions. These components are designed to contain any sparks or heat generated within, thus preventing ignition of the external hazardous atmosphere.

Pharmaceutical Manufacturing:Equipment: Dust-tight control panels and air handling units.Installed in Class II, Division 1 areas where combustible dusts are present. The equipment is sealed to prevent dust ingress, which could potentially cause a fire or explosion.

EU Industry Applications

Examples of ATEX Compliant Equipment

• Chemical Plants:Equipment: ATEX-certified pumps and valves.Designed for use in Zone 0, where there is a continuous presence of explosive gases. These devices are built to withstand internal explosions and prevent ignition of the hazardous atmosphere.
• Food Processing Facilities:Equipment: ATEX-rated conveyor systems and mixers.Used in Zone 20 environments where combustible dust is present continuously. The equipment is designed to be dust-tight and safe for use in areas with high dust concentrations.
• Textile Manufacturing:Equipment: ATEX-approved motors and lighting fixtures.Installed in Zone 1, where explosive atmospheres may occur occasionally. The equipment is constructed to prevent sparks and high temperatures from igniting the potentially explosive atmosphere.

Global Applications

Examples of IECEx Certified Equipment

• Mining Operations:Equipment: IECEx-certified underground mining equipment like loaders and ventilation fans.Certified for Zone 1 and Zone 2 areas where flammable gases may be present. The equipment features robust protection levels to ensure safe operation in hazardous conditions.
• Petrochemical Facilities:Equipment: IECEx-approved pressure sensors and explosion-proof enclosures.Used in Zone 0 areas with continuous explosive atmospheres. These devices are designed to prevent any ignition sources and maintain operational safety.
• Pharmaceutical Production:Equipment: IECEx-certified cleanroom equipment and process controllers.Certified for use in Zone 21 environments where combustible dust is present. The equipment ensures that dust cannot enter and cause any safety issues.

These case studies highlight the practical application of hazardous location standards in various industries, showcasing how different equipment types are designed and certified to operate safely in potentially explosive environments.

Conclusion

Summary of Key Differences and Similarities

Key Differences:

Classification Systems:

NFPA 70 NEC: Utilizes a system of Classes (I, II, III), Divisions (1, 2), and Groups (A-D, E-G) to categorize hazardous locations based on the type of material and its presence in the environment.
ATEX: Employs a Zone system (0, 1, 2 for gases; 20, 21, 22 for dusts) to indicate the frequency and duration of the explosive atmosphere's presence.
IECEx: Uses a similar Zone classification system as ATEX but also includes Categories (1, 2, 3) to specify different levels of protection within the Zones.

Certification Processes:

NFPA 70 NEC: Requires compliance with standards defined by the National Fire Protection Association and verification by recognized testing laboratories.
ATEX: Involves certification by Notified Bodies, which review equipment against ATEX directives and mark them with specific symbols.
IECEx: Certification is conducted by IECEx Certification Bodies (ExCBs), with a focus on international standards and global compatibility.

Regional Applicability:

FPA 70 NEC: Primarily applicable in the U.S., affecting equipment choices and compliance within American industrial settings.
ATEX: Specific to the European Union, requiring adherence to EU directives for equipment used in potentially explosive environments.
IECEx: Offers a globally recognized certification system that facilitates international trade and ensures consistent safety standards across borders.

Key Similarities:

• Safety Focus:All three standards are designed to ensure equipment safety in hazardous locations, preventing explosions and protecting both the equipment and personnel.
• Equipment Design Requirements:Each standard outlines specific design criteria for equipment used in hazardous environments, such as explosion-proof enclosures, dust-tight construction, and appropriate electrical protections.
• Certification and Compliance:NFPA 70 NEC, ATEX, and IECEx all involve rigorous certification processes that ensure equipment meets the necessary safety requirements for operation in hazardous areas.

Final Recommendations for Selecting and Certifying Hazardous Location Equipment

• Understand the Location:Carefully assess the hazardous environment where the equipment will be used. Determine whether the location falls under Class/Division (NFPA 70 NEC), Zone (ATEX), or Zone/Category (IECEx) classifications to ensure proper equipment selection.
• Choose the Right Certification:Select equipment that meets the relevant certification standards for your region. For U.S.-based operations, ensure NFPA 70 NEC compliance. For European operations, choose ATEX-certified equipment. For global applications, look for IECEx certification to facilitate international trade and compliance.
• Verify Equipment Markings:Ensure that all equipment is properly marked with the required certification symbols and classifications. This helps in verifying compliance and ensuring that the equipment is suitable for the intended hazardous environment.
• Consult with Experts:Engage with industry experts or certification bodies to ensure that your equipment selection and certification processes are accurate and up-to-date. This helps in maintaining safety standards and achieving regulatory compliance.
• Regular Maintenance and Inspection:Implement a robust maintenance and inspection regime to ensure ongoing compliance with hazardous location standards. Regular checks help in identifying potential issues early and ensuring that equipment continues to operate safely.

By understanding the key differences and similarities among NFPA 70 NEC, ATEX, and IECEx standards, and following these recommendations, organizations can ensure that their hazardous location equipment is safe, compliant, and fit for purpose.
