How to Read Crane Design Drawings: A Beginner’s Guide

How to Read Crane Design Drawings - A Beginner’s Guide

This guide is designed to help you understand how to read crane design drawings. These drawings are essential for ensuring cranes are used safely and effectively in various settings, such as factories, warehouses, and construction sites. Crane design drawings provide details about how the crane is built, what materials are used, and how it operates within a given space.

• Planning Phase: Shows the crane's size, capacity, and placement.
• Building Phase: Guides the construction and assembly of the crane.
• Operation Phase: Provides information for maintenance and safety checks.

Crane drawings are used throughout the crane's lifecycle to ensure it functions properly, safely, and efficiently.

Why Knowing How to Read Crane Drawings is Important

Improves Communication with Engineers, Architects, and Manufacturers

Being able to read crane design drawings helps you communicate more effectively with engineers, architects, and manufacturers involved in the project. When you understand the technical details in the drawings, you can ask informed questions and ensure the crane meets all necessary requirements.

• Better Collaboration: Easier to discuss crane specifications, like size, capacity, and safety features.
• Clear Understanding: Ensures the crane fits the space and meets safety standards.

Helps Avoid Mistakes During Installation and Operation

Knowing how to read crane drawings helps prevent mistakes during both the installation and operation of the crane. These drawings highlight important details, such as clearance and load limits, helping you avoid issues before they occur.

• Installation: Prevents problems like fitting issues or clearance problems.
• Operation: Ensures the crane is used within its limits to avoid accidents.

Assists with Ongoing Maintenance and Safety

Understanding crane design drawings is crucial for keeping the crane in good condition. They help identify wear and tear on key parts and guide repairs or replacements. Additionally, these drawings include safety features, such as load limits and emergency shutdown systems, to help ensure the crane is operated safely.

• Maintenance: Makes it easier to check for potential issues and perform timely repairs.
• Safety: Ensures the crane is used safely within its designed limits.

In summary, knowing how to read crane design drawings is essential for making better decisions throughout the crane's planning, installation, and operation. It improves communication with the team, prevents costly mistakes, and ensures the crane operates safely throughout its lifecycle.

Types of Crane Design Drawings

Overview of Different Drawing Types

In crane design, several types of drawings are used to visualize and communicate the crane's specifications and functionality. These drawings help in the planning, construction, and operation of the crane, ensuring that every aspect is carefully considered and documented. The main types of crane design drawings include Conceptual, Preliminary, Construction, and Fabrication Drawings. Each serves a different purpose at various stages of the crane's lifecycle.

• Conceptual Drawings: These are early-stage designs, focusing on the overall idea and layout of the crane.
• Preliminary Drawings: More detailed than conceptual drawings, these provide a clearer picture of the crane's structure and components.
• Construction Drawings: These are the final, precise drawings that guide the actual construction and installation of the crane.
• Fabrication Drawings: These drawings are used for the manufacturing of individual crane components, detailing exact dimensions, materials, and assembly instructions.

Key Types of Drawings You Will Encounter

Floor Plans (Layout Drawings)

Floor plans, or layout drawings, are crucial for visualizing how the crane fits within the layout of a building or facility. These drawings show the crane's positioning within the space, including the runway system and the surrounding area it will operate in.

Purpose: Shows the overall layout of the crane within the building or workspace.

Components: Crane's position, runway system, and tracks.

Key Details:

• Placement of the crane relative to walls and other machinery.
• Runway system, including how the crane will move along the tracks.
• The required space for the crane to operate efficiently without obstruction.

Elevation Views (Vertical Views)

Elevation views provide a vertical perspective of the crane, showing how it interacts with the building structure and other equipment. These views focus on the positioning of the crane's components, such as the height of the crane and clearance levels.

Purpose: Shows how the crane fits vertically within the building or space.

Components: Crane height, hook distance, and clearance from the ground or ceiling.

Key Details:

• The overall height of the crane and clearance needed between the crane and any structures like beams or ceilings.
• The hook’s lifting range and how it fits within the working environment.
• Vertical positioning of the crane’s components, ensuring the crane has enough space to operate safely.

Section Views (Cross-Sections)

Section views, or cross-sections, show a “cut-through” of the crane and its components, revealing the internal structure and mechanical systems. These views are essential for understanding how the crane's various elements interact and are assembled.

Purpose: Provides a detailed internal view of the crane’s structure and components.

Components: Structural beams, girders, hoists, and mechanical systems.

Key Details:

• Cross-sectional view of the crane’s main body, including beams, hoists, and supports.
• Structural elements that contribute to the crane's strength and functionality.
• How various mechanical systems (e.g., hoisting systems) fit within the crane's structure.

Detail Drawings

Detail drawings offer a closer look at individual crane components and systems, focusing on specific parts that require detailed attention for fabrication, assembly, and installation. These are highly detailed drawings meant for manufacturers and assembly teams.

Purpose: To provide precise details for fabrication and assembly of crane parts.

Components: Specific parts, materials, and assembly instructions.

Key Details:

• Exact dimensions, material specifications, and welding details.
• Step-by-step assembly or installation instructions.
• Information on how specific components should be constructed or connected.

By understanding these different types of crane design drawings, you can better navigate the technical aspects of crane planning, installation, and maintenance. Each drawing type provides valuable information that supports the safe and efficient operation of the crane.

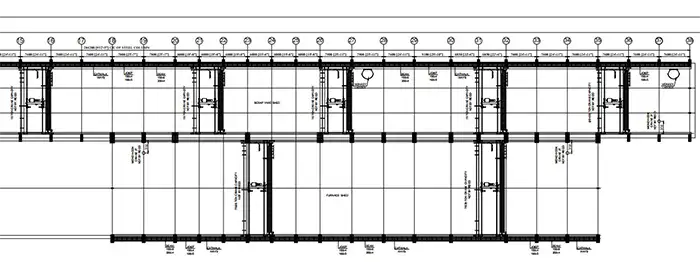

Floor Plans (Layout Drawings)

What is a Floor Plan?

A floor plan (also called a layout drawing) is a two-dimensional drawing that illustrates the layout and positioning of crane systems within a building or facility. It shows how the crane fits into the space, including its runway system, tracks, and surrounding areas where the crane will operate. Floor plans are vital in crane design because they help engineers, designers, and operators visualize the crane's placement and ensure that it operates safely and efficiently within the available space.

• Role in Crane Design: Floor plans provide a clear, accurate representation of the crane’s position within the workspace, highlighting critical areas such as the runway system and clearance zones. They ensure that all crane components have enough space to function without interference from other structures or equipment.

How to Interpret Layout Drawings and Identify Crane Dimensions

To effectively interpret a layout drawing, you need to understand the key components and dimensions marked on the plan.

• Cranes and Runways: Layout drawings indicate the path the crane will follow along the tracks (the runway system). The crane's span, track length, and location relative to the facility’s walls and other equipment are shown here.
• Identifying Crane Dimensions: Look for measurements on the floor plan to understand the crane’s overall width, length, and height clearance. This will show how much space the crane requires to operate, helping ensure that the layout allows for unobstructed movement.

Key things to look for:

• Span of the crane: The horizontal distance between the crane's two supports or runway tracks.
• Travel length: How far the crane can travel along the tracks.
• Positioning: The crane's position relative to structural elements, walls, doors, and other machinery.

Key Features in Floor Plans

Crane Runway: Placement and Layout

The runway system refers to the rails or beams that guide the crane’s movement within the facility. It’s essential to ensure that the crane’s track is placed correctly to avoid interference with other structures and that it aligns properly with the crane’s operational path.

• Placement: The runway should be placed to provide adequate clearance for crane movement and accommodate the full span of the crane. Ensure the track extends far enough to cover the crane's travel distance.
• Layout: The layout of the runway should consider the crane’s operational needs, such as its range of motion and clearance from surrounding structures.

Clearance Zones: Spaces Required for Safe Crane Operation

Clearance zones are areas around the crane that must be free of obstacles to allow for safe and efficient operation. These spaces are marked on the layout drawing to help determine if there’s enough room for the crane to function properly.

• Required Clearances: The floor plan should show the minimum clearances needed between the crane and walls, doors, or other equipment. For example, there should be enough vertical clearance between the crane and the ceiling, and horizontal clearance between the crane and other machinery.
• Safety Zones: Clearance zones ensure that the crane’s hoisting area, tracks, and controls are all safely positioned, preventing collisions and enabling smooth operation.

Dimensions and Scale: How Measurements Are Shown

Floor plans typically include measurements to provide the exact size and distance between components. These measurements are often given in millimeters or meters, and the scale of the drawing is indicated to help translate the diagram into actual sizes.

• How Measurements Are Displayed: Pay attention to the scale indicated on the drawing. A common scale could be 1:100 or 1:200, meaning that each measurement on the drawing corresponds to a specific multiple of the scale (e.g., 1 unit on the drawing equals 100 units in real life).
• Understanding Dimensions: The floor plan will show key dimensions such as the span of the crane, the length of the runway, and the height clearance. Understanding these measurements is crucial to ensure the crane fits within the available space.

Example: Reading a Floor Plan

Let's look at a real-world example of a crane floor plan to help you understand how to interpret it.

• Runway System: The layout shows the two tracks that guide the crane's movement. These tracks are aligned with the crane's span, which is indicated by a measurement, for example, "Span: 10 meters." The length of the tracks (for example, "Track length: 20 meters") is also marked.
• Hoisting Area: This is the space where the crane’s hook will lift objects. It’s clearly marked on the layout, showing the crane's hook path and the working height of the crane.
• Control Station: The layout will also show where the crane's control station (operator’s cabin or control panel) is positioned within the facility. This is critical for ensuring the operator can safely control the crane's movements and access all necessary controls.

In this example, the floor plan might indicate:

• Clearance Zones: Space requirements around the crane to avoid obstruction and ensure safe movement.
• Building Dimensions: The total available space within the building to ensure the crane will fit properly.
• Runway Position: The exact location of the tracks, with measurements for the span and travel length.

By understanding these key features of the floor plan, you can get a clear picture of how the crane will function within the facility and make sure it meets the operational needs of the building.



Interpreting Elevation Views (Vertical Views)

What is an Elevation View?

An elevation view is a vertical projection of a structure or object, often showing how it looks from the side or from a particular angle. In crane design, elevation views illustrate the crane's vertical positioning and provide key details about the crane’s height, clearance, and interactions with the building structure. These views are crucial for understanding how the crane fits into the space and ensuring that it can operate safely within the facility's dimensions.

• Purpose: The primary purpose of an elevation view is to show how tall the crane is, how much clearance is needed, and how the crane interacts with the building’s infrastructure, such as the roof or support beams.

The Role of Elevation Views in Showing Vertical Distances and Clearances

Elevation views are essential for assessing the vertical distances within the crane system. They show how the crane fits within the vertical limits of the building and help ensure that the crane operates safely with adequate clearance between the crane’s components and the facility structure.

Key roles of elevation views:

• Vertical Measurements: They provide clear dimensions, such as the crane's height and the distance from the crane hook to the highest point of the building.
• Clearances: Elevation views help identify required safety clearances between the crane and building components to prevent collisions and ensure smooth operation.

Key Elements in Elevation Drawings

Crane Height: Total Height from the Floor to the Top of the Crane

The crane height is a critical element in an elevation view, showing the total vertical distance from the facility’s floor to the topmost part of the crane, such as the top of the crane’s bridge or main girder.

• Importance: Knowing the crane height is vital for ensuring that the crane fits within the building's height restrictions. It helps prevent issues related to insufficient space or ceiling obstructions.

Hook Height (Lift Height): Distance the Crane Hook Can Travel Vertically

Hook height (also known as lift height) refers to the distance from the crane’s hook to the building's floor. This measurement indicates how high the crane can lift objects vertically.

• Importance: It is essential for determining the crane’s lifting capacity and ensuring that the hook can reach the required height for lifting materials. A high hook height is necessary for lifting tall or heavy loads, especially in multi-story buildings or facilities with elevated storage.

Clearance Between Hook and Structure: Ensuring Safety Margins

The clearance between the crane hook and the facility’s structure (such as the roof, beams, or walls) is essential for safe crane operation. Elevation views show these clearances, ensuring there is sufficient space for the hook to move without hitting or damaging any structural components.

• Safety Margins: Adequate clearance is vital for avoiding accidents and ensuring the crane can operate smoothly. If the clearance is too small, it could lead to collisions or obstruction of crane movement.

Roof and Structural Elements: Showing the Relationship Between the Crane and the Building

Elevation views also show how the crane interacts with the building’s structural elements, such as the roof, beams, columns, or any other overhead structures.

• Roof Alignment: The crane’s height and clearance should align with the roof structure to avoid interference. Elevation drawings help identify how the crane and building components work together and ensure that there is no risk of structural damage or interference during crane operation.

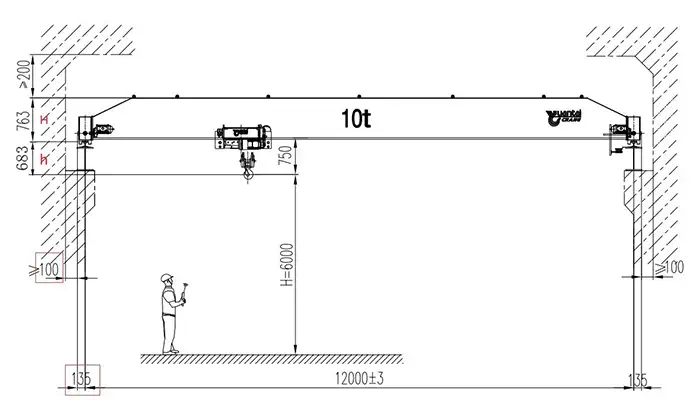

Example: Reading an Elevation View

Let’s break down an example of a crane elevation drawing to better understand how to read the key details:

• Crane Height: The drawing might indicate a total crane height of 12 meters, showing the distance from the floor to the top of the crane.
• Hook Height: The hook height could be marked as 9 meters, showing the distance the hook can travel vertically from the floor.
• Clearance Between Hook and Roof: The elevation view might show a clearance of 1.5 meters between the hook and the building’s roof, ensuring that the hook can move freely without hitting the ceiling.
• Roof and Beam Interactions: The elevation view will also show how the crane’s components align with the building’s structure. For example, the crane’s hoisting mechanism and bridge might be positioned under a beam or roof truss, ensuring there is enough space for smooth operation.

By carefully reading these details, you can assess whether the crane fits within the building’s vertical space and whether there is adequate clearance for safe operation. Understanding these elements is essential for proper crane selection, installation, and safety management.

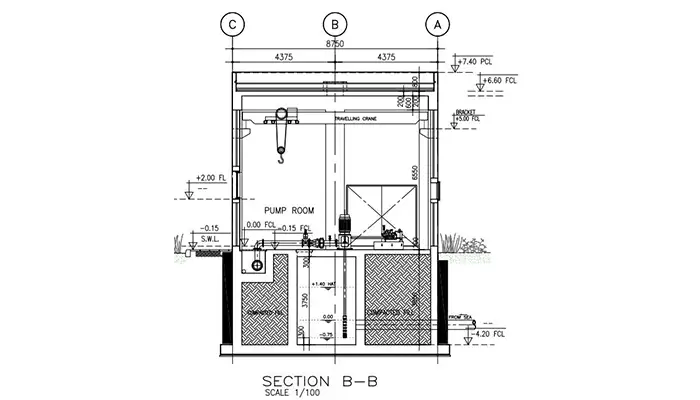

Section Views (Cross-Sections)

What is a Section View?

A section view (also called a cross-section) is a type of drawing where a cut is made through a structure, showing the internal details that are not visible in external views like floor plans or elevations. In crane design, section views allow designers, engineers, and operators to visualize the internal components and structure of the crane, including beams, girders, hoisting systems, and the traveling mechanism.

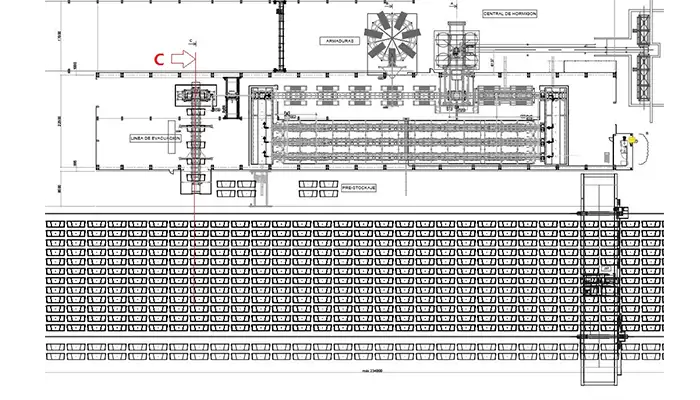

Example: As shown in the floor plan of the Santiago Metro prefabricated component production and storage project, the section line is C, and the direction of the section view is to the right.

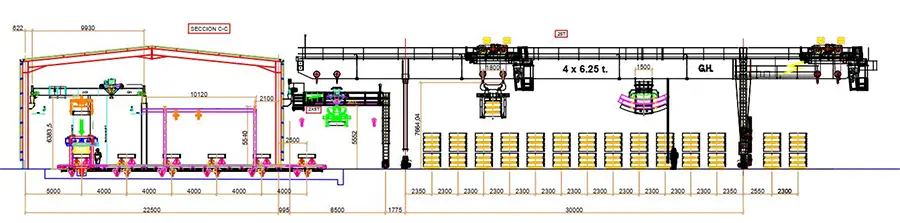

From the section drawing provided by the client, Section C-C, it can be seen, from top to bottom (left to right), the following are in order: a 10-ton overhead bridge crane, a prefabricated component conveyor belt, a monorail hoist suspension system, a 10-ton semi-gantry crane for material handling, and a 4x6.25-ton gantry crane for stacking. These three types of cranes work in coordination to transport the finished prefabricated components to the outside storage area of the factory.

How Section Views Show Internal Structure and Key Mechanical Components

Section views offer detailed insights into the crane’s internal structure. By cutting through the crane along a specific plane, they reveal the positioning of critical components like the main girder, hoisting equipment, and motors. These views are essential for assessing how the crane will perform, how weight is distributed, and how the mechanical systems will work in practice.

Key benefits of section views:

• Internal Layout: Shows how components like beams, wheels, motors, and electrical systems are arranged within the crane.
• Assembly: Provides a clear picture of how parts come together and interact, ensuring there are no design issues that could affect the crane’s operation.

Key Features in Section Views

Main Girder and Beam Design: Understanding the Critical Load-Bearing Components

The main girder and beams are the primary structural elements that support the crane’s load. Section views reveal the design and layout of these components, including the thickness, material, and placement of the beams.

• Load Distribution: Section views help to ensure that the beams are properly sized and positioned to bear the weight of the loads the crane will carry. If the beams are not designed correctly, it could lead to structural failure or inadequate load handling.

Traveling Mechanism and Motor Placement: Interpreting the Crane’s Movement Systems

Section views provide a look at the traveling mechanism and the motor placement that drives the crane’s motion along its runway. These components are crucial for the crane’s mobility and functionality.

• Motor and Drive Systems: Section views show the exact positioning of the motors, gearboxes, and drive shafts that move the crane along its tracks. Understanding the layout of these systems is important for assessing how effectively the crane will travel and whether it will be able to move smoothly across the intended path.
• Traveling Mechanism: Section views show how the crane’s wheels or track systems are aligned with the structure, ensuring that the crane can move without obstruction and distribute its weight evenly.

Hoisting Equipment Layout: Placement of Hoists, Trolleys, and Hooks

Section views also highlight the hoisting equipment layout, including the trolley, hoist, and hook. These components are responsible for lifting and lowering the crane’s load, so their positioning is critical for operational efficiency.

• Hoist Mechanism: The section view illustrates the hoist’s position relative to the crane’s structure, including its motor, drum, and wire rope system. This helps assess whether the hoist has adequate space to function properly.
• Trolley Movement: The section view shows how the trolley, which holds the hoist and hook, moves along the crane’s bridge. The layout is key to ensuring smooth movement and preventing any interference with other crane parts.
• Hook Placement: Section views also show how the hook is suspended and how it interacts with the load, helping ensure that the crane’s lifting capacity aligns with the design and operational requirements.

Example: Reading a Section View

Let’s walk through a sample section view to understand how to read it:

• Main Girder and Beam Layout: In the section view, you might see the main girder running along the top of the crane, designed with specific materials like steel I-beams. The drawing might show that the girder is 500mm thick, made of high-strength steel to handle heavy loads. The beam may be depicted below the girder, designed with a similar material but different dimensions.
• Traveling Mechanism: The section view will show the crane’s motor placed at one end of the bridge. You can see the gearbox, drive motor, and wheel placement along the bottom of the section, ensuring the crane’s wheels are aligned properly with the runway system.
• Hoisting Equipment: The section view may show a hoist mounted at the center of the crane’s main girder, with the trolley moving along it. The hook may be positioned below the hoist, showing how it will travel along the crane’s span to lift and move loads.

By carefully interpreting these components in the section view, you can get a clearer picture of the crane’s internal design and understand how the key parts work together to lift and move loads safely.

In summary, section views provide critical insights into a crane's internal structure and systems. They help engineers and operators understand how the crane functions and how its components fit together, making them essential for proper design, operation, and maintenance.

Detail Drawings: Digging Into the Fine Print

What is a Detail Drawing?

A detail drawing is a highly detailed, precise drawing used in crane design that focuses on specific parts or components. These drawings provide an in-depth look at the size, material, manufacturing processes, and assembly instructions for each part of the crane. Unlike general layout or section drawings, detail drawings zoom into the finer details, ensuring that each part can be accurately manufactured and assembled.

• Importance: Detail drawings are essential for turning crane designs into reality. They provide the exact specifications and guidelines needed to produce components that fit perfectly together, ensuring the crane functions as designed.

How Detail Drawings Provide High Levels of Precision for Manufacturing and Assembly

Detail drawings are critical because they provide the precision needed to manufacture complex crane components. They break down each part into its smallest elements, ensuring that the specifications are clear for manufacturers, welders, and assemblers. Without these precise details, there could be errors in fabrication or assembly, which might affect the crane’s safety and functionality.

• Precision in Manufacturing: Detail drawings specify exact dimensions, material types, and tolerances to ensure that each part is produced according to exact specifications.
• Guidelines for Assembly: These drawings also serve as the blueprint for assembling the crane, showing how components should be put together and fastened to ensure structural integrity and smooth operation.

Key Elements in Detail Drawings

Parts Specifications: Detailed Measurements and Materials

Detail drawings provide comprehensive information about each part's dimensions, including length, width, height, and thickness. These measurements are crucial for ensuring that each component fits within the overall crane design and interacts correctly with other parts.

• Material Specifications: Detail drawings also indicate the materials required for each part, such as steel grade, coating type, or special materials like corrosion-resistant alloys.
• Tolerances: They specify tolerances, which are the allowable deviations in size to ensure the parts fit together correctly. Tolerances prevent parts from being too large or small, which could lead to operational issues or safety concerns.

Fabrication Details: How Each Component is Manufactured

Detail drawings break down how each part should be fabricated. This includes instructions on cutting, welding, assembly, and finishing processes. These instructions ensure that each component is made to the exact design specifications and can be correctly assembled.

• Welding: For welded parts, detail drawings will specify the type of weld to use (e.g., fillet weld, butt weld) and its size. This is crucial to ensure the strength and integrity of welded joints.
• Fasteners: They will also specify the types and sizes of fasteners, such as bolts or rivets, and where they should be used for secure assembly.
• Finishes: Detail drawings may also include information on surface finishes, such as powder coating or galvanizing, to protect the parts from corrosion.

Assembly Instructions: Understanding How Parts Fit Together

One of the key roles of detail drawings is to show how various crane components should be assembled. These drawings provide step-by-step guidance on how each part fits together, ensuring that the crane can be put together quickly and accurately, without missing or mismatched parts.

• Assembly Sequence: Detail drawings often indicate the sequence of assembly, ensuring that parts are put together in the correct order.
• Joinery and Alignment: They also show how parts should be aligned, bolted, or welded together, ensuring proper structural integrity and alignment throughout the crane.

Example: Reading a Detail Drawing

To better understand how detail drawings work, let’s break down an example of a hoisting mechanism part.

Component: A hoist drum.

• Parts Specifications: The drawing will show the exact dimensions of the drum, including the diameter and length. It will also specify the material (e.g., steel grade) and the tolerance limits (e.g., ±0.5mm).
• Fabrication Details: The drawing will indicate the process for creating the hoist drum, which may include cutting, welding the seams, and any special treatments, like heat treatment, to ensure the material is strong enough to withstand heavy loads.
• Assembly Instructions: The drawing will show how the hoist drum fits into the overall crane system. It will provide guidance on how it should be positioned on the shaft and any fasteners needed to secure it in place. There may be instructions on how to align the drum with the crane's hoisting motor and wire rope system.

Detail drawings are essential tools in crane design. They provide the precision needed to fabricate, assemble, and install the crane's components correctly. With accurate parts specifications, clear fabrication details, and comprehensive assembly instructions, these drawings play a critical role in ensuring that the crane is built safely, functions as expected, and performs optimally over its lifespan. Understanding and interpreting detail drawings is therefore a key skill for anyone involved in crane design, construction, or maintenance.

Interpreting Dimensions, Scales, and Notations

Dimensions in Crane Drawings

Understanding dimensions in crane drawings is crucial for ensuring that parts and structures are built to the correct size and fit properly within the design specifications.

Length, Width, and Height: These are the basic dimensions that describe the size of crane components. In crane drawings, you will often see measurements expressed in millimeters (mm) or meters (m), depending on the scale of the drawing. For example:

• Length might refer to the distance from one end of a beam to the other.
• Width typically refers to the distance across a part (e.g., the width of a girder or runway system).
• Height will often describe the vertical distance, such as from the floor to the top of the crane structure or the hook height.

Spacing: In crane drawings, spacing refers to the distance between different parts. For instance, the distance between support columns, between the crane's rails, or the spacing between the beams and the hoisting mechanism. Accurate spacing is important for the crane to move smoothly within its environment and to ensure that components do not interfere with one another.

Reading Dimensions

To read dimensions in a crane drawing, pay attention to the numbers next to lines, arrows, or shapes. These indicate the measurement of a particular feature. For example:

• Linear Dimensions: Shown with an arrow at each end, connected by a line indicating the length.
• Diameter: Shown with a circle and a dimension indicating the size.
• Height and Clearance: Often specified with a number that represents the vertical distance from a reference point, like the ground or floor level.

Importance of Scale and How It Is Represented in Crane Drawings

The scale in crane drawings tells you the relationship between the drawing size and the actual size of the crane or its components. For example, if a drawing is at a scale of 1:100, it means that 1 unit on the drawing equals 100 units in reality. Common scales used in crane design include 1:100, 1:200, and 1:500, depending on the complexity and size of the crane.

How to Read Scales: Crane drawings should indicate the scale used, either in the title block or near the drawing. Always verify the scale to ensure you are interpreting the dimensions correctly.

• 1:100 Scale: 1 cm on the drawing represents 100 cm (1 meter) in reality.
• 1:200 Scale: 1 cm on the drawing represents 200 cm (2 meters) in reality.

Knowing the scale helps you understand the relative size of the crane, components, or systems being illustrated, and it allows you to visualize the actual size even when dealing with large or detailed drawings.

Notations and Symbols

In crane design drawings, notations and symbols provide important information about materials, surface finishes, tolerances, and other key features of the crane components. These are critical for ensuring that the crane is manufactured and assembled according to the correct specifications.

Common Symbols Used in Crane Drawings:

Material Symbols: Indicate the type of material used for each component. For example:

• S for steel.
• AL for aluminum.
• ST for structural steel.

Surface Finishes: Represent the type of finish applied to a component, such as:

• Galvanized for corrosion protection.
• Painted to indicate the coating applied for aesthetic or protective purposes.

Tolerance Symbols: Tolerances show the allowable variation in a part’s size. These symbols indicate how much a part can vary from the specified dimension without affecting performance. Tolerances are usually marked next to a dimension, such as ±0.5mm.

Standard Notation Systems:

ANSI and ISO Standards: These international standards ensure that crane drawings are uniform and easy to interpret across different countries and industries. Standard notation systems will often be used to mark important information like welding details, material grades, or component identification numbers.

Common Notation Elements:

• Welding Symbols: Indicate where and how to weld a joint.
• Bolting and Fastener Symbols: Specify where and how to install bolts, nuts, and other fasteners.
• Threading Symbols: Indicate the type of thread used for bolts or screws.

These notations is essential for anyone involved in crane design or manufacturing, as they ensure the correct materials, processes, and tolerances are used in the crane’s construction.

Key Considerations When Reading Crane Drawings

Understanding Tolerances and Limits

Tolerances and limits in crane design refer to the acceptable variations in dimensions or measurements that ensure safe and effective operation of the crane.

Why Tolerances Matter: Tolerances specify how much a component’s dimensions can deviate from the stated measurements. These deviations can affect the performance, safety, and longevity of the crane. For example, a slight difference in beam length or girder alignment can impact the crane's balance, load distribution, and ability to operate smoothly.

Types of Tolerances:

• Dimensional Tolerances: Indicate the allowable variations in size for parts, like beam lengths or hook distances.
• Geometric Tolerances: Deal with the form, orientation, or position of components, ensuring that parts fit together correctly and function as intended.

How to Read Tolerances: Tolerances are usually indicated near the dimensions in crane drawings and are marked with symbols (e.g., ±0.5mm or a tolerance symbol next to a dimension). Understanding these tolerances is essential for accurate manufacturing and assembly.

Reviewing Load Capacities

Load capacity refers to the maximum weight or force that the crane is designed to lift safely. Interpreting this information correctly is vital for ensuring that the crane can handle the intended loads without exceeding its structural limits.

How to Interpret Load Capacity:

• Maximum Load Capacity: The crane's maximum lifting capacity is usually specified in tons (e.g., 10-ton, 20-ton). This value reflects the highest weight the crane can safely lift without risking structural damage or operational failure.
• Load Distribution: Some cranes have variable load capacities depending on the height or distance the load is being lifted. For example, a crane might lift a heavier load at a lower height but be limited at higher reaches.
• Duty Class: Crane drawings often include a duty class rating (e.g., Class A, Class C) that describes how often and how heavy the crane is expected to operate. This helps assess whether the crane can handle the loads consistently over time.

How to Check Load Capacity in Drawings: Load capacity details are often included in the technical specifications or in the load charts that accompany the crane design. Ensure that the crane’s load capacity aligns with the operational requirements of the facility.

Safety Features and Compliance

Safety is paramount in crane design, and it’s essential to identify and understand the safety features incorporated into the crane. Compliance with relevant safety standards ensures that the crane is safe for operators and minimizes the risk of accidents.

Key Safety Features in Crane Drawings:

• Limit Switches: These devices prevent the crane from traveling beyond safe boundaries (e.g., preventing the crane from moving too far along the rails or raising the hook too high).
• Overload Protection: A system that prevents the crane from lifting loads beyond its rated capacity. This is usually indicated in the design as a safety mechanism tied to the hoisting equipment.
• Anti-collision Systems: In some cranes, especially those in busy areas, anti-collision systems are included to avoid accidents with other cranes or obstacles.
• Emergency Stop Systems: Clearly marked in the drawings, these systems allow operators to stop the crane in an emergency situation.

Ensuring Compliance with Standards: Crane drawings should reference relevant safety standards (e.g., OSHA, ISO 9001, or EN 15011). Ensure that the design complies with these standards for safe operation, maintenance, and inspection. Check for:

• Load and stability ratings in accordance with industry standards.
• Clearance requirements to ensure safe operation near obstacles.
• Proper labeling and safety markings.

Coordination with Other Systems

A crane does not operate in isolation; it is part of a larger building system. Coordinating the crane's design with other systems is critical to ensure seamless integration and effective operation.

Electrical Systems:

• Cranes are often powered by electric motors and may require specialized wiring, electrical panels, and control systems.
• Crane design drawings should indicate electrical connections, power supply requirements, and safety switches.
• Ensure that the crane's electrical system is compatible with the facility’s electrical infrastructure, including power ratings and control interfaces.

Mechanical Systems:

• The crane’s movement systems, such as the trolleys and hoists, must be aligned with other mechanical systems in the facility, like the runway rails or the supporting structure.
• Consider the crane's maintenance needs, such as lubrication points, and how they might affect other equipment.

Structural Integration:

• The crane's components must be correctly anchored to the building structure. Review the layout and structural integrity of the foundations, columns, and beams where the crane will be installed.
• Ensure that clearance zones around the crane are adequate for its full range of movement and that the crane does not interfere with other systems, such as HVAC, lighting, or plumbing.

Coordination with Other Equipment:

• Cranes are often part of larger systems, such as automated material handling systems, conveyors, or production lines. Ensure that the crane is positioned and sized appropriately so that it works in tandem with other equipment.
• Coordination with the layout of the building and other machinery will optimize workflow and reduce bottlenecks.

Common Mistakes to Avoid When Reading Crane Design Drawings

Misinterpreting Scale and Dimensions

One of the most common errors when reading crane design drawings is misunderstanding the scale and dimensions of the crane and its components.

How to Avoid Errors in Scale Conversion:

• Crane drawings are often drawn to scale (e.g., 1:100 or 1:50), which means the dimensions on the drawing are a reduced version of the real measurements.
• Double-Check Scale: Always confirm the scale of the drawing at the beginning. It is typically indicated in the title block or near the drawing's border.
• Use a Scale Ruler: To avoid scale conversion mistakes, use a scale ruler to measure directly from the drawing. This ensures the dimensions you’re reading are accurate for the full-size crane.
• Consider Units: Pay attention to whether measurements are in millimeters (mm), centimeters (cm), or meters (m). Misreading units can lead to costly errors when fabricating or assembling components.

Misreading Dimensions:

• Cross-check All Measurements: Ensure all dimensions (height, length, width, and spacing) are consistent with the crane's specifications and application.
• Verify Total Dimensions: Double-check overall crane size with individual component measurements to confirm the layout works within your available space.

Overlooking Structural or Safety Details

Another significant mistake is overlooking critical structural elements or safety features that are necessary for proper crane installation and safe operation.

Clearance and Space:

• Understanding Clearance Zones: Always ensure there is sufficient clearance between the crane’s moving parts (like the hook, trolley, and hoist) and other structures (like beams, walls, or equipment). This is crucial for safe operation.
• Vertical and Horizontal Clearances: Verify both vertical clearance (hook height and crane height) and horizontal clearance (space for movement along the runway).

Load-Bearing Capacity:

• Check Structural Integrity: Pay attention to how the crane is supported. Incorrectly interpreting or ignoring load-bearing capacity can result in crane instability or failure.
• Verify Material Specifications: Review the materials used in structural components, like beams and girders, to ensure they meet the required strength and durability for the crane's load.

Safety Features:

• Overload Protection: Always check for overload protection devices in the drawings, which prevent the crane from lifting weights that exceed its rated capacity.
• Limit Switches and Emergency Systems: Ensure that safety devices, like limit switches, emergency stop buttons, and anti-collision systems, are correctly incorporated into the design.
• Standard Compliance: Check the drawing for references to industry standards (e.g., ISO, OSHA), confirming that the design complies with safety regulations.

Consequences of Overlooking Safety: Ignoring these critical elements can lead to accidents, excessive wear, or even complete crane failure. Always prioritize safety in your interpretation of the drawings.

Missing Key Details

Crane design drawings contain a lot of information, and it’s easy to overlook crucial elements if you don’t carefully review each section.

Thorough Review of All Sections:

• Cross-Check Every View: Don’t just focus on the floor plans or one section. Check all views, including elevation, section, and detail drawings, to ensure nothing is missed. Each view reveals important details that complement the others.
• Look for Small but Important Details: Even small annotations, like weld symbols, material specs, or tolerance markings, can significantly affect how the crane is constructed or assembled. Missing these details could lead to mistakes in fabrication or installation.

Key Areas to Focus On:

• Assembly Details: Look for detailed assembly instructions in the drawings. These are crucial to understanding how the crane components come together.
• Connection Points: Pay attention to connection points like joints, welds, and fasteners. These are critical for structural integrity and safe operation.
• Maintenance and Inspection Requirements: Sometimes maintenance access points and inspection procedures are noted in the drawing, which are vital for ensuring long-term crane performance.

Why Missing Details Can Be Costly: Overlooking critical parts or steps in the crane design process can lead to incorrect installations, safety hazards, and costly reworks or delays in the construction and operation phases.

Practical Tips for Beginners

How to Build Confidence in Reading Crane Drawings

For those just starting out, reading crane design drawings can be intimidating. However, with the right approach, you can build your confidence and start interpreting these drawings effectively.

• Start with Basic Drawings: Begin by focusing on simpler crane designs before moving on to more detailed and complex ones. Understanding the basic elements such as floor plans and elevation views will give you a solid foundation.
• Familiarize Yourself with Terminology: Crane design drawings use specific terms (e.g., clearance, load capacity, girder). Understanding the common terminology will help you make sense of what each part of the drawing represents.
• Break Drawings Down: Don’t try to read a crane drawing in one go. Break it down into smaller sections (floor plan, elevation, section view, etc.) and focus on interpreting one part at a time. This methodical approach will help you gradually piece together the full picture.
• Use a Systematic Approach: Start by checking the title block for important information such as the scale, drawing date, and project name. Then, review the key features like dimensions, tolerances, and notes.

Recommended Resources for Further Learning

To deepen your understanding and improve your skills, you can use a variety of resources:

Textbooks: Look for textbooks that cover the fundamentals of mechanical and structural engineering, specifically those that deal with crane design and construction.

• Example: "Crane Design & Construction" by Stephen P. Richmond

Online Courses: Many platforms offer courses on interpreting technical drawings, CAD software, and crane operations.

• Example: Platforms like Coursera, Udemy, or LinkedIn Learning offer specialized courses in technical drawing and crane operation.

Manufacturer Resources: Manufacturers often provide detailed drawings for their crane models, which can help you understand the specific requirements of different crane types.

Engineering Forums & Communities: Join online communities where professionals discuss crane design and share their experiences. This is an excellent way to learn from others and ask questions about tricky aspects of crane drawings.

Practice with Real-World Examples

Reading crane drawings is a skill that improves with practice. Here's how you can effectively build your practical experience:

• Start with Simple Crane Designs: Begin with basic cranes like single girder overhead cranes or smaller gantry cranes. These designs are less complex and will help you learn how to interpret key features like the runway system, hoisting areas, and trolley movements.
• Gradually Move to Complex Designs: Once you're comfortable with basic drawings, challenge yourself with more complex designs, such as double girder cranes or custom cranes for specific applications. These designs will often involve more intricate components and structural details.
• Use Manufacturer Drawings for Practice: Many crane manufacturers make example drawings available online. Study these real-world examples to see how their components are laid out and to better understand how crane systems come together.
• Sketch It Out: Try sketching your own crane design based on a set of specifications. This exercise can help you visualize how different components interact and reinforce your learning.

Collaborating with Engineers and Designers

When you are unsure about a detail in a crane drawing, don’t hesitate to reach out to the experts. Effective collaboration can help you clarify misunderstandings and improve your overall understanding.

• Ask Specific Questions: When speaking with engineers or designers, be clear about what you need help with. For example, instead of asking, "Can you explain this drawing?", ask "Can you clarify the clearance between the crane’s hook and the roof in this section view?"
• Learn the Design Process: Ask engineers about the rationale behind certain design choices, such as material selections or structural considerations. Understanding why certain decisions are made will give you a deeper insight into the design process.
• Leverage Collaboration Tools: Many engineers use software like AutoCAD or Revit for creating crane drawings. If you're working on a digital platform, familiarize yourself with common tools like measurement or annotation features to communicate effectively with designers.
• Be Proactive in Communication: If you notice potential issues in the design, such as dimensions that seem too small or unclear clearances, bring them up with the team early on. Proactive communication can save time and prevent errors down the line.

Conclusion

Understanding crane design drawings is essential for ensuring that cranes are installed and operated safely and efficiently. These drawings provide detailed information about the crane’s structure, components, and functionality, allowing engineers, designers, and operators to make informed decisions about crane installation, maintenance, and safety.

By mastering crane drawings, you can:

• Ensure Proper Crane Installation: Crane design drawings guide the accurate positioning and installation of components, helping avoid costly errors and delays.
• Promote Safety: With a clear understanding of crane dimensions, clearances, and load capacities, you can ensure that cranes are installed in a safe environment and operated within the limits of their design.
• Optimize Performance: By interpreting key design elements like load capacities, beam strengths, and hoisting mechanisms, you can ensure that the crane functions as intended, preventing equipment breakdowns and increasing longevity.

Ultimately, crane drawings are the blueprint for safe, effective, and efficient crane operations. If you have any need of customized overhead crane design, please feel free to contact us.
