The Role of Load Size in Material Handling Crane Selection

When it comes to material handling, selecting the right crane for the job is critical to ensuring safe, efficient, and cost-effective operations. One of the most important factors influencing crane selection is load size. Whether you're lifting small machine parts in a warehouse or handling massive steel beams at a construction site, understanding how load dimensions impact crane choice can help optimize workflows, reduce risks, and control costs. In this blog, we’ll explore how different load sizes—compact, medium, and oversized—affect crane design, functionality, and cost, and how to choose the right crane for your material handling needs.

overhead crane for different coil handling with different lifters

Classification of Cranes Based on Load Size in Material Handling

Compact Loads (Small Size)

Applications: In industries such as electronics, warehousing, and small-scale manufacturing, compact loads are commonly handled. These loads typically include small, lightweight parts and components that are easy to maneuver. Examples include machine components, electrical parts, and tools. The crane used for these loads must be able to lift small items with precision while occupying minimal space.

Common Load Examples:

• Small mechanical parts (e.g., gears, bearings)
• Electrical components (e.g., motors, control panels)
• Tools and hand-held devices

Recommended Cranes for Material Handling:

• Light-Duty Single Girder Cranes: These cranes are perfect for light-duty lifting tasks, typically handling loads up to 5 tons. Their simple, compact design is ideal for confined spaces, making them highly suitable for small-sized loads.
• Jib Cranes: Jib cranes excel in handling compact loads within localized areas such as assembly lines or machine shops. Their flexibility allows for efficient movement in tight spaces, enhancing productivity in confined environments.
• Hoists: When working in very limited spaces, hoists mounted on overhead tracks are an efficient solution for lifting small materials. Hoists are known for their ease of operation and cost-effectiveness in small-scale material handling tasks.

Key Features:

• Compact design and low height clearance
• Low lifting capacities (typically up to 5 tons)
• Minimal maintenance requirements and easy installation in small spaces

Standard-Sized Loads (Medium Size)

Applications: Standard-sized loads are common in industries like automotive manufacturing, general assembly, and warehousing. These loads are larger and heavier than compact loads but still manageable with mid-range cranes. Examples include automotive parts, larger machinery components, and bulk industrial materials.

Common Load Examples:

• Automotive parts (e.g., axles, engines, chassis)
• Machinery components (e.g., pumps, compressors, equipment)
• Bulk items like metal sheets or pipes

Recommended Cranes for Material Handling:

• Bridge Cranes: A popular choice in industrial settings, bridge cranes are capable of lifting medium-sized loads across wide areas. They are often used in factories and warehouses, where they offer extensive coverage by running along beams mounted on the ceiling.
• Monorail Cranes: Ideal for moving materials along a fixed path, monorail cranes are typically used in manufacturing or packaging environments where loads need to be moved along a designated route.
• Gantry Cranes: Gantry cranes are perfect for outdoor environments or situations where space is available on the ground level. With their robust design and flexible structure, they handle medium-sized loads efficiently, even in open spaces.

Key Features:

• Medium lifting capacity (up to 20 tons)
• Robust structure and motors for higher capacity
• Greater maneuverability across larger areas with faster lifting speeds and improved control systems

Oversized Loads (Large Size)

Applications: When handling oversized loads, such as construction materials or large industrial machinery, cranes need to be much more powerful and specialized. These loads are typically found in industries like construction, shipbuilding, and heavy manufacturing, where huge components need to be moved across long distances.

Common Load Examples:

• Heavy construction materials (e.g., steel beams, precast concrete)
• Ship components (e.g., hulls, propellers)
• Large industrial machinery (e.g., turbines, generators)

Recommended Cranes for Material Handling:

• Double Girder Cranes: These cranes are designed for high-capacity lifting, with the ability to handle loads upwards of 100 tons. They feature two main girders, providing additional strength and stability, making them ideal for large-scale operations.
• Gantry Cranes: Used in both indoor and outdoor environments, gantry cranes provide the stability and strength needed to handle oversized loads. They are especially useful in open-air settings such as shipyards and construction sites.
• Custom Cranes: For exceptionally large or uniquely shaped loads, custom cranes are often necessary. These cranes can be tailored with specialized features, such as extended lifting hooks, adjustable beams, and custom supports to accommodate oversized components.

Key Features:

• High lifting capacity (up to 100 tons or more)
• Large span widths and extended reach to handle heavy loads
• Customizable features for specific material handling needs

How Load Dimensions Affect Material Handling Crane Design and Cost

The size and dimensions of the load being lifted play a critical role in determining the crane's design and overall cost. Understanding how load weight, shape, and reach impact crane selection can help businesses make informed decisions when choosing equipment for their material handling needs. Below is a detailed breakdown of how these factors influence crane design and the associated costs.

Load Weight and Shape

Impact on Crane Design: The weight and shape of a load are two of the most influential factors when selecting a crane. Heavier loads require cranes with stronger structural components and higher lifting capacities. Cranes designed for lifting heavy loads are typically built with reinforced beams, more powerful motors, and more robust components.

• Heavy Loads: Cranes handling heavy loads need stronger motors, reinforced hoists, and reinforced girders to support the weight. The crane's lifting mechanism must be designed with greater power to safely lift, move, and position these loads.
• Shape of the Load: Irregularly shaped loads (e.g., cylindrical objects, large machinery, or oddly shaped components) may require specialized attachments such as spreader beams, lifting jacks, or custom-designed slings. Cranes designed for such loads often include customizable lifting systems that can securely grip and manage the load's specific shape and balance.

Cost Implications:

• Higher Initial Investment: Cranes designed for heavy loads typically have a higher upfront cost. This is because they require more powerful components, such as stronger motors and reinforced structural elements, which increase manufacturing costs.
• Increased Operational Costs: Although stronger cranes may handle heavy loads more efficiently, they can also consume more energy, leading to higher operating costs. The use of custom lifting attachments also adds to maintenance and replacement costs.
• Safety Features: Cranes that handle heavy or irregularly shaped loads often come equipped with advanced safety features such as overload protection, stability sensors, and precision control systems. These features are essential for preventing accidents and ensuring safe operations, but they also add to the overall cost of the crane.

Reach and Lifting Height

Impact on Crane Design: The reach and lifting height required for handling loads significantly influence crane design. A crane with a long reach or high lifting height requires an extended boom or more advanced hoisting systems. These cranes are typically larger and have more complex structures to support their extended range.

• Extended Reach: Cranes with longer reach require additional structural support to maintain stability when handling heavy loads at greater distances. The longer the reach, the stronger the base and foundation need to be.
• Lifting Height: For applications that involve high lifting heights, cranes must be equipped with hoists capable of supporting greater vertical distances. Additionally, taller cranes typically require more space to accommodate their extended height, which can increase the overall footprint and cost.

Cost Implications:

• Increased Structural Complexity: Cranes designed for greater reach or higher lifting heights require more sophisticated engineering, often with larger base structures, taller support columns, and specialized hoisting mechanisms. These added design elements drive up the manufacturing cost of the crane.
• More Expensive Maintenance: Cranes with extended reach or high lifting capabilities often require more maintenance due to the increased wear and tear on their components. The additional complexity in the crane’s design can lead to higher service and repair costs over time.

Lifting Speed and Control

Impact on Crane Design: Handling larger, heavier loads often requires more precision and control during lifting. Cranes designed for these tasks need advanced control systems that allow operators to manage the lifting speed, position, and stability of the load with greater accuracy. For example, cranes handling sensitive equipment or hazardous materials may need slow and controlled movements to ensure safety.

• Advanced Control Systems: Cranes with advanced load control features, such as variable speed drives and load sway dampening systems, help ensure precise handling of heavy loads. These systems allow for smoother and more stable operation, reducing the risk of accidents and material damage.
• Faster Lifting Speeds: In some applications, the ability to lift loads quickly can improve productivity. Cranes with higher speeds typically have more powerful motors and advanced gearing systems to ensure smooth and efficient lifting, even under heavy loads.

Cost Implications:

• Higher Initial Costs: Cranes with advanced control systems or high-speed lifting capabilities tend to be more expensive. The added complexity of precision control systems, faster motors, and specialized gearing increases both the upfront cost and the complexity of the crane.
• Maintenance and Calibration Costs: Cranes with advanced lifting mechanisms require regular calibration and maintenance to ensure precise operation. These cranes are typically more expensive to service, and their maintenance costs tend to be higher compared to simpler models.

Conclusion: The Cost-Effectiveness of Choosing the Right Crane

In material handling, load dimensions—including weight, shape, and reach—directly affect crane selection, design, and cost. Cranes designed for heavier, larger, or more irregularly shaped loads generally come with higher initial costs due to the enhanced structural components, specialized attachments, and advanced safety and control systems required. While these cranes may represent a larger upfront investment, their ability to handle specific lifting tasks more safely and efficiently can result in long-term cost savings, higher productivity, and reduced maintenance costs.

By understanding how load dimensions impact crane design, businesses can make more informed decisions, ensuring they choose the right equipment for their material handling needs without exceeding their budget.

Choosing the Right Material Handling Crane: Balancing Cost and Efficiency

Selecting the right material handling crane is crucial for ensuring efficient operations while keeping costs under control. To make the best decision, businesses must consider a variety of factors that influence both the crane's performance and its long-term value. Below is a breakdown of key considerations for choosing the right crane and how to balance cost with efficiency.

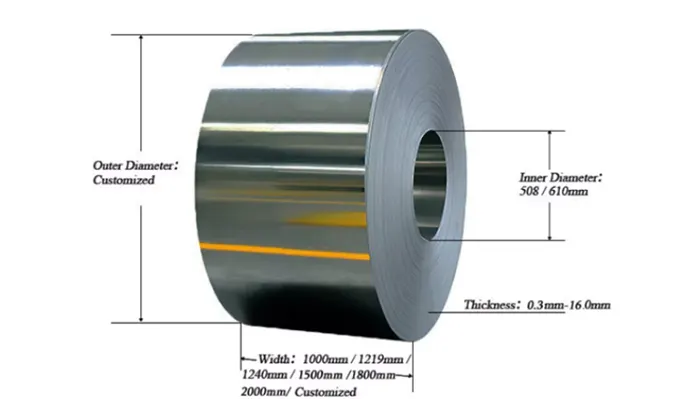

coil sizes will affect overhead crane selection

Key Factors for Selecting a Material Handling Crane

When choosing a material handling crane, several critical factors need to be assessed to ensure that the crane meets operational requirements without compromising on safety or efficiency.

Type of Load: The nature of the load being handled—whether compact, standard-sized, or oversized—significantly impacts the crane selection process. Different types of loads require specialized crane designs to ensure safe and efficient lifting.

• Compact Loads: Light-duty cranes, such as single girder or jib cranes, are often the best option for handling smaller, lighter loads. These cranes are cost-effective and ideal for confined spaces.
• Standard-Sized Loads: For medium-sized loads, bridge cranes or monorail systems are typically recommended. These cranes are versatile and provide excellent coverage for handling medium-weight materials.
• Oversized Loads: Heavy-duty cranes like double girder cranes or custom-designed gantry cranes are necessary for oversized loads. These cranes are built to handle substantial weights and large dimensions, though they come with a higher initial investment.

Operating Environment: The environment in which the crane will be used plays a significant role in determining which crane is the best fit. Cranes operating indoors, outdoors, or in extreme conditions need to be selected based on the specific challenges posed by the environment.

• Indoor Applications: Cranes used in indoor settings, such as warehouses or manufacturing plants, often require cranes with compact designs and precise movement capabilities.
• Outdoor Applications: Cranes operating outdoors, such as in construction sites or shipyards, need to be more rugged and durable, capable of withstanding weather elements like rain, wind, and extreme temperatures.
• Extreme Conditions: Cranes designed for extreme operating conditions, such as high humidity, high temperatures, or corrosive environments (e.g., chemical plants or marine environments), need to have additional protective features like anti-corrosion coatings or explosion-proof components.

Frequency and Intensity of Use: The frequency and intensity of crane use should be considered when selecting a crane. Cranes that are used more frequently or under heavy workloads may require additional durability and more advanced features to ensure reliability over time.

• High-Use Applications: If a crane will be used frequently, it is often worthwhile to invest in a more durable, higher-capacity crane to minimize wear and tear. Such cranes will reduce long-term maintenance needs and increase operational efficiency.
• Occasional Use: For low-intensity applications or occasional lifting tasks, lighter-duty cranes may suffice. These cranes are less expensive upfront but may not be as durable as higher-end models.

Cost of Material Handling Cranes

Choosing the right crane involves evaluating both the initial investment and the long-term operational costs. While it is tempting to opt for a lower-cost crane, businesses should consider how the crane’s design and efficiency will impact overall performance and total cost of ownership.

Initial Investment vs. Operational Savings: While cranes designed for larger or more specialized loads tend to have higher initial costs, they can deliver significant long-term savings through better productivity and reduced downtime.

• Upfront Cost: Cranes capable of handling heavy or oversized loads generally cost more due to the advanced engineering, stronger components, and specialized lifting systems required. However, these cranes are often necessary for certain applications and can deliver a higher return on investment (ROI) through their operational efficiency.
• Operational Savings: Investing in a crane that is properly sized for the application can reduce the frequency of repairs and maintenance. A crane that can lift loads with less strain and wear-and-tear will require fewer parts replacements and service calls, leading to significant savings in the long run.

Long-Term Efficiency: Investing in a crane that is correctly matched to the load dimensions and operational needs can greatly enhance efficiency and reduce long-term operating costs.

• Reduced Maintenance Needs: Cranes that are correctly sized for the load will face less wear on their components, reducing the frequency of breakdowns and the need for costly repairs.
• Improved Safety: Properly matched cranes reduce the risk of accidents and damage to both equipment and materials. A crane that handles the load with precision will minimize load sway, avoid overloading, and improve worker safety—factors that can also lead to reduced insurance and liability costs.
• Extended Equipment Lifespan: Choosing the right crane increases its operational lifespan. Cranes that are overworked or underutilized are more likely to experience premature wear. By selecting the right crane for the job, businesses can extend the life of their equipment, ensuring a higher return on investment over the years.

Choosing the right material handling crane involves a careful balance between cost and efficiency. While cranes designed for larger, more specialized loads may require a higher initial investment, they can provide significant operational savings through better productivity, reduced downtime, and lower maintenance costs. By considering key factors such as load type, operating environment, and frequency of use, businesses can select a crane that not only meets their immediate needs but also delivers long-term value.

By carefully evaluating the cost implications and long-term benefits of each crane option, companies can optimize their material handling processes, enhance safety, and achieve operational efficiency, all while controlling their overall investment in crane equipment.

Conclusion: Optimizing Material Handling Crane Selection Based on Load Size

In material handling operations, choosing the right crane based on load size is essential for optimizing efficiency, safety, and costs. Whether dealing with compact loads or oversized components, the crane design must be tailored to the specific needs of the job. By carefully considering the dimensions, weight, and handling requirements of the loads being moved, businesses can select the most suitable crane, reduce operational risks, and achieve long-term savings.

In summary, matching the right crane to your load size will ensure smoother operations, better safety, and improved productivity, all while keeping costs in check. Make sure to assess the specific needs of your operation, consider the types of loads you handle most frequently, and select a crane that provides the right balance of performance and cost.
