10 Ton Gantry Crane: Portable vs Rail Travelling Gantry Crane

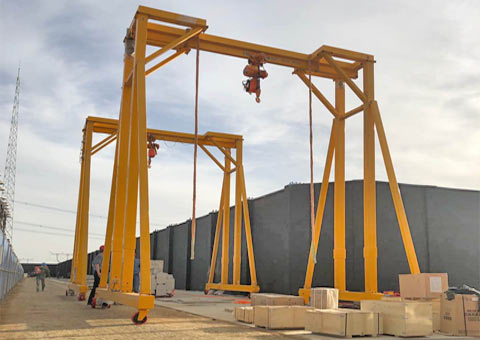

10 ton gantry crane for sale.Roller travelling portable gantry crane 10 ton vs.  Rail travelling single girder gantry crane 10 ton, which do you choose ?

Definition of a 10 Ton Gantry Crane

Gantry cranes are industrial lifting machines designed to hoist heavy objects within a specific working are A 10-ton gantry crane, as the name suggests, is a powerful piece of equipment capable of lifting loads up to 10 tons. These cranes come in various configurations, including mobile and fixed options, making them versatile tools for a wide range of industries.

In the world of material handling and industrial applications, the choice between a portable gantry crane and a rail traveling gantry crane is a crucial decision. Each type has its own set of advantages and limitations, and selecting the right one can significantly impact productivity, safety, and cost-effectiveness. This article aims to provide a comprehensive comparison of these two popular gantry crane options: the portable gantry crane and the rail traveling gantry cran By the end, you should have a clearer understanding of which one best suits your specific needs.

Selecting the appropriate gantry crane for your operations is essential for several reasons. First and foremost, safety is paramount. The wrong choice could lead to accidents and damage to valuable equipment or goods. Second, efficiency and productivity are critical factors in any industrial setting, and the type of gantry crane you choose can either streamline or hinder your processes. Finally, financial considerations come into play. Investing in the wrong type of gantry crane may result in unnecessary expenses and maintenance costs. Therefore, making an informed decision is not only beneficial but also cost-effective in the long run.

10 Ton Gantry Crane: Key Features and Uses

Before we dive into the differences between portable and rail traveling gantry cranes, it's important to have a clear understanding of what a 10-ton gantry crane is and what sets it apart from other lifting equipment.

A 10-ton gantry crane is a heavy-duty, overhead lifting system characterized by its robust structure and high weight-bearing capacity. It consists of a horizontal bridge that is supported by two vertical legs, forming a stable "A" shap This bridge can move horizontally along a runway or rails, allowing it to cover a specific area within a facility. The crane features a hoist or trolley mechanism that is responsible for lifting and moving heavy loads. The 10-ton capacity indicates that it can safely lift and transport up to 10 tons of weight.

Common applications and industries that require a 10 Ton Gantry Crane

10-ton gantry cranes find application across a wide spectrum of industries and operations due to their substantial lifting capacity and versatility. Some common use cases and industries that benefit from these cranes include:

  • Manufacturing:Gantry cranes are frequently used in manufacturing plants to handle heavy machinery, equipment, and materials.
  • Construction:Construction sites often require 10-ton gantry cranes for lifting and positioning large building components like steel beams and concrete blocks.
  • Warehousing:In warehouses, these cranes assist in moving heavy pallets, machinery, and containers efficiently.
  • Shipbuilding:Gantry cranes are indispensable in shipyards for placing massive ship components, engines, and containers on vessels.
  • Aerospace:The aerospace industry relies on gantry cranes for the assembly and maintenance of aircraft, including the installation of engines and other large components.
  • Automotive:Car manufacturing plants use 10-ton gantry cranes for handling car bodies, engines, and other heavy automotive components.
  • Mining and Resources:In mining and resource extraction operations, these cranes help transport materials and equipment, such as ore, conveyors, and drilling machines.
  • Power Plants:Gantry cranes are essential for the maintenance and installation of heavy machinery and components in power generation facilities.
  • Logistics and Freight Handling:Ports and logistics centers utilize gantry cranes to load and unload cargo containers from ships and trucks.
  • Heavy Industry:Various heavy industries like steel manufacturing, concrete production, and petrochemical plants employ 10-ton gantry cranes for their lifting and material handling requirements.

These examples highlight the versatility of 10-ton gantry cranes and underscore their significance in various industrial settings, where the movement of heavy loads is a daily necessity. The choice between a portable and rail traveling gantry crane largely depends on the specific needs and constraints of each application.
Portable Gantry Crane

Portable Gantry Crane

A portable gantry crane is a type of gantry crane designed for easy mobility and versatile us It typically consists of a horizontal bridge supported by two vertical legs with casters or wheels at the base, allowing it to be moved and positioned with relative eas This mobility distinguishes portable gantry cranes from their stationary counterparts, offering flexibility in different work environments.

Advantages of a Portable Gantry Crane

Portable gantry cranes come with several advantages, making them an attractive choice in many scenarios:

Easy Mobility and Portability:
The ability to move the crane to different locations within your facility enhances its flexibility.
Ideal for operations that require lifting heavy loads in various parts of a workshop or worksit

Quick Setup and Installation:
Portable gantry cranes are relatively easy to assemble and install, often requiring minimal tools and no special foundation.
Reduced downtime and improved operational efficiency, as they can be quickly deployed for lifting tasks.

Limitations of a Portable Gantry Crane

While portable gantry cranes offer flexibility and ease of use, they also have certain limitations:

Weight and Capacity Restrictions:
Portable gantry cranes are not suitable for extremely heavy loads, typically limited to lifting capacities of 1 to 5 tons.
Heavy loads can overload the crane's structure and affect stability.

Stability Concerns:
The mobility of portable gantry cranes can sometimes compromise stability, especially when handling near-maximum weight capacities.
Operators need to be cautious and ensure proper load distribution to maintain balanc

Examples of Situations Where a Portable Gantry Crane is Ideal

Portable gantry cranes are well-suited for a range of situations, including:

  • Maintenance and Repair Work:These cranes are excellent for maintenance tasks where equipment or machinery needs to be lifted and moved to a different location within a facility for servicing.
  • Small to Medium-Sized Workshops:Workshops with limited space can benefit from portable gantry cranes, as they provide the lifting capacity needed without requiring a fixed, permanent installation.
  • Construction Sites:Portable gantry cranes are useful in construction for lifting and positioning materials such as steel beams, concrete blocks, and pre-fabricated components.
  • Assembly Lines:When assembly lines require occasional heavy lifting, portable gantry cranes can be a cost-effective solution, as they can be moved and adapted as neede
  • Temporary or Remote Sites:In situations where a permanent crane installation is impractical, portable gantry cranes can be transported to remote or temporary job sites, providing lifting capabilities where they are neede

Portable gantry cranes are a valuable tool for situations where mobility, quick setup, and moderate lifting capacities are essential. However, for heavy-duty applications with substantial weight requirements, a rail traveling gantry crane might be a more suitable choice, as we'll explore in the subsequent sections.

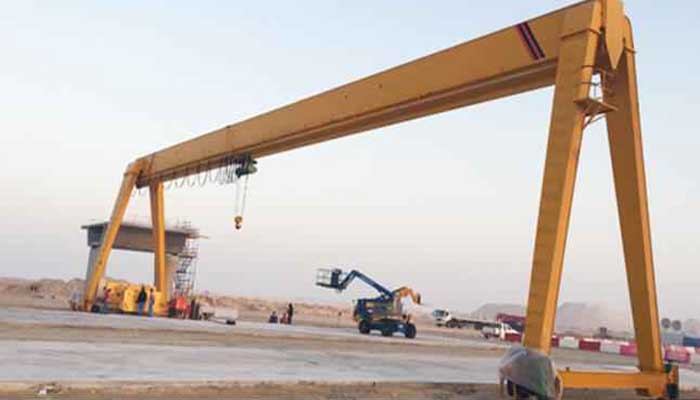

Rail Travelling Gantry Crane

Rail Travelling Gantry Crane

A rail traveling gantry crane, also known as an overhead traveling gantry crane, operates on a set of tracks or rails installed on the ground or elevated structur It typically consists of a horizontal bridge with wheels or bogies that run along the rails. The crane's structure is supported by vertical legs, providing a sturdy framework for heavy lifting.< /p>

Advantages of a Rail Travelling Gantry Crane

Rail traveling gantry cranes offer a set of distinct advantages:

High Weight Capacity:
These cranes are designed for heavy lifting, with capacities often ranging from 5 tons to well over 100 tons.
Ideal for industries that handle substantial loads, such as shipping ports, steel mills, and manufacturing facilities.

Precise and Controlled Movement:
Rail traveling gantry cranes offer exceptional control and precision during load handling.
The ability to traverse predefined paths on rails ensures safe and accurate positioning of loads.

Limitations of a Rail Travelling Gantry Crane

Despite their advantages, rail traveling gantry cranes have limitations that need to be considered:

Fixed Rail System:
The rail system is fixed, limiting the crane's mobility to the defined track or runway.
Adapting the crane to new work areas requires modifications to the rail infrastructure, which can be costly and time-consuming.

Installation and Space Requirements:
Setting up a rail traveling gantry crane involves installing the rail system, which may not be suitable for every workspac
The crane's large footprint can occupy significant floor space, making it less practical for smaller facilities.

Examples of Situations Where a Rail Travelling Gantry Crane is Ideal

Rail traveling gantry cranes are well-suited for specific scenarios, including:

  • Shipping Ports and Container Yards:These cranes excel in loading and unloading shipping containers from vessels and stacking them in yards due to their high weight capacity and precise movement.
  • Heavy Manufacturing and Steel Mills:Industries that handle massive materials, such as steel beams, large machinery, and industrial equipment, rely on rail traveling gantry cranes for efficient material handling.
  • Automotive Assembly:In the automotive industry, these cranes are used to lift and position car bodies and large vehicle components with precision.
  • Aerospace Industry:For the assembly and maintenance of aircraft, rail traveling gantry cranes provide the necessary lifting capacity and controlled movement.
  • Construction of Large Structures:When constructing bridges, buildings, or other large structures, rail traveling gantry cranes are instrumental in positioning heavy construction materials.
  • Mining Operations:In mining, rail traveling gantry cranes are utilized for the movement of heavy mining equipment and materials within mines and processing plants.

Rail traveling gantry cranes are the go-to choice for applications where heavy lifting, precision, and controlled movement are paramount. However, their fixed rail system and space requirements may limit their suitability for certain environments, making it essential to choose the right crane type based on specific needs and constraints.

Factors to Consider When Choosing Between Portable and Rail Travelling Gantry Cranes

When deciding between a portable gantry crane and a rail traveling gantry crane, several key factors need to be considered to make an informed choice:

Weight and Capacity Requirements

Load Capacity:Determine the heaviest loads you will need to lift. For lighter loads (up to 5 tons), a portable gantry crane may suffic For heavier loads (5 tons and above), a rail traveling gantry crane with higher capacity is a better fit.

Mobility and Flexibility Needs

  • Work Area:Assess whether you require the crane to move within different parts of your workspac Portable gantry cranes are more mobile and versatile, while rail traveling gantry cranes are restricted to a fixed path.
  • Frequency of Movement:Consider how often you need to reposition the cran If you require frequent mobility, a portable gantry crane is more suitabl

Cost Considerations

  • Initial Investment:Evaluate your budget and the upfront costs associated with each type of cran Portable gantry cranes tend to be more affordable compared to rail traveling gantry cranes.
  • Long-Term Costs:Factor in maintenance, operational, and installation costs. While rail traveling gantry cranes may have higher upfront costs, they can offer cost savings in the long run for specific applications due to their durability and capacity.

Space and Installation Constraints

  • Workspace Size:Consider the available space in your facility. Rail traveling gantry cranes have a larger footprint and require a dedicated rail system, making them suitable for more extensive spaces. Portable gantry cranes are a better choice for smaller workspaces.
  • Installation Complexity:Assess the ease of installation. Portable gantry cranes are relatively straightforward to set up, while rail traveling gantry cranes require more extensive planning and construction.

Safety and Stability Concerns

  • Load Stability:Evaluate the stability requirements for your loads. If you are dealing with heavy or delicate loads that demand precise and controlled movement, a rail traveling gantry crane may be safer and more appropriat
  • Environmental Factors:Consider your work environment. For outdoor or rugged environments, a portable gantry crane might be less suitable due to stability concerns. Rail traveling gantry cranes provide more stability in challenging conditions.

By thoroughly assessing these factors, you can make a well-informed decision when choosing between a portable gantry crane and a rail traveling gantry cran Your choice should align with your specific operational needs, budget, and workspace constraints to optimize efficiency and safety in your lifting and material handling processes.

Case Studies and Real-Life Examples

Case Study 1: Successful use of a Portable Gantry Crane

Case: Streamlined Assembly Line in a Small Manufacturing Workshop

In a compact manufacturing workshop specializing in customized machinery and equipment, the adoption of a portable gantry crane revolutionized their assembly process.

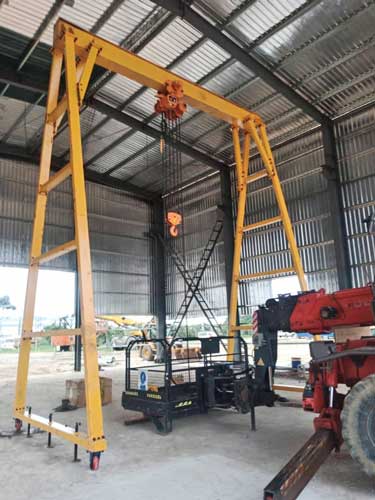

10 ton portable gantry crane for sale

Roller travelling portable gantry crane 10 ton for sale

Scenario:
The workshop had limited floor space, making it challenging to install a fixed crane system.
They needed a solution to lift and position heavy components during the assembly of machinery.
Frequent repositioning of the lifting equipment was necessary to accommodate different project requirements.

Benefits:
Compact Mobility: The portable gantry crane's design allowed it to be easily moved and positioned within the workshop, adapting to changing assembly needs.
Quick Assembly: Its rapid assembly and disassembly saved time and reduced downtime between projects, enabling the workshop to meet tight deadlines.
Space Efficiency: The crane's small footprint and adaptability to the workshop's layout made efficient use of the limited available spac

This case study illustrates how a portable gantry crane can optimize operations in small manufacturing environments where space constraints and frequent assembly adjustments are common.



Case Study 2: Rail Travelling Gantry Crane in Action

Case Study: 10 Ton Gantry Crane in Nigerian Warehouse

A 10-ton single girder gantry crane recently found its home in a bustling warehouse in Nigeri This powerful lifting equipment, equipped with a wire rope electric hoist, was tailored to meet the demanding needs of handling steel and iron materials within the facility.

rail travelling gantry crane 10 ton for sale



The Nigerian customer required a robust material handling solution that could efficiently move steel and iron materials throughout their warehous They needed a crane that could handle the substantial weight of these materials, provide precise control, and ensure the safety of their operations.

The 10-ton gantry crane was the ideal answer to these challenges. Its specifications included a lifting capacity of 10 tons, a generous span range of 25 meters, and a lifting height of 20 meters. Equipped with a CD1 wire rope electric hoist, the crane offered the lifting and lowering precision required for heavy and often irregularly shaped loads.

Additionally, the gantry crane was fitted with crane duty motors, making it suitable for frequent starting, reversing, and braking. This was essential in ensuring efficient and smooth operation, as the warehouse's workflow demanded precision and agility in load handling.

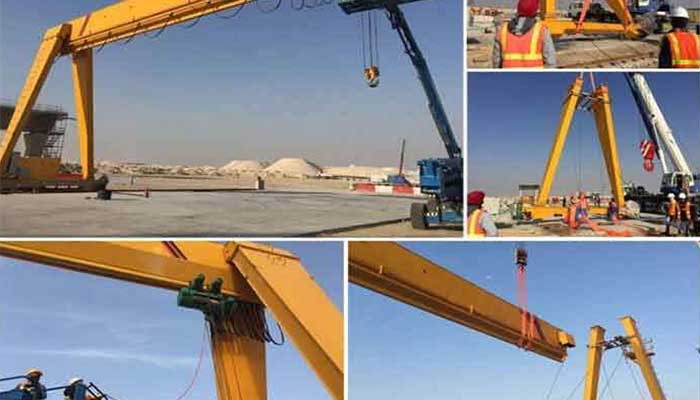

10 ton gantry crane with rail travelling design  10 ton gantry crane with rail travelling design

The crane's design allowed for easy installation and maintenance, ensuring minimal downtime for the customer. It featured ducted wiring and compact terminals, simplifying service and upkeep tasks. Furthermore, the inclusion of motor overload protection mechanisms was pivotal in preventing the condition of overloading, prioritizing the safety of both the equipment and the personnel.

The 10-ton gantry crane with single girder proved to be a valuable addition to the Nigerian warehous It not only met the demands of lifting and handling steel and iron materials but also contributed to improved operational efficiency and safety. The precision and reliability of this crane have significantly enhanced the customer's material handling capabilities, making their warehouse operations more streamlined and productiv

Conclusion

In this article, we've explored the essential aspects of choosing between a portable gantry crane and a rail traveling gantry crane for various industrial applications. Here's a recap of the key points covered:

- Gantry cranes, with a 10-ton capacity, are versatile tools used in various industries for lifting and moving heavy loads.
Portable gantry cranes offer mobility, quick setup, and cost-effectiveness but come with weight and stability limitations.
Rail traveling gantry cranes provide high weight capacity and precise movement but require a fixed rail system and larger spac
Factors such as weight capacity, mobility needs, cost, space constraints, and safety should influence your choice of crane typ

Considerations for Selecting the Right Gantry Crane Type

When choosing between a portable gantry crane and a rail traveling gantry crane, it's crucial to carefully consider your specific needs and constraints. Here are some key considerations:

Evaluate the weight and capacity requirements of your lifting tasks.
Assess the need for mobility and flexibility in your workspac
Take into account your budget, considering both initial investment and long-term costs.
Consider the available space and installation constraints in your facility.
Prioritize safety and stability, especially when handling delicate or heavy loads.

Final Recommendation Based on Specific Needs and Applications

The choice between a portable gantry crane and a rail traveling gantry crane ultimately depends on your unique operational requirements. Here are some general recommendations based on common scenarios:

Opt for a portable gantry crane if you have moderate lifting needs, require frequent mobility, have limited space, or need quick setup and cost-effectiveness.
Choose a rail traveling gantry crane for heavy lifting, precise movement, and high-throughput scenarios, where a fixed rail system can be accommodate

Remember that each application is unique, and a thorough evaluation of your specific requirements will help you make the most informed choic Always prioritize safety and efficiency to enhance your material handling processes and ensure the success of your operations.
