Case Study: 20 Ton Gantry Crane Single Girder for Concrete Beam Yard Tandem Lifting

This case study looks at the use of a 20-ton gantry crane with a single girder for tandem lifting in a concrete beam yard.

The goal is to show how this crane improves:

• Efficiency in lifting heavy concrete beams.
• Safety during the lifting process.
• Space optimization in tight yard conditions.

Tandem lifting (using two cranes together) is essential for handling large loads, and this crane design makes it safer and more effective.

A concrete beam yard is a place where large concrete beams are made, stored, and moved around. These beams are often very heavy, and the space in these yards can be limited.

Efficient lifting is a must in this setting. Without the right equipment, moving these heavy beams can be dangerous and slow. The gantry crane solves these problems by offering a safe, quick, and controlled way to lift and move concrete beams.

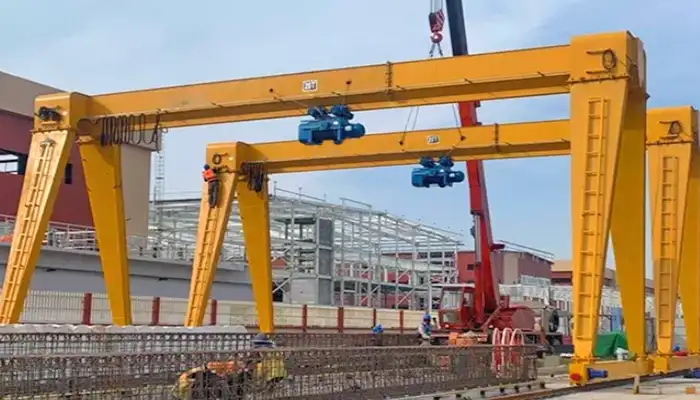

20 ton gantry crane single girder for precasting yard

Tandem Lifting and Its Relevance

Tandem lifting means using two cranes to lift one load together. It’s used when a load is too heavy or large for one crane to handle.

In a concrete beam yard, tandem lifting is often needed because the beams can be very heavy. Two cranes working together ensure the beam is lifted safely and placed accurately. This makes the process faster and reduces the risk of accidents.

Importance of the Gantry Crane

The gantry crane plays a key role in improving lifting operations. Here’s how:

• Space Efficiency: The crane moves on tracks, helping to save space in crowded yards. It can reach tight areas to lift and place beams without wasting room.
• Heavy Load Handling: The crane can handle up to 20 tons, making it perfect for lifting heavy concrete beams.
• Increased Productivity: The crane speeds up the lifting process. Workers can move beams quickly and safely without manual effort.
• Safety: The gantry crane ensures lifting is done in a controlled and safe way. When used for tandem lifting, it offers even better control, preventing accidents and damage.

In summary, the gantry crane with a single girder is crucial for making lifting operations more efficient, safer, and easier in concrete beam yards.

Crane Design Overview

Specifications of the 20 Ton Gantry Crane

Single Girder Design:
The crane uses a single girder structure, which simplifies the design while still offering strength and stability. This makes it more cost-effective and lighter compared to double girder cranes, while still handling heavy loads like concrete beams.

Load Capacity and Dimensions:

• Load Capacity: It can lift up to 20 tons, making it suitable for heavy concrete beams and other large materials.
• Dimensions: The crane has adjustable dimensions based on the yard's needs, including the span (distance between the crane's supports) and the lifting height (the maximum height the crane can lift a load).

Features and Capabilities:

• Lifting Height: It can lift concrete beams to a specific height, usually between 6-12 meters, depending on the model.
• Span: The span can range from 10 meters to 30 meters, allowing the crane to cover a wide area in the yard.
• Speed: The crane has adjustable lifting and moving speeds, typically around 5-10 meters per minute, ensuring smooth and controlled operations. The speed is customizable for different tasks.

Tandem Lifting Mechanism

How Tandem Lifting Works:
In tandem lifting, two cranes work together to lift and move a single load. The load is evenly distributed between the two cranes to ensure balance and safety. Each crane performs the same lifting motion, allowing the load to be lifted without tipping or swinging.

Safety Mechanisms for Tandem Lifting:
Tandem lifting can be risky if not done properly. This crane includes safety features to ensure safe lifting:

• Load Synchronization: The two cranes are synchronized through a control system, ensuring both cranes move at the same time and speed.
• Anti-Sway Control: Sensors and systems are built in to reduce the swinging of the load during lifting and movement.
• Overload Protection: Each crane has an overload sensor that prevents the lifting of loads beyond their rated capacity, reducing the risk of failure.
• Operator Communication: The cranes are equipped with communication systems so operators can coordinate easily during tandem lifting, ensuring smooth operation.

Applications and Benefits in the Concrete Beam Yard

Concrete Beam Yard Challenges

Working in a concrete beam yard presents several challenges due to the nature of the materials and the operational environment. Some of the key challenges include:

• Space Constraints: Concrete beam yards are often crowded with large, heavy beams and other equipment. With limited space, it's crucial to optimize every square meter to ensure smooth operations. This makes it harder to maneuver large loads safely and efficiently.
• Heavy Lifting Requirements: Concrete beams are extremely heavy and can weigh several tons. Lifting these beams manually or with inadequate machinery can be risky and time-consuming. Without the right equipment, it can also be difficult to move beams without damaging them or causing delays.
• Safety Risks: Lifting heavy loads creates significant safety concerns. The risk of accidents increases when cranes or other equipment are not designed to handle heavy or awkwardly shaped loads. Additionally, improper handling can result in equipment damage, injuries, or even loss of materials.

Role of the Gantry Crane in Solving These Challenges

The 20-ton gantry crane plays a vital role in addressing these challenges. Here’s how it contributes to solving them:

• Space Optimization: The gantry crane is track-mounted, meaning it moves along a fixed path. This design helps save space in the yard compared to other cranes, such as mobile cranes or overhead cranes, which require more room for operation. It also means the crane can move beams into tight spaces for storage or placement without taking up additional space.
• Improved Efficiency: With its 20-ton capacity, the gantry crane can lift and transport multiple concrete beams with minimal setup time. This allows for faster loading and unloading, improving the flow of operations in the yard. Additionally, the crane can work continuously, reducing downtime between tasks and maximizing productivity.
• Safety Enhancements: The gantry crane is equipped with safety systems like load monitoring, anti-sway controls, and overload protection. These features reduce the risk of accidents and ensure that loads are lifted and moved in a stable and secure manner. The crane also ensures better control during lifts, which minimizes the chance of damaging beams or causing accidents in a crowded yard.

Space Optimization in Concrete Beam Yards

A significant benefit of the gantry crane is its ability to optimize space in the concrete beam yard. Here’s how:

• Track System: Since the crane operates on fixed tracks, it can cover a wide area while still maintaining a compact footprint. This is important in a yard where space is often limited, as it ensures that beams can be lifted and moved without blocking other operations or taking up additional room.
• Vertical Lifting: The gantry crane can lift beams high above the ground, which allows workers to store beams vertically. This frees up space on the ground for other materials or equipment. Vertical lifting also makes it easier to move beams into position for loading or assembly.
• Tight Maneuverability: The crane’s design makes it more agile in tight spaces. It can maneuver around obstacles or other equipment with ease, making it ideal for busy, compact environments like concrete beam yards.

Specific Use Case for Tandem Lifting

Tandem lifting is used in concrete beam yards when handling large, heavy beams that exceed the lifting capacity of a single crane. Here’s why and when tandem lifting is required:

• When Beams are Too Heavy for One Crane: Concrete beams often weigh much more than a single crane can safely handle. For example, beams weighing over 20 tons may require two cranes working together to evenly distribute the weight. Tandem lifting allows the two cranes to work in unison to lift and move the beam without causing strain on either crane or the beam itself.
• When Beams are Too Large or Awkwardly Shaped: Some concrete beams may be very long or have an awkward shape that makes it difficult for a single crane to lift or position them correctly. Tandem lifting allows both cranes to handle the beam together, ensuring that it is lifted evenly and placed precisely where needed.
• Ensuring Stability and Control: Large beams are often unstable when lifted by a single crane, especially if they are long and may swing. By using two cranes, tandem lifting minimizes the swinging and movement of the load, ensuring more stability and control during the lift.

20 ton yard gantry crane for sale , customized for your yards,

Safety Features

Safety Measures for Tandem Lifting

Tandem lifting requires careful planning and special protocols to ensure a safe operation. Below are key safety measures involved in tandem lifting:

• Pre-Lift Assessment: Before any lift, a risk assessment is conducted. This ensures all equipment is in working condition and the lift can be completed safely.
• Real-Time Load Monitoring: Continuous monitoring of the total weight of the load is crucial. Load sensors are integrated into the cranes to keep track of the load's weight. This ensures that both cranes operate within their lifting capacity.
• Communication Systems: Operators use radio or wired communication systems to maintain coordination during the lift. These systems help ensure clear communication, especially in complex lifts, and provide a quick response to any changes or issues.

Key Safety Features of the Gantry Crane

The 20-ton gantry crane includes several built-in safety features that make tandem lifting operations safer and more efficient:

• Load Monitoring Systems: The crane’s load sensors provide real-time data on the weight being lifted. This helps ensure that neither crane exceeds its capacity. If the load is too heavy, alarms notify the operator to stop the lift immediately, preventing damage or accidents.
• Anti-Collision Systems: Equipped with anti-collision sensors, the gantry crane can detect obstacles in its path. If an obstruction is detected, the system will automatically stop the crane to avoid collisions, enhancing safety during operation.
• Synchronization Controls for Tandem Lifts: The cranes used for tandem lifting are linked through synchronization controls. These systems ensure that both cranes lift and move the load at the same time, preventing instability or imbalance. Real-time monitoring ensures that each crane is performing equally, maintaining perfect balance and preventing the load from swinging or tilting.

Operator Training and Safety Practices

Proper operator training is essential for ensuring safety during tandem lifts. Here’s why it’s so important:

• Training Programs: Operators must undergo certification and hands-on training to handle cranes and perform tandem lifts safely. These programs teach operators about the crane's functions, safety features, and correct lifting practices.

Common Safety Issues:

Some typical safety risks during tandem lifting include:

• Load Imbalance: If one crane lifts too quickly or slowly, the load may become unbalanced.
• Overloading: Lifting a load heavier than the crane’s rated capacity can cause mechanical failure.
• Communication Failures: Lack of communication between operators can lead to mistakes or accidents.

Mitigation of Safety Risks:

Training addresses these issues by teaching operators how to:

• Maintain load balance by controlling the speed of both cranes during lifts.
• Ensure they follow communication protocols to stay synchronized with the other operator.
• Regularly perform pre-lift checks to ensure the crane is in optimal condition and ready for operation.

The safety of tandem lifting operations depends on both advanced crane features and skilled operators. The gantry crane comes equipped with essential safety systems like load monitoring, anti-collision sensors, and synchronization controls to ensure smooth operations. However, the most critical factor is having well-trained crane operators who understand how to handle complex lifting tasks safely. With proper training and effective safety measures, tandem lifting can be carried out with minimal risks, ensuring efficient and secure operations.

Performance and Operational Efficiency

Operational Efficiency Improvements

The 20-ton gantry crane brings significant improvements in time and labor efficiency when it comes to lifting concrete beams. Here’s how:

• Time Optimization:
  The gantry crane can lift heavy loads in shorter time spans compared to manual labor or other lifting systems. With its high lifting speed and ability to move large concrete beams efficiently, it reduces the overall time needed for handling and transporting materials within the yard.
• Labor Reduction:
  The crane reduces the need for manual lifting and labor-intensive tasks. This means fewer workers are required to operate the crane, which can free up personnel for other tasks, improving overall workforce productivity. The automation of lifting processes also reduces the risk of worker injury.
• Impact on Turnaround Time:
  The speed and efficiency of the gantry crane directly impact the turnaround time in the yard. With quicker lifts and more efficient material handling, it speeds up the workflow, allowing projects to progress faster and deadlines to be met more consistently.
• Improved Material Handling:
  The gantry crane allows for precise placement of concrete beams in storage, transport, or assembly areas. This level of control reduces the chances of damage during handling and ensures that materials are safely and efficiently stored or moved without delays.

Maintenance Considerations

Regular maintenance is key to ensuring that the gantry crane continues to perform at optimal levels. Here are some key maintenance considerations:

Routine Maintenance Requirements:

• Lubrication: Regular lubrication of moving parts (such as wheels, hoists, and tracks) ensures smooth operation and reduces wear and tear.
• Inspection of Load Sensors and Safety Features: The crane’s load monitoring systems, anti-collision sensors, and synchronization controls need periodic checks to ensure they are functioning properly.
• Electrical and Mechanical Systems: Regular inspections of the electrical wiring and mechanical components (e.g., motors, brakes, and hoisting systems) are essential to prevent unexpected breakdowns.

Minimizing Downtime:

• Scheduled Maintenance: Planned maintenance during off-peak hours helps reduce disruption to crane operations. By keeping a regular maintenance schedule, small issues can be caught early before they become costly problems.
• Spare Parts Inventory: Keeping an inventory of critical spare parts on hand reduces downtime in case a component fails unexpectedly.
• Operator Checks: Operators are often trained to perform pre-operation checks, identifying any issues with the crane before starting the day’s work. This proactive approach helps avoid major mechanical problems.

Cost-Effectiveness

Using the 20-ton gantry crane can be a cost-effective solution for concrete beam yards. Here’s how:

• Lower Labor Costs: With fewer workers required to operate the crane and a reduction in manual lifting, labor costs can be significantly reduced. Additionally, the crane’s ability to lift heavy loads efficiently minimizes the time workers spend on each task.
• Reduced Equipment Wear and Tear: The gantry crane’s precise control reduces the risk of material damage and minimizes strain on equipment. This leads to lower repair costs and longer equipment lifespan compared to using multiple types of lifting equipment.

ROI Analysis:

The return on investment (ROI) for installing and operating the gantry crane is typically realized through:

• Faster project completion times, which reduce overhead costs.
• Fewer material handling errors and damages, leading to cost savings.
• Reduced downtime and maintenance costs, due to the crane’s efficient operation and regular upkeep.

Although the initial investment in a gantry crane may be significant, the long-term savings in labor, maintenance, and operational efficiency make it a cost-effective choice in the long run.

The 20-ton gantry crane offers considerable performance and operational efficiency benefits, optimizing both labor and time in concrete beam lifting. Its precision and speed improve material handling and project turnaround times, while its regular maintenance requirements ensure continuous performance. From a cost-effectiveness standpoint, the crane proves its value through reduced labor costs, minimized equipment wear, and a solid ROI, making it a wise investment for concrete beam yards looking to streamline operations and reduce overhead expenses.

Conclusion

Summary of Findings

This case study explored the various benefits, safety features, and operational efficiency improvements provided by the 20-ton gantry crane for tandem lifting in concrete beam yards. Key findings include:

• Improved Efficiency: The gantry crane significantly reduces labor costs and enhances the speed of lifting operations, optimizing turnaround time and improving material handling within the yard.
• Safety Features: The crane is equipped with advanced safety mechanisms such as load monitoring systems, anti-collision sensors, and synchronization controls, ensuring safe and controlled tandem lifts.
• Cost-Effectiveness: While the initial investment in the crane may be high, the long-term savings in labor, maintenance, and improved operational efficiency make it a cost-effective choice for concrete beam yards.

By addressing key challenges in concrete beam handling, such as space constraints, heavy lifting requirements, and safety concerns, the gantry crane proves to be a valuable asset for construction operations.

The potential for the 20-ton gantry crane extends beyond concrete beam yards. Looking ahead:

• Expansion in Other Construction and Manufacturing Yards: Gantry cranes can be adapted for use in other types of construction and manufacturing environments where heavy, oversized materials need to be lifted or moved. Industries like steel mills, automotive assembly, and shipyards could benefit from the crane’s versatility in tandem lifting.
• Innovative Applications: As technology evolves, future gantry cranes could feature smart systems, including IoT integration for real-time tracking and predictive maintenance. These advancements could further enhance efficiency and safety in various industrial settings.
• Improvements in Crane Design and Operations: There is potential for future improvements in the design and operation of gantry cranes. For example, cranes could incorporate greater lifting capacities, increased automation, and more intuitive control systems to improve ease of use and further reduce labor requirements.

Final Recommendations

For organizations considering adopting gantry cranes for tandem lifting in concrete beam yards, the following recommendations are made:

• Evaluate Site-Specific Needs:
  Before making an investment, it’s important to assess the specific requirements of the yard, including space constraints, lifting capacities, and workflow demands. This helps determine whether a 20-ton gantry crane is the right choice or if adjustments are needed.
• Invest in Operator Training:
  Proper operator training is essential for ensuring safe and efficient use of the gantry crane. Training should include crane operation, safety features, and tandem lifting procedures to minimize risks and optimize performance.
• Plan for Regular Maintenance:
  Establishing a maintenance schedule is critical to ensure the crane operates at peak performance. Regular inspections, lubrication, and system checks will extend the crane’s lifespan and minimize unexpected downtime.
• Consider Long-Term ROI:
  Although the initial cost of a gantry crane may seem high, organizations should consider the long-term ROI through savings in labor, improved safety, and faster turnaround times. Over time, the crane can significantly increase operational efficiency and profitability.

In conclusion, the adoption of gantry cranes for tandem lifting in concrete beam yards can result in significant operational and financial benefits, enhancing safety, efficiency, and productivity. Proper implementation, training, and maintenance are essential for maximizing these benefits and ensuring successful operations.
