Efficient Steel Plate Handling: Choosing the Right Equipment

Learn how to select cranes and below-hook devices for optimal steel plate handling, ensuring safety, efficiency, and cost-effectiveness.

Overview of Steel Plate Handling

Steel plates are heavy and often large, commonly used in industries like construction, manufacturing, and automotive. These plates are key in building structures, machinery, and various fabrication processes. However, handling steel plates can be challenging due to their size and weight. Moving them safely and efficiently within a factory, warehouse, or job site requires the right equipment. Without proper handling, steel plates can get damaged or cause injury. Choosing the right tools is essential for lifting, moving, and positioning these plates effectively.

Importance of Choosing the Right Equipment for Efficiency, Safety, and Cost-Effectiveness

Picking the right equipment for steel plate handling isn’t just about lifting heavy loads—it’s about making operations run smoothly, keeping workers safe, and saving money.

• Efficiency: Using the right crane and lifting devices helps speed up the process. Cranes that are properly suited to handle the size and weight of steel plates move them quickly and safely, keeping work flowing without delays. Using the wrong equipment can cause slowdowns, leading to wasted time and frustrated workers.
• Safety: Steel plates are heavy and can be dangerous if not handled correctly. Choosing the right equipment with safety features—like load limit warnings and secure lifting attachments—helps avoid accidents, injuries, or damage to the plates. Proper equipment ensures that lifting is done with care, keeping both workers and materials safe.
• Cost-Effectiveness: While high-quality equipment might seem expensive at first, it can save money over time. Well-chosen cranes and lifting devices reduce the chances of breakdowns, costly repairs, or accidents. This leads to less downtime and lower maintenance costs. Plus, when handling is more efficient, production speeds up, leading to overall cost savings and improved profits.

In short, selecting the right equipment for steel plate handling helps increase productivity, improve safety, and reduce costs, making operations run more smoothly and effectively.

Steel Plate Handling Requirements

Characteristics of Steel Plates Steel plates are large, heavy, and come in various thicknesses and sizes. The most common dimensions range from a few feet to several meters in length and width, with thicknesses from a few millimeters to several inches. Their weight can vary greatly depending on their size and thickness, with some plates weighing several tons. The surface of steel plates can also differ. Some plates are smooth, while others may have rough or coated surfaces, such as those treated for corrosion resistance or those used in specialized applications (like in the food or automotive industries). These characteristics influence how steel plates are handled, as their size, weight, and surface condition all determine the appropriate lifting and transportation methods.

Typical Applications in Industries Steel plates are used in a wide range of industries, each with specific handling requirements. In construction, steel plates are often used in building frames, bridges, and other large structures. They may need to be transported from a storage yard to a construction site or between different areas of a worksite. In manufacturing, steel plates are commonly used to create parts for machines, vehicles, and heavy equipment. These plates may need to be cut, welded, or shaped into smaller components. The automotive industry also relies heavily on steel plates for body parts and other structural components. Steel plates in these industries must be handled quickly and accurately to ensure smooth production processes.

Specific Challenges in Handling Steel Plates Handling steel plates comes with a set of unique challenges:

• Risk of Damage: Steel plates are vulnerable to scratches, dents, and other surface damage during handling. This is especially important in industries where the appearance or integrity of the plate matters, such as in automotive manufacturing or construction. Mishandling can result in expensive repairs or defects.
• Load Stability: Due to their large size and weight, steel plates can be difficult to lift and move without proper load stability. Improper lifting can cause the plate to shift, tilt, or fall, leading to accidents or damage to the plate. It is crucial to use the right lifting devices (such as plate clamps or magnets) to ensure the plate remains stable during transport.

These challenges highlight the need for careful consideration when selecting cranes and lifting devices for steel plate handling. The equipment must be capable of safely lifting and moving heavy, large plates while preventing damage and ensuring stability throughout the process.

Types of Cranes for Steel Plate Handling

Overhead Cranes (Single Girder and Double Girder Configurations) Overhead cranes are widely used in factory settings for steel plate handling. They operate along a track mounted on the ceiling, making them ideal for lifting and transporting steel plates within a confined area.

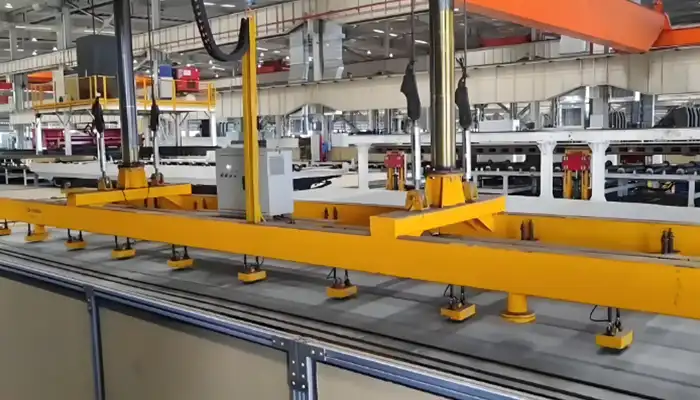

overhead crane with electromangetic  spreader for steel plate handling


Single Girder Overhead Cranes:

• Consist of one main beam supporting the load.
• Suitable for lighter steel plates.
• Cost-effective and easy to install in smaller spaces.

Double Girder Overhead Cranes:

• Feature two main beams for added strength.
• Ideal for heavier, thicker steel plates.
• Offer better load distribution and higher lifting capacities.

Advantages in Factory Settings and Heavy Lifting:

Overhead cranes provide excellent vertical space usage and precise lifting capabilities. They ensure efficient handling of steel plates in factory settings, allowing smooth movements across production areas.

Gantry Cranes (Suitable for Outdoor Environments or Large Storage Areas)

Gantry cranes are perfect for outdoor environments or large indoor storage spaces, such as steel yards, warehouses, or construction sites. These cranes are mounted on legs and move on rails or wheels.

Flexible Movement Over Larger Spaces: Gantry cranes can cover larger areas compared to overhead cranes. This mobility makes them ideal for moving steel plates across expansive outdoor environments or large warehouses, offering flexibility in handling heavy materials.

Jib Cranes (Compact and Efficient for Localized Handling) Jib cranes are smaller, more compact cranes used for localized handling of steel plates. They consist of a vertical column and a horizontal rotating arm.

Used in Small Workshops and Assembly Lines: Jib cranes are best for small-scale operations where precise and localized lifting is needed. They are ideal for handling steel plates in confined spaces, such as workshops, assembly lines, or loading docks, where flexibility and maneuverability are essential.

Bridge Cranes (Heavy-Duty, High Capacity for Large Steel Plate Operations) Bridge cranes are designed for heavy-duty operations in large-scale environments. These cranes are capable of handling large steel plates with high lifting capacities, often found in steel mills or shipyards.

Heavy-Duty, High Capacity for Large Steel Plate Operations: Bridge cranes are built to withstand heavy loads and tough work conditions. Equipped with double girder configurations, they offer reliable performance in demanding environments, ensuring smooth, efficient handling of large steel plates.

Below-Hook Devices for Steel Plate Handling

Plate Clamps (Vertical and Horizontal Lifting Options) Plate clamps are essential tools for lifting steel plates safely and securely. They provide a reliable solution for both vertical and horizontal lifting, depending on the plate's orientation.

• Vertical Lifting: Plate clamps securely grip the edges of steel plates, allowing them to be lifted vertically. This is ideal for transporting large, heavy plates in a vertical position.
• Horizontal Lifting: These clamps can also be used for lifting plates in a horizontal position, making it easier to move steel plates across production lines or warehouses.

Ideal for Transporting Large Flat Steel Plates: Plate clamps are highly effective for handling large, flat steel plates. They are designed to keep the plates stable during transport, preventing tilting or slipping that could lead to damage or accidents.

Slings and Hoists (Versatile Lifting Options for Various Steel Sizes) Slings and hoists are versatile lifting devices that can handle a range of steel plate sizes, making them suitable for various applications.

• Adjustable Sling Systems: Slings can be customized for different lifting needs, providing flexibility for handling various steel plate sizes and configurations. They can be fitted with hooks, shackles, or other accessories to meet specific needs.
• Hoists: Hoists, often used in combination with slings, provide a lifting mechanism that can lift steel plates with precision. They are available in manual, electric, or pneumatic models, offering flexibility for different environments.

Multi-Purpose Applications:
Slings and hoists are ideal for operations where flexibility is needed. They allow for easy adaptation to different steel plate sizes and lifting requirements, making them essential in diverse industrial environments.

Magnetic Lifting Devices (Efficient for Smooth Steel Plates Without Risk of Damage) Magnetic lifting devices use powerful magnets to lift steel plates efficiently. These devices are ideal for moving smooth or polished steel plates without causing damage to their surface.

Ideal for Quick Handling in High-Volume Environments: Magnetic lifters are perfect for high-volume, fast-paced environments where quick handling is required. They provide a secure grip on steel plates, allowing operators to move materials quickly while minimizing the risk of surface damage. Magnetic lifting devices are particularly useful in environments where steel plates need to be transferred frequently, such as production lines or steel yards.

Vacuum Lifters (Suitable for Delicate Handling of Thin or Coated Steel Plates) Vacuum lifters use suction to securely lift and move steel plates, making them ideal for delicate handling.

Precision Handling with Minimal Contact: Vacuum lifters are well-suited for thin, coated, or delicate steel plates that require careful handling. The suction cups gently grip the plate, lifting it without significant physical contact, reducing the risk of scratches or other damage. These lifters are particularly useful for applications where precision and care are crucial, such as in the automotive or appliance industries, where surface integrity is essential.

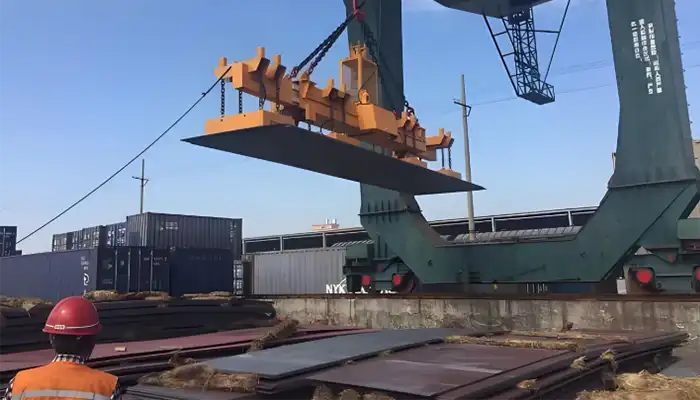

rail mounted gantry crane with electromangetic spreader for efficient steel plate handling


How to Select the Right Crane and Below-Hook Device

Assessing Steel Plate Size and Weight When selecting the right crane and below-hook device for steel plate handling, the size and weight of the steel plate must be the primary considerations.

• Matching Crane Capacity with Steel Plate Weight: Ensure the crane selected can handle the weight of the steel plate being lifted. Cranes have different weight capacities, and selecting one with the appropriate lifting capacity is crucial to prevent overloading, which can lead to accidents or equipment damage.
• Ensuring Proper Lifting Height and Reach: Consider the lifting height and reach required for the application. Ensure the crane and lifting equipment can reach the desired height and provide sufficient clearance to lift the steel plate without obstruction. The reach should also accommodate the layout of the facility, allowing smooth and safe transport of steel plates from one point to another.

Environmental Considerations The environment in which the crane and below-hook device will be used plays a significant role in the selection process.

• Outdoor vs. Indoor Handling: For outdoor environments, such as steel yards or construction sites, cranes and lifting devices need to be more robust and designed to handle exposure to the elements. Outdoor equipment should be resistant to weather conditions like rain, wind, and extreme temperatures.
• Impact of Weather Conditions on Equipment: For both indoor and outdoor applications, weather conditions like humidity, temperature variations, and exposure to corrosive elements (e.g., saltwater or chemicals) can affect the crane and below-hook devices' performance and longevity. Equipment used in coastal or wet environments, for example, should have enhanced corrosion-resistant coatings or materials to withstand these conditions and avoid premature wear.

Safety and Load Stability Safety is a top priority when handling steel plates, as improper handling can result in accidents or material damage.

• Ensuring Secure Attachment Methods for Load Stability: Choose below-hook devices that provide a secure attachment to the steel plates. The selected lifting devices, such as plate clamps or magnets, should ensure stable and balanced lifting to prevent the steel plates from shifting or tilting during movement. This is crucial for maintaining load stability and reducing the risk of accidents.
• Compliance with Safety Standards: Ensure that the crane and below-hook devices comply with safety regulations, including lifting limits and safety features like overload protection and emergency stop functions. Regular inspections and maintenance are essential to ensure the equipment is in optimal working condition and remains safe for operations. Additionally, the proper training of operators ensures that safety procedures are followed consistently.

Customization and Special Features for Steel Plate Handling

Custom Crane Systems In some applications, the standard crane configurations may not meet the specific lifting needs for handling steel plates. Custom crane systems can be designed and modified to improve the lifting process.

• Modifying Cranes for Specific Lifting Needs: Custom cranes can be built with extended reach or enhanced lifting height to accommodate the unique requirements of steel plate handling. For example, if steel plates need to be lifted from elevated racks or moved over long distances, cranes with a longer reach or greater lifting height can be tailored to provide optimal performance in those settings. These modifications ensure that the crane can operate effectively within the constraints of the facility.

Advanced Below-Hook Devices When dealing with non-standard steel plates, specialized below-hook devices can be designed to handle unique shapes or sizes.

• Custom Clamps or Lifting Attachments: Advanced below-hook devices such as custom clamps or lifting attachments are designed for steel plates that may not have standard shapes or sizes. These attachments can be tailored to fit irregularly shaped plates, ensuring a secure grip during lifting and transportation. Custom lifting attachments are also useful when handling plates with special coatings, grooves, or other specific surface features, ensuring that these plates are lifted without causing damage or instability.

Automation and Integration Automation is becoming an integral part of modern steel plate handling, improving efficiency and reducing human error.

• Integration with Robotic Systems for Automated Steel Plate Handling: Cranes and below-hook devices can be integrated with robotic systems to automate the steel plate handling process. Automation systems equipped with sensors and intelligent controls can assist with precise lifting, moving, and placing of steel plates with minimal human intervention. This not only improves handling efficiency but also enhances safety by reducing the risk of operator error. Automated systems are particularly beneficial in high-volume production environments where quick, accurate, and repetitive tasks are essential.
