Overhead Crane wheel & Gantry Crane Wheel,Tailored Crane Wheel Fabrication

Crane wheel for sale. Crane wheels tailored for your overhead cranes, gantry cranes, and other types of cranes on wheels. Crane production based on your drawing services are available.

Crane Wheel

Crane wheel for sale. Crane wheels tailored for your overhead cranes, gantry cranes, and other types of cranes on wheels. Crane production based on your wheel drawing services is available.

A crane wheel set is a mechanical device made up of a wheel and a shaft, as well as a bearing and a bearing housing. The crane wheel set is commonly used for the vehicle to support the crane and load while also allowing the crane to perform the reciprocating running operation on the specified track.

The forged crane wheel piece is made up of four parts: the wheel axle, the wheel piece, the bearing box, and the bearing. It does not need to be connected by the coupling because it must be directly matched with the three-in-one reducer, and the assembly precision is high. The bearings have a long service life and use imported NSK and SKF bearings.

This gantry crane and overhead crane wheel is special for European type  crane, with light weight, high performance and long working life.

• Span:7.5-25.5 M
• Capacity:1--12.5 t
• Max.Wheel Load:13.5~90.94 kn
• Traveling Rail:P24~P43
• Trolley Weight:405~740 kg
• This type of crane wheel is featured at light weight, small volume and easy installation.

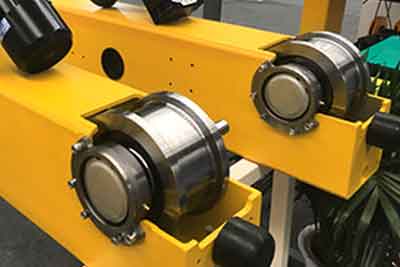

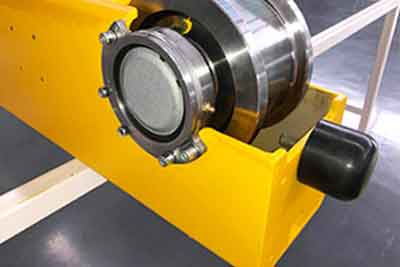

Applications of crane wheel

These crane wheel sets have been widely used in single girder crane and double girder cranes, overhed cranes, gantry cranes and other types of cranes on wheels. They have been achieving good application results that have been recognized by many users. Because of their superior performance, such wheel sets have been widely used in the lifting industry.

Technical parameters and drawing of crane wheel

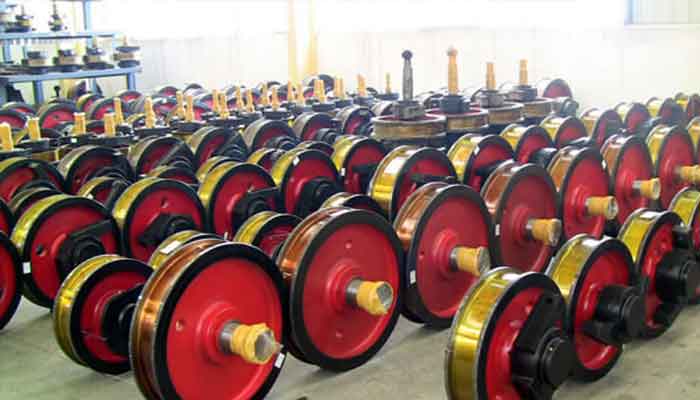

Crane wheel sets

Crane wheels sets are available in different versions. They can buy  a complete wheel set or just buy a single wheel body from your supplier.

 Crane Parts: crane wheel

Crane wheel a ssembly

We are skilled in the production of crane wheel assemblies. These are perfect for supporting the crane or hoist's load while balancing. When producing these products, we strictly adhere to the appropriate quality requirements and make use of more advanced techniques and technology. Our selection is well-liked for its high caliber, sturdiness, suitable casting, and effective results. Our consumers may get the full range of products at prices that are competitive in the market.

Our crane wheels adhere to JB/T 6392.1-92 standards.

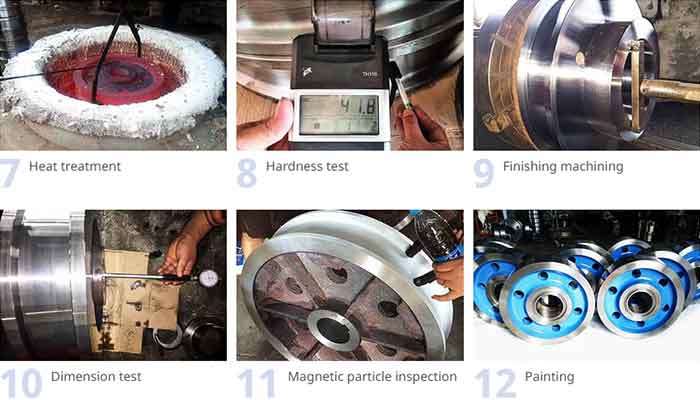

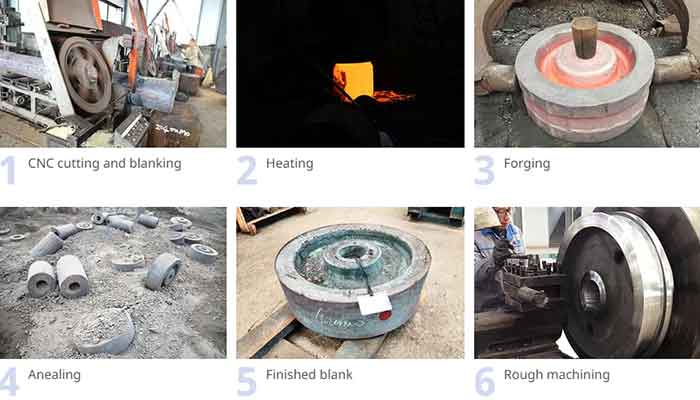

Processing of crane wheel

Our forging press has the strength required to produce the high quality forgings' dramatic reduction ratios and material flow. Excellent strength-to-weight ratios are provided by this closed-die design, which is essential for your most pressing forging requirements. To satisfy your needs, we keep a wide range of carbon and alloy steels in store.

Take the wheel processing procedures of single girder overhead crane for your reference.

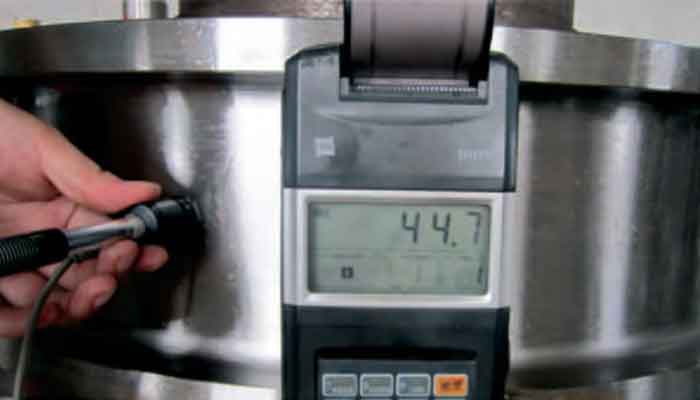

Crane wheel testing at factory

crane wheels test at factory

We have a large selection of analytic tools and testing equipment. On-site, a metallurgical laboratory performs chemistry verification, tensile and yield tests, and grain size verification. Level III technicians are also available to perform ultrasonic and magnetic particle testing. These individuals and their equipment are capable of performing customer-required N.D.T inspections that eliminate the possibility of any surface or sub-surface defects.

We maintain a thorough quality assurance program from raw material to final inspection and shipping to meet the most stringent customer requirements.

We will provide a material report, heat treatment report, dimension report, and hardness test report before delivering the wheels.

Get your tailored crane wheels

Yuantai Crane is able provided types of crane wheels for your overhead crane and gantry cranes. And also, tailored crane wheels fabricated based on your crane drawing is also available from us. Contact us to get your crane wheels and to get your crane rolling.
