Manual travelling Portable Gantry Crane 3 Ton for Sale Saudi Arabia

Portable Gantry Crane for Sale Saudi Arabia 0.5 ton -10 ton. Custom manual travelling portable gantry crane 3 ton for sale Saudi Arabia 3 ton project case.

Manual Travelling Portable Gantry Crane 3 Ton Project Case in Saudi Arabia

This case study presents the successful implementation of a custom-designed manual travelling portable gantry crane with a 3-ton lifting capacity in Saudi Arabia. The project aimed to fulfill the lifting needs of a specific location, showcasing the versatility and efficiency of the crane. The gantry crane's specifications and its seamless installation process are outlined to demonstrate its suitability for various industries in the region.

Back ground and hoisting requirements

Saudi Arabia, a rapidly developing nation with diverse industries, required an efficient lifting solution for its projects. To meet this demand, a custom manual travelling portable gantry crane with a 3-ton capacity was designed and deployed to cater to a specific location's lifting requirements.

The client, a construction company handling medium-sized projects in Saudi Arabia, sought a portable gantry crane that could be easily transported to different work sites. The crane needed to have a 3-ton lifting capacity, a span of 3.5 meters, and a lifting height of 5 meters. Additionally, the crane had to operate on a 380V 50Hz 3-phase power supply to ensure compatibility with the local power grid.

Overview of manual travelling portable gantry crane 3 ton

• Crane types: A frame gantry crane with manual travelling portable crane design
• Crane capacity: 3 ton
• Crane span: 3.5 m
• Crane lifting height 5 m
• Crane power supply: 380v50hz3ph
• Crane project location: Saudi Arabia

The gantry crane designed for this project was an A-frame gantry crane, known for its stability and versatility. It was equipped with manual travelling capabilities, allowing it to be easily moved across the work site without the need for complex machinery or extensive manpower. The crane's key features included:

• Lifting Capacity: 3 tons, making it suitable for a wide range of lifting tasks in medium-sized projects.
• Crane Span: 3.5 meters, providing ample coverage for lifting operations within the specified area.
• Lifting Height: 5 meters, enabling the crane to reach sufficient heights to meet the project's requirements.
• Power Supply: 380V 50Hz 3-phase, ensuring seamless integration with the local power infrastructure.

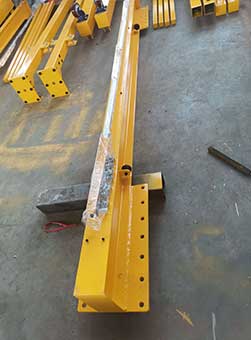

Main girder manual travelling portable gantry crane 3 ton

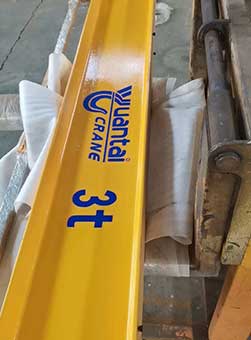

Main girder of 3 ton portable gantry crane

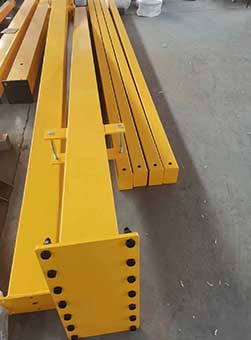

Supporting legs of 3 ton gantry crane

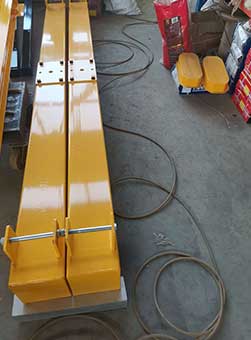

Ground beams

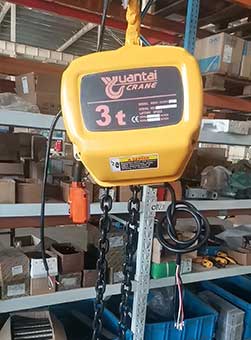

3 ton electric chain hoist

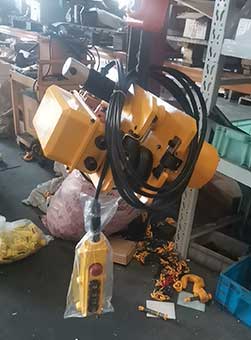

3 ton gantry crane hoist trolley

Crane Installation and Testing:

The crane was custom-designed and fabricated to meet the client's exact specifications. Once completed, it underwent rigorous testing to ensure compliance with safety standards and optimal performance. After successful testing, the crane was disassembled for transportation to the project site in Saudi Arabia.

The installation process involved assembling the gantry crane on-site, which was made convenient due to its portable design. The manual travelling feature allowed it to be moved easily into position without the need for additional lifting equipment. The entire installation process was completed efficiently and without any delays.

With the gantry crane fully operational, the construction company immediately put it to use on various lifting tasks at the project site. The crane's 3-ton lifting capacity proved to be ideal for their needs, facilitating the movement of materials and equipment with ease. Its manual travelling capabilities allowed the crew to quickly reposition the crane as needed, saving valuable time during project execution.

Throughout the project's duration, the gantry crane exhibited reliable performance, requiring minimal maintenance. It contributed significantly to improving the project's overall efficiency and productivity, meeting the client's expectations and requirements.

Electric travelling & manual travelling 3 ton portable gantry cranes for your selection

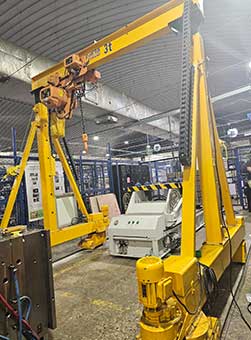

Electric travelling portable gantry crane

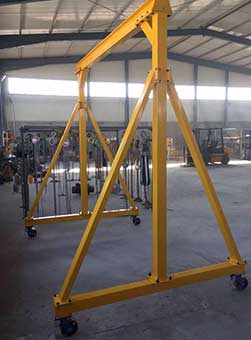

Manual travelling portable gantry crane

Comparison between Manual Travelling Portable Gantry Crane 3 Ton and Electric Travelling Portable Gantry Crane 3 Ton:

Manual Travelling Portable Gantry Crane 3 Ton:

Features:

• Manual Travel: The crane is moved manually using hand-operated wheels or a push/pull trolley system, offering flexibility in positioning.
• Simple Operation: Minimal controls and straightforward operation make it easy to use and suitable for smaller projects or temporary setups.
• No Power Supply Required: As it operates manually, it does not rely on electricity, making it suitable for areas with limited power access.
• Lower Cost: Manual travelling gantry cranes are generally more cost-effective compared to electric models due to their simpler design.

Applications:

• Small to Medium Projects: Ideal for lifting tasks in small to medium-sized projects where the material handling requirements are not very frequent or heavy.
• Temporary Lifting Needs: Suited for temporary or short-term lifting applications where an electric supply may not be readily available.

Other Aspects:

• Portability: The manual gantry crane is easy to move and transport, making it suitable for multiple job sites.
• Maintenance: Requires less maintenance compared to electric cranes, as it has fewer complex components.

Electric Travelling Portable Gantry Crane 3 Ton:

Features:

• Electric Travel: Equipped with electric motors and control systems for movement, enabling precise and effortless positioning.
• Remote Operation: Electric gantry cranes often come with remote controls for convenient operation from a distance.
• Higher Lifting Speed: Electric motors allow faster lifting and travel speeds, increasing productivity.
• Heavy-duty Performance: Capable of handling heavier loads and more frequent lifting tasks due to the electric power supply.

Applications:

• Medium to Heavy-duty Projects: Well-suited for projects with higher lifting requirements and frequent material handling.
• Continuous Operations: Electric gantry cranes are designed for continuous operation and are suitable for long-term projects.

Other Aspects:

• Power Requirements: Requires a stable electric power supply, which may not be available at remote or underdeveloped sites.
• Initial Investment: Electric gantry cranes tend to have a higher initial cost due to the inclusion of electric motors and control systems.

Comparison Summary:

• Manual gantry cranes are more suitable for smaller projects or temporary setups, whereas electric gantry cranes excel in medium to heavy-duty projects with continuous lifting needs.
• Manual cranes are cost-effective and easy to maintain, while electric cranes offer higher lifting speeds and precise positioning through electric controls.
• The choice between the two depends on project requirements, budget constraints, available power supply, and the frequency of lifting tasks.

In conclusion, both manual travelling portable gantry crane 3 ton and electric travelling portable gantry crane 3 ton have their advantages and are suitable for different scenarios. It is essential to assess the specific project needs and constraints to make an informed decision on which type of gantry crane best suits the application.

The manual travelling portable gantry crane with a 3-ton lifting capacity demonstrated its worth as a versatile and reliable lifting solution in the dynamic environment of Saudi Arabia. Its custom design, ease of installation, and seamless functionality made it an indispensable asset for the construction company's projects. As the country continues to witness growth in various industries, the gantry crane is poised to play a crucial role in supporting their lifting needs.
