20 Ton/5 Ton Overhead Crane for Saudi Arabia for Valve Repair

Double girder overhead crane with 20 ton main hook & 5 ton auxiliary hook for sale Saudi Arabia for valve repair. Check 20 ton crane production & delivery!

Overview of the 20 / 5 ton double girder overhead cranes

• Crane Brand: Yuantai Crane
• Sales: Julia Xu
• Transportation: Shipping,  containers
• Exporting country: Saudi Arabia
• Port of destination: CIF DAMMAN Daman Port
• Customer's industry: Industrial valve maintenance, testing and automation services

20 /5 Ton Double Girder Overhead Crane for sale Saudi Arabia - Case Study

The double girder overhead crane was required by a Saudi Arabian company in the field of Industrial Valve Repair, Testing and Automation Services. The 20 ton /5 ton overhead crane is required to handle the heavy lifting in their valve repair and testing process. After careful communications and consideration, they decided to invest in a European-spec double girder overhead crane with the following specifications:

• Lifting Capacity=20/5T
• Span=20m
• Lifting height=10/10.5m
• Power supply:380V 60Hz 3P
• Working class:FEM2M(A5)
• Pendant control+Remote control
• 250A Slid wire system-4 pole,length:150m*4=600m

The double girder design of the bridge crane provided increased stability and strength, which was essential for lifting large valves safely and efficiently. The crane's lifting capacity of 20/5T was more than enough to handle the heaviest valves in the repair and testing process.
The crane's span of 20m provided ample coverage for the facility, allowing the crane to move valves around with ease. The lifting height of 10/10.5m was ideal for the company's needs, as it allowed them to lift valves to the necessary height for repair and testing.
The crane's pendant control and remote control capabilities provided the operators with the flexibility and control they needed to move valves around the facility safely and efficiently. The 250A slid wire system-4 pole, with a length of 150m*4=600m provided reliable power and control over long distances, making it easy to move valves around the facility.
The crane's working class of FEM2M(A5) ensured that it could operate under heavy loads for extended periods of time, which was essential for a busy valve repair and testing operation like this one. The crane's power supply of 380V 60Hz 3P provided plenty of power to lift heavy valves quickly and efficiently.

Overall, the European style double girder overhead crane proved to be an invaluable asset to Industrial Valve Repair, Testing and Automation Services. Its reliability, power, and flexibility made it an essential tool in their valve repair and testing process, helping them to provide high-quality services to their customers safely and efficiently.

Confirmation of crane specification and details

On main specification confirmations

Subject: RE: RE: Re: RFQ 20T Overhead Crane.
Recipient: Ruonan Xu <[email protected]>
--------------------------------------------------------------------------
Dear Julia,

Good day,
Kindly need to revise your quote for below dimension:
Double girder overhead crane - Main 20Ton, Aux-5Ton, Lifting height-10 Meter, Span 22Meter, Total Travel Length-150Meter, Power 380Volt, 60Hz, 3Ph, control method-Joystick control(full pack and remaining -as per standard) .
 Need full quotation including shipping cost to Dammam port , Saudi Arabia.
Best Regards,

20 ton overhead crane drawing confirmation

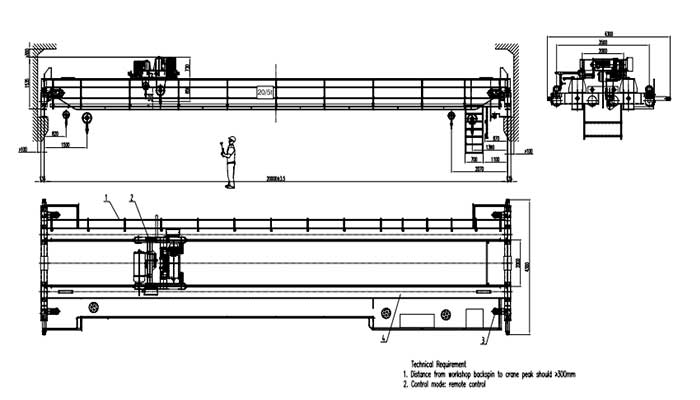

Based on the confirmed 20 ton overhead crane specifications, the double girder overhead crane drawing is provided to the Saudi Arabian clients,which is provided for your reference. If you need custom design for your bridge cranes , please feel free to contact us.

On crane rails and control voltages

Dear Amr Zaki,

Good morning.
We have received your payment today and will arrange the production of the crane as soon as possible.

The following information needs to be reconfirmed.

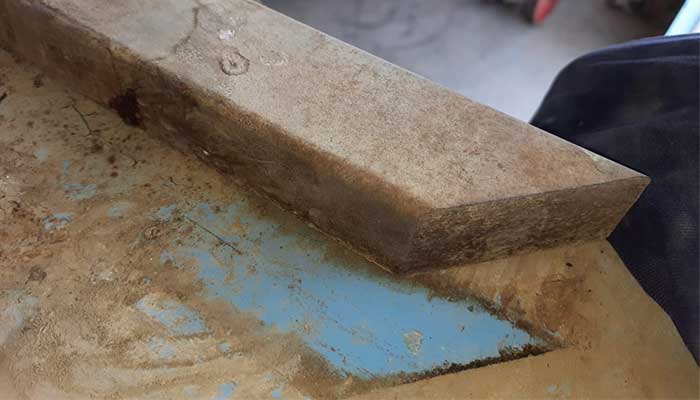

1.Existing rail:60 mm(width) x 40 mm (height), right?
2.Control voltage:36v,24v,48v. If there is no special requirement, we will follow 36v.

_________________

Dear Julia
 Good day,

• Dimension below correct rail:60 mm(width) x 40 mm (height),
• Voltage 24 V

Best Regards,

Production of 20/5 ton overhead crane

To keep our client well informed of the production, our sales engineer will keep our clients updated with crane production pictures.

Dear Amr Zaki,

Good day.
The crane is expected to finish production in about 15 days. I will send you some production pictures these two days.
Keep in touch.

Best Regards
Sales  Executive
Julia Xu

In the following the  production pictures of 20 ton main hook and 5 ton auxiliary hook overhead cranes are presented for your reference.

High performance European standard
low headroom wire rope hoist with
electric trolley
working class FEM 2M
Insulation grade: F
Protection class: IP54

Three-in-one motor
Frequency converting control, make the lifting smooth and stable.
Totally enclosed type with splash lubrication.
Electromagnetic disc type brake system
Insulation grade F
Protection class IP54.

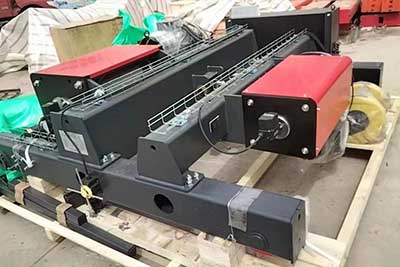

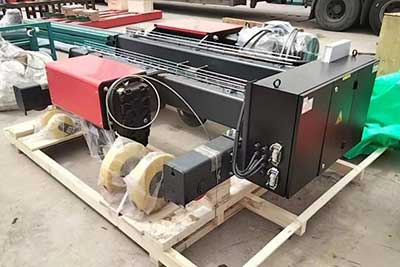

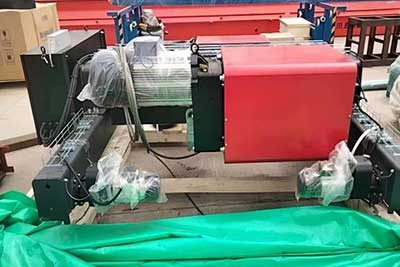

 Advanted european style low headroom wire rope hoist trolley for Saudi Arabian 20 ton / 5 ton overhead crane project

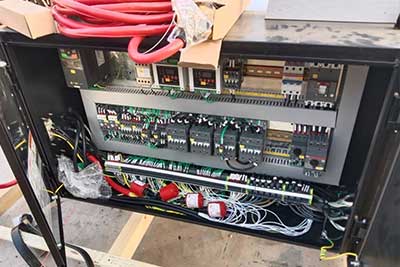

 double girder overhead hoist trolley cabinet

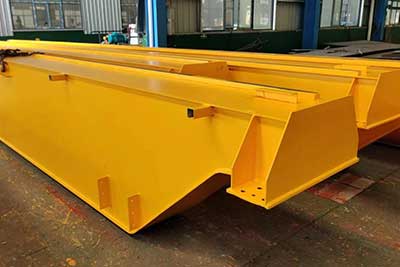

 box girder for 20 ton overhead crane

Welded box-section beam, mainly use
material Q235B carbon structural steel
strong and elegant, easy to maintain
Three-layer painting

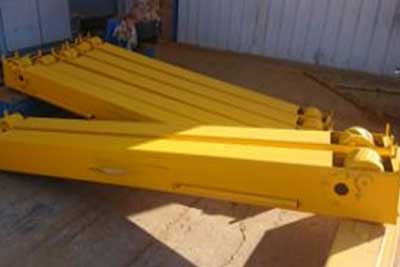

 End carriages of double girder bridge cranes

Q235B carbon structural steel square tube torsionally rigid box section design with quality wheels and powerful 3-in-one motors
Three-layer painting

Shipping and delivery

Yuantai Crane provide one-source overhead crane services from crane consultation to crane delivery and future upgradation and maintenance. According to your timetable, our team will delivery the overhead crane to your destination within your timetable.  With rich experiences and expertise in crane parts and components, crane weight and sizes, we can help customer to save cost during packaging and shipping.

Crane girder disconnection and container loading

As span is 20m, in order to fit in container, the main girders will be disconnected and reconnected using high-strength bolts provided by Yuantai Crane factory. Reference picture below.

 20 meters long main girder dissembled or devidied into 2 sections for easy transportation

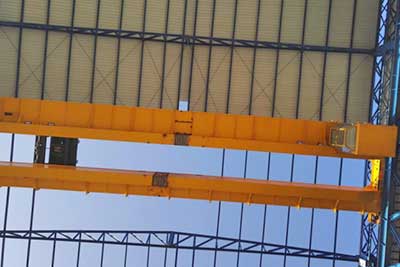

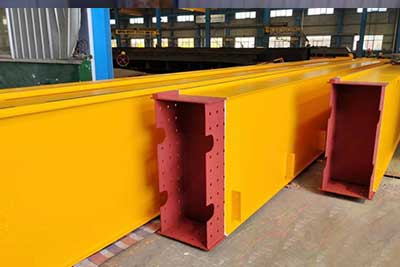

 Main girder assemblied by thick steel plates and bolts at installation site .

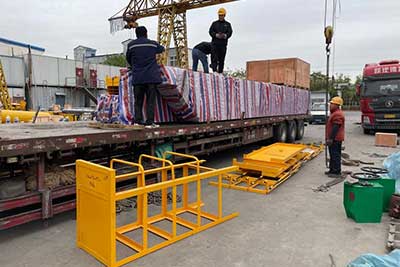

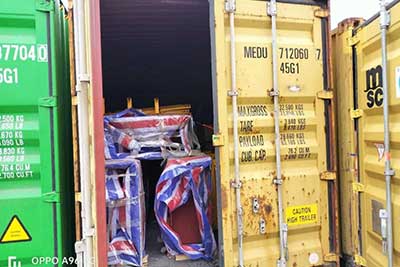

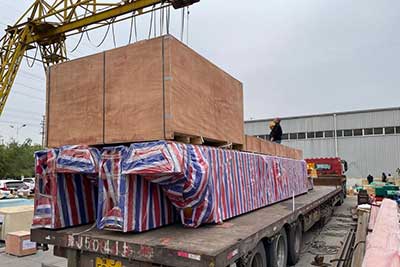

Loading crane into containers and delivery

Loading overhead crane girders into containers requires careful planning and execution to ensure safety and efficiency. Here are some steps to follow:

• Disassemble the girder: To load an overhead crane girder around 20 meters  into a container, it is often necessary to disassemble the girder into 2 sections shown in the above pictures and so that the long girder can fit into the container.
• Load the sections: The sections of the bridge girder can then be loaded into the container using a overhead crane, gantry crane or other lifting equipment.

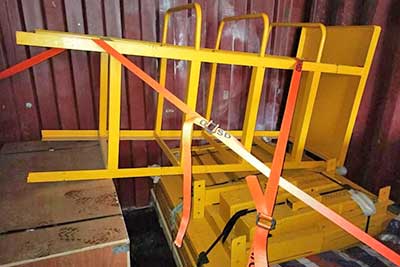

• Secure the girders and other parts : Once the girder sections are loaded into the container, they must be secured to prevent movement during transport. with the following reinforcement material, such as, triangle wood , steel nails, wire ropes, chuck clips, rubber hose, etc.
• Transportation: The overhead crane container can then be transported to its destination using a ship, truck or other vehicle

 Main parts and components of double girder overhead crane  20 ton  / 5  ton  for delivery to Saudi Arabia

 Main girder and hoist trolley boxed for shipping to Saudi Arabia

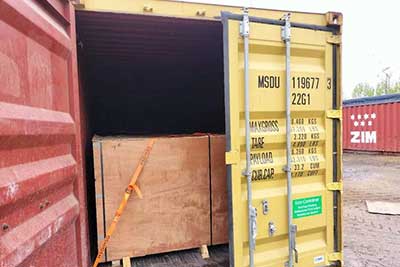

 Main parts of bridge crane loaded into containers

 overhead crane parts in shipping contianers

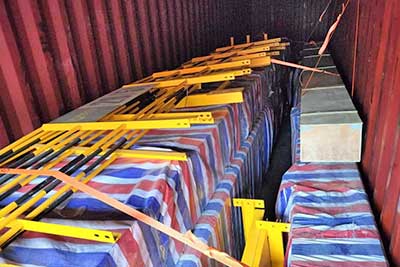

 main girder and steel structrues for delivery to Saudi arabia by  containers

 Well loaded and safely secured main parts and components of 20 ton overhead crane
