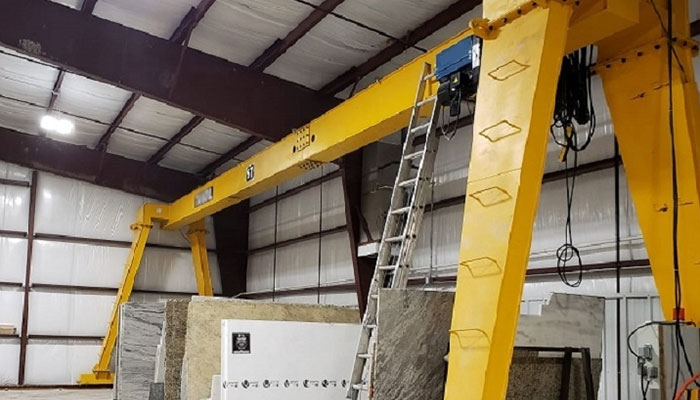

5 Ton Gantry Crane for Marble Plates & Stone Plates Handling

The single girder girder crane is designed for a stone and marble mill for marble products handling such as marble and stone plats, blocks, and others with capacity of 5 ton. Based on client ’ s workshop dimensions and lifting requirements, the 5 ton gantry crane is designed with European style  with the features of low headroom design.

The modern teuro-style design gantry crane has the attractive look,  and is equipped with a soft start motor with low noise. And also, the European style 5 ton single girder gantry crane uses high quality domestic or foreign brand of spare parts, which has a lower failure rate and a higher safety factor. This will increase your productivity and outperform your competitors by more than 30%.

If you choose Yuantai Cranes, it will undoubtedly help your business become more brilliant and successful. It can operate continuously for 24 hours in a short period of time under normal operating conditions, increasing production capacity and lowering factory investment.

Main specifications of 20 ton gantry cranes for sale Pakistan

Production of 20 ton gantry crane for stone & marble handling

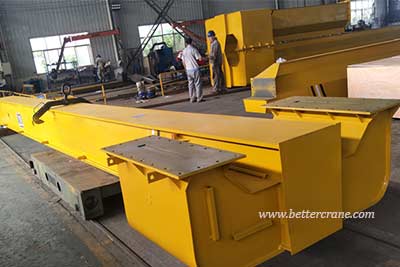

Main girder

Strong welded box girder gantry crane with elegant appearance

End truck

One set of single girder gantry crane  with two pieces including motors, wheels and buffers

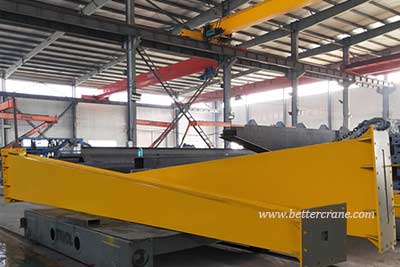

Supporting leg

One gantry crane is supported by four supporting legs including climbing ladder for maintenance

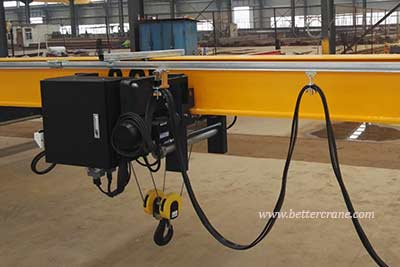

Euro style FEM standard electric wire rope hoist

Key lifting equipment of the 5 ton gantry crane with inverter control, stable operation, long-time service life

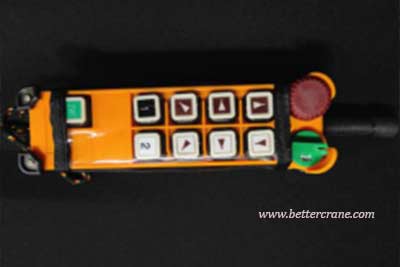

Wireless Remote

Telecrane brand, or your required poist,  master controller with push buttons of six directions, with fast and slow speed to ensure efficient and accurate loads operation

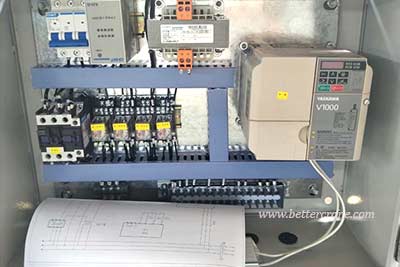

Control Panel

For electric hoist lifting and cross travelling. Schneider, control voltage 36V AC

Advantages of our 5 ton single girder gantry cranes

What are the advantages of our 5 ton gantry cranes? In the following, the comparison of Yuantai gantry cranes to other crane supplier’s will be presented for your reference in the terms of gantry crane steel material, gantry crane motors, electrics, surface treatment, etc. Beside, the custom designed gantry cranes are also available. If you have special requirement, please feel free to contact us and let’s check what we can do for you.

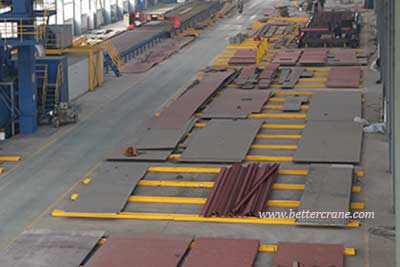

• No.1 Raw Material of Yuantai Crane
• Quality inspection has a strict  procurement procedure to ensure gantry crane quality from the QC of  raw materials.
• All steel materials  utilized  for gantry production  are  from significant steel mills, and the quality is assured.
• Inventory should be strictly coded.

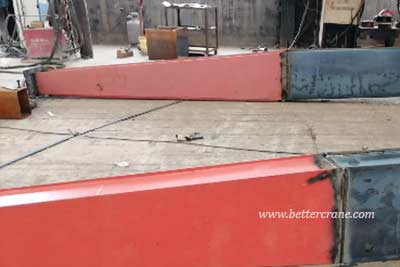

No.1 Raw Material from other crane manufactuer and supplier

• Take shortcuts, such as using 6mm steel plate for consumers instead of the genuine 8mm steel plate.
• Used equipment is frequently used for renovation.
• Buying steel that isn't standard because its quality is uncertain and high risks to safety..

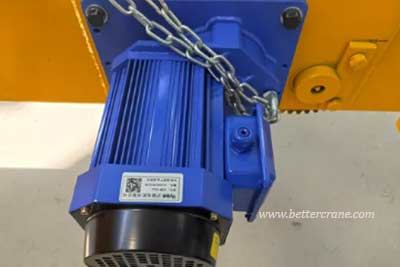

No. 2 Travelling Motor

• A three-in-one structure combines the brake, motor and reducer, small and compact effectively lowering crane dimensions.
• Low maintenance costs and low noise.
• An anti-drop chain that is already integrated into the motor can stop it from being loosened.

No. 2 Travelling Motor

• Old-style motors are noisy, easily damaged, have a limited lifespan, and are expensive to maintain.
• Both the price and the quality are quite low.

No. 3 Wheels

The surface of all wheels is coated with anti-rust oil after they have been heat-treated and modulated to increase working life and also makes them attractive

No. 3 Wheels

• Splash fire modulation should not be used since it is quick to corrode and has poor bearing capacity and a short lifespan.
• low cost.

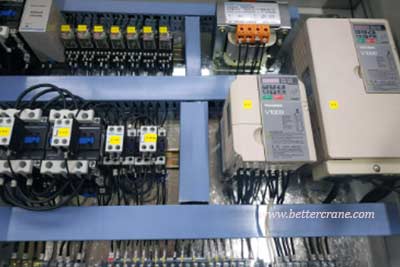

No.4 Electric control system

• Using Yaskawa or Schneider inverters increases the stability and safety of the crane's operation and makes  gantry crane maintenance simpler.
• The motor can self-adjust its power output in accordance with the weight of the object being raised at any time thanks to the self-adjusting function.
• It lengthens the motor's lifespan and reduces the equipment's power consumtion rate.

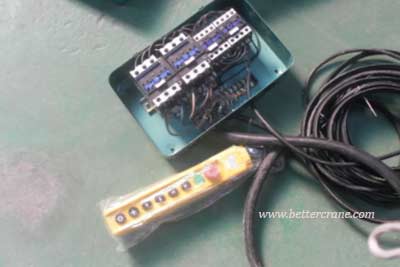

No.4 Electric control system

The gantry crane can attain its maximum power using the conventional contactor's control method after it has been started, but this causes the crane's entire structure to shake slightly at first and shortens the motor's lifespan.

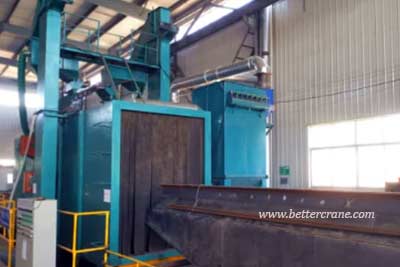

No.5 Surface grinding treatment

• Use current, high-volume gantry-through shot blasting production machinery.
• To improve the paint's adhesion, use iron sand to remove the rust.
• The entire structure of gantry crane  has a stunning appearance.

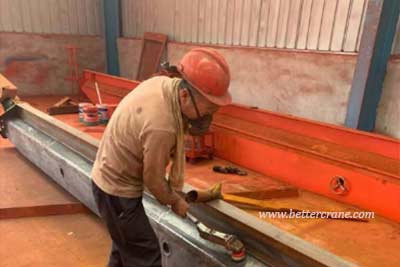

No.5 Surface grinding treatment

• Manual sanding results in an unattractive surface that is too rough.
• Environmental contamination has an impact on the overall crane 's appearance.
• Slag from welding and uneven grinding are frequent occurrences.

Hot Sale Indoor Gantry Crane Specifications

Gantry cranes are classified into several types based on the type of supporting structure and application. Here are some of the most common types of gantry cranes.

Full-Gantry Crane for Sale

It is one of the most common types of gantry cranes, with two supporting legs that can move across fixed rails. The full gantry crane is typically used in a designated area. Trucks are permitted to pass beneath the gantry crane. The trolley moves within the main span, and there is no overhang on the main beam.

Full gantry crane for indoor use parameters:

• Lifting Capacity:1 ton ~32 ton, up to 320 ton with processing design
• Span Length: 12~30m
• Lifting Height: 6~18m
• Working Class: A3, A4
• Traveling Speed: 20~30m/min
• Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min

Semi-Gantry Crane for Sale

A semi-gantry crane is also called single leg gantry cranes which with one leg runs along the ground rail, while the other end supported along a runway system attached to a wall or other vertical structure. Depending on your construction site or requirements, you can determine the height difference between the two legs

Semi gantry crane parameters:

• Capacity: 1 ton to 32 ton
• Span: 12-30m
• Lifting height: 6-12m
• Lifting speed: 6-11.5m/min
• Trolley running speed: 37-40.1m/min
• Crane running speed: 37.7-40.1m/min
• Work duty: A3-A6

Single Girder Gantry Crane for Sale

The single girder gantry crane consists of only a single girder as the main beam. The trolley and hoist are usually suspened on the lower part of the main girder. They run on the bridge's underside. It is frequently a light-to-medium-duty gantry crane that is appropriate for areas with limited floor space and low headroom. It also offers low-cost lifting solutions.

Single girder gantry crane parameters:

• Lifting Capacity: 1 ton -32 ton
• Span Length: 12~30m
• Lifting Height: 6~18m
• Working Class: A3, A4
• Traveling Speed: 20~30m/min
• Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min

Double Girder Gantry Crane for Sale

The double beam gantry crane, on the other hand, is made up of two girder beams that are made of box girder & truss girder design. The double girder gantry crane are used for heavy duty load handling, with high safety and efficiency.

Double girder gantry crane parameters:

• Capacity: 3 ton -320 ton
• Span: 18-35m
• Lifting height: 6-18m
• Lifting speed: 1.5-11.5m/min
• Trolley running speed: 10-40.1m/min
• Crane running speed: 16-50m/min
• Work duty: A3-A7

Portable Gantry Crane for Sale

Portable gantry crane, with portable swivel casters, adjustable beam & legs for light load lifting. Portable gantry crane, easy & affordable gantry hoist.

Portable gantry crane parameters:

• Capacity: 0.25 ton -10 ton
• Span: 2-12m
• Lifting height: 1-9m
• Lifting hoist： manual hoist & electric hoist
• Crane travelling: manual or motorized travelling
• Crane control: Pendent control or Remote

Get your custom gantry crane designs  at cost-effective price

Overhead cranes built on top of gantries, which are structures used to span an object or workspace, are referred to as gantry cranes. The majority of container ports have imposing, multi-story cranes called gantry cranes that are used to load and unload intermodal containers onto and off of container ships.

Before the designing of  gantry crane either single girder or double girder for a specific application, the following main parameters  and specifications are needed:

• Types of gantry cranes: Single/double girder? Semi-gantry? Truss gantry?Portable gantry?
• Capacity of gantry crane: Ultimate load lifting capacity= ____tons.
• Span of gantry crane : distance between the railway center = ____ meters.
• Cantilever: with cantilever at both sides or at one side? Or without cantilever?
• Lifting height: height of lifting from the ground to the lift center (Hook) = ____ meters.
• Gantry crane use/application: ____________________________________
• Crane Control: Remote control / Cabin control /Panel control
• Frequency = ____.
• Voltages = ____.

To help us provide you a more suitable gantry crane with custom designs and a more accurate crane  quotation with a more precise gantry crane price, kindly leave your your lifting requirement and main parameters and specifications and special requirements to us. Contact us today and get your unique gantry crane design tomorrow.
