Workshop dimension confirm to custom overhead crane
This 25 ton overhead crane will be installed in a new workshop of our client in UAE. Since there is a 6.484m height machine under the main beam of the overhead crane, there is a strict requirement of the main beam's height to ensure the required hook height. . After detailed discussion with the UAE client and crane engineer, a customized double girder overhead crane design ar worked out for the UAE client.
Steel Structure for supporting overhead crane 25 ton
Offer the UAE client a 6m steel stand column with a 700*300 travel beam and P38 rails. In addition, we use a specially designed double girder crane trolley to reduce the height of the main beam. Finally, the 25 ton overhead crane design meets the client's requirement for a lift height of 6.05m and a main beam height of more than 6.9m.
If you have any special requirements during the discussion, please tell us directly; we will do our best to turn your requirements into a practical design.
Overhead crane solution with finalized specifications
- Main specifications of 25 ton overhead crane
- Lift Capacity: 25t
- Lift Height: 6.05m
- Span: 7m
- Lift Speed: 2.7m/min
- Steel Structure
- Beam Height is more than 6.9m
- Travel Length: 31m
- Power: 380v, 50hz,3ac
Production pictures of 25 ton overhead crane for UAE

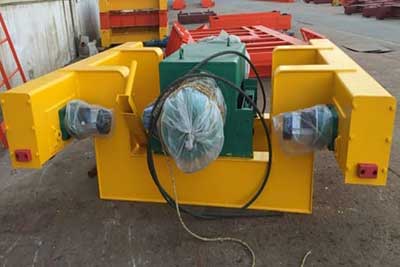

25 ton double girder crane trolley with low headroom design

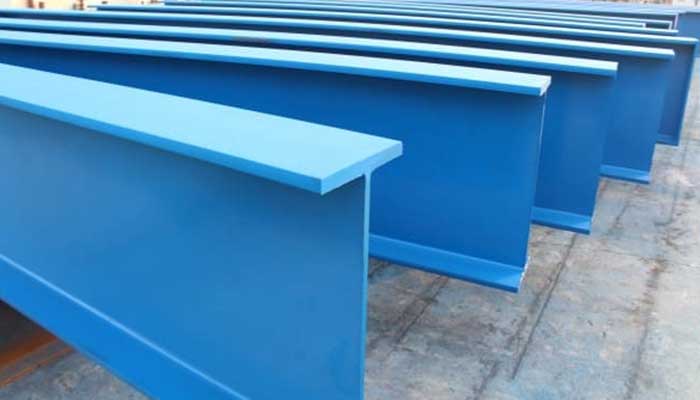

Travel Beam & Steel Stand Column for the 25 ton overhead crane

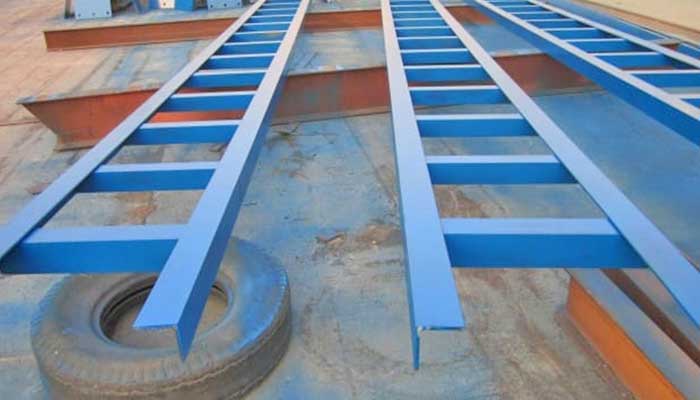

Reinforcement Structure of double girder overhead crane

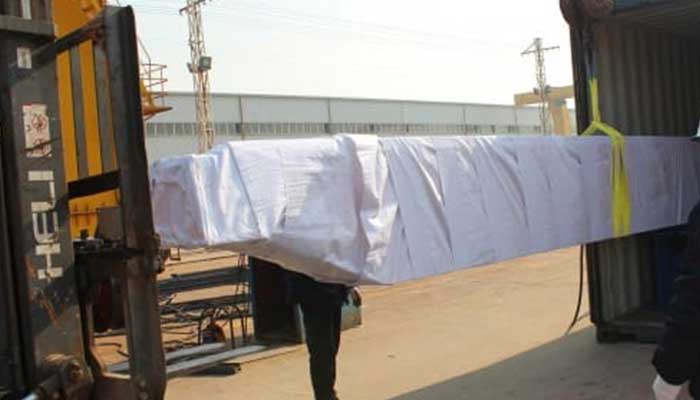

Main beam, end beam, platform, and 25 ton crane trolley for delivery to UAE
