Precast Concrete Handling Single Beam Gantry Crane for Sale UAE
Single beam gantry crane 6 ton for sale UAE for outdoor precast concrete handling good price. Economical single girder gantry crane for sale UAE. Check now.
Overview of 6 ton single beam gantry crane for UAE
- Location: UAE
- Products: Single Girder Gantry Crane 6 Ton
- Application: Precast Concrete
6 ton gantry crane inquiry of the UAE client
One UAE client left a message on our website requesting a quote for two sets of single girder gantry cranes for precast concrete handling. Sales representatives respond quickly and collaborate closely with the UAE customers to learn their specific needs, workflow, and expectations.
Precast concrete handling requirement for gantry crane
Actually, he intends to lift and move the lengthy precast concrete from one location to another using a gantry crane. Additionally, precast concrete doesn't weigh a lot.

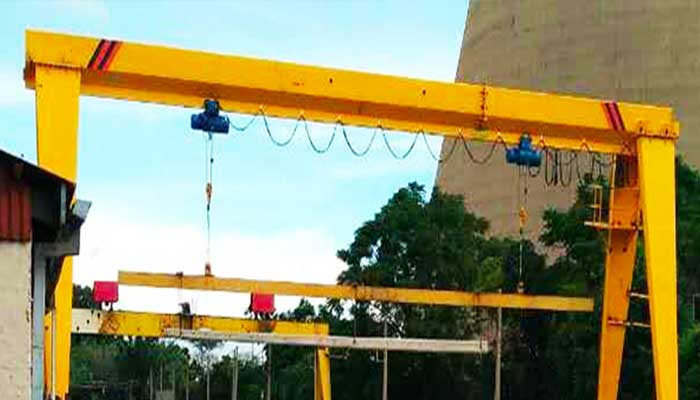

These details helped us develop a solution of a two electric hoist single girder gantry crane for the client that not only satisfies their needs but also significantly reduces their cost.
In addition, we designed the gantry crane with a 30 m/min for the crane travelling and a 7 m/min for loads hoisting to boost production and precast concrete handling, based on the volume of precast concrete that needs to be handled.
In order to ensure safety, the outdoor gantry crane is equipped with a lifting and traveling limit switch as well as an overload indicator, alarm light, and sound. Of course, other electrical protection devices are also included.
Feedback from UAE client about the 6 ton precast concrete handling cranes
The management of the client's business speaks favorably of our client's ability to buy a high-quality precast handling gantry crane while saving money.
The gantry crane purchaser has finally sent us a letter of appreciation, thanking us for our prompt, competent, high-quality crane service.
Hot Sale Gantry Crane for Sale UAE
Gantry cranes are classified into several types based on the type of supporting structure and application. Here are some of the most common types of gantry cranes.
Full-Gantry Crane for Sale UAE
It is one of the most common types of gantry cranes, with two supporting legs that can move across fixed rails. The full gantry crane is typically used in a designated area. Trucks are permitted to pass beneath the gantry crane. The trolley moves within the main span, and there is no overhang on the main beam.
Full gantry crane for indoor use parameters:
- Lifting Capacity:1 ton ~32 ton, up to 320 ton with processing design
- Span Length: 12~30m
- Lifting Height: 6~18m
- Working Class: A3, A4
- Traveling Speed: 20~30m/min
- Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min

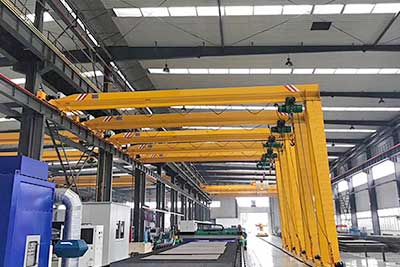

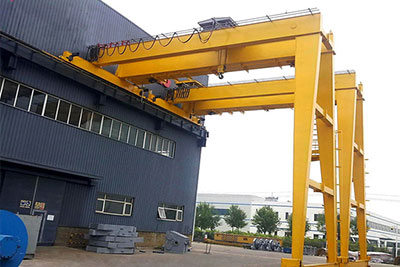

Semi-Gantry Crane for Sale UAE
A semi-gantry crane is also called single leg gantry cranes which with one leg runs along the ground rail, while the other end supported along a runway system attached to a wall or other vertical structure. Depending on your construction site or requirements, you can determine the height difference between the two legs
Semi gantry crane parameters:
- Capacity: 1 ton to 32 ton
- Span: 12-30m
- Lifting height: 6-12m
- Lifting speed: 6-11.5m/min
- Trolley running speed: 37-40.1m/min
- Crane running speed: 37.7-40.1m/min
- Work duty: A3-A6

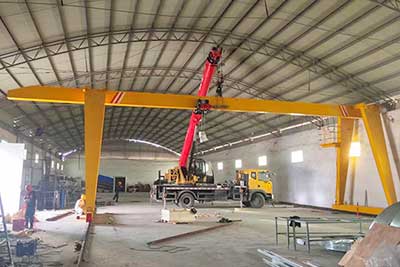

Single Girder Gantry Crane for Sale UAE
The single girder gantry crane consists of only a single girder as the main beam. The trolley and hoist are usually suspened on the lower part of the main girder. They run on the bridge's underside. It is frequently a light-to-medium-duty gantry crane that is appropriate for areas with limited floor space and low headroom. It also offers low-cost lifting solutions.
Single girder gantry crane parameters:
- Lifting Capacity: 1 ton -32 ton
- Span Length: 12~30m
- Lifting Height: 6~18m
- Working Class: A3, A4
- Traveling Speed: 20~30m/min
- Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min

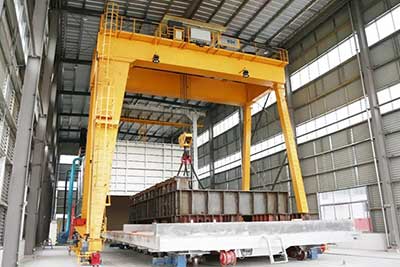

Double Girder Gantry Crane for Sale UAE
The double beam gantry crane, on the other hand, is made up of two girder beams that are made of box girder & truss girder design. The double girder gantry crane are used for heavy duty load handling, with high safety and efficiency.
Double girder gantry crane parameters:
- Capacity: 3 ton -320 ton
- Span: 18-35m
- Lifting height: 6-18m
- Lifting speed: 1.5-11.5m/min
- Trolley running speed: 10-40.1m/min
- Crane running speed: 16-50m/min
- Work duty: A3-A7
Portable Gantry Crane for Sale UAE
Portable gantry crane, with portable swivel casters, adjustable beam & legs for light load lifting. Portable gantry crane, easy & affordable gantry hoist.
Portable gantry crane parameters:
- Capacity: 0.25 ton -10 ton
- Span: 2-12m
- Lifting height: 1-9m
- Lifting hoist： manual hoist & electric hoist
- Crane travelling: manual or motorized travelling
- Crane control: Pendent control or Remote
