Single girder gantry crane for sale Indonesia for outdoor use. 16 ton gantry crane installation for your reference. Get your 16 ton gantry crane design.

16 Ton Single Girder Gantry Crane for Sale to Indonesia

16 ton gantry crane for sale to Indonesia  , is used for lifting and handling steel and iron materials in warehouses. After the parameter confirmation and drawing communication, the customer decided to purchase our 16 Ton single girder gantry crane, equipped with a wire rope electric hoist according to customer’s request.

A 16 ton gantry crane for sale in Indonesia installed outdoors for handle steel and iron items. The 16 ton gantry crane is a MH series of gantry cranes, which is an economical solution for material solution indoor and outdoor. This types of gantry crane is usually adopted the box girder, equipped with cd/md electric wire rope hoist, with lifting capacity up to 32 ton. The 16 ton single girder gantry crane is made to customer’s specifications based on his particular application and lifting conditions.

Main Specifications of Single Girder Gantry Crane for Sale to Indonesia

• Lifting Capacity: 16 Ton
• Span Range: 25m
• Lifting Height: 20m
• Electric Hoist: CD1 Wire Rope Electric Hoist
• Hoist Travelling Speed: 20-30 m/min
• Power Supply: 380V/50HZ/3Phase
• Usage: Lifting and handling wood

Structure Details of Single Girder Gantry Crane for Sale:

• Main parts and component: The single girder gantry crane is mainly made of a single girder bridge, , A-frame support legs, traveling mechanism, trolley, and electric equipment, etc.
• Mechanical component: Main girder with U template and welding surface range into composite beams. Use high-quality carbon steel, such as Q235B or Q345B. The main girder and end beams are joined with a 10.9 grade high strength bolt. The Crane travel mechanism makes use of trinity drive.
• Electric System: Module speed control, slow speed for high precision , and double speed for efficiency. Traveling and lifting with ease. The power for moving the trolley is provided by a flat cable that slides easily.
• Devices for Protection: Preventing the hook from colliding with the top. Protection device for circuit self-testing. The 16 ton outdoor gantry cranes have a lifting mechanism, an electrical control box, and rainproofing cover. Anti-collision, sound, and light alarms are available. Rail clamp is included.
• Control Methods: Crane control operation. In general, ground control. Cabin control is also offered based on the needs of the customer.

Single Girder 16 Ton Gantry Crane Features:

• High quality motors are installed in 16 Ton gantry cranes for frequent starting, reversing, and braking.
• The single girder gantry crane is simple to install and maintain, with dependable operation, ducted wiring, and small terminals.
• Gantry cranes are also equipped with overload protection, which is effective in the prevention of overloading.
• Single girder 16 Ton gantry crane for sale has attractive and long-lasting look, excellent performance, low cost, simple maintenance, and great adaptability, among other advantages.
• Widely used for outdoor loading and unloading. Material storage area, cement plant, granite industry, construction industry, engineering industry, and so on.
• Yuantai 16 ton gantry crane for sale can be designed to meet our clients' specific needs with tailored specifications and features.

Single Beam Gantry Crane Additional Advantages:

• Anti-falling protection for the trolley and gantry crane to prevent falling accidents.
• Rain Cover: For outdoor crane lifting mechanisms, electric cabinets, and drive mechanisms.
• Wind resistant function: All outdoor gantry cranes have a wind detection device and a protection loop attached.
• Anti-corrosion: All steel bare surfaces are physically and chemically prepared.
• Painting of gantry crane : Two antirust primer layers for pretreatment to improve enamelled coating adherence to metal.The color of the final paint is determined by the buyer.Four coats are approximately 30 micrometers thick and can successfully prevent steel structural corrosion.
• High Safety:Overload Limit Switch,Rubber Buffers,Electric Protective Devices,Emergency Stop System,Voltage Lower Protection Function.Current Overload Protection System,Rail Anchoring,Lifting Height Limit Device.

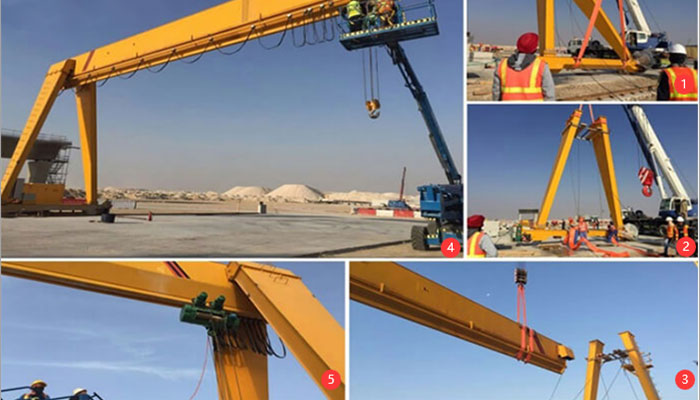

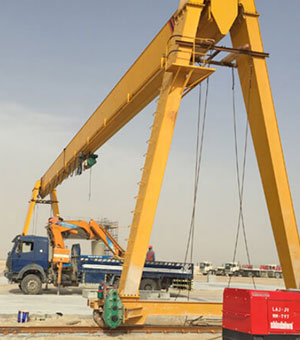

Single girder gantry crane 16 ton installation outdoors

Preparation of 16 Ton Single Girder Gantry Crane Installation

• Before installing the single girder gantry cranes, the installation site should be surveyed,  the measured data should be analyzed,  and an appropriate crane installation plan or schedule should be made in order to ensure the successful installation of the  gantry crane within the timetable .
• Make the needed materials and installation equipment ready. The requried materials are including  wrenches, pry bars, vises, etc.,  and the  equipment required may involving the  welding machines, gas cutting tools, etc, etc.
• Before crane installation make sure the site is clearly marked out to ensure safety. ,It is important to  make sure that installation workers and nearby personals are well aware of the gantry cranes installation site and know the related risks and also it necessary to make sure the site  is clean, and that obvious construction signs are in place to ensure that the construction may proceed commonly.
• The truck crane is used as  lifting equipment to help crane installation. And the capacity of the truck crane will be determined by the weight and dimensions of the crane main parts such as girders and supporting legs.

The gantry crane installation method is separated into 3 parts: leg installation, main lifting beam installation, and lifting trolley installation. Because the gantry crane legs are angled, the lifting is also angled. Due to the relatively high requirements for tethered hook and precision, the portal crane main beam is often configured in the open field weather protection devices.

Main Procetures of Gantry Crane Installation

1. Installation of gantry crane running track

Install and lay the corresponding type of rails according to the tonnage span size requirements of the equipment design.

• The unevenness of the front and side is ≤1/1500, and the total length is ≤2mm;
• The verticality of the rail to the ground is less than 1mm, and the slope of the rail is less than 3mm;
• The position deviation between the actual centerline of the track and the design centerline of the track should be less than 3mm;
• The relative elevation difference between the two tracks on the same section is ≤10mm;
• The misalignment of the left, right and upper sides of the track joint ≤ 1mm;
• The positions of the tips of the two parallel tracks should be staggered, and the staggered distance should not be equal to the distance between the front and rear wheels of the rail mounted gantry crane;
• The joint gap should be 2~3mm; the height difference of the guide rail should be ≤2mm.
• Terminal limit devices (guide rail limiters, buffer blocks) and brake baffles should be installed at both ends of the track to prevent rail mounted gantry crane derailment accidents.

2.Gantry Outrigger assembly

Assemble the main outrigger, auxiliary outrigger, stabilizer bar, balance beam, driver's floor platform, lower wheel box, beam seat, etc., according to the design requirements, to ensure the overall design accuracy and reliability.

• Connect the main beam base with the main and auxiliary legs on the ground with bolts;
• Use stabilizer bars to connect the main beam base with the main outriggers;
• The balance beam and the outrigger are connected by a pin;
• The cart walking and the outriggers are connected on the ground with a pin shaft;
• The operating platform and the outrigger are connected as a whole with a pin.

3.Assembly of gantry crane main girder

• Connect the sections of the main girder frame with pins in the order of manufacture to form the whole main girder to ensure the accuracy and reliability of the overall design;
• If the rail mounted gantry crane design has an electric hoist device, the electric hoist should be installed in the middle of the track before the main beam is hoisted, and the position should be temporarily fixed to avoid side slip and accidents when the whole beam is hoisted.

4. Hoist trolley assembly

Assemble the wheel box, the cross arm of the crane, and the fixed pulley correctly, and ensure the gauge of the crane, and the limit deviation of the gauge is ±2mm.

The above is the  gantry crane installation steps, in addition there are many details of the work, such as crane mechanical parts debugging, crane electrical parts debugging and other work. Special note: Gantry cranes belong to special equipment, the crane installation requires professional staff , it is strictly prohibited to arrange untrained  personnel to install.

How to Choose Single Girder Gantry Crane

• Know your gantry crane specifications, such as capacity, span, lifting height, lifting speed, work duty, hook approach, runway length, and more.
• Consider the working environment and other aspects involved in the design of the runway and crane construction, as Yuantai cranes come in a variety of styles, including rail mounted, box type, truss type, with or without cantilever.
• Whether pendant control, remote control, or cab operation is necessary.

• Consider crane safety, maintenance, and the standards that must be followed.
• Consider additional components such as a limit switch and warning horns.
• Please contact us if you require any additional information on gantry cranes. Yuantai Cranes can help you in selecting the appropriate gantry crane for your application and will provide you with the best gantry crane price.

Customized Gantry Crane for Sale, Get Your Customized Crane Price

If you want to order Yuantai gantry crane, Please confirm the following parameters:

• Lifting capacity: ____?
• Span ____? ( “S” the distance of rail to rail center)
• Lifting height: ____?
• What type of material to be lifted?
• Power supply: ____?( What if 380v50hz3phase or otherwise?)

Yuantai, as a leading crane manufacturer and supplier in China, can provide various types of single beam gantry cranes, such as A (MH) type single girder gantry crane, (MH type box structure gantry crane without/with cantilever, MH type truss structure gantry crane without/with cantilever), truss type single girder gantry crane, L type single girder gantry crane, and so on. Please contact us as soon as possible if you need a custom single girder crane for your application. Leave us your gantry crane requirement, and we will design it for you.
