5 Ton Explosion Proof Jib Crane for Sale Indonesia, Custom 5 Ton Jib

5 ton jib crane with custom explosion proof design, 360 degree rotating, 6 *6 height & arm, remote control for sale Indonesia. Check 5 ton jib crane & hoist now.

Overview of explosion proof jib crane 5 ton for sale Indonesia

  • Jib crane type: floor mounted jib crane
  • Main specifications; 5 ton, 6 m lifting height, 6 m arm length, 360° rotating
  • Jib hoist ; BCD explosion proof e electric wire rope hoist
  • Power supply 380V/50Hz/3P
  • Crane control : Pendant control
  • Working grade: A3
  • Project location: Indonesia
  • Contact person: Simon <[email protected]>

Case Study: Explosion Proof Jib Crane 5 Ton for Sale in Indonesia

Our client in Indonesia was in need of an explosion proof jib crane with a lifting capacity of 5 tons, lifting height of 6 meters, arm length of 6 meters, and 360° rotating capability. The crane was required to be floor mounted and have a BCD explosion proof electric wire rope hoist. The power supply was specified as 380V/50Hz/3P with pendant control for crane operation. The crane was to be used in a hazardous environment and needed to meet the A3 working grade.

Explosion proof jib crane design

We recommended a floor mounted jib crane with a BCD explosion proof electric wire rope hoist. The crane was designed to meet the specific requirements of the client, including the lifting capacity, lifting height, arm length, and rotation capability. The crane was designed to be floor mounted which allows for easy installation and mobility. The BCD explosion proof electric wire rope hoist is ideal for hazardous environments where safety is a top priority. The power supply was specified as 380V/50Hz/3P which meets the standard voltage in Indonesia. The pendant control was also included to allow for easy operation of the crane.

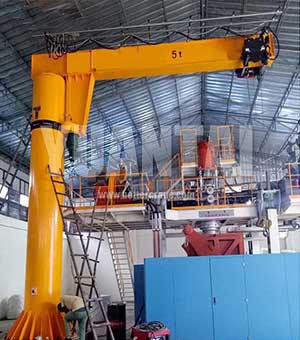

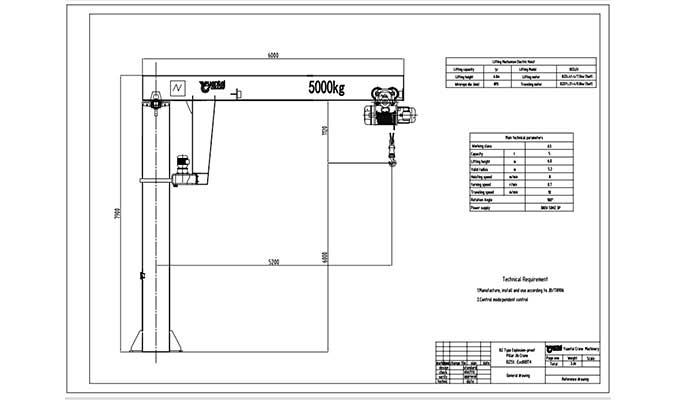

floor mounted column jib crane 5 ton with explosion-proof features

Technical Specifications and Configuration Details

Item



Pillar Jib Crane

Capacity

Rated

t

5

Testing (static)



6.25

Lifting height

m

6

Valid radius

5.2

Rotation angle

°

360

Speed

Slewing speed

r/min

0.7

Hoist traveling speed

m/min

10

Lifting speed

8

Working grade

/

A3

Power supply

V/Hz/P

380/50/3

Control voltage

V/Hz

36/50

Total weight

t

3.8

Max. Height

m

7.9

Max. Length

6

Protection class

/

IP54

Explosion proof



Class I div. 2, Zona 2 3G Ex d IIA T3

Insulation class

/

F

Working temperature

/

-20℃ ~ +40℃

Manufacturer

/

Dongqi Group Yuantai Crane Machinery

Country of original

/

China

Main configurations of 5 ton explosion proof jib cranes

The Indonesian client was extremely satisfied with the solution we provided. The explosion proof jib crane met all the requirements specified by the client and was delivered by shipping on time. The 5 ton jib crane and hoist has been in operation since installation and has proven to be reliable and efficient.

non spark rope guide

Rope guide

  • Installed on the winding drum to guide the wire rope,
  • Alloy non-spark material
Explosion proof lifting stopper

Limiting stopper 1

  • For the vericatial lifting stopper,
  • Explosion proof class AT3
Explosion proof overload limit

Overload limit

  • For lifting protection, monitor the hoist situation
  • Acousto-optic warning. Explosion proof class AT3
Explosion proof electric box

Electric box

  • CHNT brand, Chinese famous brand
  • Explosion proof class AT3
Explosion proof control

Control

  • Pendant control with cable. Six direction button, including up and down, left and right, forward and backward.
  • Protection class IP 65. Explosion proof class AT3
Explosion proof motor

Motor

  • Special designed Maintenance free. Insulation class F.
  • Protection class IP54.Explosion proof class AT3,'
  • Electromagnetic disc type brake system, etc.
  • Stand column - Q235B carbon structural steel
  • Jib arm - Q235B carbon structural steel
  • Lifting hoist - Electric wire rope hoist with reducer, drum, motors, Protection class F class
  • Electric trolley - Alloy gear and wheels, 125% testing load of the rated capacity. Braking method please see the travelling motor details.
  • Moter - Special designed Maintenance free. Insulation class F. Protection class IP54. Explosion proof class AT3 , Electromagnetic disc type brake system
  • Gear box - Totally enclosed type with Splash Lubrication, gear box shell pressure casting
  • Winding drum - Dongqi Crane manufacture. Seamless Q235 B steel tube
  • Wire rope - Rope structure NAT 6X37 FC 1670, steel core, diameter 11mm.
  • Hook - Forged type with safety latch
  • Rotation mechanism - Motorized swinging strut, avoid the phenomenon of stuck resistance and skidding of wheel box in the process of rotation
  • Other protection - Phase-break protection, no-voltage protection, over-current protection,etc.
  • Festoon cable- Supplied power for the trolley and hoist
  • Bolt fixed foundation- Special high strength bolts

The Indonesian client has reported a significant increase in productivity since the installation of the explosion proof crane. We are proud to have provided a lifting solution that has helped our client achieve their goals and improve their operations.

Productions of 5 ton floor mounted jib crane

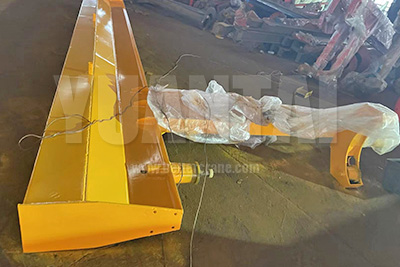

 rotating arm of the 5 ton explosion proof jib cranes for indonisian project  rotating arm of the 5 ton explosion proof jib cranes for indonisian project

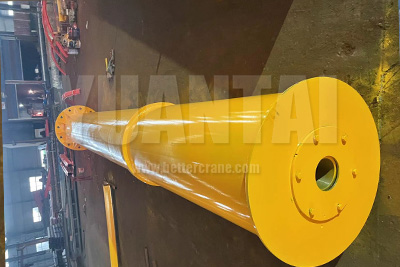

Floor mounted pillar or column of the explosion proof wire rope hoist crane  Floor mounted pillar or column of the explosion proof wire rope hoist crane

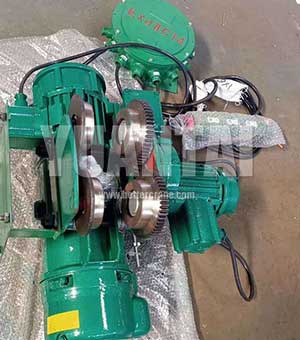

BCD explosion proof electric wire rope hoist  BCD explosion proof electric wire rope hoist

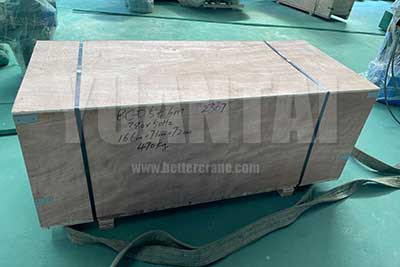

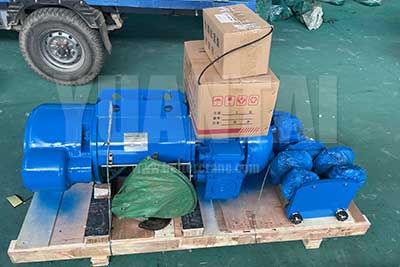

 5 ton explosion proof wire rope hoist and parts packed for delivery to Indonisia.  5 ton explosion proof wire rope hoist and parts packed for delivery to Indonisia.

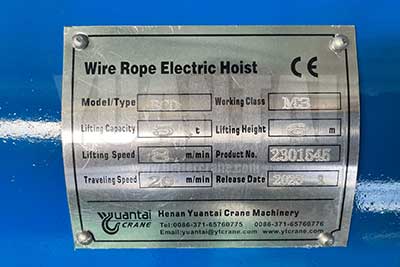

Name plate of 5 ton electric hoist, 6 m lifting height  Name plate of 5 ton electric hoist, 6 m lifting height

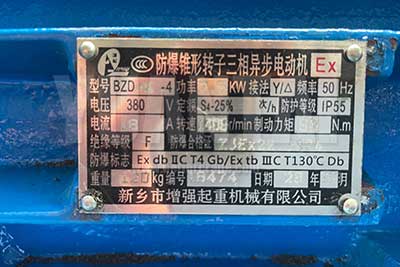

Explosion proof motor for electric hoist Explosion proof motor for electric hoist

Delivery

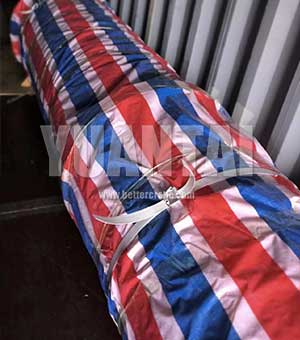

Column of 5 ton pillar jib crane loaded into container Column of 5 ton pillar jib crane loaded into container

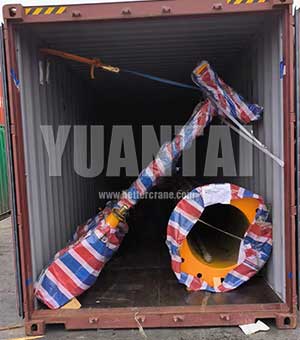

Arm and colum of 360 degree rotating jib crane in container Arm and colum of 360 degree rotating jib crane in container

Why to buy 5 ton jib crane from Yuantai Crane

A 5-ton column jib crane is a type of lifting equipment that consists of a vertical column and a horizontal jib arm. It can lift up to 5 tons of weight and is commonly used in industrial settings for material handling and loading/unloading tasks.

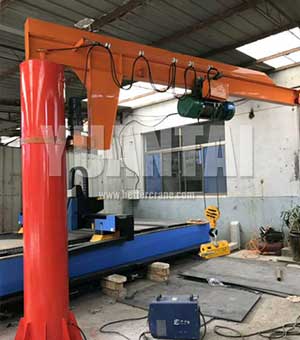

 5 ton jib crane equipped with cd/md electric wire rope hoist  5 ton jib crane equipped with cd/md electric wire rope hoist
5 ton jib crane with low headroom hoist 5 ton jib crane with low headroom hoist

The workshop jib crane 5 ton is a recently developed small and medium-sized lifting equipment that is known for its unique structure, high efficiency, energy conservation, and flexibility. It is a safe and reliable option that can operate freely in 3D space, making it ideal for short-range and intensive lifting occasions. The crane is widely used in fixed locations such as workshops, warehouses, and docks.

The crane's advanced design idea gives it a light structure and excellent performance, while also narrowing the hook operation distance to improve space utilization. This compact design helps reduce workshop investment costs and brings more investment returns.

Yuantai column jib cranes have some benefits over other types of cranes, such as:

  • Versatility: Column jib cranes are versatile and can be used in a variety of industries and applications, including manufacturing, construction, and transportation.
  • Space-saving: These cranes take up less space compared to other types of cranes, making them ideal for small workshops or areas with limited space.
  • Easy to install: Column jib cranes are easy to install and can be mounted on existing structures, such as walls or columns, without the need for additional support structures.
  • Cost-effective: These cranes are generally less expensive than other types of cranes, making them a cost-effective solution for small businesses or operations with limited budgets.
  • Increased safety: Column jib cranes have a smaller range of motion compared to other types of cranes, which can increase safety and reduce the risk of accidents in the workplace.
  • Overall, column jib cranes are a reliable and efficient solution for lifting and moving heavy loads in various industries.



Customized jib crane for sale, economical jib crane price

Capacity(KG)

500 KG

1000KG

2000KG

3000KG

5000 KG

Model

BZD0.5

BZD01

BZD02

BZD03

BZD05

Beam Material

H Beam & KBK Beam

Travelling Type

Electrical & Manual

Electrical

Electrical

Electrical

Revolving Type

Electrical & Manual

Electrical

Electrical

Electrical

Revolving radius

1m - 7m

1m - 7m

1m - 7m

1m - 7m

1m - 7m

Lifting Height

2m - 10m

2m - 10m

2m - 10m

2m - 10m

2m - 10m

Total Height

2m - 10m

2m - 10m

2m - 10m

2m - 10m

2m - 10m

Revolving Angle

180° & 270°& 360°

Lifting Sped

7.2/2..4

6.9/2.3

6.6/2.2

6.6/2.2

2.7/0.9

Explosion-proof Electric Wire Rope Hoist

The 5 ton Explosion-proof Electric Wire Rope Hoist is designed to meet explosion-proof level standards ExdII BT4 and ExdII CT4. It can be used individually on workshop fixed suspension rails, or in conjunction with LXB explosion-proof suspension single beams, LB explosion-proof electric single beams, and explosion-proof hoist double beams. This hoist is ideal for use in environments that are combustible, explosive, dusty, corrosive acid/alkaline/plating, and mixture gas.

One of the key features of the 5 ton explosion-proof electric hoist is its explosion-proof electric motor that is fireproof and dustproof. This motor is made with precision to ensure optimal performance and safety in hazardous environments.

BCD explosion proof wire rope hoist BCD explosion proof wire rope hoist

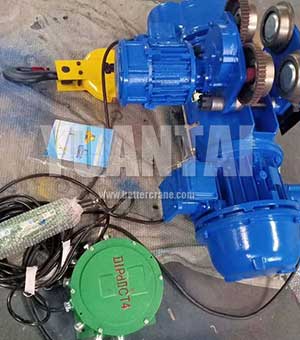

Explosion proof hoist trolley Explosion proof hoist trolley

Parameters of Explosion-proof Electric Wire Rope Hoist

Model

HB, BCD, BMD

Lifting capacity(t)

0.5

1

2

3

5

10

16

20

Lifting height(m)

6/9/12/18/24/30 or specified height

Lifting speed(m/min)

8 (0.8/8)

7 (0.7/7)

3.5 (0.35/3.5)

Traveling speed(m/min)

20

Power Source

3PAC 380v,50HZ

Check out these amazing features of the Explosion-proof Electric Wire Rope Hoist:

  • It has a reasonable structure and is lightweight, making it easy to handle.
  • The hoist has a favorable performance that ensures accurate and smooth lifting.
  • You can trust the hoist to travel safely and reliably.
  • The hoist operates quietly with easy-to-use controls.
  • Maintenance is a breeze, and parts and components are highly interchangeable.
  • It is designed with an explosion-proof form that ensures safety in hazardous environments.
  • The Ex-mark is dIIBT4 or dIICT4, which means it meets the highest standards for explosion-proof equipment.
  • The temperature scale is Class T1-T4, which makes it suitable for use in a wide range of explosive air mixtures.

5 ton explosion-proof hoists and cranes are highly versatile and find wide application in various industries including petroleum, petrochemical, petrol stations, oil depots, gas production, chemical industry, military, electric power, mining, electronics, railways, and many other dangerous environments where fires and explosions are a risk. These explosion proof hoists and cranes are designed to be safe and reliable in hazardous locations, ensuring that workers can operate in a secure environment. The lifting equipment' explosion-proof features make them an ideal choice for industries where safety is a top priority.

Don't miss out on this top-of-the-line Explosion-proof Electric Wire Rope Hoist and Jib Crane. Contact us today to check what Yuantai Crane can do on the explosion proof material handling!
