5 Ton Single girder eot Crane for sale Indonesia, Custom EOT Crane
5 Ton Single girder eot Crane for sale Indonesia, Custom EOT Crane
5 ton eot crane for sale Indonesia. Custom 5 ton single girder eot crane, 29 m crane span, cd electric wire rope hoist, 380v 50hz 3p for marble tile factory.
Overview of 5 Ton Single girder eot Crane for sale Indonesia
- Crane type： Single Girder eot Crane for sale Indonesia
- Crane capacity： 5 ton
- Crane span: 29 m
- Crane lifting height : 9 m
- Crane power supply: 380v 50hz 3p
- Application: marble tiles manufacturing
- Location of crane project: Indonesia
Indonesia's prominence as a major producer of marble tiles was the driving force behind the need for an efficient material handling solution. The country's abundant marble supply and costeffective labor force made it a competitive player in the marble tile market. The laborintensive process involved quarrying marble, cutting it into slabs, and then manually polishing and finishing the slabs.
Lifting requirements of 5 ton single girder eot cranes
The existing overhead crane in the marble tile factory had a 2ton lifting capacity, which proved insufficient for handling the heavier marble slabs. As a result, workers had to resort to manually lifting the slabs, leading to safety risks and reduced productivity. Recognizing the need to enhance productivity and safety, the factory management decided to invest in a new overhead crane with a higher lifting capacity.
The client had specific requirements for the EOT crane, including a 5ton lifting capacity, a crane span of 29 meters to cover the entire manufacturing area, and a lifting height of 9 meters to accommodate their production needs. Additionally, the power supply available at the facility was 380V, 50Hz, 3phase.

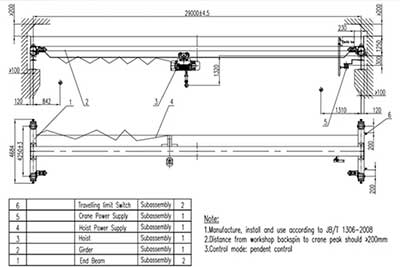

5 ton eot crane design and drawing
single girder eot crane 5 ton for sale Indonesia

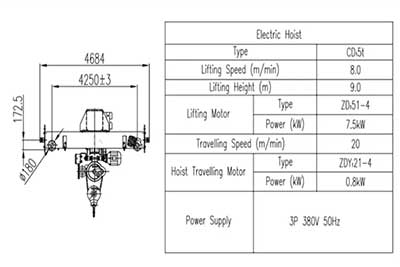

5 ton electic wire rope hoist 9 m for sale Indonesia- Lifting Capacity: 5 ton
- Span: 29m
- Lifting Height: 9m
- Hoist Type: CD wire rope hoist
- Travelling Speed: 20m/min
- Lifting Speed: 8m/min
- Lifting Motor: ZD514
- Rail Type: P22
- Crane Travelling Motor: SZW100
- Hoist Travelling Motor: ZDY214
- Power Supply: 3P 380V 50Hz
- Control Mode: Pendent Control
Productions of 5 ton single girder eot cranes for sale Indonesia
The production process of 5ton single girder EOT cranes starts with meticulous design and engineering. Experienced engineers work closely with clients to understand their specific requirements and site conditions. They take into account factors such as lifting capacity, crane span, lifting height, power supply, and the application to create a customized crane design that meets the client's needs.

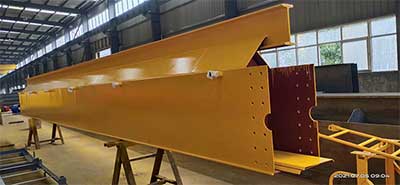

Main girder of 5 ton single girder eot crane for sale Indonesia, with length of 29 m, which is cuted into 2 sections

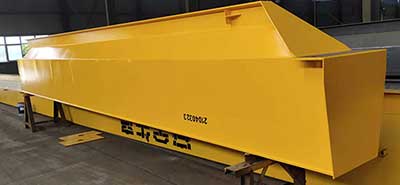

main girder of 29 m main of 5 ton single girder eot crane

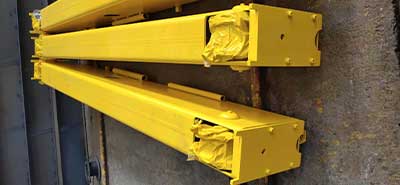

End carriages of 5 ton single girder eot crane for sale Indonesia.

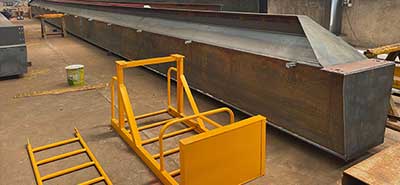

Main girder of the 5 ton singl eigrder eot crane under construction
5 ton electric wire rope hoist

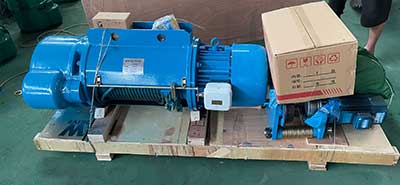

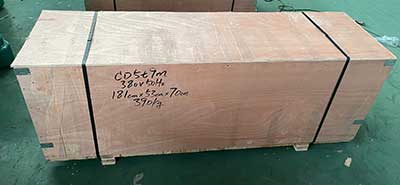

5 ton electric wire rope hoist and parts are packed for delivery to IndonesiaFeatures of 5 Ton Single Girder EOT Crane by Yuantai Cranes:
The custom 5ton single girder EOT crane designed, supplied, and installed by Yuantai Cranes addressed all the specific requirements of the marble tile factory. Key features of the crane included
- Single Girder Design: The crane's single girder design provided optimal weight distribution and stability during lifting and transportation operations. This design choice allowed for costeffectiveness without compromising performance.
- 5 Ton Wire Rope Hoist: The crane was equipped with a 5ton wire rope hoist, ensuring it could handle heavy loads efficiently. The hoist offered precise control over lifting and lowering, essential for the delicate handling of valuable marble slabs.
- Versatility and Efficiency: The 5ton EOT crane allowed workers to move heavy loads quickly and safely across the factory floor. Its smooth operation and precise controls contributed to increased productivity, streamlining the material handling process.
- Safety Features: Yuantai Cranes' solution included advanced safety features to protect workers and the valuable marble slabs during lifting and transportation. This eliminated the need for manual handling and significantly reduced the risk of accidents.
Yuantai Cranes' 5ton single girder EOT crane proved to be the perfect material handling solution for the Indonesian marble tile factory. By addressing the specific requirements of the production facility, the crane enhanced productivity and safety. With its reliable performance and durable construction, the crane allowed the factory to meet the growing demand for marble tiles efficiently. The successful implementation of the custom overhead crane highlighted the importance of investing in highquality and tailormade material handling solutions for industrial settings, ultimately leading to increased efficiency and profitability.
Get your custom single girder eot crane 5 ton in Indonesia
Getting a custom single girder EOT crane that precisely meets the requirements of your overhead crane marble tile factory involves a series of steps and collaboration with a reputable crane manufacturer. Here's a guide on how to achieve this:
Identify Your Specific Requirements:
Before approaching a crane manufacturer, clearly define your specific requirements for the single girder EOT crane. Determine the following factors:
- Lifting Capacity: Calculate the maximum weight of marble slabs or materials that the crane needs to lift.
- Crane Span: Measure the distance between the crane runway rails to determine the crane's span.
- Lifting Height: Determine the maximum height the crane needs to reach to handle materials effectively.
- Power Supply: Specify the available power supply at your factory (e.g., voltage, frequency, and phase).
- Special Features: Identify any specific features or requirements unique to your marble tile factory.
Look for crane manufacturers with experience in providing custom solutions for overhead cranes in industrial settings. Check their track record, customer reviews, and industry reputation to ensure their reliability and expertise.
Yuantai Crane provides custom 5 ton single girder eot crane for your application. Don't wait any longer to upgrade your material handling capabilities. Contact us now to get your custom single girder 5ton EOT crane tailored to your requirements. Our team is ready to assist you with expert guidance and a solution that meets your specific needs.
