20 Ton Gantry Crane for Sale to Nigeria
In October 2022, one set of double girder designed 20 ton gantry crane was purchased by our client from Nigeria. With the assistance of our installation crew, they completed the installation and commissioning of this 20 ton gantry crane and the performances of the gantry crane was very satisfactory.
Overview of gantry crane project for Nigeria
- Crane type: Double girder gantry crane
- Crane specifications: 20 ton - 10 m span -9m lifting height
- Crane application: outdoor use for stone and marble handling
- Project location: Nigeria
20 Ton gantry crane requirements & inquiry background
We received this inquiry on 9th, October, the client was looking for a gantry crane to load and unload goods for his marble factory. our sales engineer started to contact this customer via E-mail and WhatsApp. In the initial stage, the customer just had a preliminary idea for movable gantry crane. After nearly 2 weeks of uninterrupted communication, the customer's requirements were gradually confirmed.
On October 9, we received this query from a client who needed a gantry crane to load and unload marble blocks with weight of 20 tons at his marble factor in Nigeria. The customer's first plan is to buy a mobile gantry crane for efficiency and flexible loads handling. After details confirmation in about 2 weeks, the 20 ton gantry crane with double girder design was confirmed.
Detailed crane specification of gantry crane 20 ton for sale Nigeria
This project specifications of 20 ton gantry crane to Nigeria for your reference:
- Type: MGO Double Girder Gantry Crane
- Lifting capacity: 20 ton
- Lifting height: 9m
- Span: 10m
- Cantilever left: 3m
- Cantilever right: 3m
- Trolley traveling speed: 35m/min
- Crane traveling speed: 45m/min
- Lifting speed: 7.2m/min
- Working class: M5
- Power supply: 380v, 3phase, 50hz
- Trolley traveling power: 2.5*2KW
- Crane traveling power: 5.5*2KW
- Hoisting power: 26KW
- Total power: 42KW
- Total weight: 25600KG
- Max wheel load: 232 KN
- Protection class: IP54
- Insulation grade: F
- Ambient temperature: -20℃ ~ +40℃
- Control: Remote control
- Warranty: 12 months from date of installation or 18 months from the date of dispatch from our factory whichever is earlier.
Our Nigeria client was quite pleased with the 20 ton gantry design provided by Yuantai crane engineers. We have the ability and responsibility to offer our customers high-quality pre-sales and after-sales services because we are a reputable crane manufacturer. Once the installation was finished, the 20 ton gantry crane functioned properly.
Production of 20 ton gantry crane for Nigeria

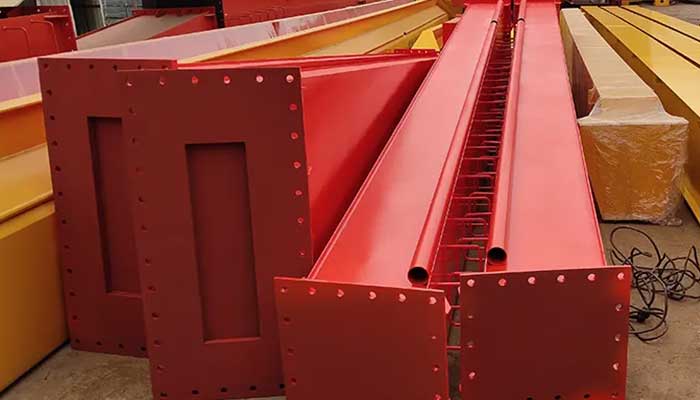

Supporting legs of 20 ton gantry cranes

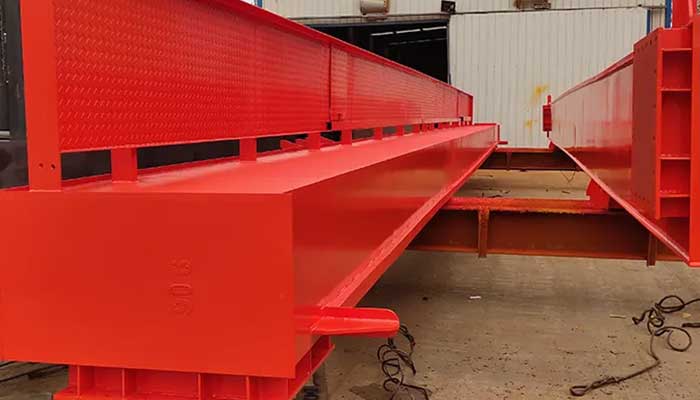

Gantry crane beams for 20 ton crane project in Nigeria
20 ton gantry crane hoist for delivery to Nigeria
The client in Nigeria is delighted with this 20 ton rail-mounted gantry crane since it will increase productivity and save costs associated with handling and moving pebbles. Additionally, this is only the first stage of the project; the second stage is currently under development and will involve more procurement requirements. Customers will also need to make plans to buy a gantry crane and a jib crane in the coming months. We currently have a supply estimate and a drawing for them. We appreciate the Nigeria customers that believe in our products. And we'll give our customers top-notch hoists and cranes and services, expecting them to cooperate more in the future.
Further reading on 20 ton double girder gantry crane
Double Girder Gantry, High Capacity & Security
Double girder gantry cranes are chosen and utilized extensively in every sector of the industry because they are inexpensive, simple to maintain and repair, have no size or capacity restrictions, and are designed and manufactured with the features that customers want. Compared to single-girder gantry cranes, far higher lifting heights can be achieved.
- It is possible to manufacture double-girder gantry cranes with or without protrusion.
- Although they are typically utilized in wide-open spaces, factories can also use portal cranes. It serves as an alternative use for overhead cranes in enclosed production spaces.
- According to the scanning area, gantry cranes are superior to jib cranes.
- Marble cranes, sometimes known as gantry cranes, are appropriate for all lifting and stacking tasks in wide spaces.
Advantages of Yuantai double girder gantry crane 20 ton
- Compact construction that is incredibly simple to install, use, and maintain.
- Smooth beginning and conclusion.
- Low noise, stable performance.
- High quality requires little upkeep.
- Strong capability for loading, good efficacy.
- Full options for manual operation, remote control, and cabin operation.
- Beautiful design, a sophisticated aesthetic, cutting-edge technology, and superior electric and motor components.
20 Ton Double Girder Gantry Crane Price
double girder 20 tons Buyers and manufacturers both care about gantry crane costs. Customers like to buy inexpensive products, so gantry crane manufacturers must maintain their competitiveness by offering a good price. However, a lot of vendors choose to prioritize cranes' low cost rather than their quality.
The cranes from our company are of excellent quality and are reasonably priced as a reputable manufacturer. You can speak with our sales engineer and describe the required crane's operational state prior to making a purchase. A gantry crane's price is influenced by a number of variables, including its type, specifications, including its span and lifting height, use, and working environment.
Contact us online if you're unsure about the gantry lifting equipment that will best meet your demands. We are ready to assist you in locating the ideal gantry lifting system and help you save money. Don't hesitate to contact us if you want to learn more about the gantry crane price!
