5 Ton & 10 Ton Overhead Single Girder Crane Top Running Nigeria
Top running single girder overhead crane 5 ton & 10 ton for sale Nigeria. Custom top running crane with steel structure for sale, cheap price, quick production.
Overview of Nigeria 5 ton & 10 ton overhead crane project
Our Nigerian customer purchased a 5 ton and a 10 ton top running single girder overhead crane, and the warehouse steel structure from Yuantai Crane on October 5th. After one month of manufacturing, the goods were completed, and the customer chose to ship the two sets of overhead cranes and steel structures on November 19th, with the hope that the two sets of top running Overhead Cranes will work smoothly in the customer's factory.
Main specification of Top Running Single Girder Crane for Nigeria
Based on Nigerian client's lifting requirments and workshop dimensions and conditions, the 5 ton and 10 ton overhead crane was customized to with 18.22 m span, and 9 m lifting, and 380v power supply voltage. And the main specification of the Nigeria overhead crane projects are presented for your reference.
Single girder 5 ton top running overhead crane
- Lifting capacity: 5 tons
- Span: 18.22 meters
- Lifting height: 9meters
- Power supply: 380V,50Hz,3p
Single girder 10 ton top running overhead crane
- Lifting capacity: 10 tons
- Span: 18.22 meters
- Lifting height: 9meters
- Power supply: 380V 50Hz 3p
Production pictures of 5 ton and 10 ton top running crane projects

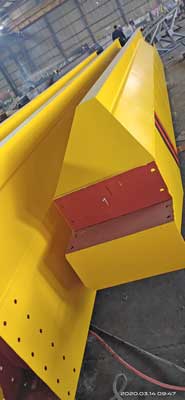

Main girder of top running overhead crane
main girder o top runing bridge crane

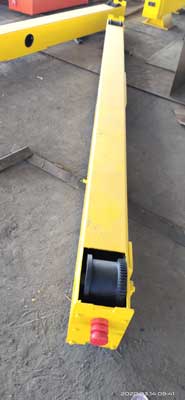

End carriage for top runing electric overhead crane

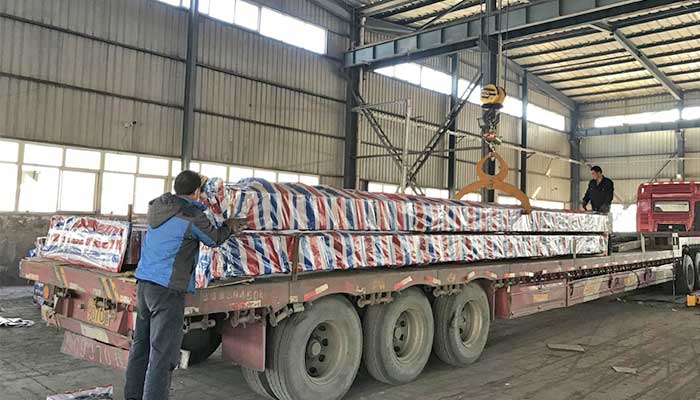

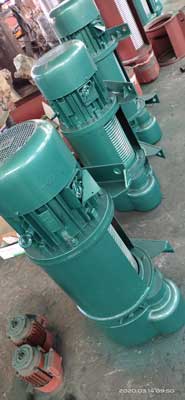

Wire rope hoist for top runing single girder craneSingle Girder Crane Top Running Packaging and Delivery to Nigeria
Single Girder Top Running Overhead Crane
The top running single girder overhead crane is one types of single girder crane, which has the end carriage running on the top of the crane rail. The top running single girder overhead crane is also called top running bridge crane, and top running eot crane and mobile hoist single girder crane. It uses electric hoist as lifting mechanism,used for lifting heavy materials, and widely used in plant, warehouse, stock ground etc.< /p>
Simple overhead crane, top runing electric overhead crane - LD series for sale
- The model of the top running single girder crane: LD
- Rated lifting capacity of top running bridge crane: 1 ton-32 tons
- Span of top running eot crane : 3-35 meters
- The maximum lifting height: 50 meters
- Rated voltage: 220v, 380v, 415v, 400v, 440v, 600v
The advantages of a single girder overhead crane top running design include a rational structure and strong rigidity of the entire unit, which will be used in conjunction with an electric hoist in operation. The lifting mechanism, running mechanism, beam frame, and electric parts are the main components of a gorbel bridge crane. The hoist of a single beam overhead crane sale runs along the main beam, which is always installed in various workshops, warehouses, and material yards. The space beneath the single-girder bridge crane can be fully utilized for material transportation without the impediment of ground equipment.
Yuantai Crane consistently aims to provide our Nigeria clients with affordable top running single girder overhead crane and compassionate support. The transfer assembly, inspection and repairing, as well as loading and unloading, are also applicable when using Yuantai Crane's single girder overhead crane at mechanic processing workshops, subsidiary workshops of metallurgical mills, warehouses, goods yards, and power plants. The general use top running crane is forbidden to work in a combustible, explosive, or corrosive environment and whereas , the customized industrial top running crane is needed. Additionally, we provide high-quality and effective double beam overhead cranes for users to select from.
Features and Advantages of top running single girder crane
- Light working duty. Light dead weight, light wheel-pressure.
- Competitive price of Yuantai single girder eot crane. The ld series of top running single girder crane adopts cd/md wire rope hoist, which is much cheaper than the demag-hoist , the European style hoist, which is much cheaper.
- Tight dimensions, low building headroom, light dead weight and light wheel load.
- Wide application with optional electric crane hoist and configurations. Low headroom design, explosion proof hoist, and metallurgical use.
Main Parameter of top running single girder eot crane
|
Technical data |
|||||||
|
Lifting capacity |
1- 32 ton, hot sale capacity 3 ton, 5 ton, 7.5 ton,10 ton, 15 ton, 20 ton |
||||||
|
Crane Travelling Device |
Travelling speed (m/min) |
20 |
30 |
45 |
60 |
75 |
|
|
Reducer ratio |
58.95 |
39.42 |
26.38 |
19.37 |
15.88 |
||
|
Motor |
Model |
ZDY21-4 |
ZDR12-4 |
||||
|
Power (kw) |
2x0.8 |
2x1.5 |
|||||
|
Rotation (r/min) |
1380 |
||||||
|
Lifting device |
Electric Hoist model |
single/double speed |
|||||
|
Electric hoist |
Lifting speed (m/min) |
8, 0.8/8 |
|||||
|
And hoist travelling device |
Lifting height (m) |
6, 9, 12, 18, 24, 30 |
|||||
|
|
Travelling speed (m/min) |
20 (30) |
|||||
|
|
Motor |
Taper Squirrel-cage type |
|||||
|
Work duty |
A3- A5 |
||||||
|
Power supply |
380V, 50Hz, 3-Phase or on your request |
||||||
|
Rail type |
P24/38 |
||||||

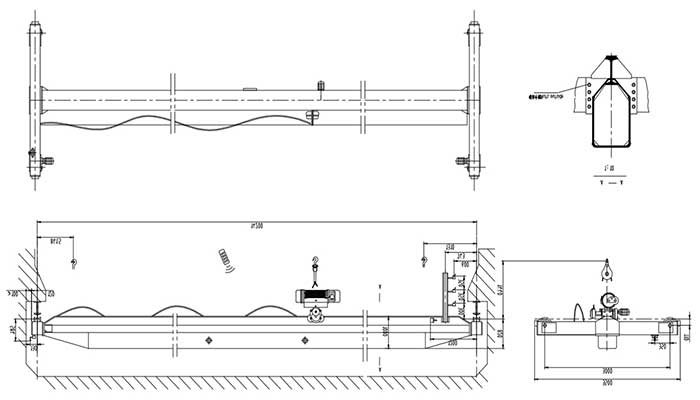

Schematic Drawing of standard top running single girder overhead crane drawing
