40 Ton 0verhead Crane for Aluminum Warehouse Good Price Singapore

40 ton overhead crane for sale Singapore. Double girder overhead crane 40 ton for Aluminum Warehouse Singapore. Check 40 ton Overhead Crane System now.

Overview of 40 ton overhead crane project for Singapore

  • Crane type: overhead crane with double girder design
  • Main specifications: 40 ton overhead crane, 30 m span - 9 m lifting height
  • Application: Warehouse , indoor use in Aluminum factory
  • Project location: Singapore

Back ground and lifting requirements

On January 28, 2022, one of our Singapore clients made a purchase of a QD series of European type Double girder overhead crane 40 ton. With the assistance of our installation team, they completed the installation and commissioning of this overhead crane in June 2022. When the installation was finished, the overhead crane functioned properly.

The Singapore client is quite happy with this overhead crane design because it made it easier for them to load and unload cargo at the aluminum factory. They are currently developing a new warehouse, and for this warehouse they require another set crane project. We currently have a drawing and a supply offer for them, and they will place an order soon. We appreciate the customers that believe in our products. And we'll give our customers top-notch goods and services. expecting them to cooperate more.

Main specification of 40 ton overhead crane for Singapore

  • Model: Double girder overhead crane
  • Lift capacity: 40 Tons
  • Span: 30 Meters
  • Lifting height:9 Meters
  • Work duty: A6
  • Control method: Wireless Remote control& Pendent Control
  • Lifting speed: 0~10M/Min by inverter
  • Cross travelling speed: 2~20m/min by inverter
  • Long travelling speed: 2~20m/min by inverter
  • Travel length:138m
  • Power supply : 380V50HZ3P

Installation of 40 ton warehouse overhead crane

 40 ton overhead crane for sale Singapore good price 40 ton overhead crane for sale Singapore good price

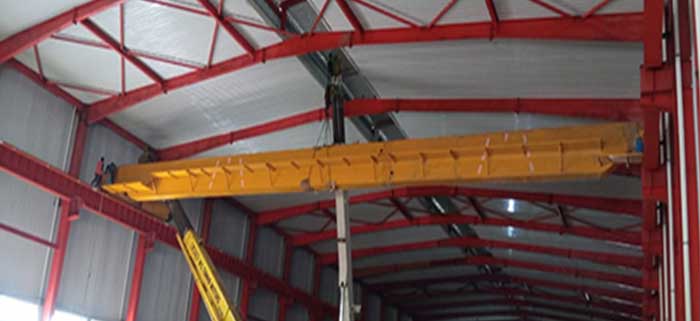

Double girder overhead crane 40 ton installation in warehouse  Double girder overhead crane 40 ton installation in warehouse

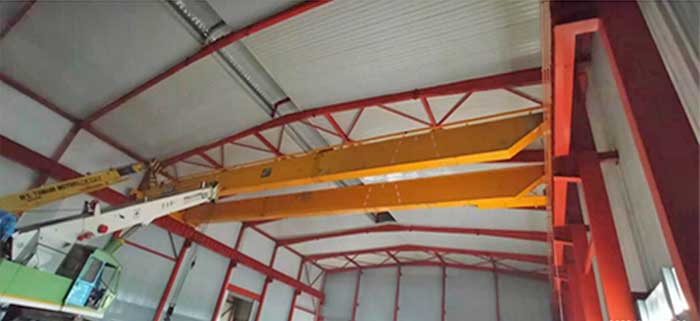

Steel structured warehouse overhead crane 40 ton  Steel structured warehouse overhead crane 40 ton

Overhead crane solutions for warehouse uses

The warehouse serves as both a crucial location for the storage of goods and the primary location for their turnover. Because loading and unloading at the warehouse occurs frequently, depending solely on human labor would be inefficient and time-consuming. Materials are loaded, unloaded, and moved inside the warehouse using a crane. This overhead crane is particularly well-liked in the manufacturing sector since it can carry huge items instead of using human power. With this apparatus, it is possible to lift items across the entire warehouse.

Warehouse Crane System

The lifting mechanism, crane running mechanism, and trolley running mechanism are the three basic components of the warehouse crane system. The lifting mechanism is primarily made up of an electric hoist, wire rope, pulley, hook, or other spreader.

  • Which type of warehouse crane—an overhead crane, a gantry crane, or a hoist jib cane—do you require? A custom warehouse crane system is created to meet particular needs.
  • Warehouse overhead cranes include double-girder and single-girder cranes, and top running & underhung overhead cranes, etc.
  • Warehouse gantry cranes include single-girder, double-girder, and semi-gantry cranes.
  • Warehouse hoists include electric, wire rope, and electric chain hoists.

Yuantai Crane overhead warehouse crane and warehouse hoist can be used for different lifting work requires, with lifting capacity from 1ton, 3ton, 5ton, 10ton and up to 100ton.

Features of Warehouse Crane

Strong stiffness, low dead weight, and an exceptional structural design give the Yuantai Crane warehouse crane long-lasting excellence.

  • Yuantai Crane warehouse crane can reduce manufacturing space and investment costs due to its compact overall size, low clearance height, and small wheel load.
  • Yuantai Crane warehouse crane is exceptional in the same kinds of hoisting products thanks to cutting-edge technology and strong professional understanding.
  • Perfect after-sale support and extensive expert advice relieve you of material handling issues.
  • Yuantai Crane warehouse crane is the best option thanks to its competitive pricing and great quality.
  • The warehouse crane comes with two different control methods: a ground control with a rope handle and a remote control. Our firm would manufacture a customized warehouse crane based on specific requirements.

Warehouse overhead crane

Warehouse overhead crane is regarded as the most widely used lifting device in the warehouse, and it has the ability to do a lot of large and heavy work which the manpower cannot. Therefore, users can benefit a lot from using this warehouse crane.

The warehouse overhead crane is thought to be the lifting tool that is utilized the most frequently since it can perform many huge and heavy tasks that human labor is unable to. Therefore, employing this warehouse crane will be quite advantageous to users.

Warehouse Overhead Cranes with single girder crane design with capacity from 0.5 ton -20 ton

The electric warehouse single girder overhead crane, which has a lifting capacity of 0.5–20 tons and is made up of a single-girder beam, a monorail hoist, an end carriage with a motor, and complete panels, is a popular piece of lifting equipment.

It is possible to mount it on steel columns. As a result, it is frequently used in factories, mines, ports, warehouses, and other locations where there is material handling in order to increase labor productivity and enhance the working conditions for critical apparatus. It will utilize the most space possible because it will be positioned on the upper floor of the factory.

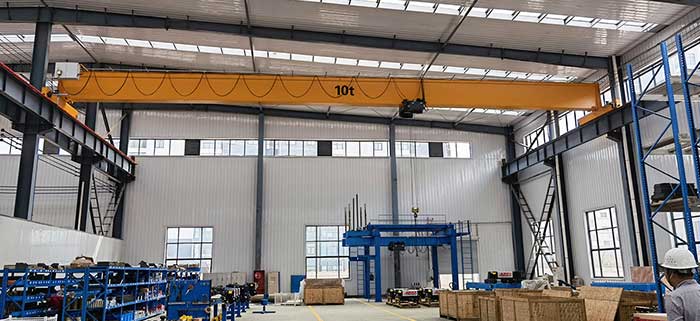

   Warehouse Overhead Cranes with single girder crane design

Warehouse Overhead Cranes with double girder crane design with capacity from 3 ton -80 ton

The main beam, cross traveling mechanism, long traveling mechanism, and electrical equipment make up a double girder warehouse overhead crane. It is separated into three operating levels, A5, A6, A7, and A8, depending on how frequently it is used. It is frequently used in cement factories, steel mills, warehouses, freight yards, and other heavy-duty projects.

To function, it depends on the bridge frame moving longitudinally along the workshop orbital direction, the trolley moving transversely along the main beam direction, and the hook lifting action. It realized the majority of client needs because it could lift a maximum of 350 pounds.

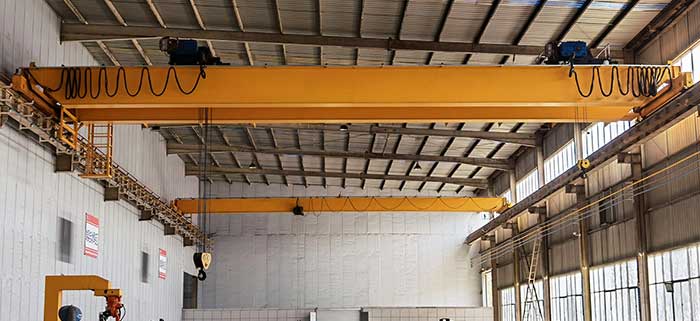

Warehouse Overhead Cranes with double girder crane design

Warehouse Overhead Cranes with Ceiling Mounted Crane Design

A light-duty overhead crane is an underhung warehouse crane. It might be suspended from a steel structure's girder.

They are primarily made to support light loads (up to 10000kg). which is employed in the manufacturing and processing sector, the pallet shipping business, the injection molding industry, the loading and unloading of warehousing, the maintenance of equipment, etc.
 Warehouse Overhead Cranes with Ceiling Mounted Crane Design

How to Choose a Proper Warehouse Crane

The overhead lifting equipment is essential to the warehouse's smooth functioning, thus picking the right warehouse crane is critical. The challenge is deciding which crane is best for your needs. One of the most crucial things is that you thoroughly and clearly assess your unique need. Here are a few things to keep in mind, not limited to the following :

  • The items you'll be handling and the specifications needed for your overhead crane, such as the crane's lifting capacity, height at which it must carry objects, and span.
  • Appropriate forms of warehouse cranes include those with overhead, gantry, and hoists.
  • The crane's use frequency. While some cranes are heavy duty and can perform the heavy work continuously, others are light duty and cannot be employed in a busy and frequent working environment. As a result, you should decide how frequently you utilize the equipment.
  • How much you plan to spend on a warehouse crane. How much money do you have set aside to buy a warehouse crane? Which kind would you prefer to select? Within your price range, we can offer the ideal crane solution.
  • The crane operation and control in which you choose to use the overhead crane. Three options are often available: pendant control, remote control, and cab operation. Depending on your needs, you can select one of them or two combinations.
  • We advise you to carefully consider these elements, and after that, we will assist you in making the best decision for the warehouse crane. We also offer specialized overhead lifting equipment.
