Overview of gantry crane project for Singapore

Crane type: single girder gantry crane with low headroom design
Crane specifications: 5 ton -16 m span - 6 m lifting height
Date:2021-01-20
Qty:1 Sets

Main Specifications of single girder gantry crane 5 ton for Singapore

After detail communications on the lifting requirements and workshop conditions, the specifications of the gantry cranes are confirmed, which are listed as following for your reference.

Capacity of single girder gantry: 5 ton
Span of gantry crane: 16 meter
Lifting height of low headroom gantry crane: 6 meter
Lifting Speed: 0.8/8 m/min
Trolley traversing speed: 2 to 20 m/min
Crane traveling speed: 2 to 20 m/min
Working group of gantry crane : M5
Custom gantry crane designed based on your requirements and applications are available.

Custom features of single girder gantry crane 5 ton for Singapore

Our new client in Singapore inquired about this single girder gantry crane. Our customer listed a few needs because the work site has some special situation.

The hoist has a low headroom design to lower the crane's overall height. The primary beam is made of Q345 and has a square box construction.
The gantry crane is fitted with a sound and light alert in addition to an anemometer to handle local windy conditions.
A timer and a 220v socket were added to the electrical cabinet, which can also be heated to accommodate cold weather.
Electrical components brand designated as Schneider, which is relatively easy to obtain in different countries and regions.
To facilitate operation, pendant control and wireless remote control are used.
Because rail tracks already existed and the rail type is P43, we designed the crane traveling mechanism to work with this rail type.
Because our client required precision operations at times, the trolley traversing and crane traveling drives were .
VFD motors with variable speed.

Production of single girder gantry crane 5 ton with low headroom design

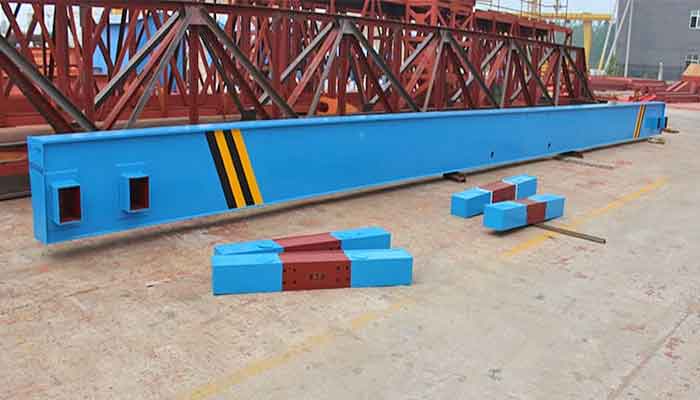

Main girder of low headroom gantry crane 5 ton for sale Singapore

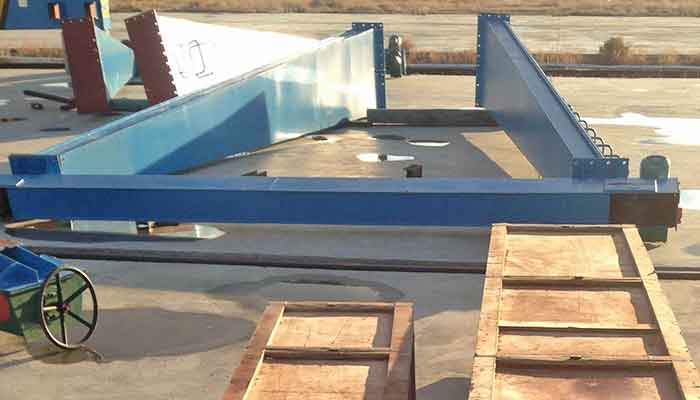

Crane legs of single girder gantry crane

Gantry legs of 5 ton gantry cranes for sale Singapore

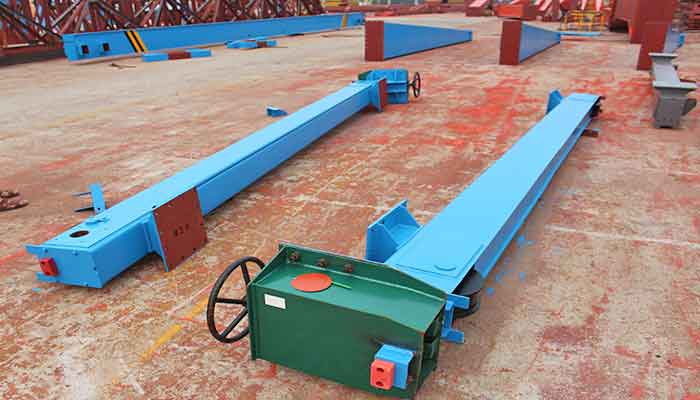

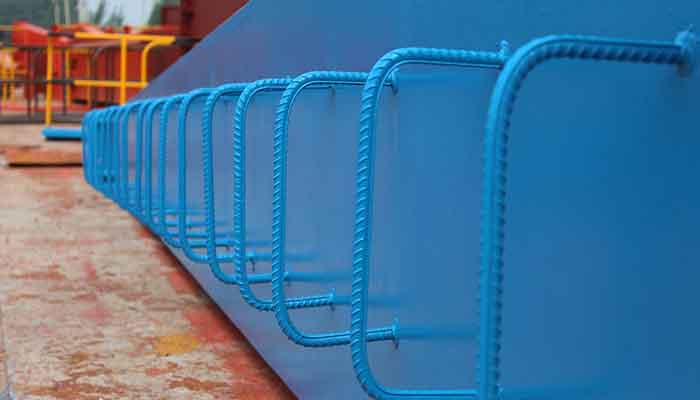

Gantry crane ground beam & other main parts and components

Related: Low headroom single girder gantry crane

MH model single girder gantry crane is similar to a bridge crane, but instead of moving on suspended runways, the gantry crane uses legs to support the bridge, and the electric hoist. The gantry crane legs travel on fixed rails embedded in, or laid on top of the floor. The single girder gantry crane with low headroom design is designed for low room workshop or facility to increase hook height.

Single girder gantry crane with Chinese style low headroom hoist

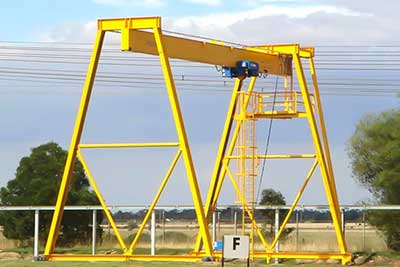

Single girder gantry crane with European style low headroom hoist

Main specifications of single girder gantry cranes

crane capacity of single girder gantry: 1 ton, 2 ton, 3 ton, 5 ton, 10 ton, 15 ton, 20 ton, 32 ton
Span of single beam gantry crane: 3-31.5M
Lifting height 6-12M
Work duty of gantry crane A3/A4 - A5/M5
Control method of gantry crane: Remote control or Pendant control
Hoist Lifting speed of gantry crane: 0-8M/Min (8/0.8m/min)
Crane hoist Traverse speed of gantry crane: 0-20M/Min
Crane Long travelling speed of gantry crane: 0-20M/Min (20/30m/min)
Variable frequency drives of gantry crane: Optional
Cantilever of gantry crane:Optional

Application of single girder gantry crane

Single girder gantry cranes are typically used in outdoor applications where full beams and columns cannot be installed, or beneath an existing bridge crane system. Single girder gantry cranes with low headroom designs are usually used indoors where space is limited.
