5 Ton Jib Crane with Electric Chain Hoist for sale Philippines

5 ton jib crane for sale Philippines good price. Floor mounted jib crane 5 ton, with electric chain hoist for sale engineering services company Philippines.

Overview of 5 ton jib crane for sale Philippines

• Jib crane type: Freestanding floor mounted jib crane
• Crane specification: 5 ton -crane arm 4.5m , Lifting height 6m
• Power supply： 220v60hz3p
• Crane application：Engineering Services Company, Philippines

Case Study: 5 Ton Jib Crane with Electric Chain Hoist for Sale in the Philippines

Our company is offering a 5 ton jib crane with electric chain hoist for sale in the Philippines. This crane is designed for construction projects and has a freestanding floor mounted jib crane type. It has a lifting capacity of 5 tons, with a crane arm length of 4.5m and a lifting height of 6m.

• Client：Engineering Services Company, Philippines
• Requirement: The Engineering Services Company needed a reliable and efficient crane solution to lift and move heavy loads within their facility for their various engineering projects. They required a crane that could handle up to 5 tons of weight and be operated electrically to minimize manual labor.

Jib crane design and electric chain hoist solution

After evaluating their requirements, we recommended Yuantai Crane's 5 Ton Jib Crane with Electric Chain Hoist. This crane is designed to handle heavy loads with ease and provides precise control during lifting and moving operations. The electric chain hoist ensures that the lifting process is smooth and efficient, reducing the risk of accidents and injuries.

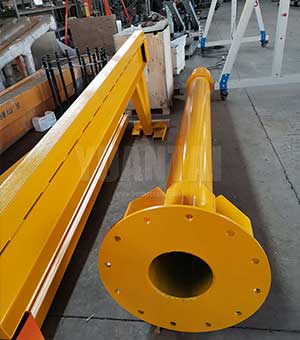

 5 ton jib crane antillever arm and columns

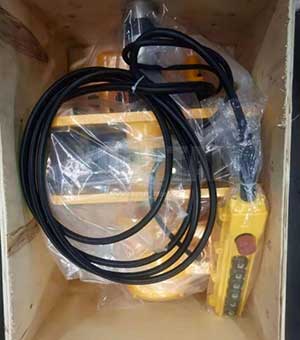

 Electric trolley and hoist control of floor mounted pillar jib crane 5 ton

5 ton electric chain hoist for the pillar jib crane

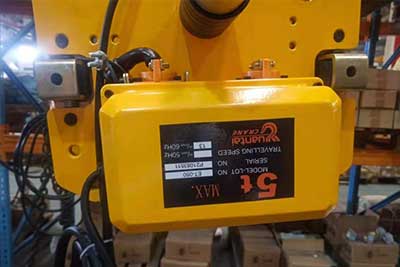

 5 ton jib crane hoist trolley

Main structure of 5 ton floor mounted jib cranes

The main structure of a 5 ton floor mounted jib crane consists of the following components:

• 1. Mast: The mast is the vertical column that supports the jib arm. It is typically made of steel and is securely anchored to the floor.
• 2. Jib Arm: The jib arm is the horizontal beam that extends from the mast. It can rotate 360 degrees, allowing the crane to lift and move loads in any direction.
• 3. Electric Chain Hoist: The electric chain hoist is mounted on the jib arm and is used to lift and move heavy loads. It is powered by an electric motor and can be controlled with a pendant control.
• 4. Foundation: The foundation is the base of the crane and is responsible for supporting the entire structure. It is typically made of concrete and is designed to withstand the weight of the crane and the loads it lifts.
• 5. Bracing: Bracing is used to reinforce the structure of the crane and prevent it from swaying or toppling over. It is typically made of steel and is placed at strategic points along the mast and jib arm.
• 6. Tie Rod: Tie rods are used to connect the mast and jib arm, providing additional support and stability to the crane. They are typically made of steel and are placed at strategic points along the structure.

All in all, , a 5 ton floor mounted jib crane consists of a mast, jib arm, electric chain hoist, foundation, bracing, and tie rods. These components work together to provide a stable and reliable structure that can lift and move heavy loads in construction sites.

Advantages of using a 5 ton jib crane?

A 5 ton jib crane offers several advantages, such as:

• Increased efficiency: With a jib crane, you can easily move heavy loads around your workspace, which can save time and effort. This can increase productivity and efficiency in your operations.
• Improved safety: Jib cranes are designed to handle heavy loads safely and securely. This can help prevent accidents and injuries in the workplace.
• Versatility: Jib cranes can be used for a variety of tasks, including lifting, moving, and positioning heavy loads. They can also be used in a variety of industries, such as manufacturing, construction, and logistics.
• Space-saving: Jib cranes take up less space than other types of cranes, such as overhead cranes. This can be particularly useful if you have limited space in your workspace.
• Cost-effective: Jib cranes are generally more affordable than other types of cranes, such as gantry or overhead cranes. This can make them a cost-effective solution for lifting and moving heavy loads.

Safety precaution while operating a 5 ton jib crane

Operating a 5 ton jib crane can be dangerous if proper safety precautions are not taken. Some of the important safety measures that need to be followed while operating a 5 ton jib crane are:

• Proper training: Only trained and authorized personnel should operate the crane. They should be well-versed in the operation of the crane and should follow all the safety guidelines.
• Inspection: The crane should be inspected before each use to ensure that it is in good working condition. Any defects or damages should be reported immediately.
• Load capacity: The load capacity of the crane should never be exceeded. Overloading can cause the crane to tip over or collapse.
• Clear the area: The area around the crane should be cleared of all obstacles and personnel before operating. This will prevent accidents and injuries.
• Communication: Proper communication should be maintained between the operator and the personnel working in the vicinity of the crane. This will ensure that everyone is aware of the crane's movements and can take necessary precautions.
• Personal protective equipment: All personnel working in the vicinity of the crane should wear appropriate personal protective equipment (PPE) such as hard hats, safety glasses, and steel-toed boots.

By following these safety precautions, the risk of accidents and injuries can be minimized while operating a 5 ton jib crane. If you have any inquiry or problem, please feel free to contact us by leave a message below or contact by email to [email protected]

Advantages of using electric chain hoist as jib hoist

There are several advantages to using an electric chain hoist as a jib hoist:

• Easy to Operate: Electric chain hoists are easy to operate and require minimal training. They can be controlled with a simple pendant control, making them ideal for use in various applications.
• High Lifting Capacity: Electric chain hoists have a high lifting capacity, making them ideal for lifting and moving heavy loads. This is especially important in construction sites where heavy materials need to be lifted and moved.
• Reliable and Durable: Electric chain hoists are designed to be reliable and durable. They are built to withstand the harsh conditions of construction sites and can last for many years with minimal maintenance.
• Safe: Electric chain hoists are equipped with safety features such as overload protection and emergency stop buttons. This ensures that the hoist is safe to use and minimizes the risk of accidents.
• Cost-Effective: Electric chain hoists are cost-effective compared to other types of hoists. They require minimal maintenance and have a long lifespan, making them a cost-effective solution for construction projects.

The Engineering Services Company was pleased with the performance of Yuantai Crane's 5 Ton Jib Crane with Electric Chain Hoist. It helped them streamline their operations, improve productivity, and reduce the risk of accidents and injuries. As a leading jib crane manufacturer, Yuantai Crane was able to customize the crane to meet their specific requirements, which helped them achieve their engineering project objectives.

If you have any further questions or would like to learn more about our customizable crane solutions, please let us know.
