10 Ton Gantry Crane for Steel Mills

10 ton gantry crane with low headroom electric hoist for sale Philippines, for material handling in steel mills. How to select a steel mill gantry crane?

A 10-ton gantry crane is a heavy-duty machine used to lift and move heavy loads. It consists of a bridge that spans the width of the area to be covered and is supported by two or more legs that run on rails or wheels. The crane is powered by an electric motor and can be controlled by an operator from a control panel or remote control. It is commonly used in construction sites, ports, and manufacturing facilities to move heavy materials such as steel, concrete, and machinery.

Types of 10 ton gantry cranes

There are several types of 10-ton gantry cranes, including:

• Single Girder Gantry Crane: This type of crane has one main girder and is ideal for light to medium-duty lifting applications. It is cost-effective and requires minimal maintenance. However, it has limited lifting capacity and is not suitable for heavy-duty applications.
• Double Girder Gantry Crane: This type of crane has two main girders and is suitable for heavy-duty lifting applications. It has a higher lifting capacity than a single girder gantry crane and is more stable. However, it is more expensive and requires more maintenance.
• Semi-Gantry Crane: This type of crane has one leg that runs on a rail or wheel system, while the other end is supported by a structure such as a wall or column. It is ideal for outdoor applications where space is limited. However, it has limited lifting capacity and is not suitable for heavy-duty applications.

As for steel mills, 10-ton gantry cranes are used to move heavy materials such as steel plates, coils, and beams. They are also used to load and unload trucks and railcars.

To select a gantry crane for your particular use, you should consider factors such as the weight and size of the materials to be lifted, the available space, the operating environment (indoor or outdoor), and the frequency of use. You should also consult with a qualified engineer or crane supplier to ensure that you select the right crane for your needs.

Gantry crane for steel mills and plants

In steel mills, 10-ton gantry cranes are used for a variety of functions such as:

• Moving heavy steel plates, coils, and beams from one location to another within the mill.
• Loading and unloading trucks and railcars with steel products.
• Handling scrap metal and waste materials.
• Supporting maintenance and repair activities by lifting heavy machinery and equipment.

The loads to be handled by a 10-ton gantry crane in a steel mill can vary greatly in size and weight. They can range from small steel parts to large steel plates weighing several tons.

Different below hook devices are used with gantry cranes in steel mills, such as:

• C-hooks: Used for handling steel coils and other cylindrical materials.
• Plate clamps: Used for lifting steel plates and sheets.
• Magnets: Used for lifting ferrous materials such as steel.
• Grabs: Used for handling bulk materials such as scrap metal.
• Besides gantry cranes, other types of cranes used in steel mills include:
• Overhead cranes: Used for heavy-duty lifting applications within the mill.
• Jib cranes: Used for lifting and positioning heavy materials in a specific area.
• Mobile cranes: Used for outdoor applications such as loading and unloading materials from trucks and railcars.

Case Study: 10 Ton Gantry Cranes for Steel Mill in Philippines

Client Background:

The steel mill, located in the Philippines, is a leading manufacturer of high-quality steel products. With a focus on efficiency and productivity, they sought to enhance their material handling capabilities by investing in a reliable and robust crane solution.

Challenge:

The steel mill required a crane that could handle heavy loads with precision and efficiency. The existing material handling system was limited in capacity and posed a risk to worker safety. The client needed a crane that could operate within the confined spaces of their facility while ensuring smooth and reliable lifting operations.

 Features:

• Advanced Control System: The crane was equipped with a state-of-the-art control system, allowing for precise and smooth movements. This enabled operators to handle heavy loads with ease while ensuring maximum safety.
• Compact Design: The compact design of the crane allowed it to maneuver effortlessly within the limited spaces of the steel mill. It provided excellent visibility for operators, enhancing their control and accuracy during lifting operations.
• Safety Measures: The crane incorporated various safety features, including overload protection, emergency stop buttons, and limit switches. This ensured the safety of both operators and the surrounding environment, reducing the risk of accidents and damage.
• Customized Adaptations: The crane was tailored to suit the specific needs of the steel mill. It was designed to handle various types of loads commonly found in steel mills, such as steel plates, coils, and beams. This customization enhanced the crane's versatility and efficiency.

Benefits and Results:

Since the installation of the European style single girder gantry crane, the steel mill has experienced significant improvements in their material handling operations. The crane's precise control and high lifting capacity have increased productivity, reduced downtime, and improved overall efficiency.

The safety features of the crane have enhanced the working environment, providing peace of mind to operators and reducing the risk of accidents. The compact design has optimized space utilization within the steel mill, allowing for smooth movement and streamlined operations.

The investment in a European style single girder gantry crane with a capacity of 10 tons has proven to be a game-changer for the steel mill in the Philippines. The crane's advanced features, customized adaptations, and safety measures have revolutionized their material handling processes, leading to increased productivity and improved operational efficiency.

Production of 10 ton gantry crane for sale Philippines production

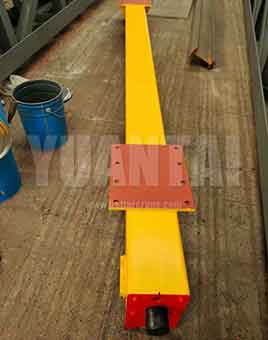

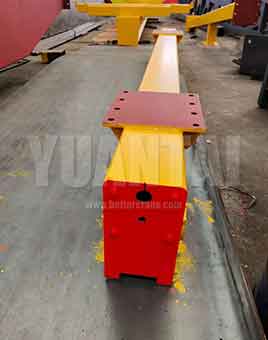

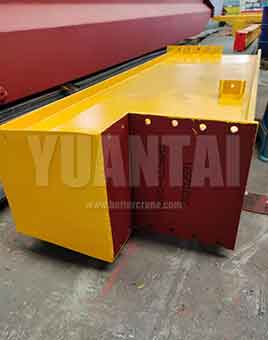

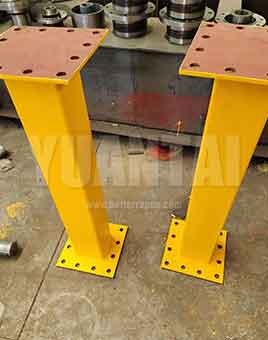

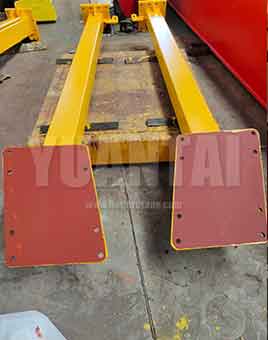

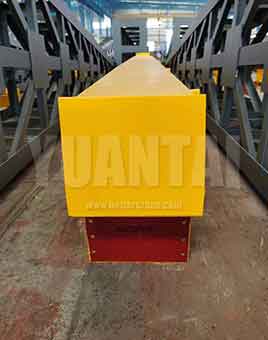

In the following, the main production pictures of 10 ton gantry cranes are presented for your reference. If you have any question or need, please feel free to contact us.

How to get a  customized steel mill gantry cranes

For steel mills, there are several special requirements that need to be considered when selecting a gantry crane. These requirements include:

• High Lifting Capacity: Steel mills typically require cranes with high lifting capacities to handle heavy loads such as steel plates, beams, and coils.
• Durability: The crane must be able to withstand the harsh and demanding environment of a steel mill, which includes exposure to heat, dust, and corrosive materials.
• Customization: Steel mills often require customized crane solutions that are tailored to their specific needs. This may include modifications to the crane's design, such as the addition of specialized lifting attachments or the integration of automation technology.
• Safety: Safety is a top priority in steel mills, and the crane must be equipped with the necessary safety features to ensure that workers are protected from accidents and injuries.

To custom a gantry crane for your application in a steel mill, you should consider the specific requirements of your operation. This may include factors such as the size and weight of the loads to be lifted, the operating environment, and the frequency of use.

You should consult with a qualified engineer or crane supplier who can help you design a custom solution that meets your specific needs. They can provide guidance on selecting the appropriate crane type, capacity, and lifting attachments, and can also advise on the necessary safety features and maintenance requirements.

To get a customized steel mill gantry crane, you should follow these steps:

Identify Your Needs: Determine the specific requirements of your steel mill operation, including the size and weight of the loads to be lifted, the operating environment, and the frequency of use.

• Consult with Experts: Consult with a qualified engineer or crane supplier who can provide guidance on selecting the appropriate crane type, capacity, and lifting attachments. They can also advise on the necessary safety features and maintenance requirements.
• Design and Engineering: Work with your crane supplier to design a custom solution that meets your specific needs. This may include modifications to the crane's design, such as the addition of specialized lifting attachments or the integration of automation technology.
• Manufacturing and Installation: Once the design has been finalized, the crane will be manufactured and assembled according to your specifications. The crane will then be installed and tested to ensure that it meets all safety and performance requirements.
• Training and Maintenance: Your crane supplier should provide training to your operators on how to safely and effectively operate the crane. They should also provide ongoing maintenance and support to ensure that the crane performs reliably over its lifespan.

By following these steps, you can get a customized steel mill gantry crane that is tailored to your specific needs and provides optimal performance, safety, and reliability. If you have any questions or any need, please feel free to contact us to get your customized 10 ton steel mill gantry cranes.
