10 Ton Overhead Crane &5 Ton + 5 Ton Overhead Crane for Philippines

Overhead crane for sale Philippines, 3 sets, a 10 ton crane & two sets 5 ton + 5 ton overhead crane.Check crane specifications & get your overhead crane design.

Project info of 5 ton & 10 ton overhead crane for sale Philippines

• Brand ：Yuantai Crane
• Types of Cranes: 10 ton overhead crane , 5 ton + 5 ton overhead crane
• Date of Placing Order： 2022.4.5
• Date of delivery ：2022.5.27
• Transportation ：By shipping, (1 *40 + 1*20 ) Container
• Transaction and destination： CFR Manila
• Destination country：Philippines

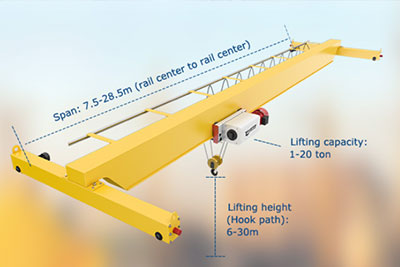

European style single girder overhead cranes for sale Philippines

Main Specifications of European style single girder overhead cranefor sale Philippines

10 ton electric wire rope hoist for single girder overhead crane

Customized features of the 5 ton single girder gantry crane for Philippines

• 5+5 tons double hoist single girder overhead crane is required to be synchronized control. That is, the two electric hoists cam be lifted and lowered  at the same time
• The Philippines customer is more concerned about the thickness of the main girder. The side views of the 5+5 ton  and 10 ton overhead crane girder are as follows:
• The main girder of the both overhead cranes will be divided into 2 sections to fit into the 40-foot container with the dimensions of 11.9m*2.3m*2.3m.
• 3 units of overhead cranes will be installed  on the same bay.

Gallary of single girder overhead crane 5 ton & 10 ton for sale Philippines

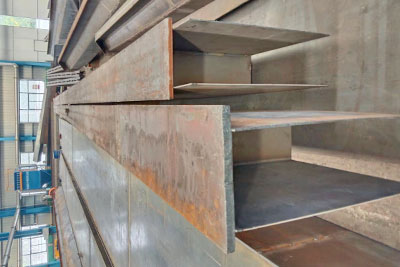

Main girder of overhead cranes projects in Phillipines

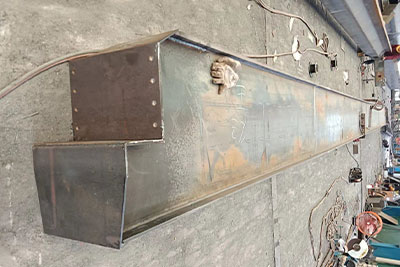

Main girder of overhead crane under construction

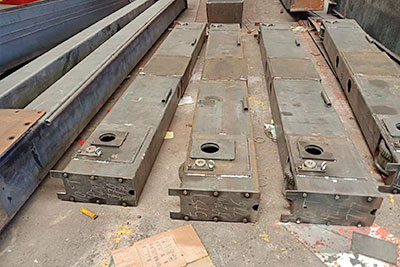

End girder or end trucks of overhead cranes for sale

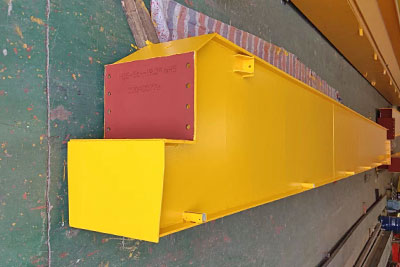

Main girder painted

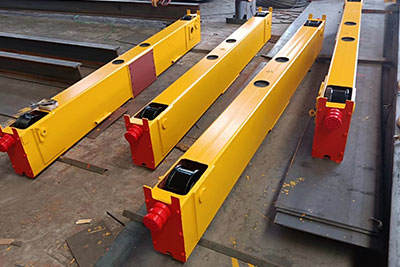

End truck painted

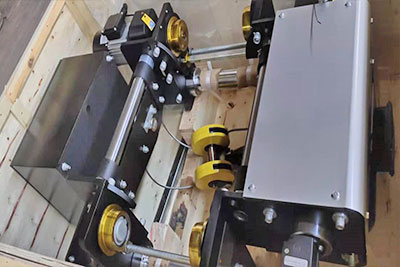

5 ton overhead crane hoist

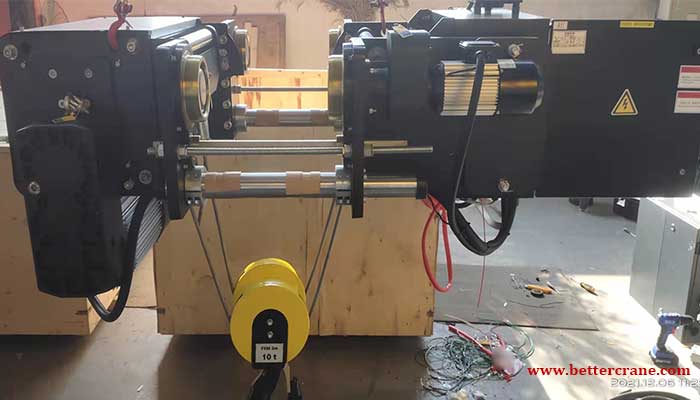

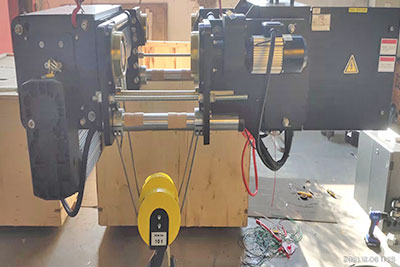

10 ton overhead crane hoist

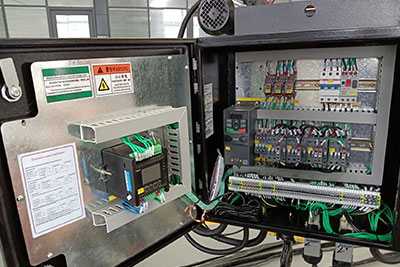

Electric cabins

Related overhead cranes

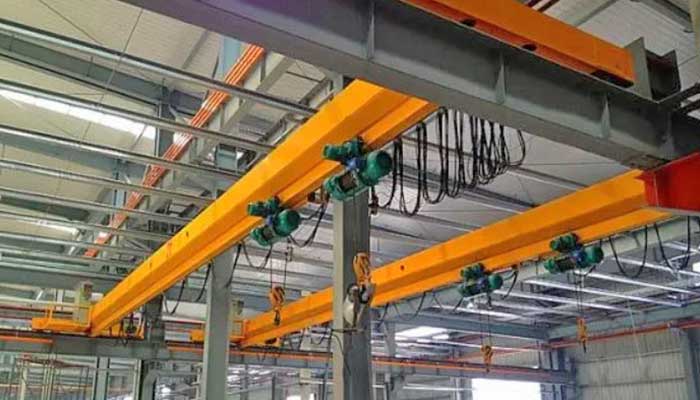

Synchronized control double hoist overhead cranes

LDE type electric single-girder overhead crane is also known as double trolley  or duel hoist single girder overhead crane, etc. The double hoist single girder crane is designed and manufactured according to JB/T306-. It is based on the needs of the market and users ‘s requirement in recent years.  The double hoist overhead crane is designed and  developed on the basis of the LD type general use single girder overhead crane.

• Main specifications of double hoist overhead cranes
• The general lifting capacity of duel hoist crane:  1 ton -25 ton
• lifting capacity of LDE duel hoist crane: (5+5) ton  LDE(5+2) ton , LDE(10+5) ton ,
• the span of the double hoist single girder overhead is 7.5m-31.5m, and can also be designed separately according to user requirements ,
• Crane power supply: three-phase 380V, 50Hz power supply, or customized
• working environment temperature of overhead crane:  -25 ℃ -40 ℃.
• Crane control:  The operation mode is ground operation, remote control, and indoor operation, which are selected by the user.

This double electric hoist crane uses the electric hoist as the lifting mechanism. The overhead crane  is supported on end carriages which travel on two rails, and the two independent electric hoists are suspended on the lower flange of the single girder crane beam girder.  These two electric hoists can be operated independently or synchronized to meet the different loads handling operations.It is a very economical way to handle long and large loads. Therefore, it is an economical and affordable new type of hoist crane.

Features of double hoist overhead crane :

• Compact size;
• Double hoist operation, economical and practical;
• Small size, can effectively use the workshop space;
• The structure of the whole machine is simple, easy to install, use and maintain;
• Light weight and small wheel pressure.

Lifting range of double hoist crane :

The common lifting capacity is 1t-25t, the span is 7.5m-22.5m, three-phase 380V, 50Hz power supply is used, and the working environment temperature is -25°C-40°C. It can also be designed individually according to user requirements.

If an overhead crane has two or more main hoists, it might be necessary to operate both of them at once or at the same time to realize the tandem operation. In order to maintain the load's alignment as it was when the hoisting began, both the overhead hoists run and stop simultaneously when the hoisting synchronization mode is in operation. Two electric travelling hoists are moved simultaneously by one operator interface at the same speed and in the same direction.

Easy synchronized crane operation, high efficiency and safety . Contact us to get your cusotmized single
