Engineered Custom Gantry Crane | 40 Ton, 60 Ton, 80 Ton, 100 Ton

Custom gantry crane for sale. Custom engineered gantry crane for your particular applications, with capacity of 40 ton,60 Ton, 80 Ton, 100 Ton. Get custom gantry crane design and drawing !

An engineered gantry crane is very important in all types of engineering working environments, such as lifting many different types of building materials, engines, and building equipment weighing 1 ton to 100 tons. These custom gantry cranes can also be used to lift, move, and transport various weights in a port, warehouse, workshop, or hydro-power station. With top quality and high safety, as well as  so many safe protection devices and human-centered design, our company's affordable engineered lifting equipment is well received all over the world.

Custom engineered gantry cranes are usually designed for complicated material handling projects with reliable performance, and a large lifting capacity. Some of the most typical types of custom engineered gantry cranes are such as ,  shield gantry cranes, lift bridge-girder gantry cranes, overhead launching gantries, and so on.

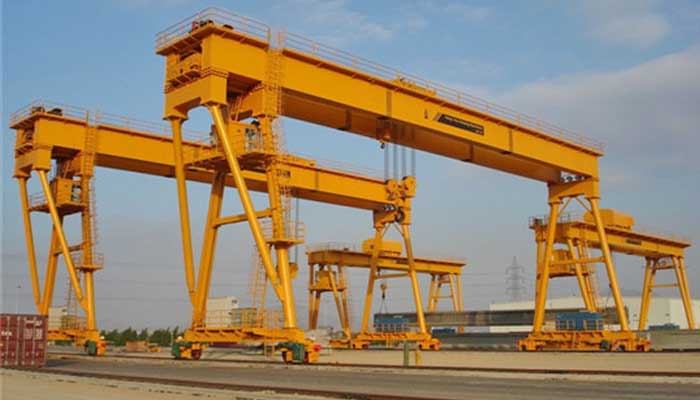

Custom gantry crane with double beam box girder design

Engineered gantry cranes, Custom gantry crane design , Affordable lifting solution

Yuantai Crane are able to design 60+ different types of engineered gantry crane for sale to meet different application needs and requirements in different industrial sectors. As the well-known gantry crane manufacturer,  we pursuing 100% satisfaction of clients around world, relying on our extensive experience and strong expert team. If you have any need of engineering gantry crane, please feel free to contact us.

Our crane company have the four different types of engineered gantry cranes offered based on the girder designs.

• The first is the BMH electric hoist semi single girder & double girder engineered gantry crane,with single supporting legs  which is primarily used in outdoor environments, with the exception of the leg, which is suitable for lifting objects from 2-16 ton & 3 ton to 100 ton and has a span of 5-20m.
• Second, the L type single girder engineered gantry crane with a large leg space and a lifting capacity of 5-50 tons.
• The third type of low-cost engineered equipment is the box structure single girder & double girder engineered gantry crane design with or without cantilever, which has 3.2-20 ton, 5 ton -100 ton lifting capacity, 12-30m span, and 6-12m lifting height.
• Finally, the truss structure single girder & double girder custom gantry cranes design has 3.2-20 ton, 5 ton -100 ton lifting capacity. Due to the high level anti-wind capacity, the truss structure engineered gantry cranes machine is more suitable for outdoor working environments with strong winds.

Engineered Custom Gantry Crane

• Capacity:40~100t
• Span:20-40m
• Lifting height:9-12m
• Ambient Temperature:-25~40℃

Applications of motorized custom gantry cranes

Custom Electric Gantry Cranes are made up of two legs that move across fixed rails within a specific area. Vehicles and motorized equipment pass beneath the main girder of crane, and the trolley moves within the beam's span.

This lifting gantry equipment is ideal for rail yards, steel yards, power plants, and warehouses. Indoor and outdoor applications are possible. Single and double girder options are available.

Custom gantry cranes are used in a variety of industries, ranging from metals production to general manufacturing, with each process necessitating a unique solution. A steel mill crane requires heat and dust protection. Specialized grabs are required for power plants and waste-to-energy facilities. Special engineered cranes are used in car factories for coil handling, stamping, and assembly. Mining and primary metals processing are frequently carried out in unique environments that necessitate special crane adaptations.

Features of custom gantry crane

Engineered Gantry Crane is a type of gantry crane that is designed on the basis of a standard gantry crane to meet the operating requirements and working conditions. The engineered gantry crane is made up of a crab, gantry, trolley, traveling mechanism, cab, and electric equipment, as well as customized features and options to meet your specific application conditions and lifting needs.

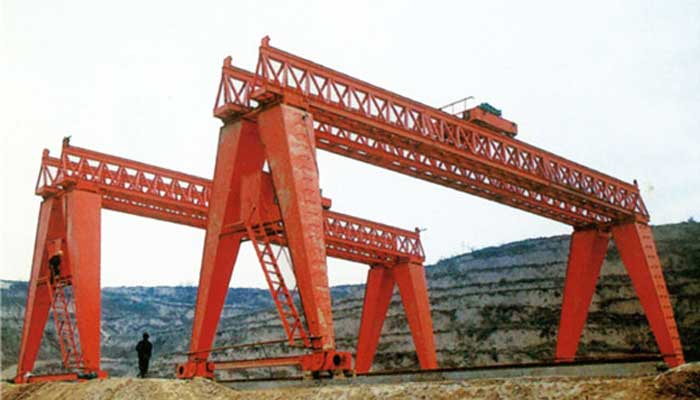

Engineered custom gantry crane with double beam truss girder design

Features of custom gantry crane

• Yuantai custom gantry cranes come with the following features:
• Increased lifting capacity of several hundred tons.
• Designed to meet environmental and process specifications.
• A diverse set of options for demanding applications and processes.
• Designed to require less maintenance.
• Heat and corrosion resistance for harsh environmental conditions.
•  Reasonable structure and satisfactory performance.
•  Smooth start-up and shutdown.
• Reliable and safe travel, as well as a long life.
•  Comfortable cabin with a good view and low noise.
• Simple installation and maintenance.
• Excellent part and component interchangeability.
• Crane drive: IP54 or IP44, insulation level F.

Benefits of engineered custom gantry crane

Yuantai custom gantry cranes have the following advantages:

• A wide range of lifting capacities provides versatility in application.
• Time-tested technology adapted for new applications.
• Cutting-edge technology for improved performance and safety.
• Superior engineering for maximum safety, dependability, and productivity.
• Comprehensive global service.
• Remote monitoring aids in the planning of operations in order to maximize uptime productivity while minimizing downtime costs.

Safety features of custom gantry crane

• 1. Protective device against weight overload.
• 2. High-quality, long-lasting polyurethane materials buffer.
• 3. Limit switch for crane travel.
• 4. Voltage reduction protection function.
• 5. Emergency braking system.
• 6. Current overload protection system, among other things!

Yuantai Crane can provide turnkey projects such as gantry crane installation, gantry crane commissioning, and gantry crane operator training. Yuantai crane can custom design the gantry crane drawing based on the gantry crane dimensions specified by the customer.

Main Specifictions of 40 ton gantry cranes

Main Specifictions of 60 ton gantry cranes

Main Specifictions of 80 ton gantry cranes

Main Specifictions of 100 ton gantry cranes

The above tenical specifications are just for your reference. As for your custom engineered gantry crane, please leave us your specification and lifting requirments, and custom crane design and drawing will be provided. Check what we can do to save your money.
